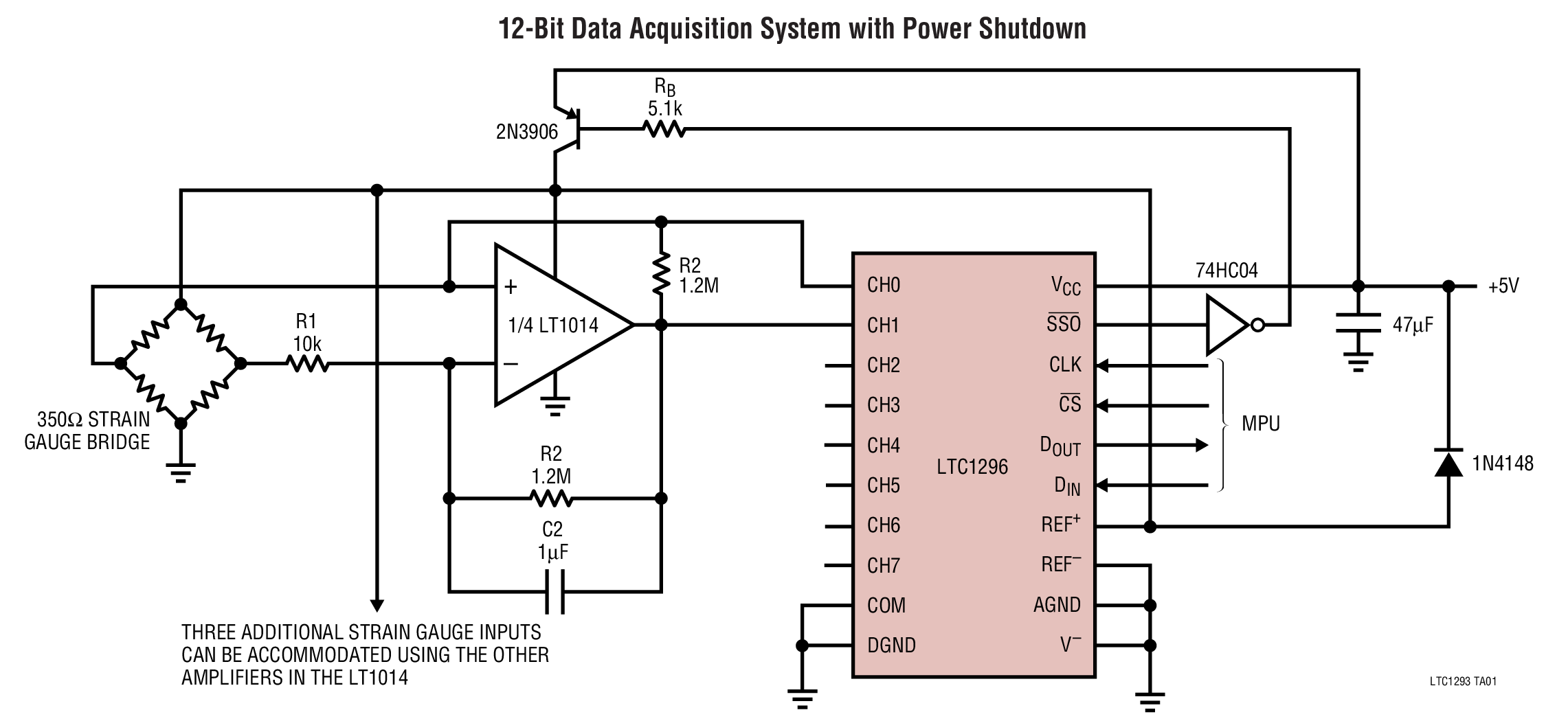

LTC1296 - 典型应用图例：

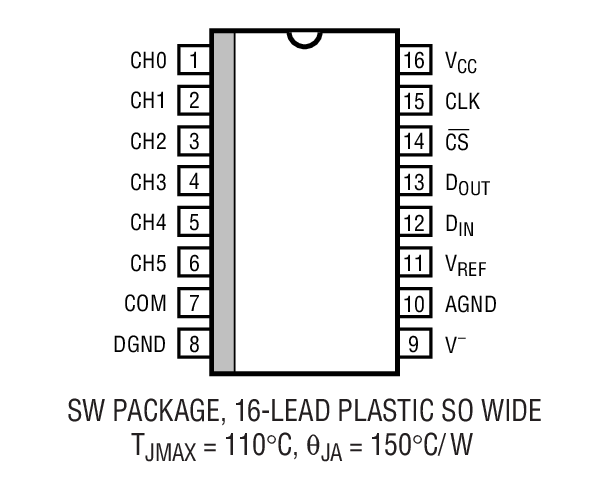

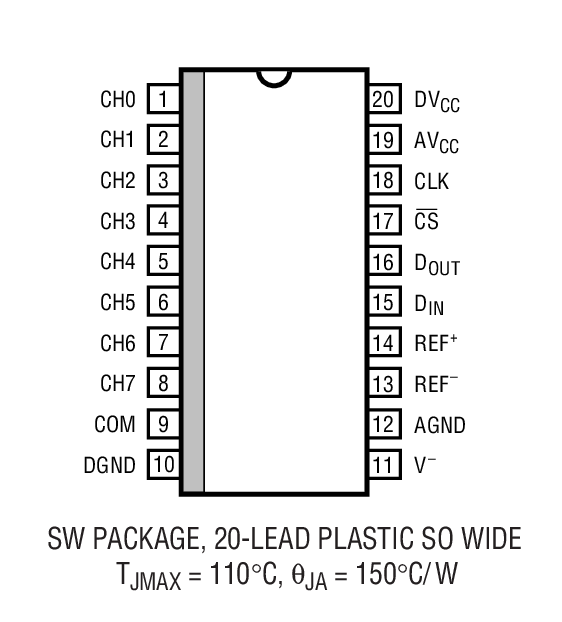

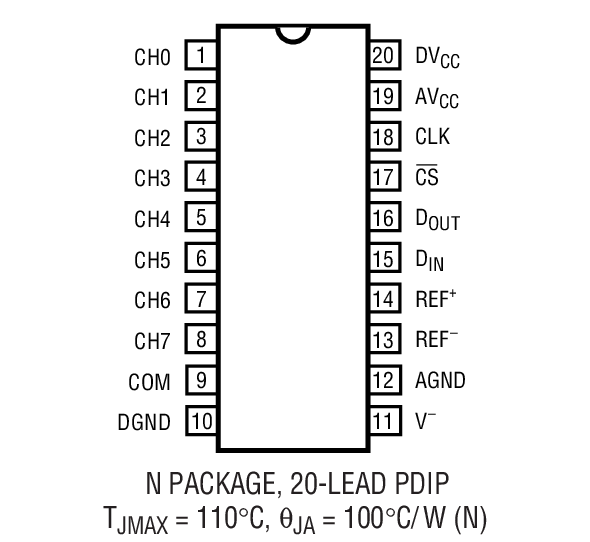

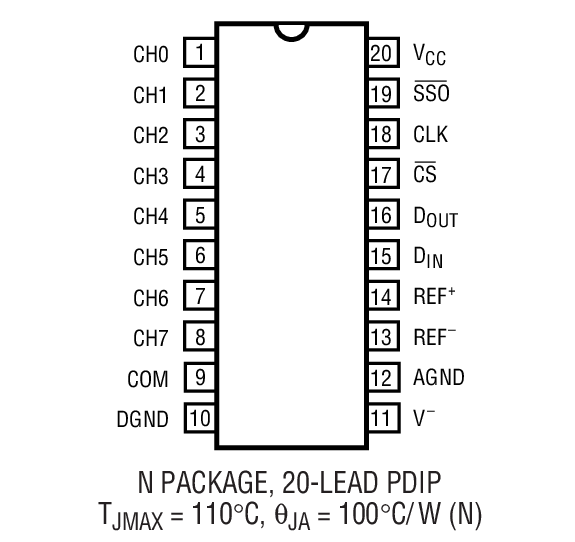

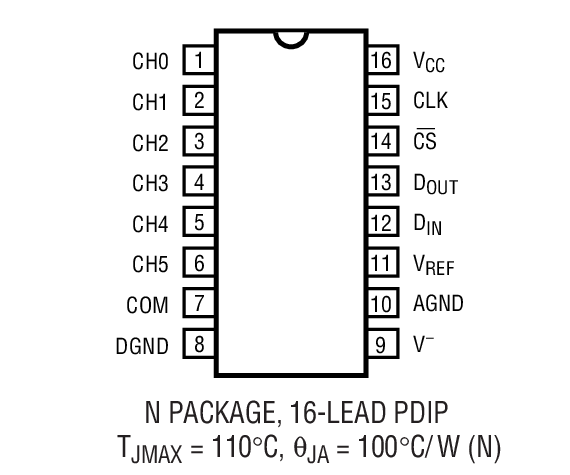

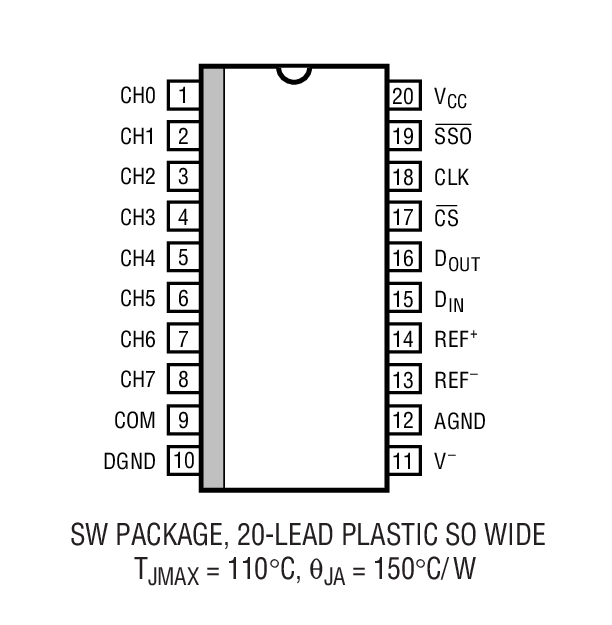

LTC1296 - 封装图解：

LINEAR凌力尔特芯片：

LTC1296 - LTC1296是Single Chip 12-Bit Data Acquisition System

LTC1296是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1296是LTC1296是Single Chip 12-Bit Data Acquisition System，本站介绍了LTC1296的封装应用图解、特点和优点、功能等，并给出了与LTC1296相关的LINEAR元器件型号供参考。

LTC1296 - LTC1296是Single Chip 12-Bit Data Acquisition System - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1296 - Single Chip 12-Bit Data Acquisition System

LTC1296 - Single Chip 12-Bit Data Acquisition System - Linear Technology（凌力尔特）

功能描述

The input multiplexer can be configured for either single ended or differential inputs (or combinations thereof). An on-chip sample and hold is included for all single ended input channels. When the LTC1293/4/6 is idle it can be powered down in applications where low power consumption is desired. The LTC1296 includes a System Shutdown Output pin which can be used to power down external circuitry, such as signal conditioning circuitry prior to the input mux.

The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing up to eight channels of data to be transmitted over as few as three wires.

特点

Software Programmable Features:Unipolar/Bipolar ConversionDifferential/Single Ended InputsMSB-First or MSB/LSB Data

Built-In Sample and Hold

Single Supply 5V or ±5V Operation

Direct 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel Ports

46.5kHz Maximum Throughput Rate

System Shutdown Output (LTC1296)

应用

LTC1290 - Single Chip 12-Bit Data Acquisition System

LTC1294 - Single Chip 12-Bit Data Acquisition System

LT5400 - 四个匹配的电阻器

LTC1289 - 3 Volt Single Chip 12-Bit Data Acquisition System

LTC1863 - 12 位、8 通道 200ksps ADC

LTC2309 - 具 I2C 接口的 8 通道、12 位 SAR 型 ADC

LTC6102 - 精准零漂移电流检测放大器

LTC1867 - 16 位、8 通道 200ksps ADC

LT3060 系列 - 45V Vin、微功率、低噪声、100mA 低压差线性稳压器

LT3080 - 可调 1.1A、单电阻、低压差稳压器

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1296BCN	N-20	C	$16.25	$12.85
LTC1296BCN#PBF	N-20	C	$16.25	$12.85
LTC1296BCSW	SW-20	C	$16.65	$13.15
LTC1296BCSW#PBF	SW-20	C	$16.65	$13.15
LTC1296BCSW#TR	SW-20	C		$13.25
LTC1296BCSW#TRPBF	SW-20	C		$13.25
LTC1296BIN	N-20	I	$18.35	$14.45
LTC1296BIN#PBF	N-20	I	$18.35	$14.45
LTC1296BISW	SW-20	I	$18.75	$14.80
LTC1296BISW#PBF	SW-20	I	$18.75	$14.80
LTC1296BISW#TR	SW-20	I		$14.90
LTC1296BISW#TRPBF	SW-20	I		$14.90
LTC1296CCN	N-20	C	$11.60	$9.15
LTC1296CCN#PBF	N-20	C	$11.60	$9.15
LTC1296CCSW	SW-20	C	$11.90	$9.40
LTC1296CCSW#PBF	SW-20	C	$11.90	$9.40
LTC1296CCSW#TR	SW-20	C		$9.50
LTC1296CCSW#TRPBF	SW-20	C		$9.50
LTC1296CIN	N-20	I	$13.75	$10.85
LTC1296CIN#PBF	N-20	I	$13.75	$10.85
LTC1296CISW	SW-20	I	$14.15	$11.20
LTC1296CISW#PBF	SW-20	I	$14.15	$11.20
LTC1296CISW#TR	SW-20	I		$11.30
LTC1296CISW#TRPBF	SW-20	I		$11.30
LTC1296DCN	N-20	C	$10.60	$8.35
LTC1296DCN#PBF	N-20	C	$10.60	$8.35
LTC1296DCSW	SW-20	C	$10.85	$8.55
LTC1296DCSW#PBF	SW-20	C	$10.85	$8.55
LTC1296DCSW#TR	SW-20	C		$8.65
LTC1296DCSW#TRPBF	SW-20	C		$8.65
LTC1296DIN	N-20	I	$12.90	$10.20
LTC1296DIN#PBF	N-20	I	$12.90	$10.20
LTC1296DISW	SW-20	I	$13.35	$10.55
LTC1296DISW#PBF	SW-20	I	$13.35	$10.55
LTC1296DISW#TR	SW-20	I		$10.65
LTC1296DISW#TRPBF	SW-20	I		$10.65
