当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1093
LTC1093技术文档下载：
LTC1093技术文档产品手册下载
LTC1093 - 典型应用图例：
LTC1093典型应用图例一

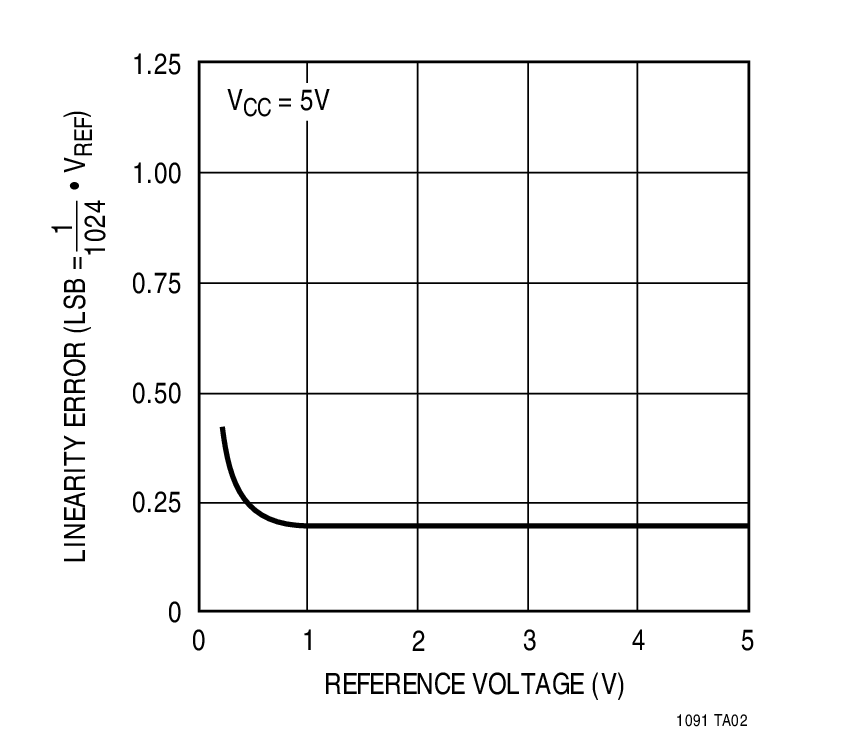

LTC1093典型应用图例二
LTC1093 - 封装图解：

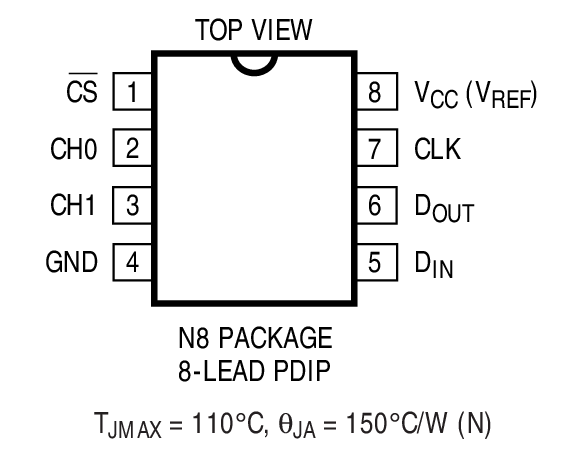

LTC1093封装图解一

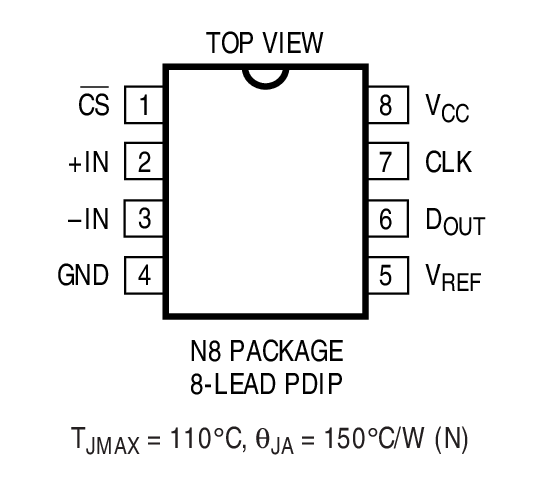

LTC1093封装图解二

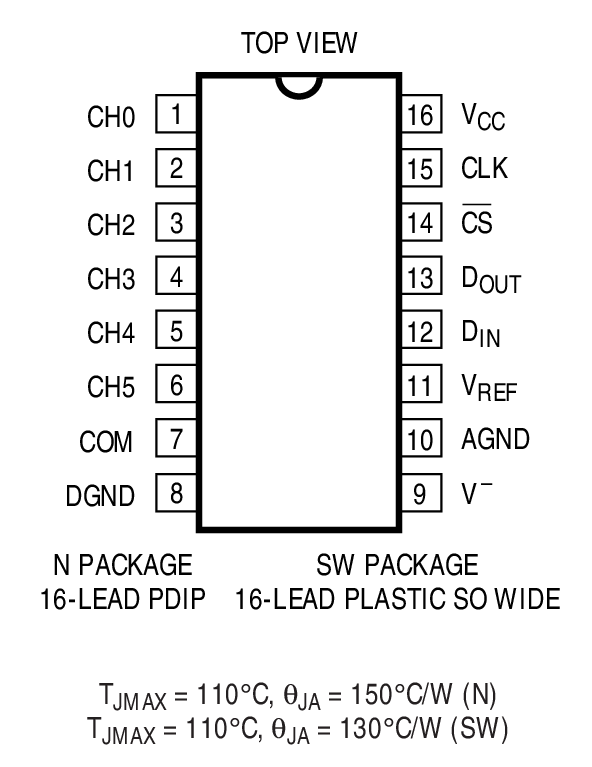

LTC1093封装图解三

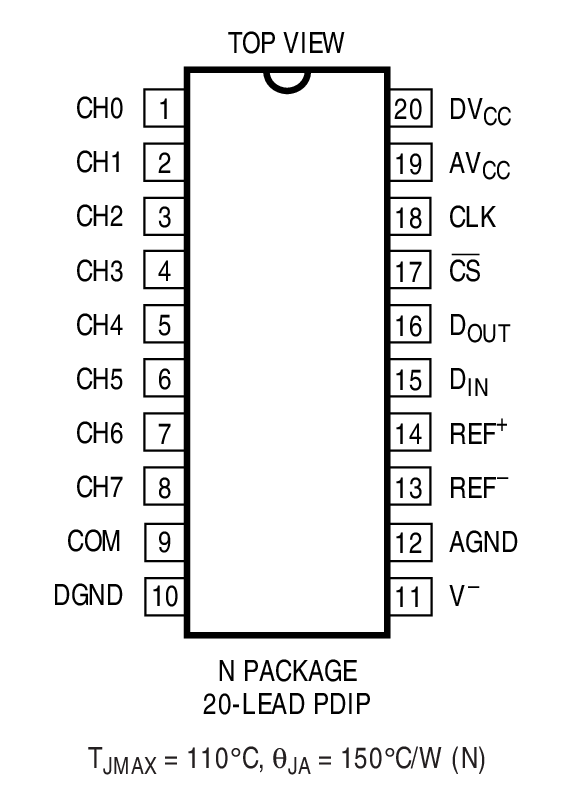

LTC1093封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1093介绍

LTC1093 - LTC1093是1, 2, 6 and 8 Channel, 10-Bit Serial I/O Data Acquisition Systems

LTC1093是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1093是LTC1093是1, 2, 6 and 8 Channel, 10-Bit Serial I/O Data Acquisition Systems，本站介绍了LTC1093的封装应用图解、特点和优点、功能等，并给出了与LTC1093相关的LINEAR元器件型号供参考。

LTC1093 - LTC1093是1, 2, 6 and 8 Channel, 10-Bit Serial I/O Data Acquisition Systems - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1093 - 1, 2, 6 and 8 Channel, 10-Bit Serial I/O Data Acquisition Systems

LTC1093 - 1, 2, 6 and 8 Channel, 10-Bit Serial I/O Data Acquisition Systems - Linear Technology（凌力尔特）

功能描述

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Linear Technology Are Now Obsolete

The high impedance analog inputs and the ability to operate with reduced spans (below 1V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages. An efficient serial port communicates without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing eight channels of data to be transmitted over as few as three wires. This, coupled with low power consumption, makes remote location possible and facilitates transmitting data through isolation barriers. Temperature drift of offset, linearity and full-scale error are all extremely low (1ppm/°C typically) allowing all grades to be specified with offset and linearity errors of ±0.5LSB maximum over temperature. In addition, the A grade devices are specified with full-scale error and total unadjusted error (including the effects of offset, linearity and full-scale errors) of ±1LSB maximum over temperature. The lower grade has a full-scale specification of ±2LSB for applications where full scale is adjustable or less critical.

特点
  • Programmable Features– Unipolar/Bipolar Conversions– Differential/Single-Ended Multiplexer Configurations
  • Sample-and-Holds
  • Single Supply 5V, 10V or ±5V Operation
  • Direct 3- or 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel I/O Ports
  • Analog Inputs Common Mode to Supply Rails
  • Resolution: 10 Bits
  • Total Unadjusted Error (A Grade): ±1LSB Over Temp
  • Fast Conversion Time: 20µs
  • Low Supply CurrentLTC1091: 3.5mA Max, 1.5mA TypLTC1092/LTC1093/LTC1094: 2.5mA Max, 1mA Typ
    • 应用
  • LTC6992-1 / LTC6992-2 / LTC6992-3 / LTC6992-4 - TimerBlox : 电压控制型脉宽调制器 (PWM)
  • LTC2991 - 8 通道 I2C 电压、电流和温度监视器
  • LT5400 - 四个匹配的电阻器
  • LT3092 - 200mA、两端可编程电流源
  • LT3080 - 可调 1.1A、单电阻、低压差稳压器
  • LTC1408 - 具停机功能的 6 通道、14 位、600ksps 同时采样 ADC
  • LTC1094 - 1, 2, 6 and 8 Channel, 10-Bit Serial I/O Data Acquisition Systems
  • LTC2990 - 四路 I2C 电压、电流和温度监视器
  • LT1028 - 超低噪声、精准型高速运算放大器
  • LTC2955 - 具自动接通功能的按钮接通/关断控制器
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1093ACN N-16 C $17.15 $14.95
    LTC1093ACN#PBF N-16 C $17.15 $14.95
    LTC1093CN N-16 C $11.65 $9.45
    LTC1093CN#PBF N-16 C $11.65 $9.45
    LTC1093CSW SW-16 C $15.15 $12.45
    LTC1093CSW#PBF SW-16 C $15.15 $12.45
    LTC1093CSW#TR SW-16 C $12.51
    LTC1093CSW#TRPBF SW-16 C $12.51
