LTC1064-7是Linear Phase, 8th Order Lowpass Filter

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1064-7

LTC1064-7技术文档下载：

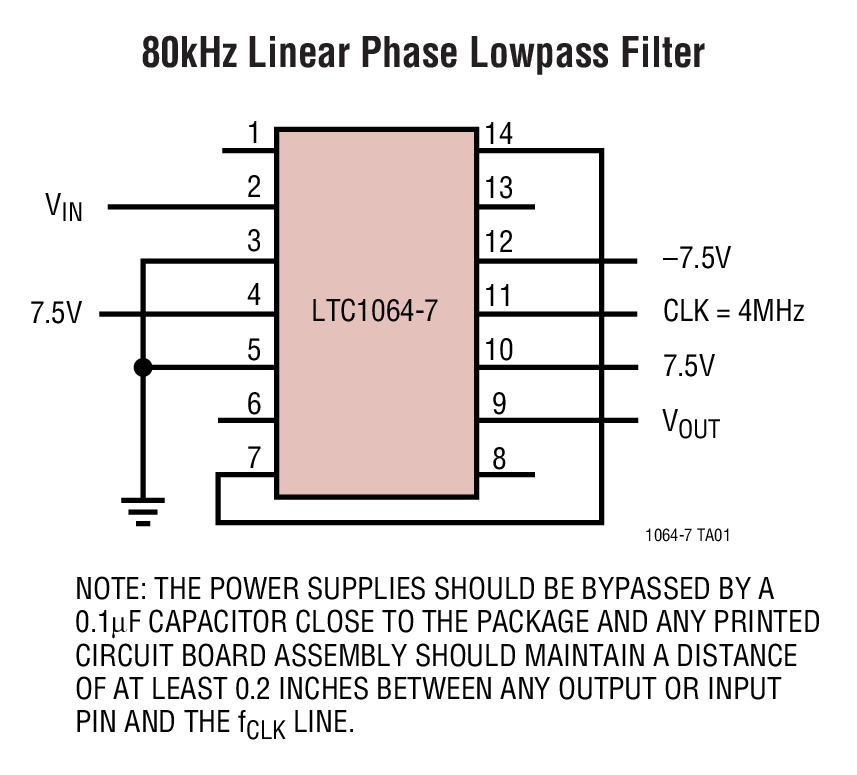

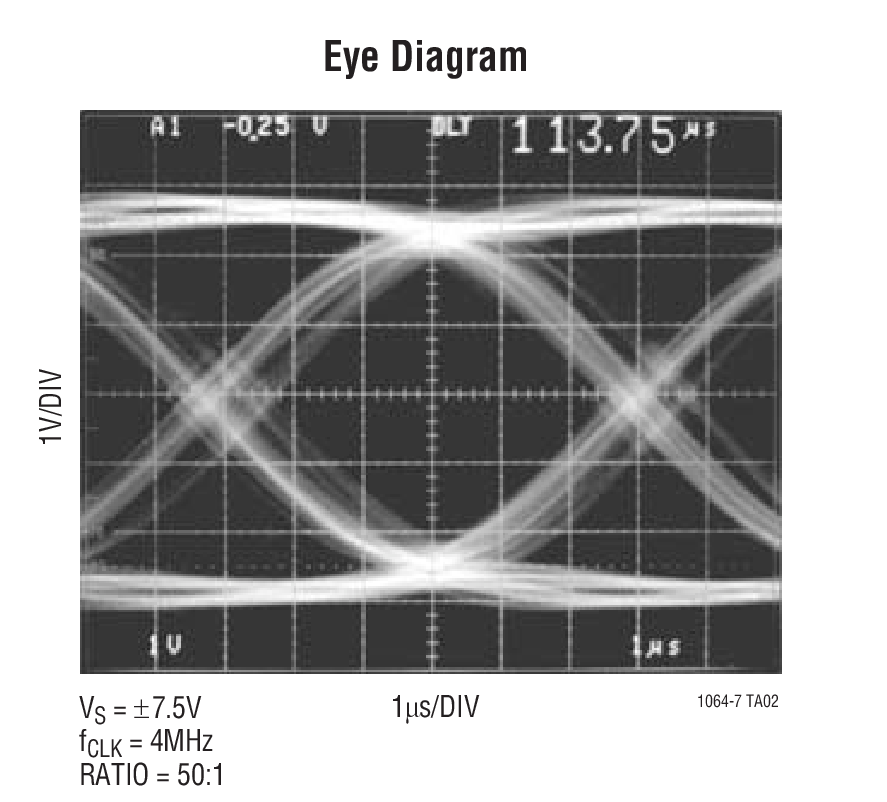

LTC1064-7 - 典型应用图例：

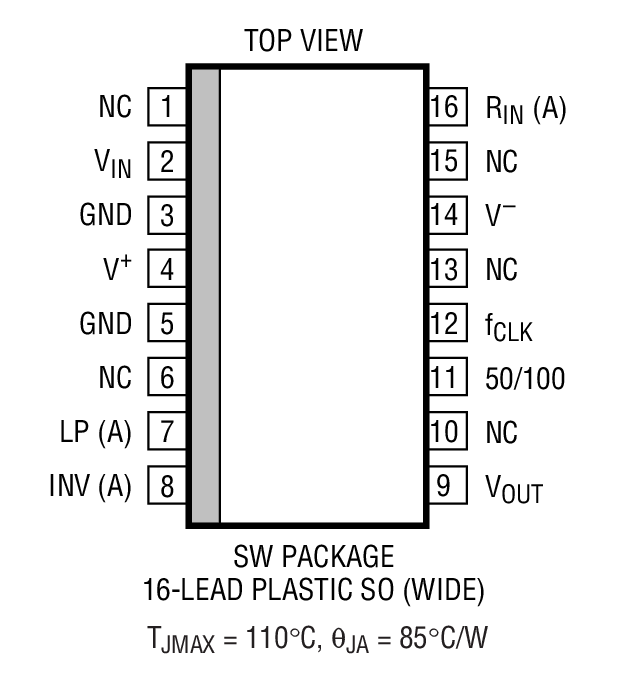

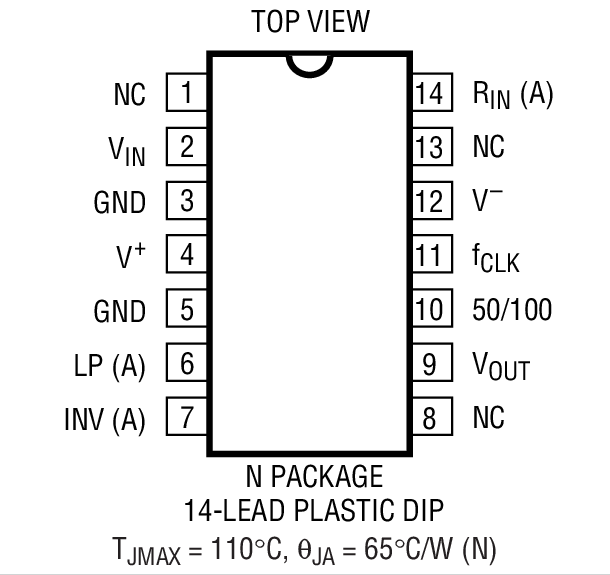

LTC1064-7 - 封装图解：

LTC1064-7 - LTC1064-7是Linear Phase, 8th Order Lowpass Filter

LTC1064-7是Linear公司的一款低通滤波器产品，LTC1064-7是Linear Phase, 8th Order Lowpass Filter，本站介绍了LTC1064-7的封装应用图解、特点和优点、功能等，并给出了与LTC1064-7相关的凌力尔特元器件型号供参考。

LTC1064-7 - Linear Phase, 8th Order Lowpass Filter

LTC1064-7 - Linear Phase, 8th Order Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The LTC1064-7 features wide dynamic range. With single 5V supply, the S/N + THD is 76dB. Optimum 92dB S/N is obtained with ±7.5V supplies. The clock-to-cutoff frequency ratio of the LTC1064-7 can be set to 50:1 (pin 10 to V + ) or 100:1 (pin 10 to V - ).

When the filter operates at clock-to-cutoff frequency ratio of 50:1, the input is double-sampled to lower the risk of aliasing.

The LTC1064-7 is pin-compatible with the LTC1064-X series, LTC1164-7 and LTC1264-7.

特点

Steeper Roll-Off Than 8th Order Bessel Filters

fCUTOFF up to 100kHz

Phase Equalized Filter in 14-Pin Package

Phase and Group Delay Response Fully Tested

Transient Response Exhibits 5% Overshoot and No Ringing

Wide Dynamic Range

72dB THD or Better Throughout a 50kHz Passband

No External Components Needed

Available in 14-Pin DIP and 16-Pin SO Wide Packages

应用

Data Communication Filters

Time Delay Networks

Phase-Matched Filters

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1064-7CN	N-14	C	$13.35	$10.80
LTC1064-7CN#PBF	N-14	C	$13.35	$10.80
LTC1064-7CSW	SW-16	C	$18.35	$14.85
LTC1064-7CSW#PBF	SW-16	C	$18.35	$14.85
LTC1064-7CSW#TR	SW-16	C		$14.91
LTC1064-7CSW#TRPBF	SW-16	C		$14.91
