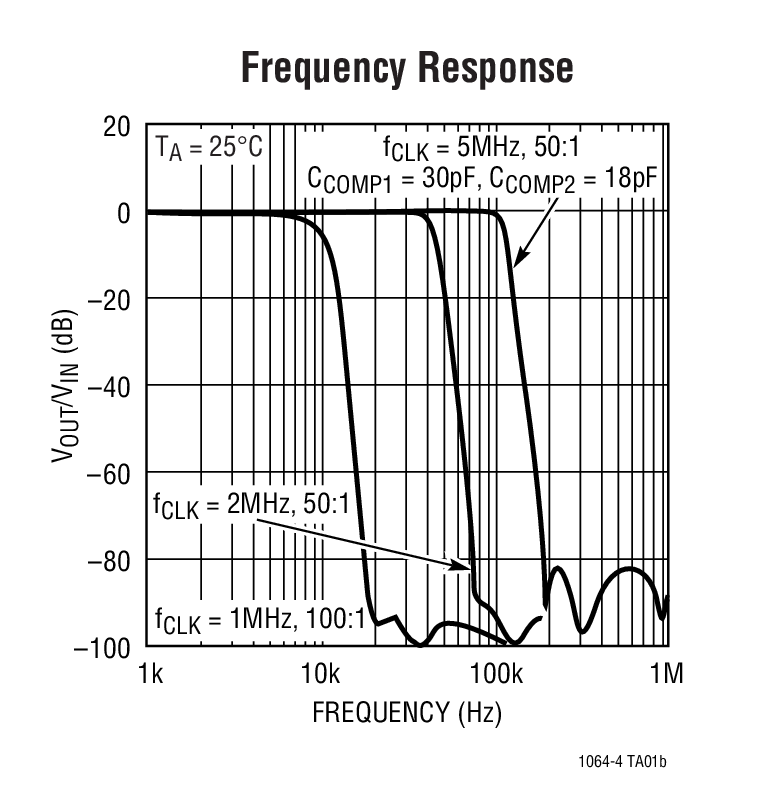

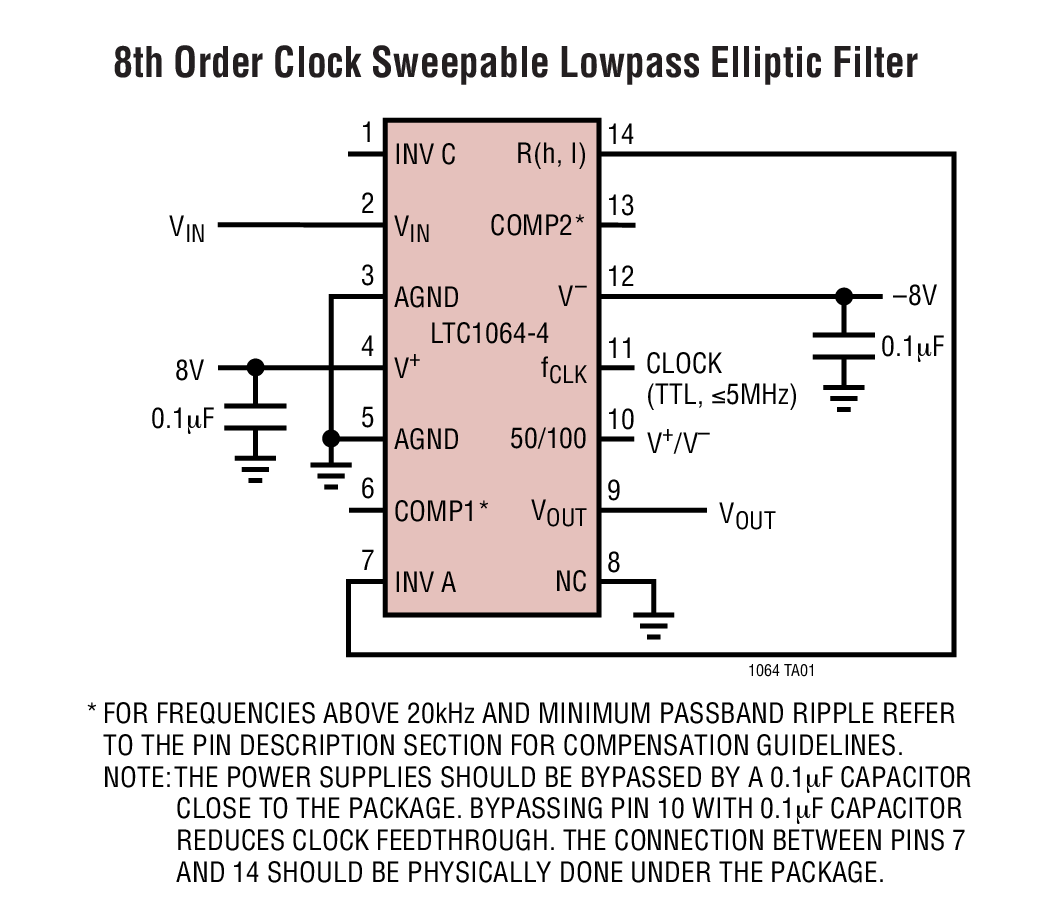

LTC1064-4 - 典型应用图例：
LTC1064-4典型应用图例一
LTC1064-4典型应用图例二

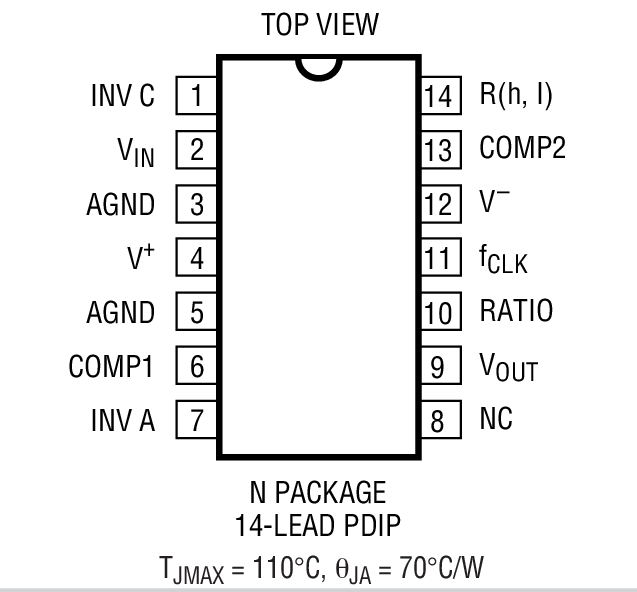

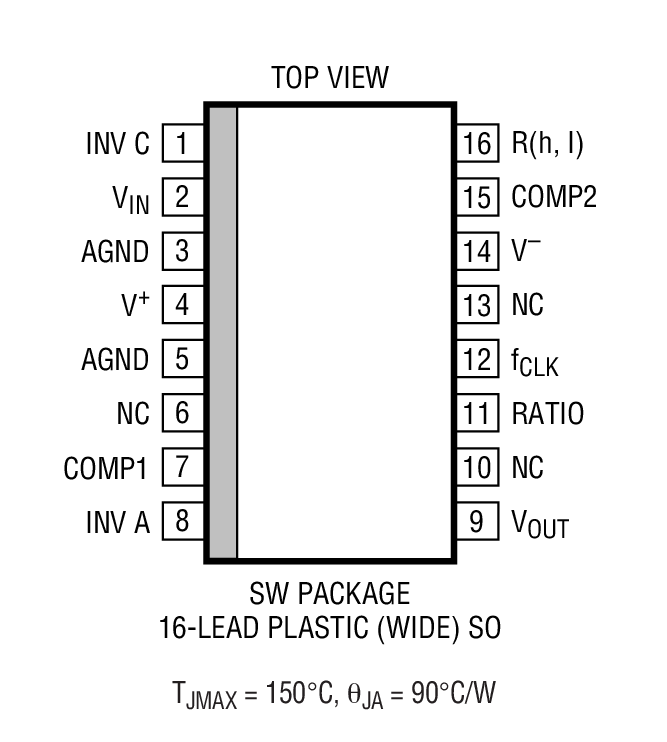

LTC1064-4 - 封装图解：
LTC1064-4封装图解一
LTC1064-4封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1064-4介绍

LTC1064-4 - LTC1064-4是Low Noise, 8th Order, Clock Sweepable Cauer Lowpass Filter

LTC1064-4是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1064-4是LTC1064-4是Low Noise, 8th Order, Clock Sweepable Cauer Lowpass Filter，本站介绍了LTC1064-4的封装应用图解、特点和优点、功能等，并给出了与LTC1064-4相关的LINEAR元器件型号供参考。

LTC1064-4 - LTC1064-4是Low Noise, 8th Order, Clock Sweepable Cauer Lowpass Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1064-4 - Low Noise, 8th Order, Clock Sweepable Cauer Lowpass Filter

LTC1064-4 - Low Noise, 8th Order, Clock Sweepable Cauer Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The LTC1064-4 is an 8th order, clock sweepable Cauer lowpass switched capacitor filter. An external TTL or CMOS clock programs the value of the filter's cutoff frequency. With Pin 10 at V+, the fCLK to fCUTOFF ratio is 50:1; the filter has a Cauer response and with compensation the passband ripple is ±0.1dB. The stopband attenuation is 80dB at 2×fCUTOFF. Cutoff frequencies up to 100kHz can be achieved. With Pin 10 at V, the fCLK to f-3dB ratio is 100:1, the filter has a transitional Butterworth-Cauer response with lower noise and lower delay nonlinearity than the Cauer response. The stopband attenuation at 2.5 x f-3dB is 92dB. Cutoff frequencies up to 50kHz can be achieved.

The LTC1064-4 features low noise and low harmonic distortion even when input voltages up to 3VRMS are applied. The LTC1064-4 overall performance competes with equivalent multiple op amp active realizations. The LTC1064-4 is pin compatible with the LTC1064-1, LTC1064-2 and LTC1064-3.

The LTC1064-4 is manufactured using Linear Technology's enhanced LTCMOS? silicon gate process.

特点
  • 8th Order Filter in a 14-Pin Package
  • 80dB or More Stopband Attenuation
  • at 2 x fCUTOFF
  • 50:1 fCLK to fCUTOFF Ratio (Cauer)
  • 100:1 fCLK to f-3dB Ratio (Transitional)
  • 135μVRMS Total Wideband Noise
  • 0.03% THD or Better
  • 100kHz Maximum fCUTOFF Frequency
  • Operates up to ±8V Power Supplies
  • Input Frequency Range up to 50 Times the Filter Cutoff Frequency
    • 应用
  • Antialiasing Filters
  • Telecom Filters
  • Sinewave Generators
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1064-4CN N-14 C $16.70 $13.70
    LTC1064-4CN#PBF N-14 C $16.70 $13.70
    LTC1064-4CSW SW-16 C $20.85 $16.90
    LTC1064-4CSW#PBF SW-16 C $20.85 $16.90
    LTC1064-4CSW#TR SW-16 C $16.96
    LTC1064-4CSW#TRPBF SW-16 C $16.96
    LTC1064-4MJ TSSOP-14 M $78.60
