当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT6650HS5
LT6650HS5技术文档下载：
LT6650HS5技术文档产品手册下载
LT6650HS5 - 典型应用图例：

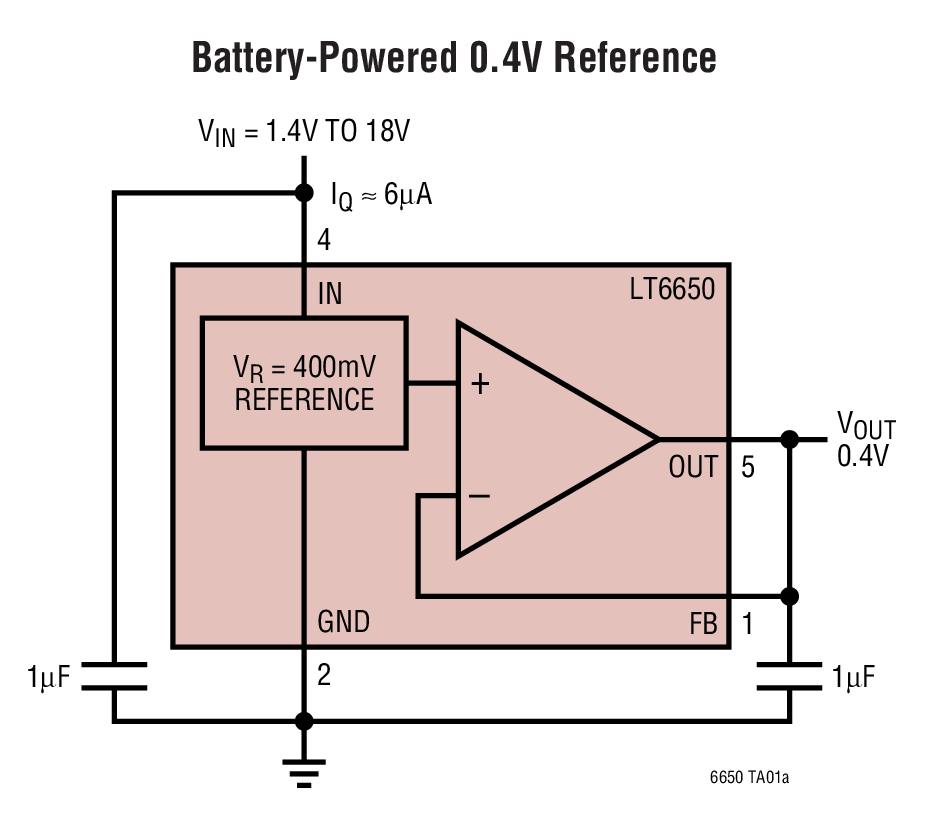

LT6650HS5典型应用图例一

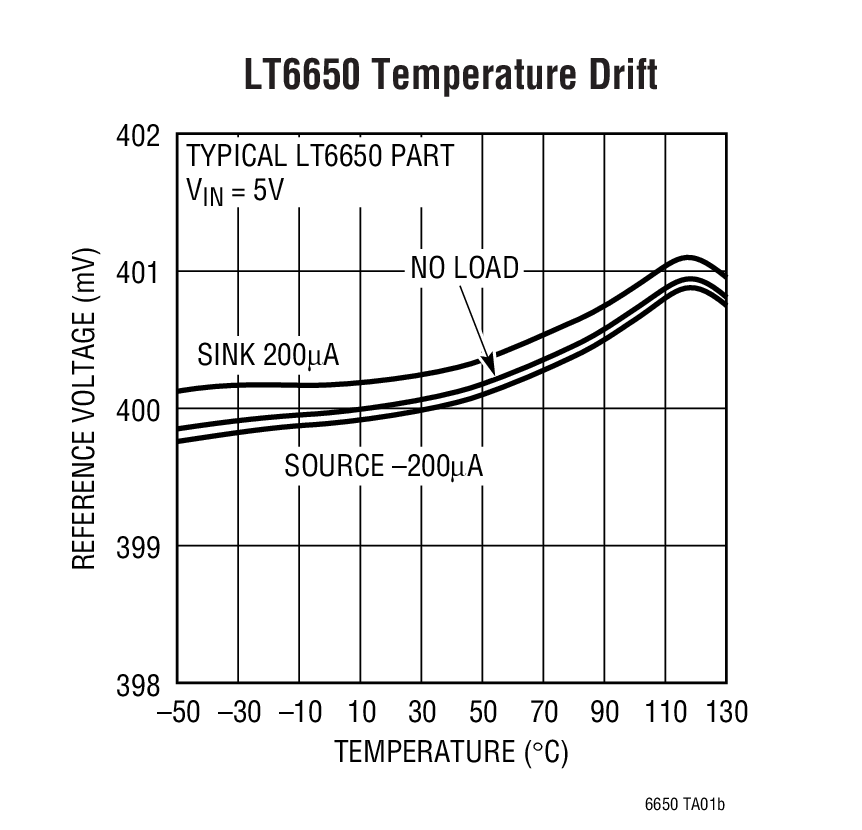

LT6650HS5典型应用图例二
LT6650HS5 - 封装图解：

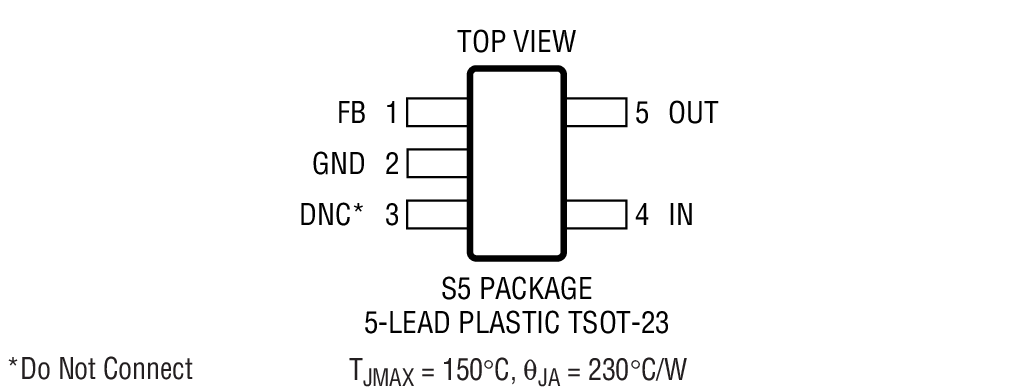

LT6650HS5封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT6650HS5介绍

LT6650HS5 - LT6650HS5是Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23

LT6650HS5是LINEAR凌力尔特公司的一款扩展温度 (H 和 MP) 电压基准产品，LT6650HS5是LT6650HS5是Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23，本站介绍了LT6650HS5的封装应用图解、特点和优点、功能等，并给出了与LT6650HS5相关的LINEAR元器件型号供参考。

LT6650HS5 - LT6650HS5是Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23 - 扩展温度 (H 和 MP) 电压基准 - 航天和严酷环境 - 凌力尔特

LT6650HS5 - Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23

LT6650 - Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23 - Linear Technology（凌力尔特）

功能描述

The LT6650 is a micropower, low voltage 400mV reference. Operating with supplies from 1.4V up to 18V, the device draws only 5.6μA typical, making it ideal for low voltage systems as well as handheld instruments and industrial control systems. With only two resistors the internal buffer amplifier can scale the 400mV reference to any desired value up to the supply voltage.

The reference is postpackage-trimmed to increase the output accuracy. The output can sink and source 200μA over temperature. Quiescent power dissipation is 28μW. Stability is ensured with any output capacitor of 1μF or higher.

The LT6650 is the lowest voltage series reference available in the 5-lead SOT-23 package.

特点
  • Low Quiescent Current 5.6μA (typical)
  • Wide Supply Range: 1.4V to 18V
  • 400mV Reference ±1% Maximum Accuracy Over Temperature at 5V
  • Rail-to-Rail Buffer Amplifier
  • 0.5% 400mV Maximum Initial Accuracy at 5V
  • Shunt Configurable
  • Sinks and Sources Current
  • Wide Operational Range 40°C to 125°C
  • Externally Adjustable Output Voltage
  • Low Profile 1mm 5-lead SOT-23 (ThinSOT?) Package
    • 应用
  • Battery-Operated Systems
  • Handheld Instruments
  • Industrial Control Systems
  • Data Acquisition Systems
  • Negative Voltage References
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT6650CS5 SOT-23 C $1.88
    LT6650CS5#PBF SOT-23 C $1.88
    LT6650CS5#TR SOT-23 C $1.88 $1.25
    LT6650CS5#TRM SOT-23 C $1.88 $1.27
    LT6650CS5#TRMPBF SOT-23 C $1.88 $1.27
    LT6650CS5#TRPBF SOT-23 C $1.88 $1.25
    LT6650HS5 SOT-23 H $2.41
    LT6650HS5#PBF SOT-23 H $2.41
    LT6650HS5#TR SOT-23 H $2.41 $1.69
    LT6650HS5#TRM SOT-23 H $2.41 $1.71
    LT6650HS5#TRMPBF SOT-23 H $2.41 $1.71
    LT6650HS5#TRPBF SOT-23 H $2.41 $1.69
    LT6650IS5 SOT-23 I $2.41
    LT6650IS5#PBF SOT-23 I $2.41
    LT6650IS5#TR SOT-23 I $2.41 $1.69
    LT6650IS5#TRM SOT-23 I $2.41 $1.71
    LT6650IS5#TRMPBF SOT-23 I $2.41 $1.71
    LT6650IS5#TRPBF SOT-23 I $2.41 $1.69
