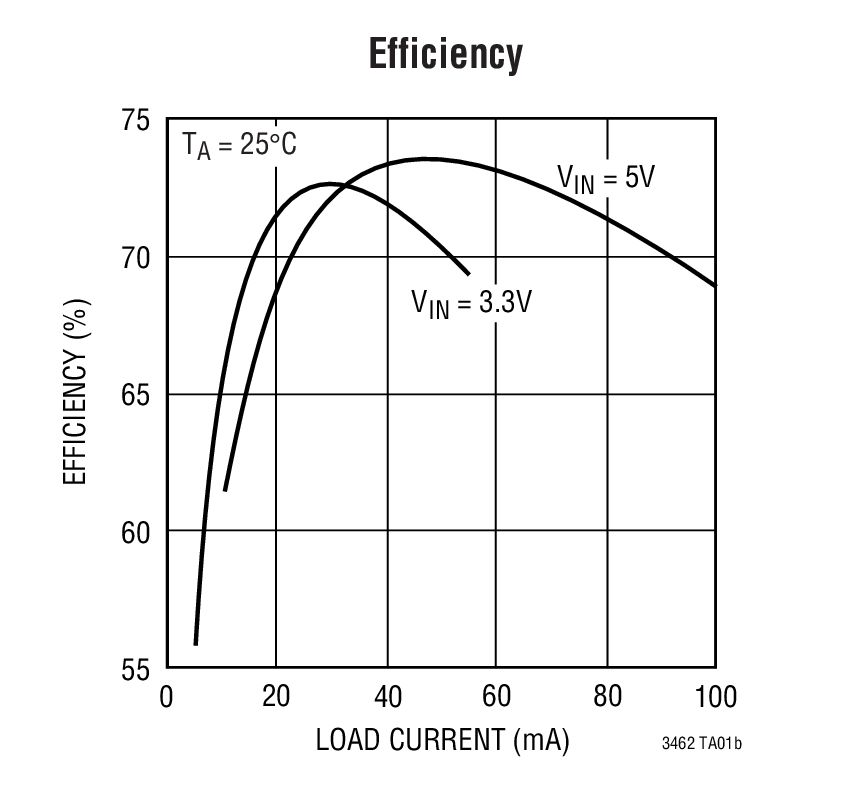

LT3462 - 典型应用图例:

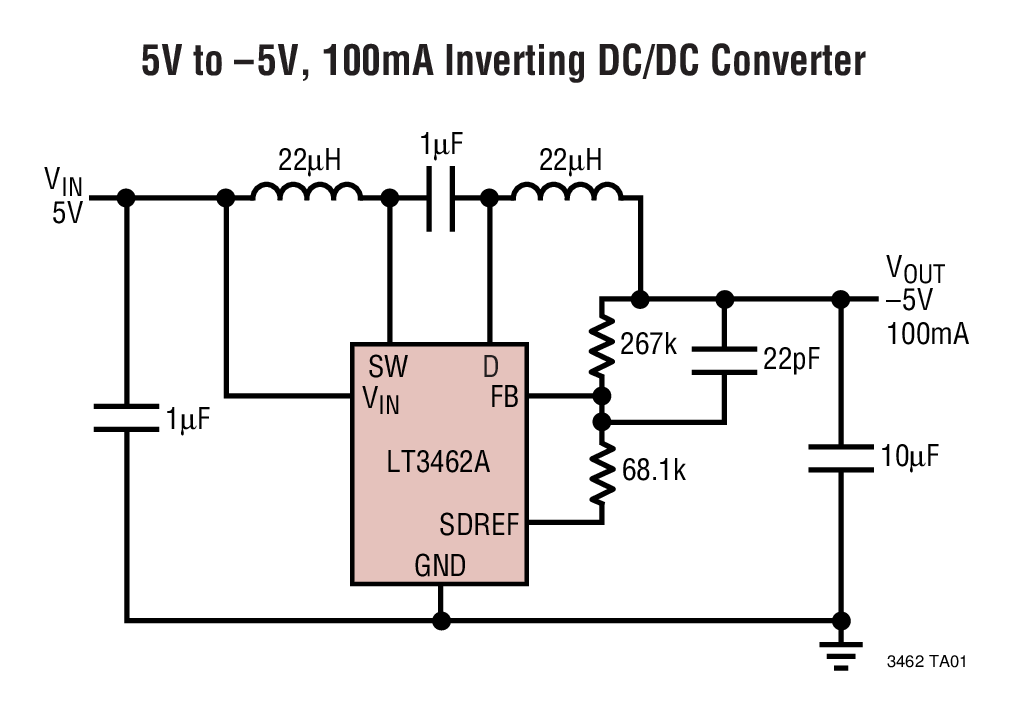

LT3462典型应用图例一
LT3462典型应用图例二

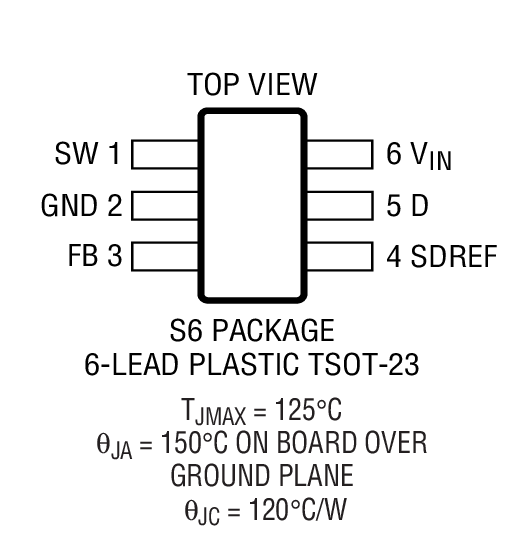

LT3462 - 封装图解:
LT3462封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT3462介绍
LT3462 - LT3462是Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT

LT3462是Linear公司的一款负输出稳压器产品,LT3462是Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT,本站介绍了LT3462的封装应用图解、特点和优点、功能等,并给出了与LT3462相关的凌力尔特元器件型号供参考。

LT3462 - Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT

LT3462 - Inverting 1.2MHz/2.7MHz DC/DC Converters with Integrated Schottky in ThinSOT - Linear Technology(凌力尔特)

功能描述

The LT?3462/LT3462A are general purpose fixed frequencycurrent mode inverting DC/DC converters. Bothdevices feature an integrated Schottky and a low VCESATswitch allowing a small converter footprint and lower partscost. The LT3462 switches at 1.2MHz while the LT3462Aswitches at 2.7MHz. These high speeds enable the use oftiny, low cost and low height capacitors and inductors.

The LT3462/LT3462A operate in a dual inductor invertingtopology that filters both the input and output currents.Very low output voltage ripple approaching 1mVP-P can beachieved when ceramic capacitors are used. Fixed frequencyswitching ensures a clean output free from lowfrequency noise typically present with charge pump solutions.The 40V switch allows a VIN to VOUT differential ofup to 38V for dual inductor topologies.

Both devices provide a low impedance 1.265V referenceoutput to supply the feedback resistor network. A groundreferenced, high impedance FB input allows high feedbackresistor values without compromising output accuracy.

The LT3462/LT3462A are available in a 6-lead SOT-23package.

特点
  • Integrated Schottky Rectifier
  • Fixed Frequency 1.2MHz/2.7MHz Operation
  • Very Low Noise: 1mVP-P Output Ripple
  • Low VCESAT Switch: 270mV at 250mA
  • ±5V at 100mA from 5V Input
  • ?12V at 30mA from 3.3V Input
  • Low Input Bias Current GND Based FB Input
  • Low Impedance (40 Ohm) 1.265V Reference Output
  • High Output Voltage: Up to ?38V
  • Wide Input Range: 2.5V to 16V
  • Uses Tiny Surface Mount Components
  • Low Shutdown Current: <10µA
  • Low Profile (1mm) SOT-23 (ThinSOT™) Package
  • 应用
  • CCD Bias
  • LCD Bias
  • GaAs FET Bias
  • General Purpose Negative Voltage Supply
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT3462AES6 SOT-23 E $2.50
    LT3462AES6#PBF SOT-23 E $2.50
    LT3462AES6#TR SOT-23 E $2.50 $2.11
    LT3462AES6#TRM SOT-23 E $2.50 $2.13
    LT3462AES6#TRMPBF SOT-23 E $2.50 $2.13
    LT3462AES6#TRPBF SOT-23 E $2.50 $2.11
    LT3462ES6 SOT-23 E $2.50
    LT3462ES6#PBF SOT-23 E $2.50
    LT3462ES6#TR SOT-23 E $2.50 $2.11
    LT3462ES6#TRM SOT-23 E $2.50 $2.13
    LT3462ES6#TRMPBF SOT-23 E $2.50 $2.13
    LT3462ES6#TRPBF SOT-23 E $2.50 $2.11
