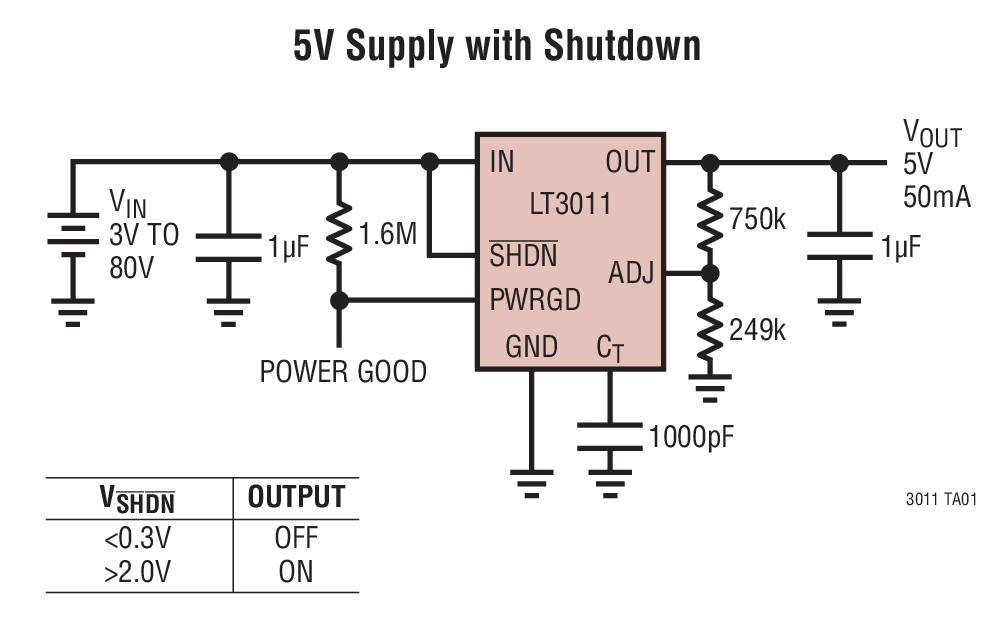

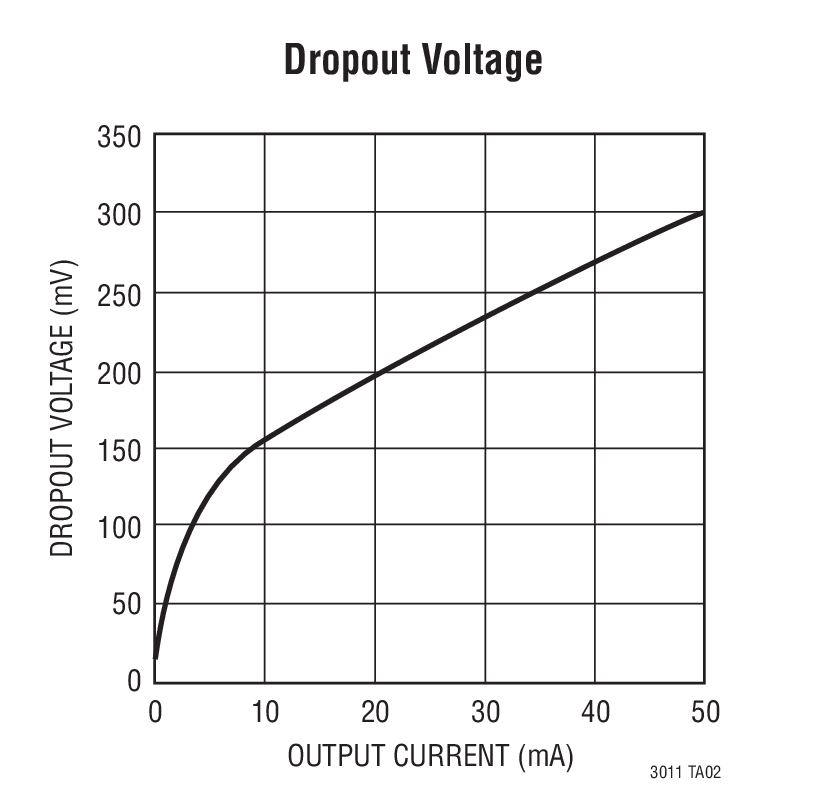

LT3011 - 典型应用图例：

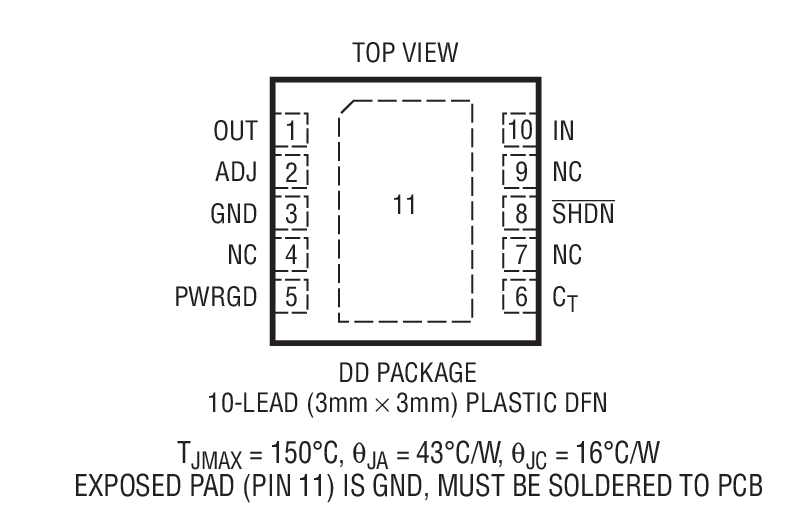

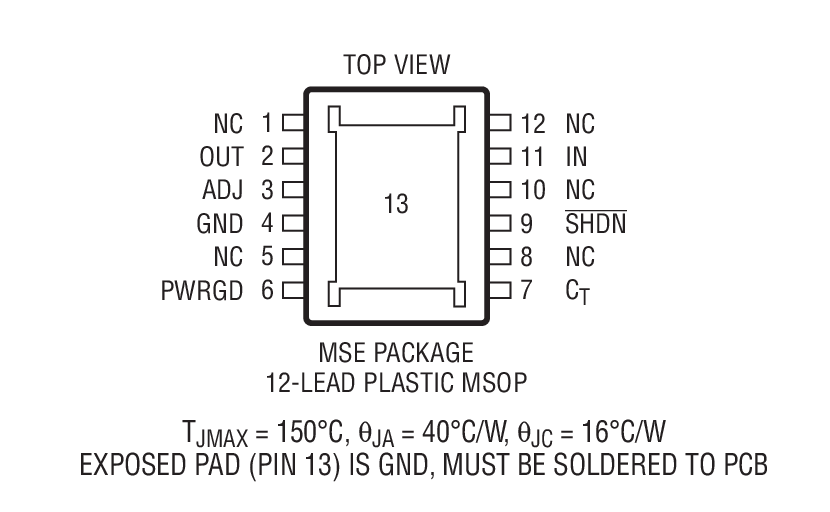

LT3011 - 封装图解：

LT3011 - LT3011是50mA, 3V to 80V Low Dropout Micropower Linear Regulator with PWRGD

LT3011是Linear公司的一款正稳压器产品，LT3011是50mA, 3V to 80V Low Dropout Micropower Linear Regulator with PWRGD，本站介绍了LT3011的封装应用图解、特点和优点、功能等，并给出了与LT3011相关的凌力尔特元器件型号供参考。

LT3011 - 50mA, 3V to 80V Low Dropout Micropower Linear Regulator with PWRGD

LT3011 - 50mA, 3V to 80V Low Dropout Micropower Linear Regulator with PWRGD - Linear Technology（凌力尔特）

功能描述

The LT3011 is a high voltage, micropower, low dropout
linear regulator. The device is capable of supplying 50mA
output current with a dropout voltage of 300mV. Designed
for use in battery-powered high voltage systems, the low
quiescent current (46μA operating and 1μA in shutdown)
is well controlled in dropout, making the LT3011 an ideal
choice.

The LT3011 includes a PWRGD flag to indicate output
regulation. The delay between regulated output level and
flag indication is programmable with a single capacitor.
The LT3011 also has the ability to operate with very small
output capacitors; it is stable with only 1μF on the output.
Small ceramic capacitors can be used without the addition
of any series resistance (ESR) as is common with other
regulators. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting, and
reverse current protection.

The LT3011 features an adjustable output with a 1.24V
reference voltage. The device is available in the thermally
enhanced 12-lead MSOP and the low profi le (0.75mm)
10-pin (3mm × 3mm) DFN package, both providing excellent thermal characteristics.

特点

Wide Input Voltage Range: 3V to 80V

Low Quiescent Current: 46μA

Low Dropout Voltage: 300mV

Output Current: 50mA

PWRGD Flag with Programmable Delay

No Protection Diodes Needed

Adjustable Output from 1.24V to 60V

1μA Quiescent Current in Shutdown

Stable with 1μF Output Capacitor

Stable with Ceramic, Tantalum, and Aluminum Capacitors

Reverse-Battery Protection

No Reverse Current Flow from Output to Input

Thermal Limiting

Thermally Enhanced 12-Lead MSOP and 10-Pin (3mm × 3mm) DFN Packages

应用

Low Current High Voltage Regulators

Regulator for Battery-Powered Systems

Telecom Applications

Automotive Applications

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT3011EDD#PBF	3x3 DFN-10	E	$2.50	$1.75
LT3011EDD#TRPBF	3x3 DFN-10	E		$1.81
LT3011EMSE#PBF	MS-12E	E	$2.50	$1.75
LT3011EMSE#TRPBF	MS-12E	E		$1.81
LT3011HMSE#PBF	MS-12E	H	$3.23	$2.26
LT3011HMSE#TRPBF	MS-12E	H		$2.32
LT3011IDD#PBF	3x3 DFN-10	I	$2.76	$1.93
LT3011IDD#TRPBF	3x3 DFN-10	I		$1.99
LT3011IMSE#PBF	MS-12E	I	$2.76	$1.93
LT3011IMSE#TRPBF	MS-12E	I		$1.99
