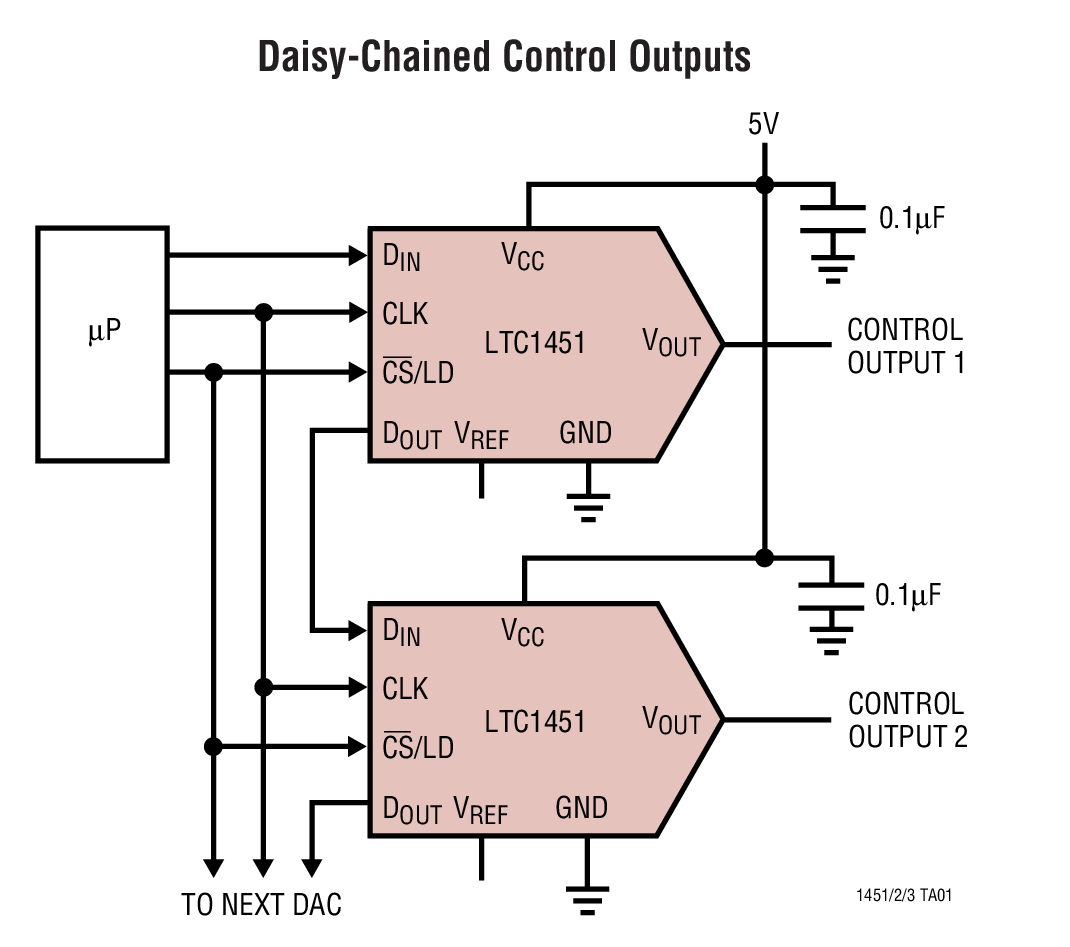

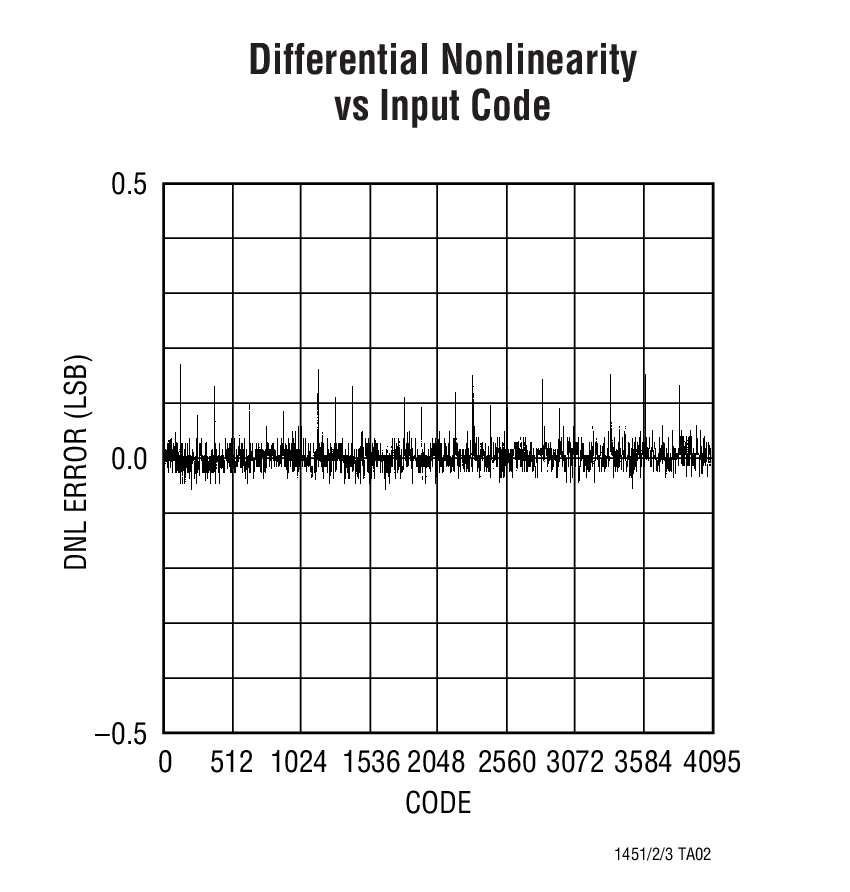

LTC1451 - 典型应用图例：

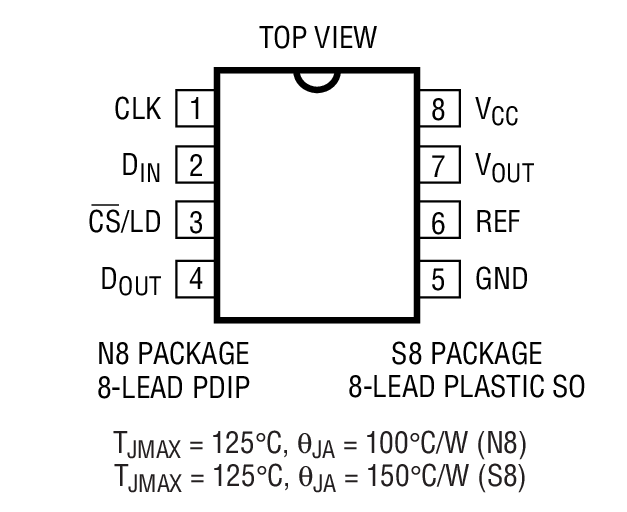

LTC1451 - 封装图解：

LTC1451 - LTC1451是12-Bit Rail-to-Rail Micropower DACs in SO-8

LTC1451是Linear公司的一款电压输出 DAC产品，LTC1451是12-Bit Rail-to-Rail Micropower DACs in SO-8，本站介绍了LTC1451的封装应用图解、特点和优点、功能等，并给出了与LTC1451相关的凌力尔特元器件型号供参考。

LTC1451 - 12-Bit Rail-to-Rail Micropower DACs in SO-8

LTC1451 - 12-Bit Rail-to-Rail Micropower DACs in SO-8 - Linear Technology（凌力尔特）

功能描述

The LTC?1451/LTC1452/LTC1453 are complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converters (DACs) in an SO-8 package. They include an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface.The LTC1451 has an onboard reference of 2.048V and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply.The LTC1452 is a multiplying DAC with a full-scale output of twice the reference input voltage. It operates from a single supply of 2.7V to 5.5V.The LTC1453 has an onboard 1.22V reference and a full-scale output of 2.5V. It operates from a single supply of 2.7V to 5.5V.The low power supply current makes the LTC1451 family ideal for battery-powered applications. The space saving 8-pin SO package and operation with no external components provide the smallest 12-bit DAC system available.

特点

12-Bit Resolution

Buffered True Rail-to-Rail Voltage Output

3V Operation (LTC1453), Icc: 250µA Typ

5V Operation (LTC1451), Icc: 400µA Typ

3V to 5V Operation (LTC1452), Icc: 225µA Typ

Built-In Reference: 2.048V (LTC1451)1.220V (LTC1453)

Multiplying Version (LTC1452)

Power-On Reset

SO-8 Package

3 wire Cascadable Serial Interface

Maximum DNL Error: 0.5LSB

Schmitt Trigger on Clock Input Allows Direct Optocoupler Interface

应用

Digital Calibration

Industrial Process Control

Automatic Test Equipment

Cellular Telephones

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1451CN8	N-8	C	$5.75	$4.50
LTC1451CN8#PBF	N-8	C	$5.75	$4.50
LTC1451CS8	SO-8	C	$6.08	$4.65
LTC1451CS8#PBF	SO-8	C	$6.08	$4.65
LTC1451CS8#TR	SO-8	C		$4.71
LTC1451CS8#TRPBF	SO-8	C		$4.71
LTC1451IN8	N-8	I	$6.25	$4.80
LTC1451IN8#PBF	N-8	I	$6.25	$4.80
LTC1451IS8	SO-8	I	$6.58	$5.05
LTC1451IS8#PBF	SO-8	I	$6.58	$5.05
LTC1451IS8#TR	SO-8	I		$5.11
LTC1451IS8#TRPBF	SO-8	I		$5.11
