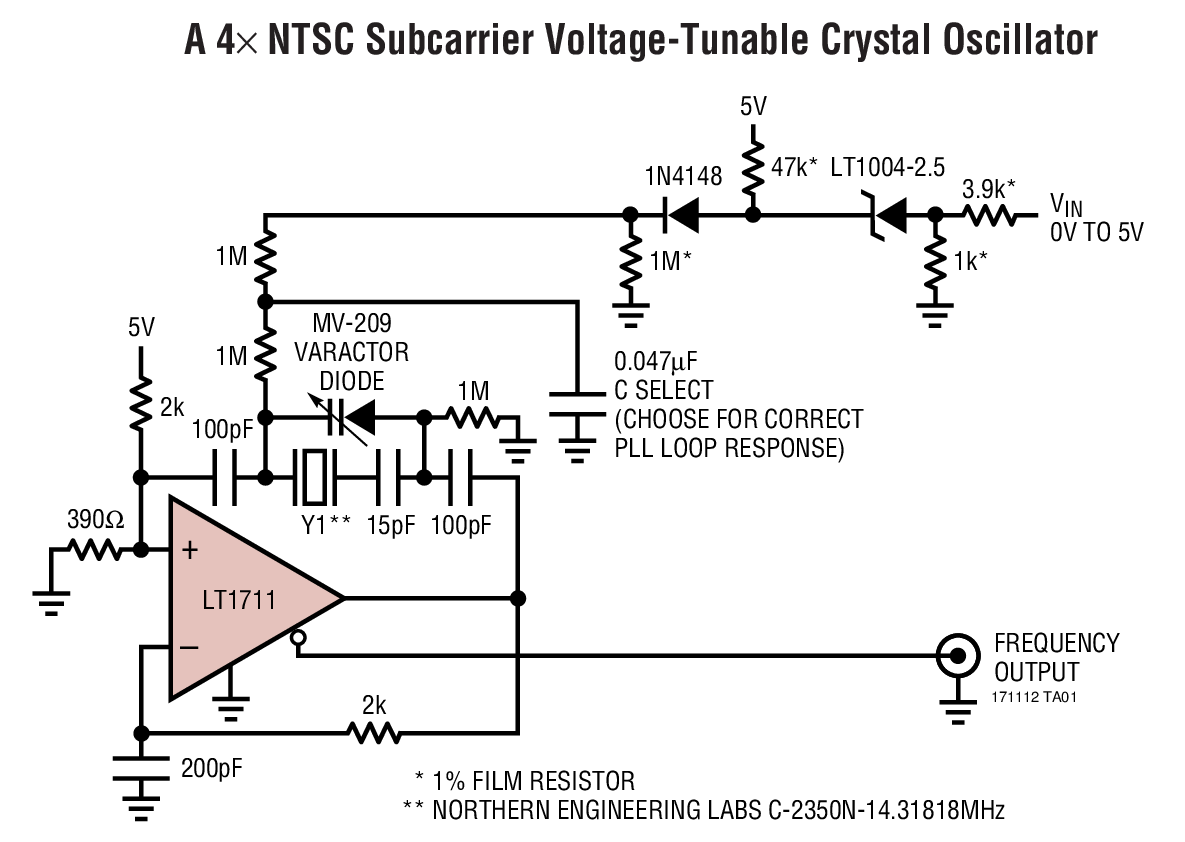

LT1712 - 典型应用图例：

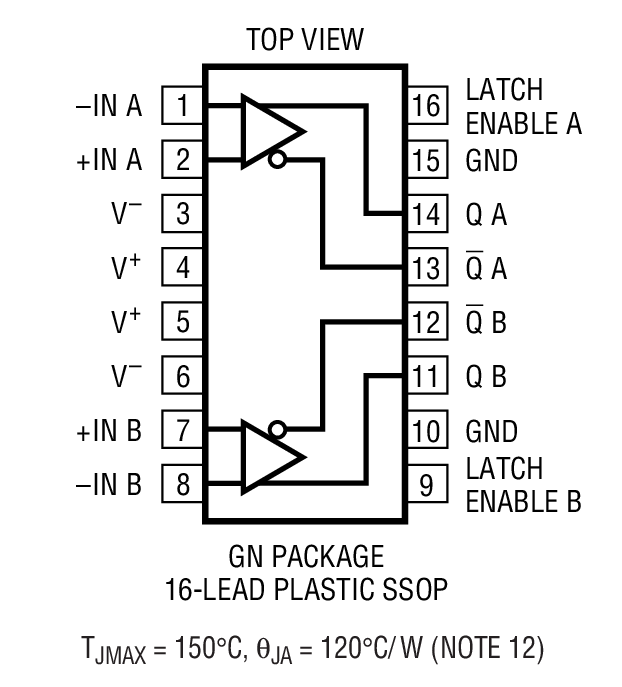

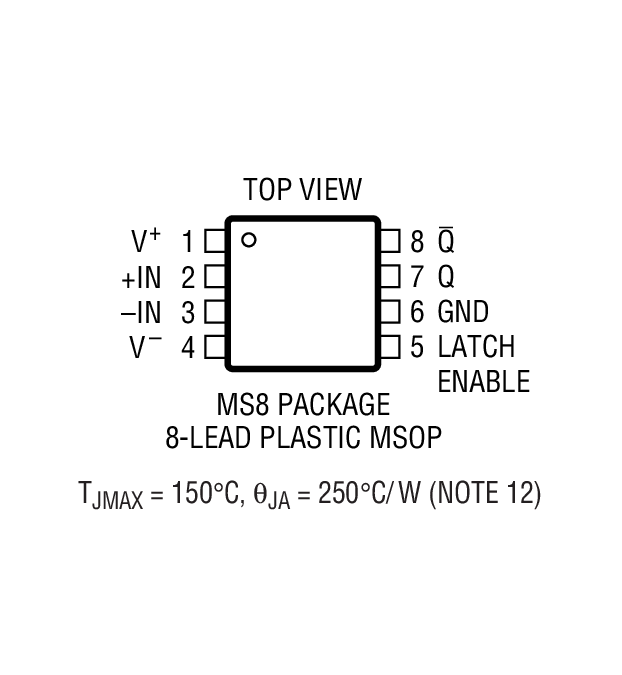

LT1712 - 封装图解：

LT1712 - LT1712是Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators

LT1712是Linear公司的一款高速比较器产品，LT1712是Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators，本站介绍了LT1712的封装应用图解、特点和优点、功能等，并给出了与LT1712相关的凌力尔特元器件型号供参考。

LT1712 - Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators

LT1712 - Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators - Linear Technology（凌力尔特）

功能描述

The LT?1711/LT1712 are UltraFastTM 4.5ns comparator featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized for 3V and 5V power supplies, it operates over a single supply voltage range from 2.4V to 12V or from ?2.4V to ?6V dual supplies.

The LT1711/LT1712 is designed for ease of use in a variety of systems. In addition to the wide supply voltage flexibility, the rail-to-rail input common mode range extends 100mV beyond both supply rails, and the outputs are protected against phase reversal for inputs extending further beyond the rails. Also, the rail-to-rail inputs may be taken to opposite rails with no significant increase in input current. The rail-to-rail matched complementary outputs interface directly to TTL or CMOS logic and can sink 10mA to within 0.5V of GND or source 10mA to within 0.7V of V+.

The LT1711/LT1712 has an internal TTL/CMOS compatible latch for retaining data at the outputs. The latch holds data as long as the latch pin is held high. Latch pin hysteresis provides protection against slow moving or noisy latch signals. The LT1711 is available in the 8-pin MSOP package. The LT1712 is available in the 16-pin narrow SSOP package.

特点

Ultrafast: 4.5ns at 20mV Overdrive5.5ns at 5mV Overdrive

Rail-to-Rail Inputs

Rail-to-Rail Complementary Outputs (TTL/CMOS Compatible)

Specified at 2.7V, 5V and ±5V Supplies

Output Latch

Inputs Can Exceed Supplies Without Phase Reversal

LT1711: 8-Lead MSOP Package

LT1712: 16-Lead Narrow SSOP Package

应用

High Speed Automatic Test Equipment

Current Sense for Switching Regulators

Crystal Oscillator Circuits

High Speed Sampling Circuits

High Speed A/D Converters

Pulse Width Modulators

Window Comparators

Extended Range V/F Converters

Fast Pulse Height/Width Discriminators

Line Receivers

High Speed Triggers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1712CGN	SSOP-16	C	$4.00	$3.35
LT1712CGN#PBF	SSOP-16	C	$4.00	$3.35
LT1712CGN#TR	SSOP-16	C		$3.41
LT1712CGN#TRPBF	SSOP-16	C		$3.41
LT1712IGN	SSOP-16	I	$4.20	$3.55
LT1712IGN#PBF	SSOP-16	I	$4.20	$3.55
LT1712IGN#TR	SSOP-16	I		$3.61
LT1712IGN#TRPBF	SSOP-16	I		$3.61
