LT1632是45MHz, 45V/μs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1632

LT1632技术文档下载：

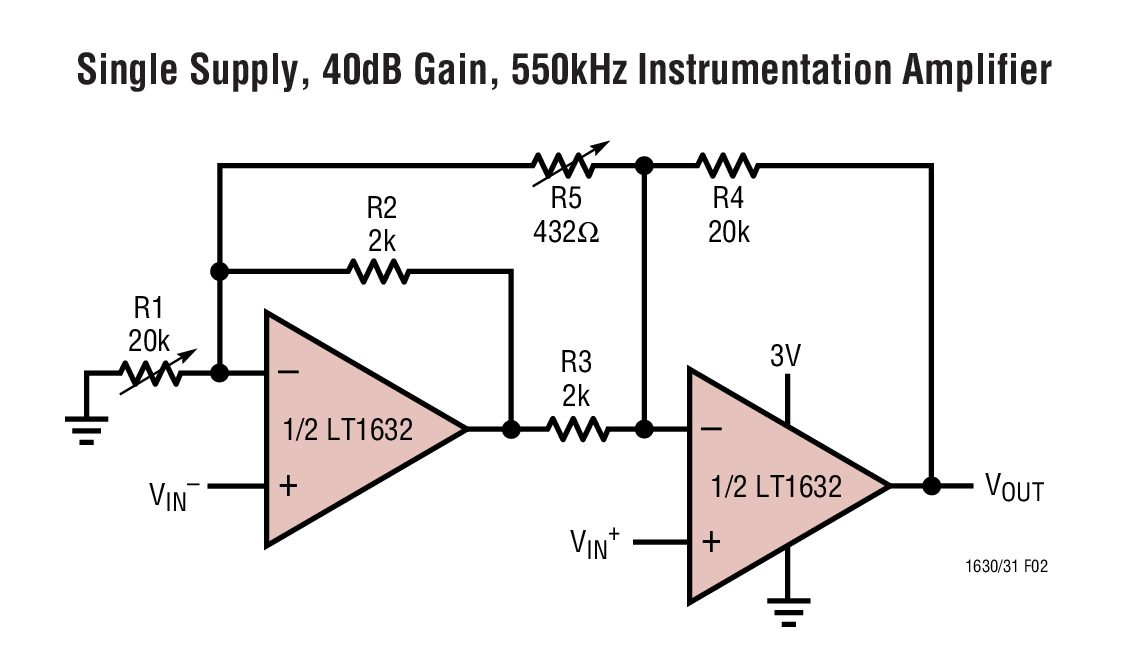

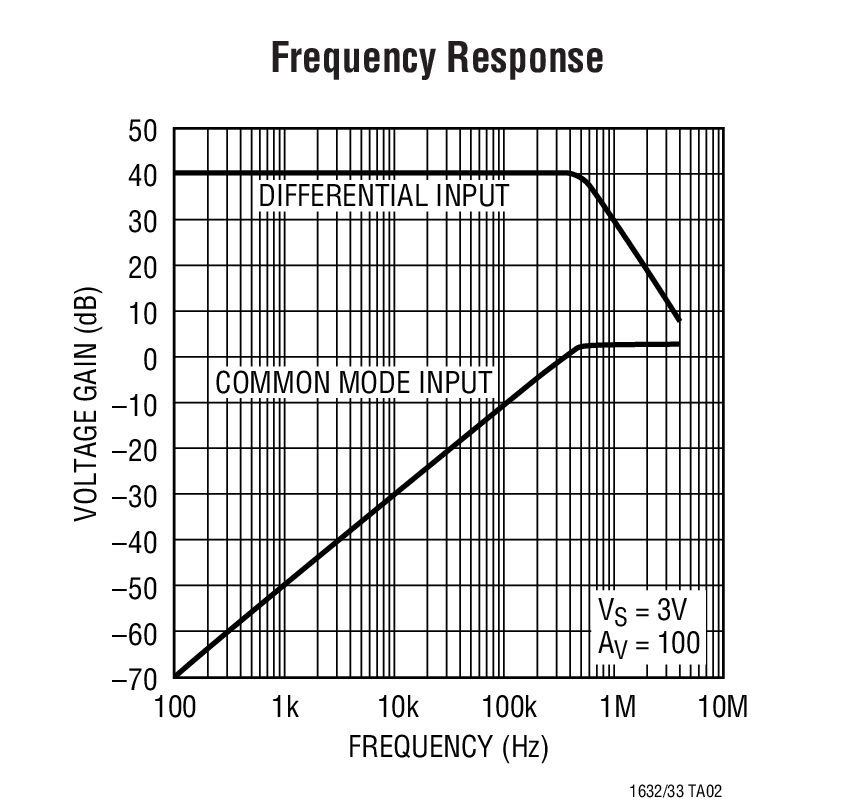

LT1632 - 典型应用图例：

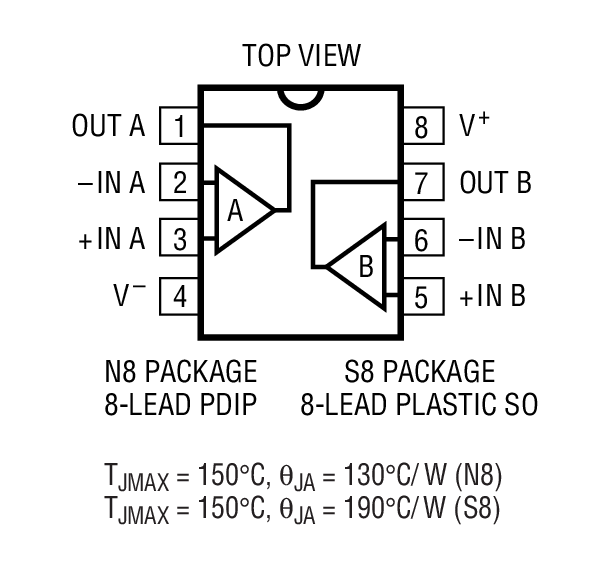

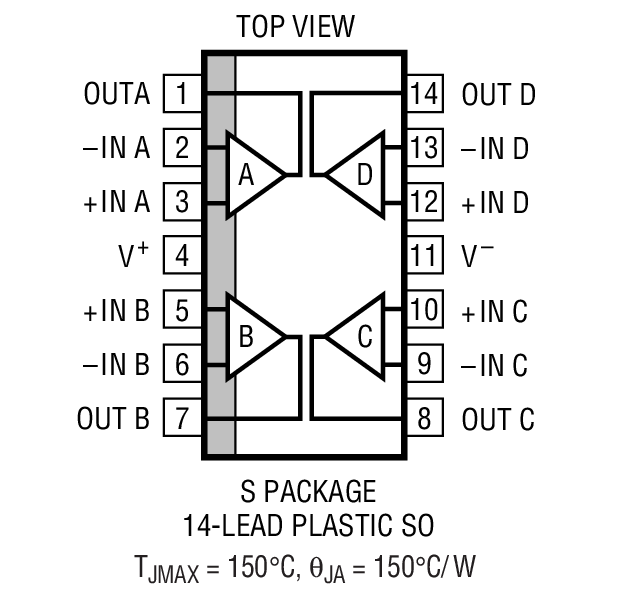

LT1632 - 封装图解：

LT1632 - LT1632是45MHz, 45V/μs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps

LT1632是Linear公司的一款高速放大器产品，LT1632是45MHz, 45V/μs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps，本站介绍了LT1632的封装应用图解、特点和优点、功能等，并给出了与LT1632相关的凌力尔特元器件型号供参考。

LT1632 - 45MHz, 45V/μs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps

LT1632 - 45MHz, 45V/μs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps - Linear Technology（凌力尔特）

功能描述

The LT1632/LT1633 have excellent DC precision over the full range of operation. Input offset voltage is typically less than 400μV and the minimum open-loop gain of 0.8 million into a 10k load virtually eliminates all gain error. Common mode rejection is typically 83dB over the full rail-to-rail input range when on a single 5V supply for excellent noninverting performance.The LT1632/LT1633 maintain their performance for supplies from 2.7V to 36V and are specified at 3V, 5V and ±15V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The output delivers load currents in excess of 35mA.The LT1632 is available in 8-pin PDIP and SO packages with the standard dual op amp pinout. The LT1633 features the standard quad op amp configuration and is available in a 14-pin plastic SO package. These devices can be used as plug-in replacements for many standard op amps to improve input/output range and performance.

特点

Gain-Bandwidth Product: 45MHz

Slew Rate: 45V/µs

Low Supply Current per Amplifier: 4.3mA

Input Common Mode Range Includes Both Rails

Output Swings Rail-to-Rail

Input Offset Voltage, Rail-to-Rail: 1350µV Max

Input Offset Current: 440nA Max

Input Bias Current: 2.2µA Max

Open-Loop Gain: 800V/mV Min

Low Input Noise Voltage: 12nV/rtHz Typ

Low Distortion: ?92dBc at 100kHz

Wide Supply Range: 2.7V to ±15V

Large Output Drive Current: 35mA Min

Dual in 8-Pin PDIP and SO Packages

应用

Active Filters

Rail-to-Rail Buffer Amplifiers

Driving A/D Converters

Low Voltage Signal Processing

Battery-Powered Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1632CN8	N-8	C	$3.70	$3.05
LT1632CN8#PBF	N-8	C	$3.70	$3.05
LT1632CS8	SO-8	C	$3.90	$3.20
LT1632CS8#PBF	SO-8	C	$3.90	$3.20
LT1632CS8#TR	SO-8	C		$3.26
LT1632CS8#TRPBF	SO-8	C		$3.26
LT1632IN8	N-8	I	$4.44	$3.66
LT1632IN8#PBF	N-8	I	$4.44	$3.66
LT1632IS8	SO-8	I	$4.68	$3.84
LT1632IS8#PBF	SO-8	I	$4.68	$3.84
LT1632IS8#TR	SO-8	I		$3.90
LT1632IS8#TRPBF	SO-8	I		$3.90
