LT1585-1.5 - LT1585-1.5是Fixed 1.5V, 4.6A and 5A Low Dropout, Fast Response GTL+ Regulators

LT1585-1.5是LINEAR凌力尔特公司的一款正稳压器产品，LT1585-1.5是LT1585-1.5是Fixed 1.5V, 4.6A and 5A Low Dropout, Fast Response GTL+ Regulators，本站介绍了LT1585-1.5的封装应用图解、特点和优点、功能等，并给出了与LT1585-1.5相关的LINEAR元器件型号供参考。

LT1585-1.5 - LT1585-1.5是Fixed 1.5V, 4.6A and 5A Low Dropout, Fast Response GTL+ Regulators - 正稳压器 - 电源管理 - 凌力尔特

LT1585-1.5 - Fixed 1.5V, 4.6A and 5A Low Dropout, Fast Response GTL+ Regulators

LT1585-1.5 - Fixed 1.5V, 4.6A and 5A Low Dropout, Fast Response GTL+ Regulators - Linear Technology（凌力尔特）

功能描述

The LT1585-1.5/LT1585A-1.5 are low dropout, 3-terminal regulators with 4.6A and 5A output current capability respectively, and a fixed 1.5V output voltage. The designs are optimized for low voltage applications where transient response and minimum input voltage are critical. Similar to the LT1084, they have lower dropout and faster transient response. These improvements make them ideal for low voltage microprocessor applications, especially as the regulator in an Intel processor GTL+ supply.

Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that creates excessive junction temperatures.

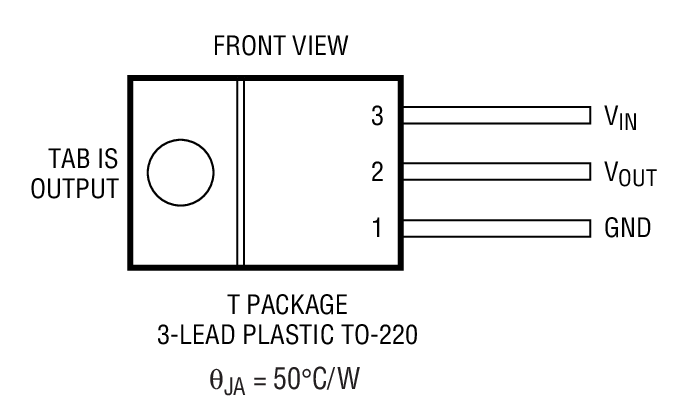

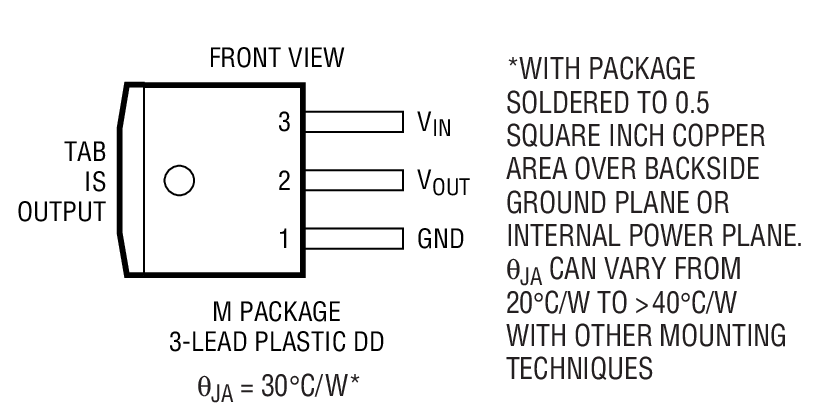

The LT1585-1.5/LT1585A-1.5 are available in the through-hole 3-pin TO-220 power package and 3-pin plastic DD.

特点

Fast Transient Response

Guaranteed Dropout Voltage at Multiple Currents

Load Regulation: 0.05% Typ

Trimmed Current Limit

On-Chip Thermal Limiting

应用

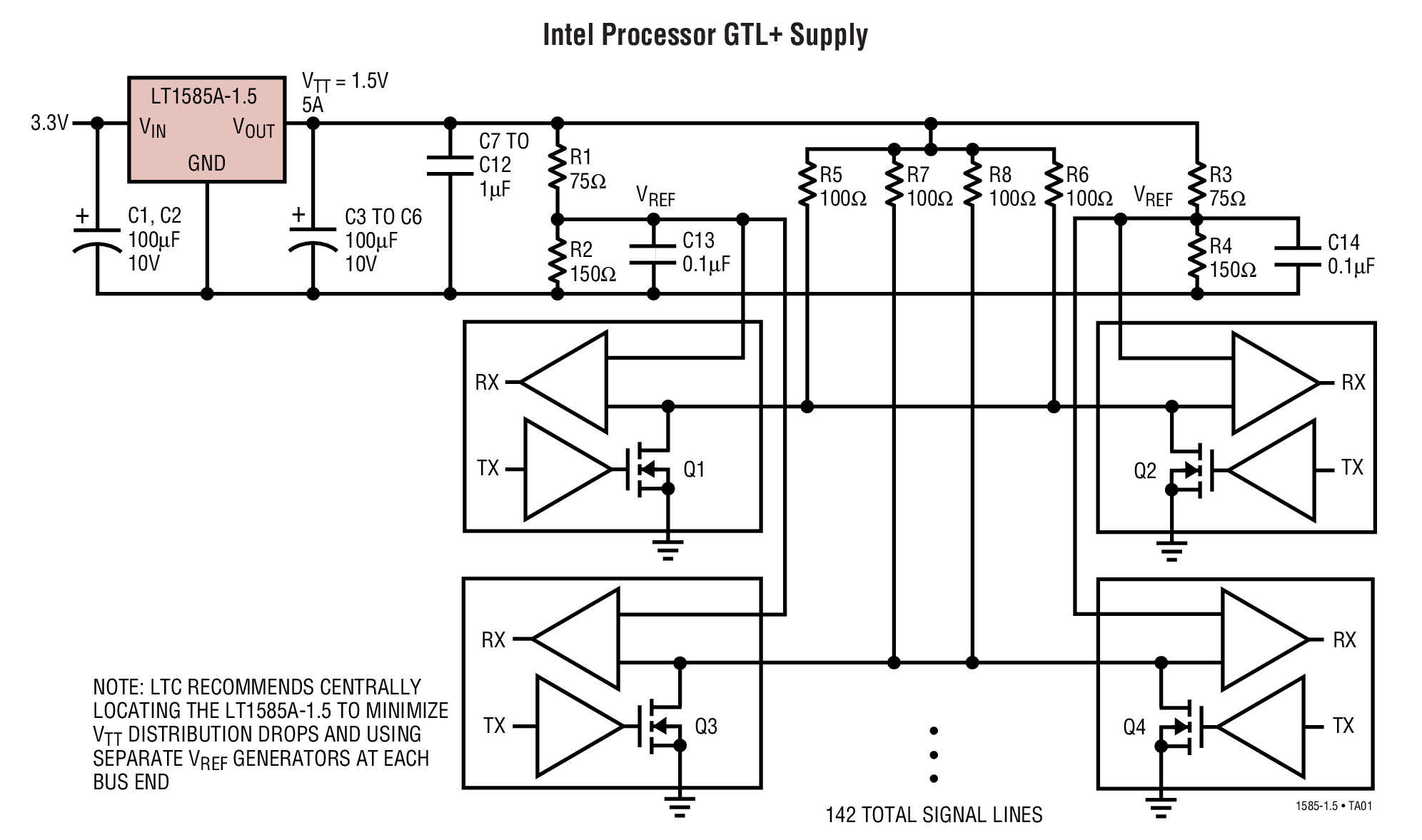

GTL+ Power Supply

Low Voltage Logic Supplies

Battery-Powered Circuitry

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1585CM-1.5	DDPAK-3	C	$5.15	$4.20
LT1585CM-1.5#PBF	DDPAK-3	C	$5.15	$4.20
LT1585CM-1.5#TR	DDPAK-3	C		$4.33
LT1585CM-1.5#TRPBF	DDPAK-3	C		$4.33
LT1585CT-1.5	TO-220	C	$4.75	$3.85
LT1585CT-1.5#PBF	TO-220	C	$4.75	$3.85
