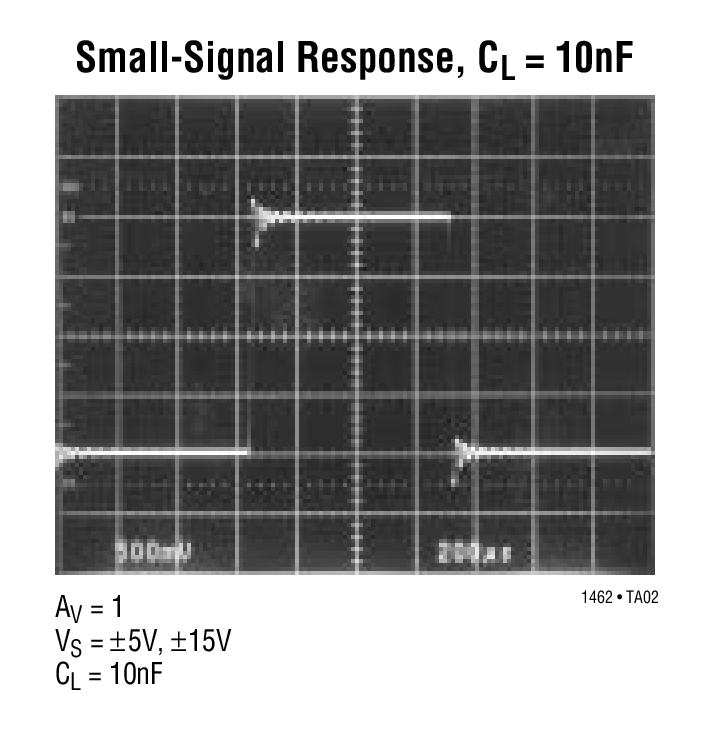

LT1462 - 典型应用图例：

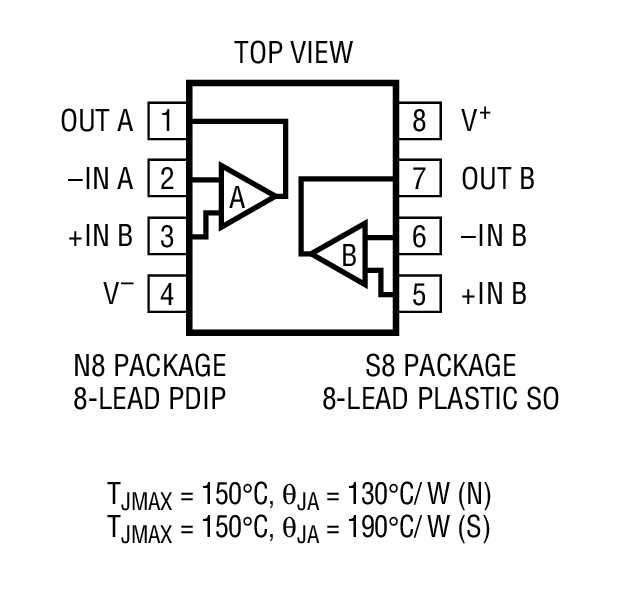

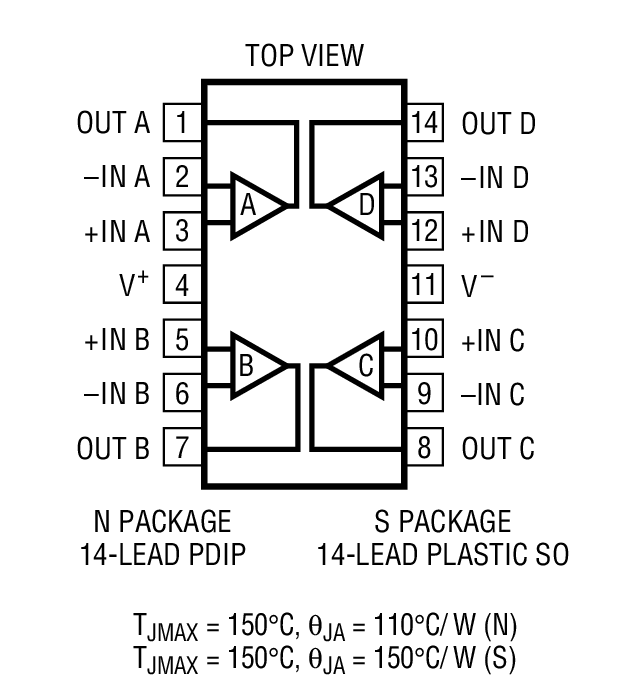

LT1462 - 封装图解：

LT1462 - LT1462是Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps

LT1462是Linear公司的一款低功率放大器产品，LT1462是Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps，本站介绍了LT1462的封装应用图解、特点和优点、功能等，并给出了与LT1462相关的凌力尔特元器件型号供参考。

LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps

LT1462 - Dual/Quad Micropower, 260µW C-Load Picoampere Bias Current JFET Input Op Amps - Linear Technology（凌力尔特）

功能描述

The LT1462 (dual) and LT1463 (quad) are the first micropower op amps (45µA max per amp) to offer picoampere input bias currents (1pA typ) and unity gain stability for capacitive loads up to 10nF. The output can swing a 10k load to within 1.5V of either supply, just like op amps that require an order of magnitude more supply current. This unique combination of performance makes the LT1462/LT1463 ideal over a wide range of input and output impedances. In the design and testing of the LT1462/LT1463, particular emphasis has been placed on optimizing performance in the low cost SO-8 (dual) and 14-lead SO package (quad) for ±15V and ±5V supplies. The input common mode range includes the positive rail. Slew rate (0.08V/µs min) and gain bandwidth product (125kHz min) are 100% tested. A full set of matching specifications is also provided.

特点

Input Bias Current:2pA Max (LT1462A)20pA Max (LT1462, LT1463)

Supply Current per Amplifier: 45µA Max

Unity-Gain Stable for C-Load™Up to 10nF

Input Common Mode Range Includes Positive Rail

Guaranteed Specs with ±5V, ±15V Supplies

Gain Bandwidth Product: 175kHz Typ

Slew Rate: 0.13V/µs Typ

Guaranteed Matching Specifications

Standard Pinout: SO-8, SO-14 Package

应用

Battery-Powered Systems

Photocurrent Amplifiers

Low Frequency, Micropower Active Filters

Low Droop Track-and-Hold Circuits

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1462ACN8	N-8	C	$5.55	$4.65
LT1462ACN8#PBF	N-8	C	$5.55	$4.65
LT1462ACS8	SO-8	C	$5.70	$4.80
LT1462ACS8#PBF	SO-8	C	$5.70	$4.80
LT1462ACS8#TR	SO-8	C		$4.86
LT1462ACS8#TRPBF	SO-8	C		$4.86
LT1462CN8	N-8	C	$3.10	$2.50
LT1462CN8#PBF	N-8	C	$3.10	$2.50
LT1462CS8	SO-8	C	$3.25	$2.65
LT1462CS8#PBF	SO-8	C	$3.25	$2.65
LT1462CS8#TR	SO-8	C		$2.71
LT1462CS8#TRPBF	SO-8	C		$2.71
