LT1413是Single Supply, Dual Precision Op Amp

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1413

LT1413技术文档下载：

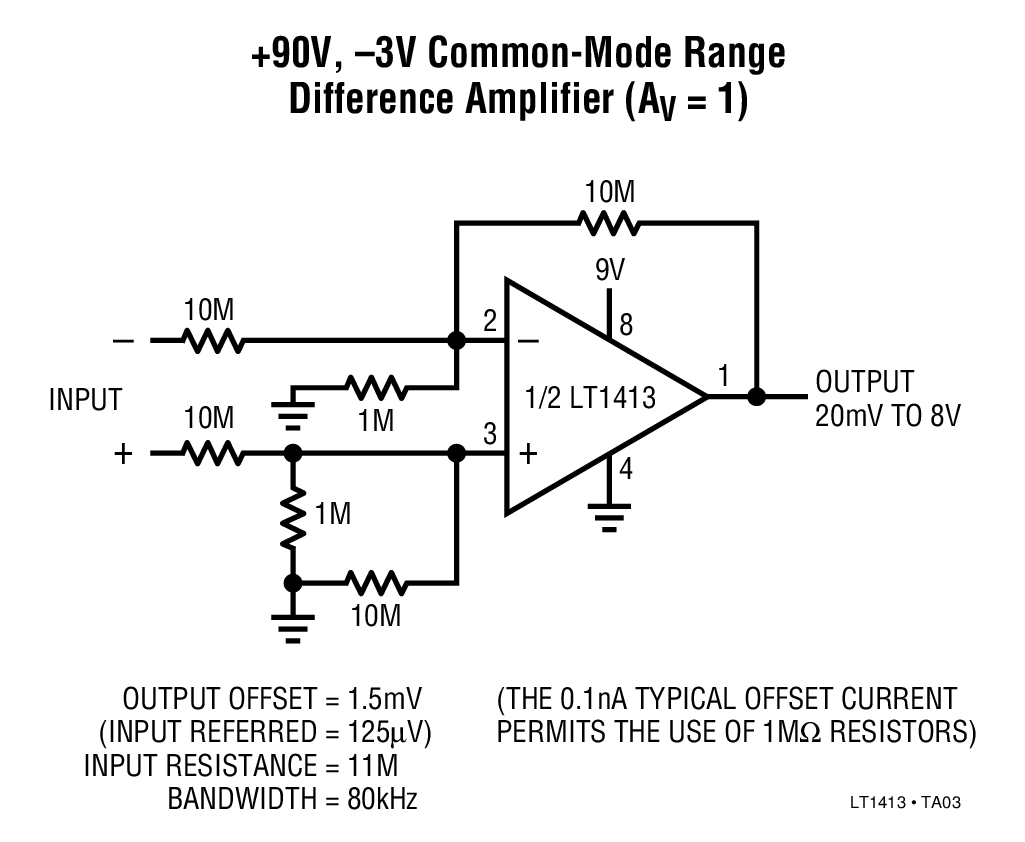

LT1413 - 典型应用图例：

LT1413 - 封装图解：

LT1413 - LT1413是Single Supply, Dual Precision Op Amp

LT1413是Linear公司的一款精准放大器产品，LT1413是Single Supply, Dual Precision Op Amp，本站介绍了LT1413的封装应用图解、特点和优点、功能等，并给出了与LT1413相关的凌力尔特元器件型号供参考。

LT1413 - Single Supply, Dual Precision Op Amp

LT1413 - Single Supply, Dual Precision Op Amp - Linear Technology（凌力尔特）

功能描述

The LT1413 is a low cost, upgraded version of Linear Technology’s industry standard LT1013 dual, single supply op amp. The LT1413 is optimized for single 5V applications, although ±15V specifications are also provided for completeness.In the design of the LT1413, particular emphasis has been placed on low cost plastic and SO-8 package performance: 60µV offset voltage, 0.1nA offset current, in excess of 10mA output current at 330µA supply current and 140dB channel separation are some of the specifications achieved.Other dual, single supply amplifiers are available to complement the LT1413 family: the micropower LT1078μs supply current is 10 times lower with a 4.5 fold speed performance degradation compared to the LT1413. Conversely, the LT1211, LT1213 and LT1215 duals have 4 to 14 times higher supply current, but also 13 to 50 times higher speed. Protected by U.S. Patent 4,775,884.

特点

Single Supply Operation:

Input Goes Below Ground

Output Swings to Ground Sinking Current

No Pull-Down Resistors Needed

Phase Reversal Protection

At 5V, 0V Low Cost Grade Specifications:

280µV Max Offset Voltage

380µV Max in S8 Package

0.8nA Max Offset Current

480µA Max Supply Current per Amplifier

0.5µV/°C Drift

1.4 Million Voltage Gain

950kHz Gain-Bandwidth Product

0.55µVP-P , 0.1Hz to 10Hz Noise

应用

Single Supply Systems

Two and Three Op Amp Instrumentation Amplifiers

Active Filters

Battery-Powered Systems

Strain Gauge and Bridge Amplifiers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1413ACN8	N-8	C	$4.17	$3.30
LT1413ACN8#PBF	N-8	C	$4.17	$3.30
LT1413CN8	N-8	C	$2.50	$2.00
LT1413CN8#PBF	N-8	C	$2.50	$2.00
LT1413S8	SO-8	C	$2.67	$2.20
LT1413S8#PBF	SO-8	C	$2.67	$2.20
LT1413S8#TR	SO-8	C		$2.26
LT1413S8#TRPBF	SO-8	C		$2.26
