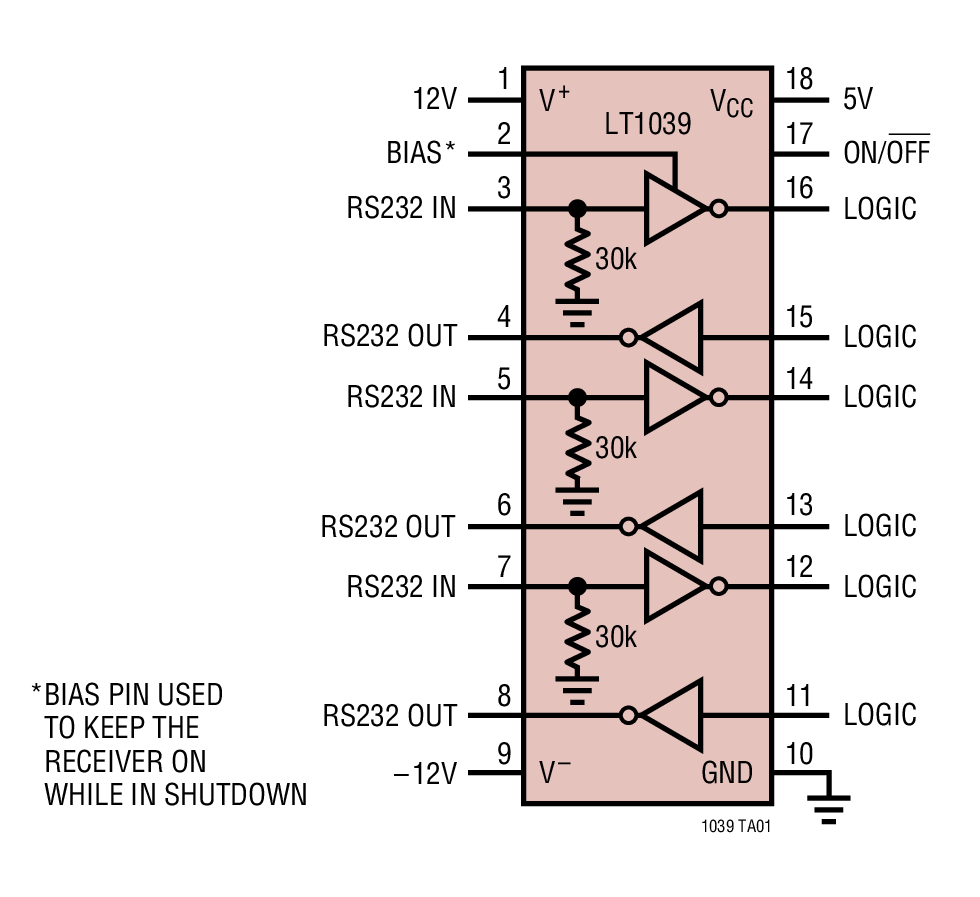

LT1039 - 典型应用图例：

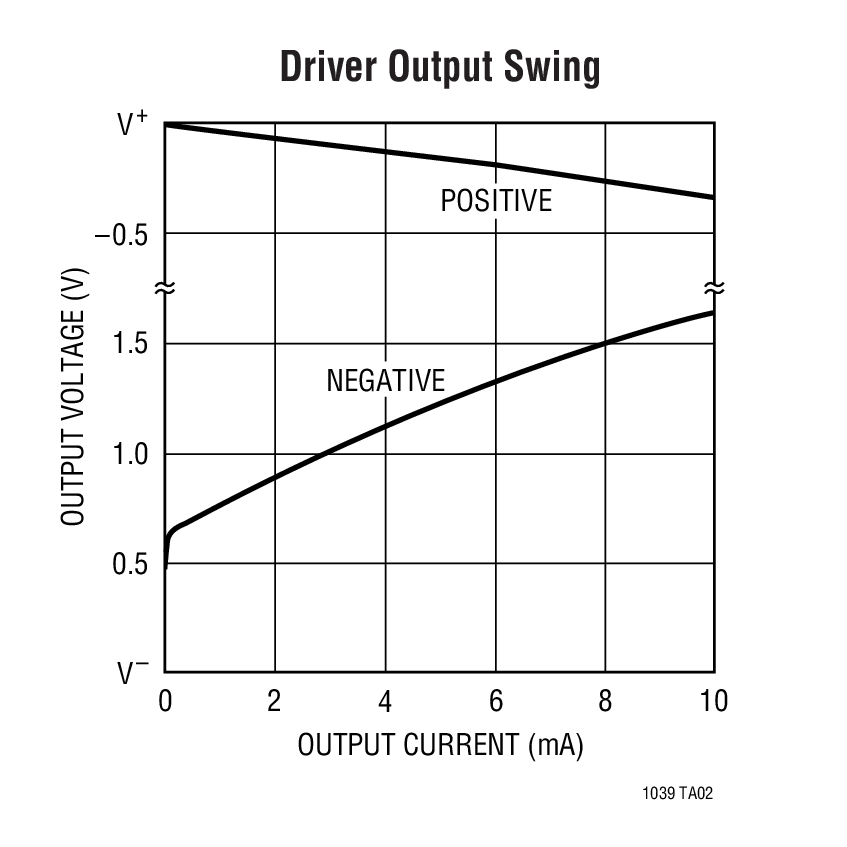

LT1039典型应用图例一
LT1039典型应用图例二

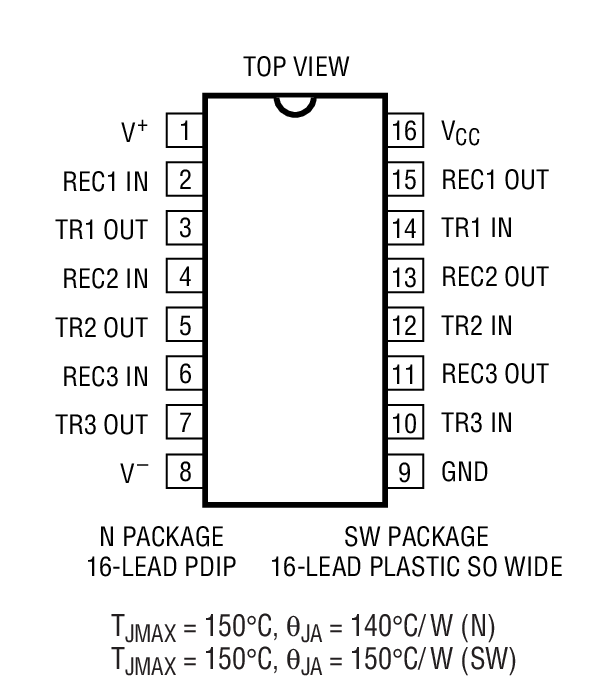

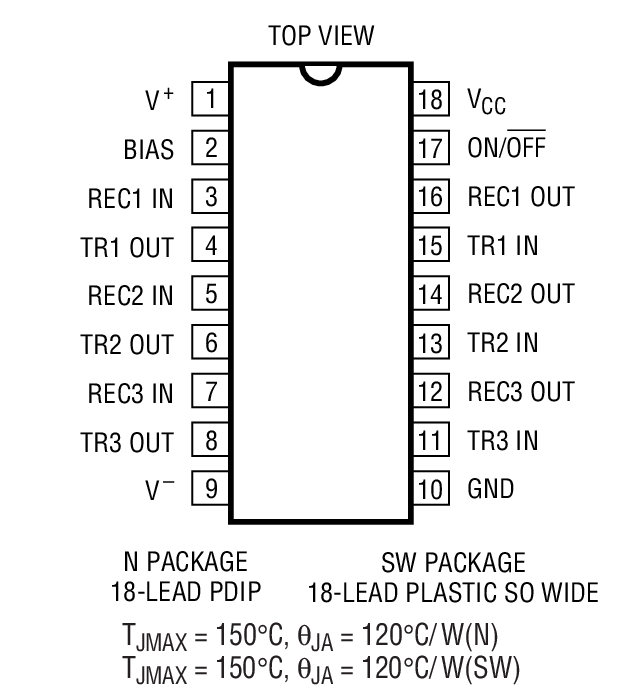

LT1039 - 封装图解：
LT1039封装图解一
LT1039封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1039介绍

LT1039 - LT1039是RS232 Driver/Receiver with Shutdown

LT1039是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LT1039是LT1039是RS232 Driver/Receiver with Shutdown，本站介绍了LT1039的封装应用图解、特点和优点、功能等，并给出了与LT1039相关的LINEAR元器件型号供参考。

LT1039 - LT1039是RS232 Driver/Receiver with Shutdown - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LT1039 - RS232 Driver/Receiver with Shutdown

LT1039 - RS232 Driver/Receiver with Shutdown - Linear Technology（凌力尔特）

功能描述

The LT?1039 is a triple RS232 driver/receiver that includes shutdown. Each receiver will accept up to ±30V input and can drive either TTL or CMOS logic. The RS232 drivers accept TTL logic inputs and output RS232 voltage levels. The outputs are fully protected against overload and can be shorted to ground or up to ±30V without damage to the drivers. Additionally, when the system is shut down or power is off, the outputs are in a high impedance state allowing data line sharing. Bipolar circuitry makes this driver/receiver exceptionally rugged against overloads and immune to latchup.

A BIAS pin allows one receiver to be kept on while the rest of the part is shut down.

The LT1039 is also available in the 16-pin version, without shutdown or BIAS pin functions.

For applications requiring operation from a single 5V supply, see the LT1080/LT1081, LT1180A/LT1181A andLT1130A data sheets. For applications requiring 15kV ESD, see the LT1039A.

特点
  • Operates from ±5V to ±15V Supplies
  • Fully Protected Against Overload
  • Outputs can be Driven ±30V without Damage
  • Three-State Outputs; Outputs Open when Off
  • Bipolar Circuit-No Latch Up
  • ±30V Input Range
  • Triple Driver/Receiver
  • No Supply Current in Shutdown
  • 30k ohms Input Impedance
  • Meets All RS232 Specifications
  • 16 Pin Version-Pin Compatible with MC145406
  • Available in SO Package
  • 15kV ESD: LT1039A
    • 应用
  • RS232 Interface
  • Terminals
  • Modems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1039CN N-18 C $2.92 $2.35
    LT1039CN#PBF N-18 C $2.92 $2.35
    LT1039CN16 N-16 C $2.75 $2.00
    LT1039CN16#PBF N-16 C $2.75 $2.00
    LT1039CSW SW-18 C $3.50 $2.85
    LT1039CSW#PBF SW-18 C $3.50 $2.85
    LT1039CSW#TR SW-18 C $2.95
    LT1039CSW#TRPBF SW-18 C $2.95
    LT1039CSW16#PBF SW-16 C $3.50 $2.85
    LT1039IN N-18 I $3.92 $3.20
    LT1039IN#PBF N-18 I $3.92 $3.20
    LT1039ISW SW-18 I $4.42 $3.60
    LT1039ISW#PBF SW-18 I $4.42 $3.60
    LT1039ISW#TR SW-18 I $3.70
    LT1039ISW#TRPBF SW-18 I $3.70
