当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT1027DCS8-5
LT1027DCS8-5技术文档下载：
LT1027DCS8-5技术文档产品手册下载
LT1027DCS8-5 - 典型应用图例：

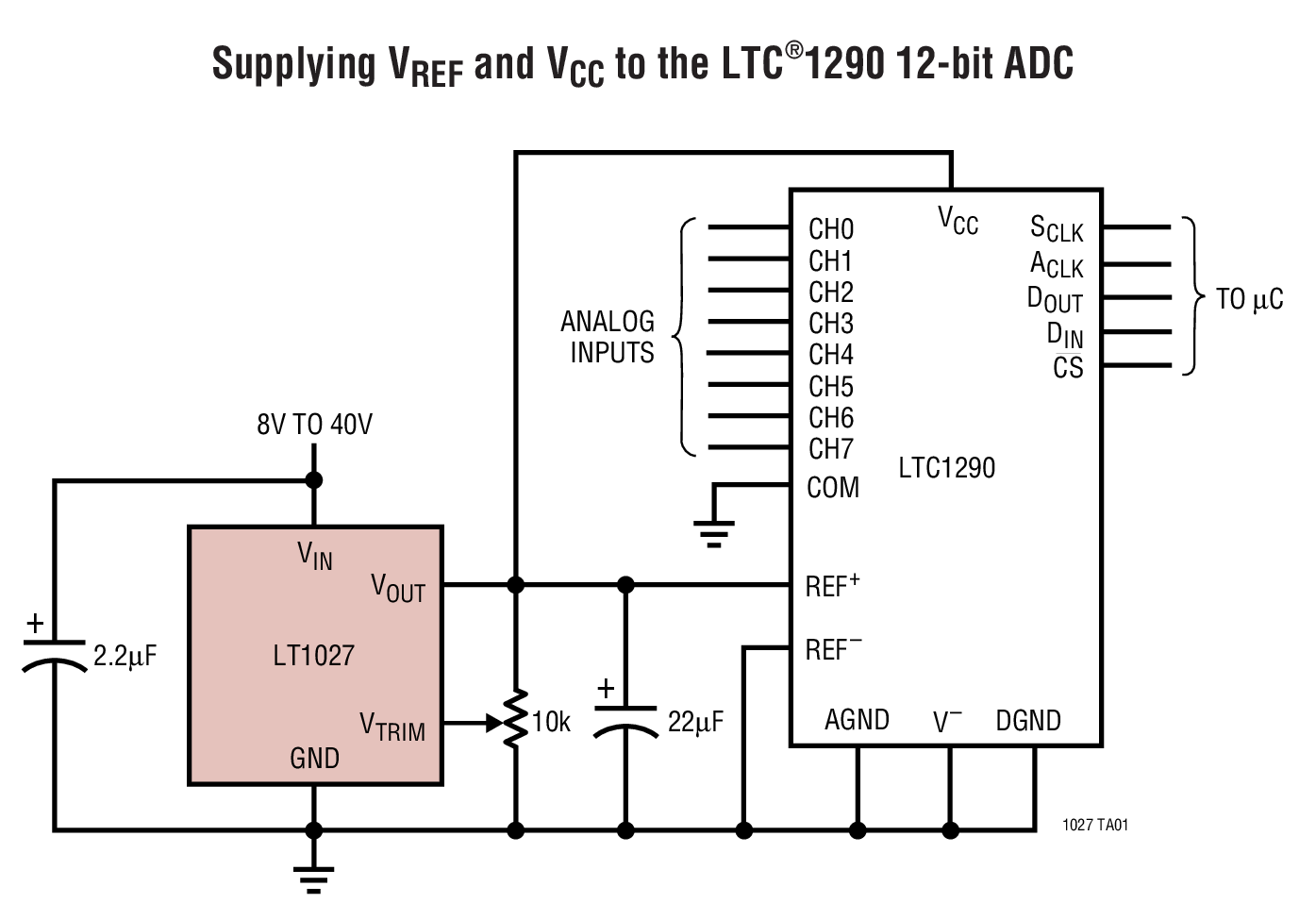

LT1027DCS8-5典型应用图例一

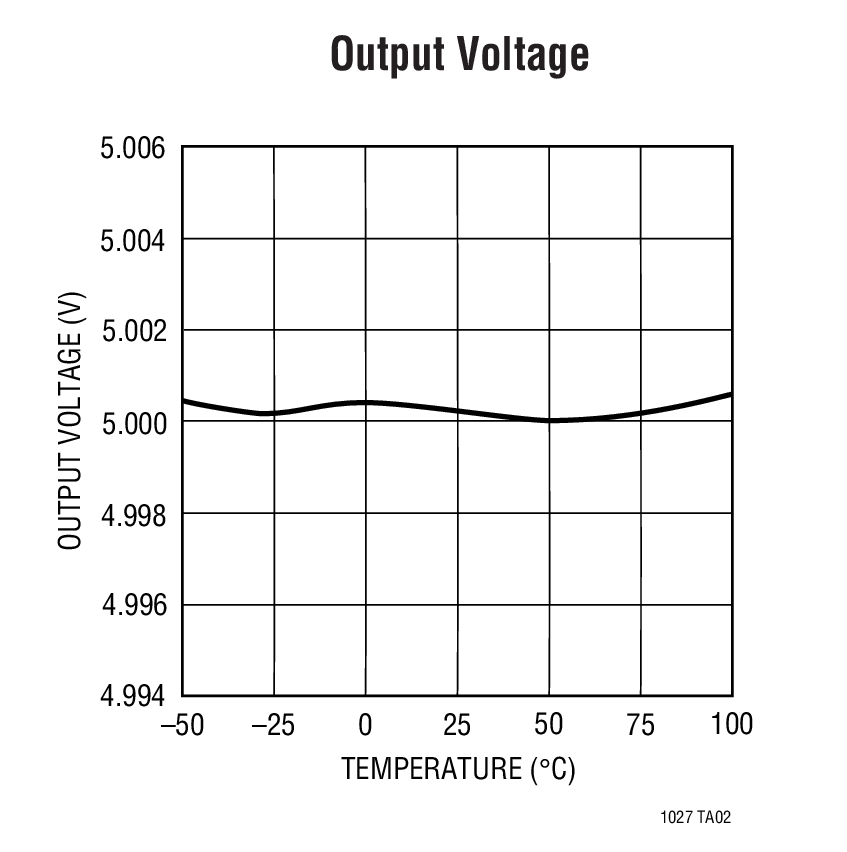

LT1027DCS8-5典型应用图例二
LT1027DCS8-5 - 封装图解：

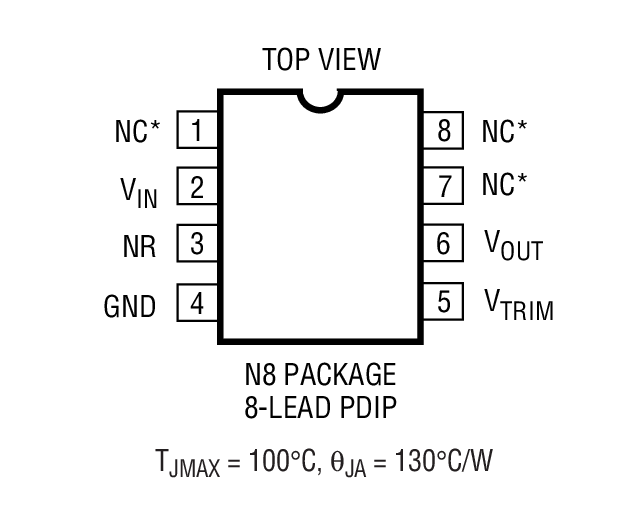

LT1027DCS8-5封装图解一

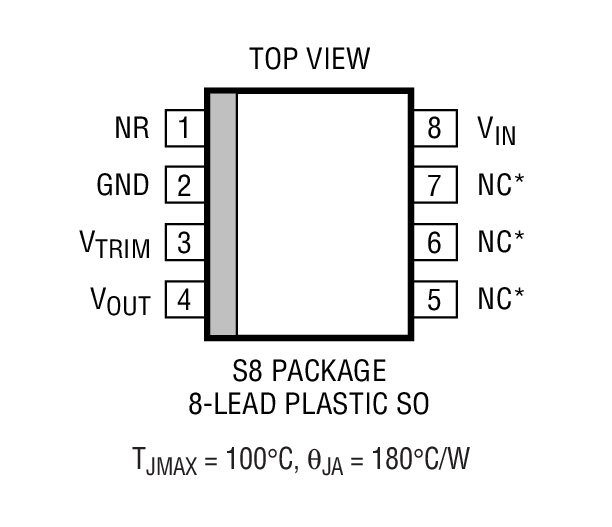

LT1027DCS8-5封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1027DCS8-5介绍

LT1027DCS8-5 - LT1027DCS8-5是Precision 5 Volt Reference

LT1027DCS8-5是LINEAR凌力尔特公司的一款串联基准产品，LT1027DCS8-5是LT1027DCS8-5是Precision 5 Volt Reference，本站介绍了LT1027DCS8-5的封装应用图解、特点和优点、功能等，并给出了与LT1027DCS8-5相关的LINEAR元器件型号供参考。

LT1027DCS8-5 - LT1027DCS8-5是Precision 5 Volt Reference - 串联基准 - 信号调理 - 凌力尔特

LT1027DCS8-5 - Precision 5 Volt Reference

LT1027 - Precision 5 Volt Reference - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download Complete Datasheet for Details

The LT1027 is a precision reference with extra-low drift, superior accuracy, excellent line and load regulation and low output impedance at high frequency. This device is intended for use in 12- to 16-bit A-to-D and D-to-A systems where demanding accuracy requirements must be met without the use of power hungry, heated substrate references. The fast settling output recovers quickly from load transients such as those presented by A-to-D converter reference inputs. The LT1027 brings together both outstanding accuracy and temperature coefficient specifications.

The LT1027 reference is based on LTC’s proprietary advanced subsurface Zener bipolar process which eliminates noise and stability problems associated with surface breakdown devices.

特点
  • Very Low Drift: 2ppm/°C Max TC
  • Pin Compatible with LT1021-5, REF-02,(PDIP Packages Only)
  • Output Sources 15mA, Sinks 10mA
  • Excellent Transient Response Suitable for A-to-D Reference Inputs
  • Noise Reduction Pin
  • Excellent Long Term Stability
  • Less Than 1ppm P-P Noise (0.1Hz to 10Hz)
    • 应用
  • A-to-D and D-to-A Converters
  • Digital Voltmeters
  • Reference Standard
  • Precision Current Source
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1027BCN8-5 N-8 C $6.17 $4.85
    LT1027BCN8-5#PBF N-8 C $6.17 $4.85
    LT1027CCN8-5 N-8 C $5.58 $4.40
    LT1027CCN8-5#PBF N-8 C $5.58 $4.40
    LT1027CCS8-5 SO-8 C $5.20 $4.50
    LT1027CCS8-5#PBF SO-8 C $5.20 $4.50
    LT1027CCS8-5#TR SO-8 C $4.56
    LT1027CCS8-5#TRPBF SO-8 C $4.56
    LT1027DCN8-5 N-8 C $4.92 $3.90
    LT1027DCN8-5#PBF N-8 C $4.92 $3.90
    LT1027DCS8-5 SO-8 C $5.55 $4.70
    LT1027DCS8-5#PBF SO-8 C $5.55 $4.70
    LT1027DCS8-5#TR SO-8 C $4.76
    LT1027DCS8-5#TRPBF SO-8 C $4.76
    LT1027ECN8-5 N-8 C $4.58 $3.60
    LT1027ECN8-5#PBF N-8 C $4.58 $3.60
    LT1027ECS8-5 SO-8 C $3.10 $2.25
    LT1027ECS8-5#PBF SO-8 C $3.10 $2.25
    LT1027ECS8-5#TR SO-8 C $2.31
    LT1027ECS8-5#TRPBF SO-8 C $2.31
