LTC7545A技术文档下载：

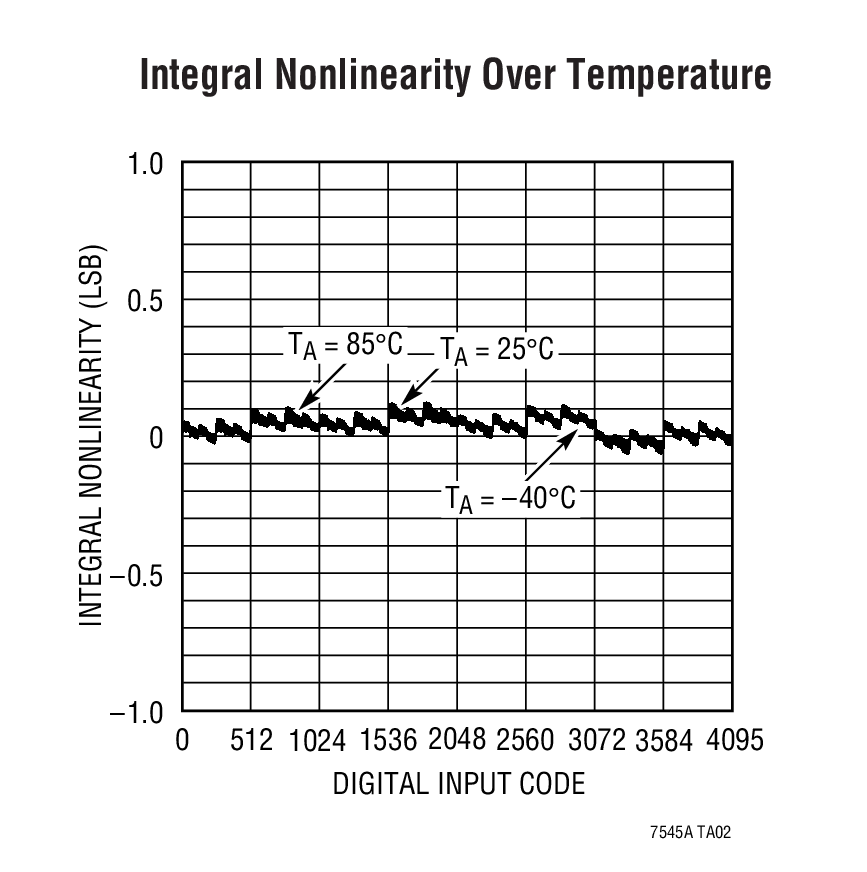

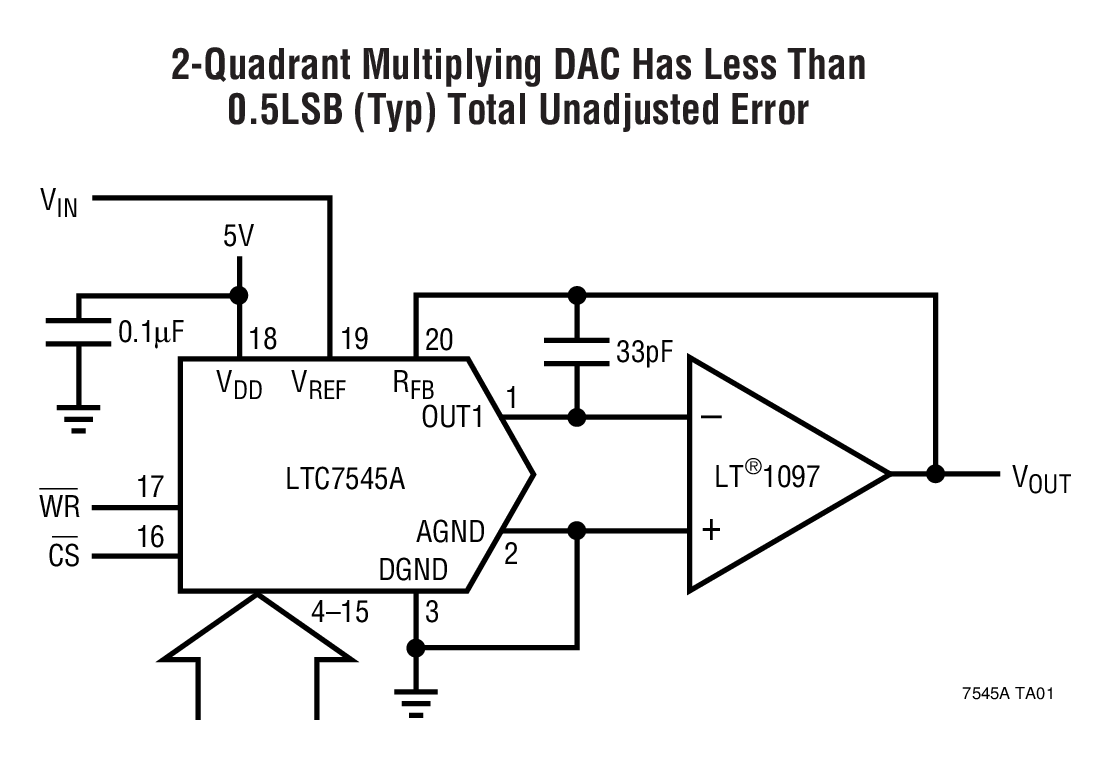

LTC7545A - 典型应用图例：

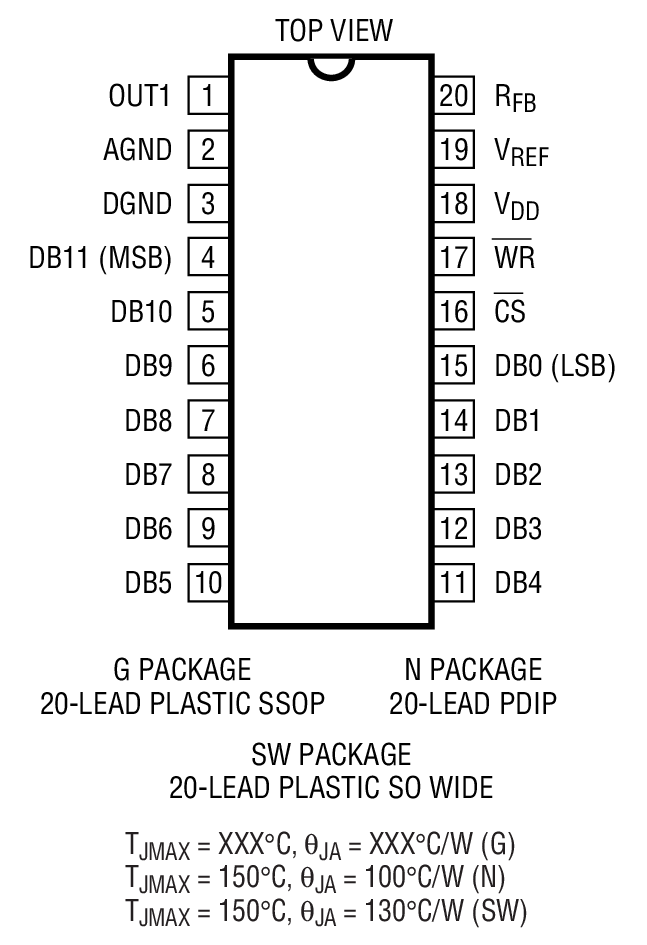

LTC7545A - 封装图解：
LTC7545A - LTC7545A是Improved Industry Standard Parallel 12-Bit Multiplying DAC
LTC7545A是Linear公司的一款电流输出 DAC产品，LTC7545A是Improved Industry Standard Parallel 12-Bit Multiplying DAC，本站介绍了LTC7545A的封装应用图解、特点和优点、功能等，并给出了与LTC7545A相关的凌力尔特元器件型号供参考。
LTC7545A - Improved Industry Standard Parallel 12-Bit Multiplying DAC
LTC7545A - Improved Industry Standard Parallel 12-Bit Multiplying DAC - Linear Technology（凌力尔特）
功能描述
The LTC?7545A is a 12-bit multiplying digital-to-analog converter (DAC) with a microprocessor compatible parallel input. It is a superior pin compatible replacement for the industry standard AD7545A and AD7545. Improvements include better accuracy, better stability over temperature and supply variations and lower sensitivity to output amplifier offset.This very versatile DAC is useful for 2-quadrant and 4-quadrant multiplying, programmable gain and filtering and single supply noninverting voltage output operation.Parts are available in 20-pin PDIP and SO packages and commercial and industrial temperature grades. 特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC7545ABG | SSOP-20 | I | $5.85 | $4.65 |
| LTC7545ABG#PBF | SSOP-20 | I | $5.85 | $4.65 |
| LTC7545ABG#TR | SSOP-20 | I | $4.75 | |
| LTC7545ABG#TRPBF | SSOP-20 | I | $4.75 | |
| LTC7545ABN | N-20 | I | $5.50 | $4.40 |
| LTC7545ABN#PBF | N-20 | I | $5.50 | $4.40 |
| LTC7545ABSW | SW-20 | I | $5.50 | $4.40 |
| LTC7545ABSW#PBF | SW-20 | I | $5.50 | $4.40 |
| LTC7545ABSW#TR | SW-20 | I | $4.50 | |
| LTC7545ABSW#TRPBF | SW-20 | I | $4.50 | |
| LTC7545ACG | SSOP-20 | C | $6.10 | $4.85 |
| LTC7545ACG#PBF | SSOP-20 | C | $6.10 | $4.85 |
| LTC7545ACG#TR | SSOP-20 | C | $4.95 | |
| LTC7545ACG#TRPBF | SSOP-20 | C | $4.95 | |
| LTC7545ACN | N-20 | C | $5.75 | $4.60 |
| LTC7545ACN#PBF | N-20 | C | $5.75 | $4.60 |
| LTC7545ACSW | SW-20 | C | $5.75 | $4.60 |
| LTC7545ACSW#PBF | SW-20 | C | $5.75 | $4.60 |
| LTC7545ACSW#TR | SW-20 | C | $4.70 | |
| LTC7545ACSW#TRPBF | SW-20 | C | $4.70 | |
| LTC7545AKG | SSOP-20 | C | $5.10 | $4.05 |
| LTC7545AKG#PBF | SSOP-20 | C | $5.10 | $4.05 |
| LTC7545AKG#TR | SSOP-20 | C | $4.15 | |
| LTC7545AKG#TRPBF | SSOP-20 | C | $4.15 | |
| LTC7545AKN | N-20 | C | $4.75 | $3.80 |
| LTC7545AKN#PBF | N-20 | C | $4.75 | $3.80 |
| LTC7545AKSW | SW-20 | C | $4.75 | $3.80 |
| LTC7545AKSW#PBF | SW-20 | C | $4.75 | $3.80 |
| LTC7545AKSW#TR | SW-20 | C | $3.90 | |
| LTC7545AKSW#TRPBF | SW-20 | C | $3.90 | |
| LTC7545ALG | SSOP-20 | C | $5.35 | $4.25 |
| LTC7545ALG#PBF | SSOP-20 | C | $5.35 | $4.25 |
| LTC7545ALG#TR | SSOP-20 | C | $4.35 | |
| LTC7545ALG#TRPBF | SSOP-20 | C | $4.35 | |
| LTC7545ALN | N-20 | C | $5.00 | $4.00 |
| LTC7545ALN#PBF | N-20 | C | $5.00 | $4.00 |
| LTC7545ALSW | SW-20 | C | $5.00 | $4.00 |
| LTC7545ALSW#PBF | SW-20 | C | $5.00 | $4.00 |
| LTC7545ALSW#TR | SW-20 | C | $4.10 | |
| LTC7545ALSW#TRPBF | SW-20 | C | $4.10 |
