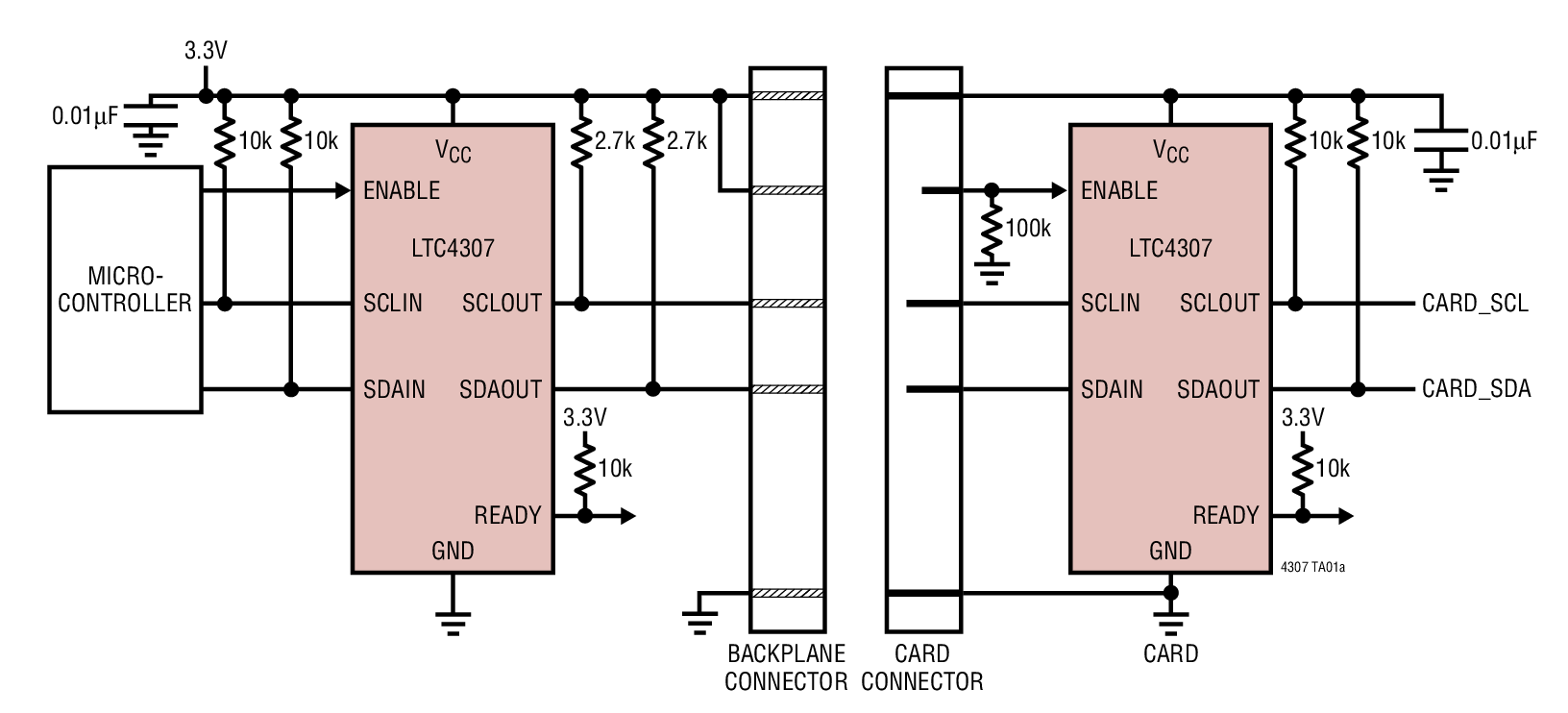

LTC4307典型应用图例一

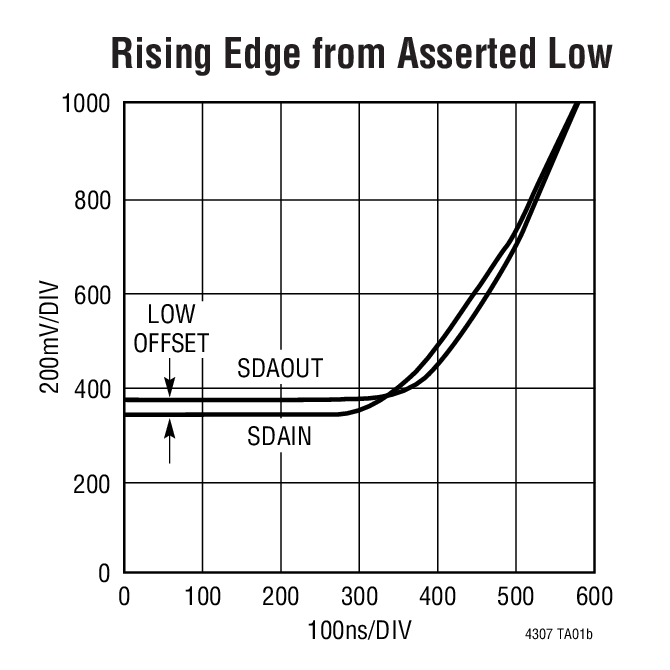

LTC4307典型应用图例二
LTC4307 - 封装图解：

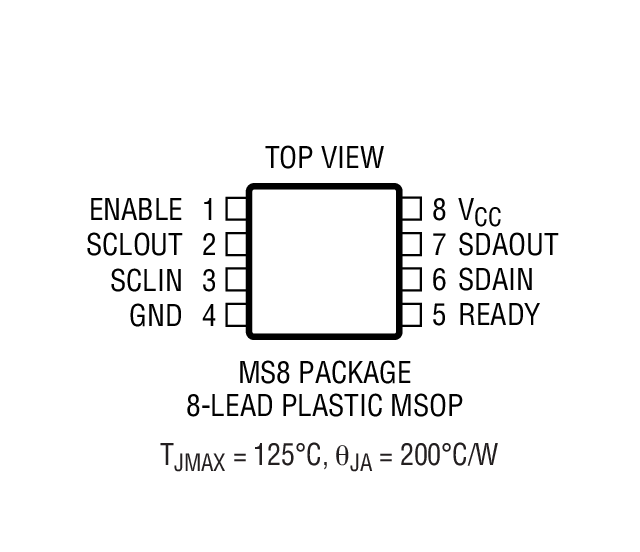

LTC4307封装图解一

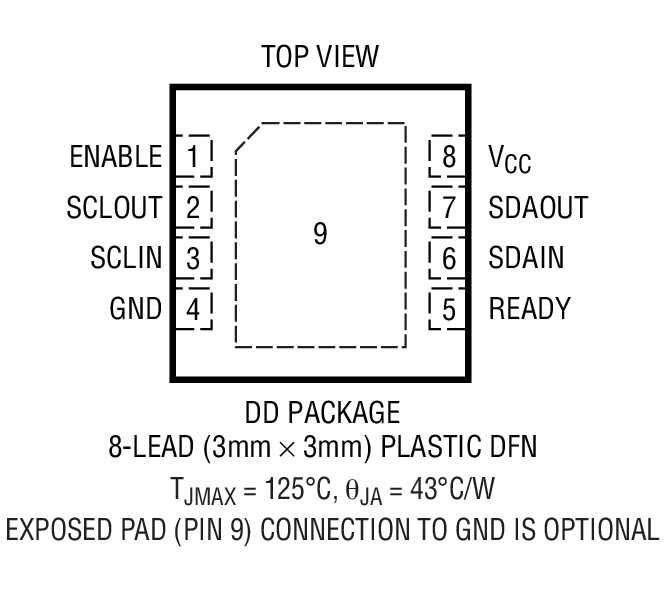

LTC4307封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC4307介绍

LTC4307 - LTC4307是Low Offset Hot Swappable 2-Wire Bus Buffer with Stuck Bus Recovery

LTC4307是LINEAR凌力尔特公司的一款I2C 和 SMBus 总线缓冲器和加速器产品，LTC4307是LTC4307是Low Offset Hot Swappable 2-Wire Bus Buffer with Stuck Bus Recovery，本站介绍了LTC4307的封装应用图解、特点和优点、功能等，并给出了与LTC4307相关的LINEAR元器件型号供参考。

LTC4307 - LTC4307是Low Offset Hot Swappable 2-Wire Bus Buffer with Stuck Bus Recovery - I2C 和 SMBus 总线缓冲器和加速器 - 接口器件 - 凌力尔特

LTC4307 - Low Offset Hot Swappable 2-Wire Bus Buffer with Stuck Bus Recovery

LTC4307 - Low Offset Hot Swappable 2-Wire Bus Buffer with Stuck Bus Recovery - Linear Technology（凌力尔特）

功能描述

The LTC4307 hot swappable, 2-wire bus buffer allows I/O card insertion into a live backplane without corruption of the data and clock busses. The LTC4307 provides bidirectional buffering, keeping the backplane and card capacitances isolated. Low offset and high VOL tolerance allows multiple devices to be cascaded on the clock and data busses. If SDAOUT or SCLOUT are low for 30ms, the LTC4307 will automatically break the bus connection. At this time the LTC4307 automatically generates up to 16 clock pulses on SCLOUT in an attempt to free the bus. A connection will resume if the stuck bus is cleared.

During insertion, the SDA and SCL lines are pre-charged to 1V to minimize bus disturbances. When driven high, the ENABLE input allows the LTC4307 to connect after a stop bit or bus idle. Driving ENABLE low breaks the connection between SDAIN and SDAOUT, SCLIN and SCLOUT. READY is an open-drain output which indicates that the backplane and card sides are connected.

特点
  • Bidirectional Buffer with Stuck Bus Recovery
  • 60mV Buffer Offset Independent of Load
  • 30ms Stuck Bus Timeout
  • Compatible with Non-Compliant VOL I2C Devices
  • Prevents SDA and SCL Corruption During Live Board Insertion and Removal from Backplane
  • ±5kV Human Body Model ESD Protection
  • Isolates Input SDA and SCL Line from Output
  • Compatible with I2CTM, I2C Fast Mode and SMBus
  • READY Open-Drain Output
  • 1V Precharge on All SDA and SCL Lines
  • High Impedance SDA, SCL Pins for VCC = 0V
  • Small 8-Lead (3mm × 3mm) DFN and 8-Lead MSOP Packages
    • 应用
  • Live Board Insertion
  • Servers
  • Capacitance Buffer/Bus Extender
  • RAID Systems
  • ATCA
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC4307CDD#PBF 3x3 DFN-8 C $3.07 $2.15
    LTC4307CDD#TRPBF 3x3 DFN-8 C $2.21
    LTC4307CMS8#PBF MS-8 C $3.07 $2.15
    LTC4307CMS8#TRPBF MS-8 C $2.21
    LTC4307IDD#PBF 3x3 DFN-8 I $3.68 $2.58
    LTC4307IDD#TRPBF 3x3 DFN-8 I $2.64
    LTC4307IMS8#PBF MS-8 I $3.68 $2.58
    LTC4307IMS8#TRPBF MS-8 I $2.64
