当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC2433-1
LTC2433-1技术文档下载：
LTC2433-1技术文档产品手册下载
LTC2433-1 - 典型应用图例：

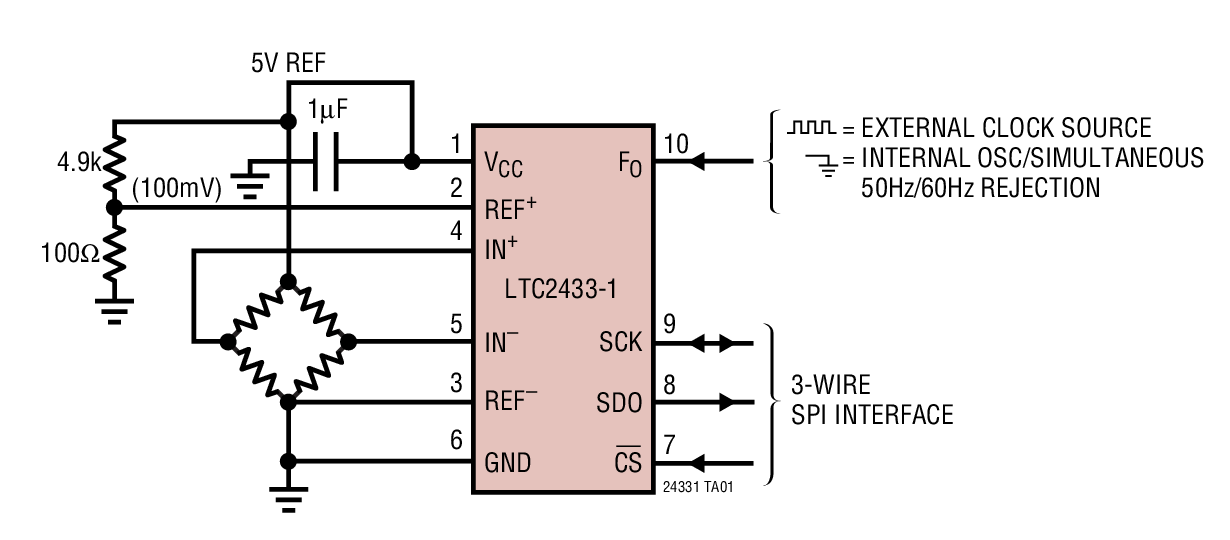

LTC2433-1典型应用图例一

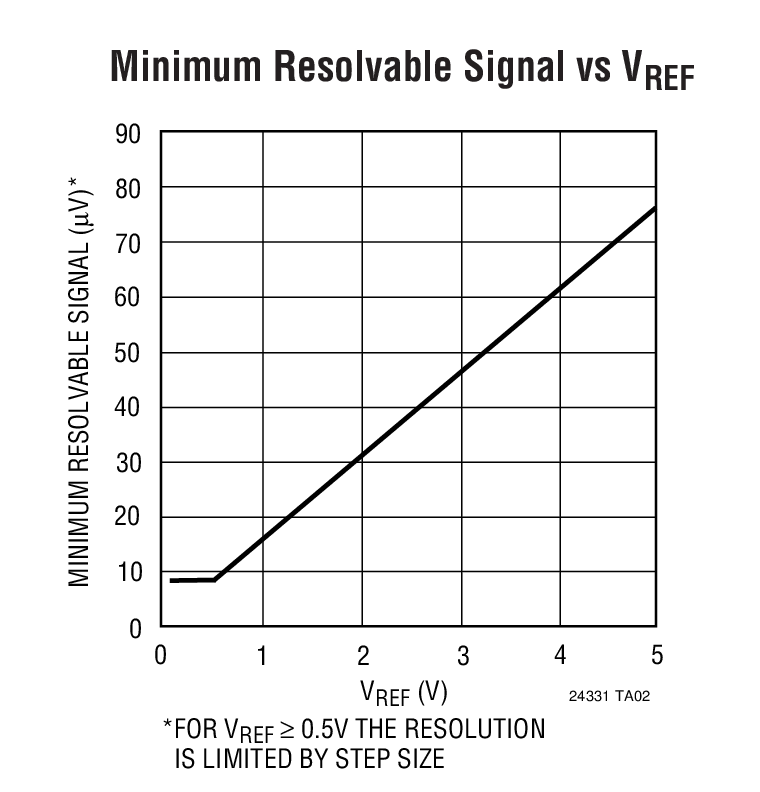

LTC2433-1典型应用图例二
LTC2433-1 - 封装图解：

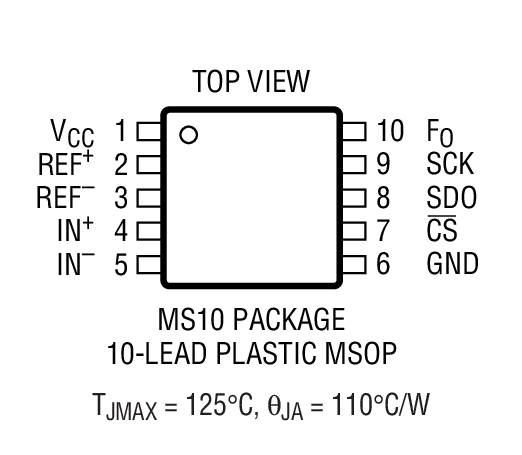

LTC2433-1封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC2433-1介绍

LTC2433-1 - LTC2433-1是Differential Input 16-Bit No Latency Delta Sigma ADC

LTC2433-1是LINEAR凌力尔特公司的一款无延迟增量累加 ADC产品，LTC2433-1是LTC2433-1是Differential Input 16-Bit No Latency Delta Sigma ADC，本站介绍了LTC2433-1的封装应用图解、特点和优点、功能等，并给出了与LTC2433-1相关的LINEAR元器件型号供参考。

LTC2433-1 - LTC2433-1是Differential Input 16-Bit No Latency Delta Sigma ADC - 无延迟增量累加 ADC - 数据转换 - 凌力尔特

LTC2433-1 - Differential Input 16-Bit No Latency Delta Sigma ADC

LTC2433-1 - Differential Input 16-Bit No Latency Delta Sigma ADC - Linear Technology（凌力尔特）

功能描述

The LTC2433-1 is a differential input micropower 16-bit No Latency Delta Sigma? analog-to-digital converter with an integrated oscillator. It provides 0.12LSB INL and 1.45μV RMS noise independent of VREF. It uses delta-sigma technology and provides single conversion settling of the digital filter. Through a single pin, the LTC2433-1 can be configured for better than 87dB input differential mode rejection at 50Hz and 60Hz ±2%, or it can be driven by an external oscillator for a user defined rejection frequency. The internal oscillator requires no external frequency setting components.

The converter accepts any external differential reference voltage from 0.1V to VCC for flexible ratiometric and remote sensing measurement configurations. The fullscale differential input range is from 0.5 ? VREF to 0.5 ? VREF. The reference common mode voltage, VREFCM, and the input common mode voltage, VINCM, may be independently set anywhere between GND and VCC. The DC common mode input rejection is better than 140dB.

The LTC2433-1 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE? protocols.

特点
  • 16-Bit Differential ADC in a Tiny MSOP
  • Low Supply Current: 200μA, 4μA in Autosleep
  • Rail-to-Rail Differential Input/Reference
  • 0.12LSB INL, No Missing Codes
  • 0.16LSB Full-Scale Error and 5μV Offset
  • 1.45μV RMS Noise, Independent of VREF
  • Very Low Transition Noise: <0.02LSB
  • Operates with a Reference as Low as 100mV with 16-Bit Resolution
  • Internal OscillatorNo External Components Required
  • 87dB Min, Simultaneous 50Hz and 60Hz Notch Filter
  • Single Supply 2.7V to 5.5V Operation
  • Pin Compatible with the 20/24-Bit LTC2431/LTC2411
  • Available in 10-Lead MSOP Package
    • 应用
  • Direct Sensor Digitizer
  • Weight Scales
  • Direct Temperature Measurement
  • Gas Analyzers
  • Strain-Gage Transducers
  • Instrumentation
  • Data Acquisition
  • Industrial Process Control
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC2433-1CMS MS-10 C $2.60 $1.95
    LTC2433-1CMS#PBF MS-10 C $2.60 $1.95
    LTC2433-1CMS#TR MS-10 C $2.01
    LTC2433-1CMS#TRPBF MS-10 C $2.01
    LTC2433-1IMS MS-10 I $2.85 $2.15
    LTC2433-1IMS#PBF MS-10 I $2.85 $2.15
    LTC2433-1IMS#TR MS-10 I $2.21
    LTC2433-1IMS#TRPBF MS-10 I $2.21
