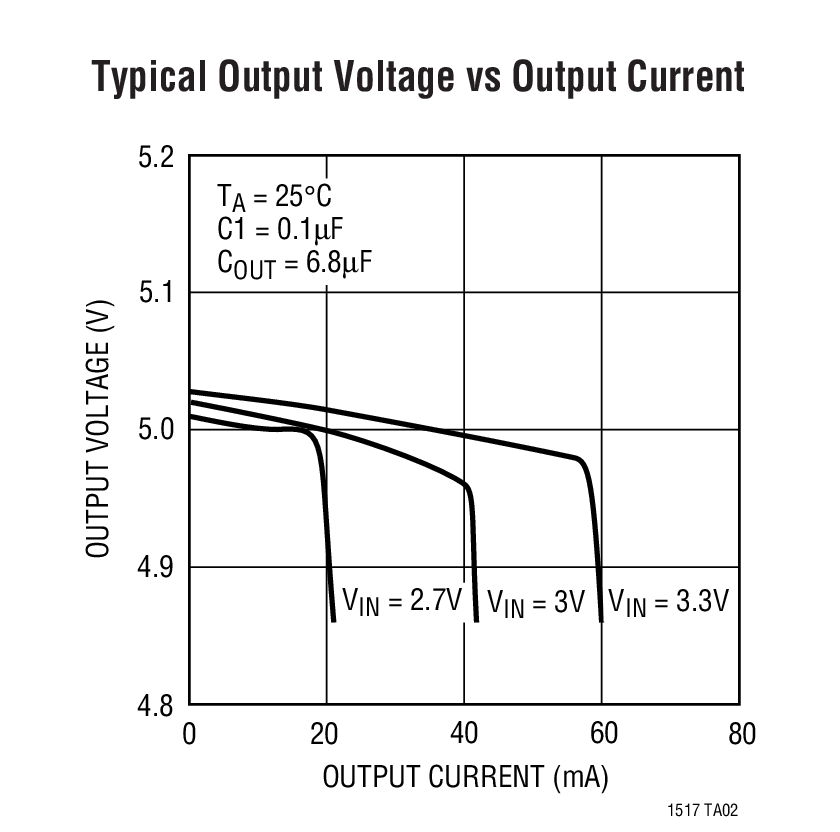

LTC1517-5典型应用图例一

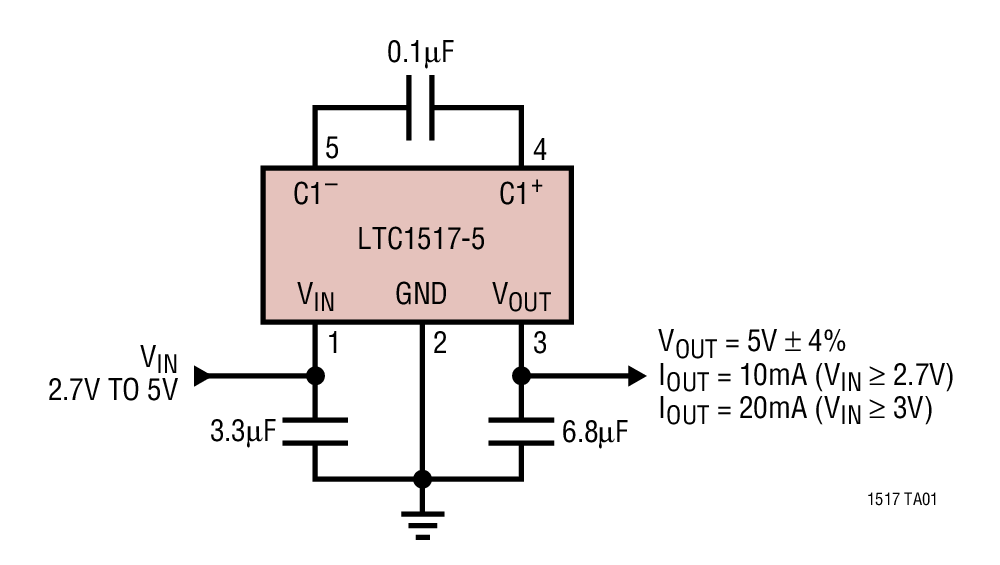

LTC1517-5典型应用图例二
LTC1517-5 - 封装图解:

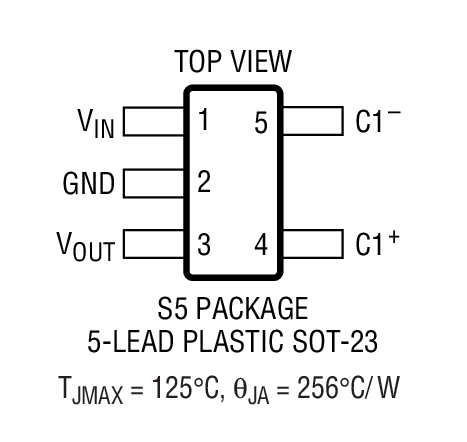

LTC1517-5封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1517-5介绍
LTC1517-5 - LTC1517-5是Micropower, Regulated 5V Charge Pump in a 5-Pin SOT-23 Package

LTC1517-5是Linear公司的一款稳压的升压型充电泵产品,LTC1517-5是Micropower, Regulated 5V Charge Pump in a 5-Pin SOT-23 Package,本站介绍了LTC1517-5的封装应用图解、特点和优点、功能等,并给出了与LTC1517-5相关的凌力尔特元器件型号供参考。

LTC1517-5 - Micropower, Regulated 5V Charge Pump in a 5-Pin SOT-23 Package

LTC1517-5 - Micropower, Regulated 5V Charge Pump in a 5-Pin SOT-23 Package - Linear Technology(凌力尔特)

功能描述
The LTC?1517-5 is a micropower charge pump DC/DC converter that produces a regulated 5V output. The input voltage range is 2.7V to 5V. Extremely low operating current (typically 6μA with no load) and low external parts count (one 0.1μF flying capacitor and two small bypass capacitors at VIN and VOUT) make the part ideally suited for small, light load battery-powered applications. The total printed circuit board area of the application circuit shown below is only 0.045in?.The part operates as a Burst Mode’ switched-capacitor voltage doubler to produce a regulated output. The part has thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. The device is available in a 5-pin SOT-23 package.
特点
  • Ultralow Power: ICC = 6µA Typ
  • Short-Circuit/Thermal Protected
  • 5V ±4% Regulated Output
  • VIN Range: 2.7V to 5V
  • Output Current:
      10mA (VIN >/= 2.7V)
      20mA (VIN >/= 3V)
  • No Inductors
  • Ultrasmall Application Circuit (0.045in²)
  • 800kHz Switching Frequency
  • Available in 5-Pin SOT-23
  • 应用
  • Cellular Telephones
  • Battery-Operated Equipment
  • Local Power Supplies
  • Handheld Instruments
  • PCMCIA Supplies
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1517CS5-5 SOT-23 C $2.57
    LTC1517CS5-5#PBF SOT-23 C $2.57
    LTC1517CS5-5#TR SOT-23 C $2.57 $2.00
    LTC1517CS5-5#TRM SOT-23 C $2.57 $2.02
    LTC1517CS5-5#TRMPBF SOT-23 C $2.57 $2.02
    LTC1517CS5-5#TRPBF SOT-23 C $2.57 $2.00
    LTC1517ES5-5 SOT-23 E $2.31
    LTC1517ES5-5#PBF SOT-23 E $2.31
    LTC1517ES5-5#TR SOT-23 E $2.31 $2.11
    LTC1517ES5-5#TRM SOT-23 E $2.31 $2.13
    LTC1517ES5-5#TRMPBF SOT-23 E $2.31 $2.13
    LTC1517ES5-5#TRPBF SOT-23 E $2.31 $2.11
