LT6650CS5是Linear公司的一款扩展温度 (H 和 MP) 电压基准产品，LT6650CS5是Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23，本站介绍了LT6650CS5的封装应用图解、特点和优点、功能等，并给出了与LT6650CS5相关的凌力尔特元器件型号供参考。
LT6650CS5 - Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23
LT6650 - Micropower, 400mV Reference with Rail-to-Rail Buffer Amplifier in SOT-23 - Linear Technology（凌力尔特）

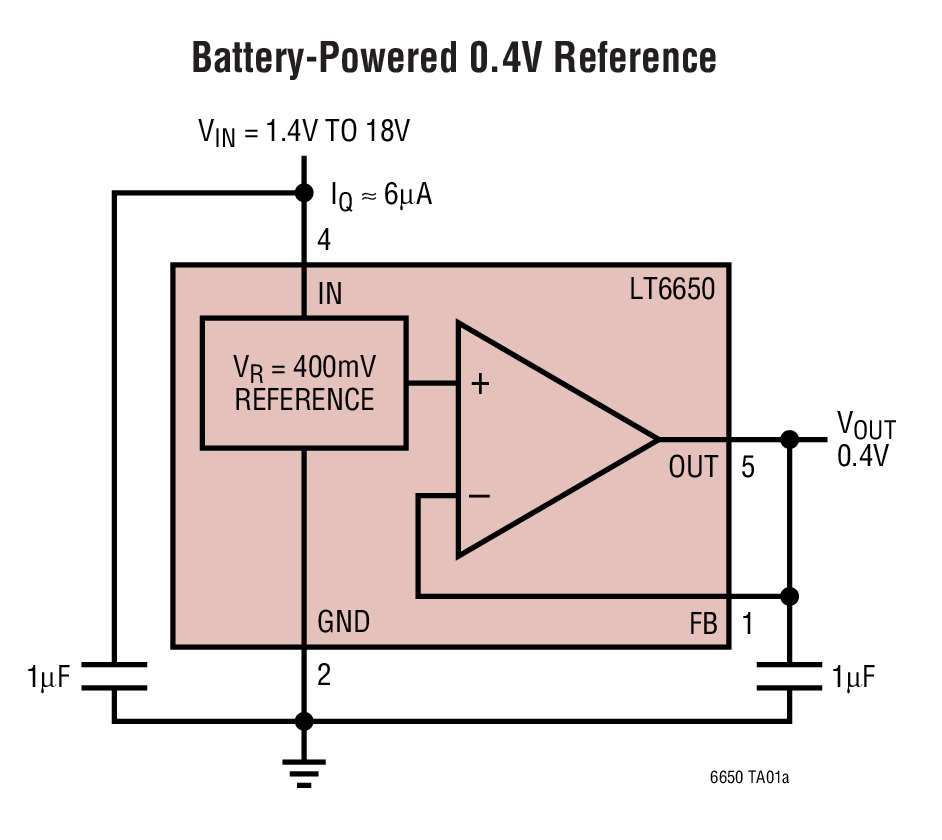

The LT6650 is a micropower, low voltage 400mV reference. Operating with supplies from 1.4V up to 18V, the device draws only 5.6μA typical, making it ideal for low voltage systems as well as handheld instruments and industrial control systems. With only two resistors the internal buffer amplifier can scale the 400mV reference to any desired value up to the supply voltage.
The reference is postpackage-trimmed to increase the output accuracy. The output can sink and source 200μA over temperature. Quiescent power dissipation is 28μW. Stability is ensured with any output capacitor of 1μF or higher.

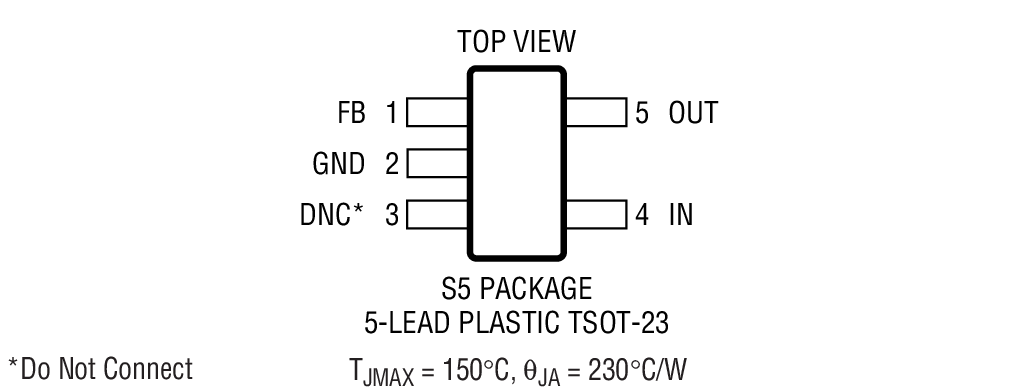

The LT6650 is the lowest voltage series reference available in the 5-lead SOT-23 package.
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT6650CS5 | SOT-23 | C | $1.88 | |
| LT6650CS5#PBF | SOT-23 | C | $1.88 | |
| LT6650CS5#TR | SOT-23 | C | $1.88 | $1.25 |
| LT6650CS5#TRM | SOT-23 | C | $1.88 | $1.27 |
| LT6650CS5#TRMPBF | SOT-23 | C | $1.88 | $1.27 |
| LT6650CS5#TRPBF | SOT-23 | C | $1.88 | $1.25 |
| LT6650HS5 | SOT-23 | H | $2.41 | |
| LT6650HS5#PBF | SOT-23 | H | $2.41 | |
| LT6650HS5#TR | SOT-23 | H | $2.41 | $1.69 |
| LT6650HS5#TRM | SOT-23 | H | $2.41 | $1.71 |
| LT6650HS5#TRMPBF | SOT-23 | H | $2.41 | $1.71 |
| LT6650HS5#TRPBF | SOT-23 | H | $2.41 | $1.69 |
| LT6650IS5 | SOT-23 | I | $2.41 | |
| LT6650IS5#PBF | SOT-23 | I | $2.41 | |
| LT6650IS5#TR | SOT-23 | I | $2.41 | $1.69 |
| LT6650IS5#TRM | SOT-23 | I | $2.41 | $1.71 |
| LT6650IS5#TRMPBF | SOT-23 | I | $2.41 | $1.71 |
| LT6650IS5#TRPBF | SOT-23 | I | $2.41 | $1.69 |
