LT5518是1.5GHz?2.4GHz High Linearity Direct Quadrature Modulator

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT5518

LT5518技术文档下载：

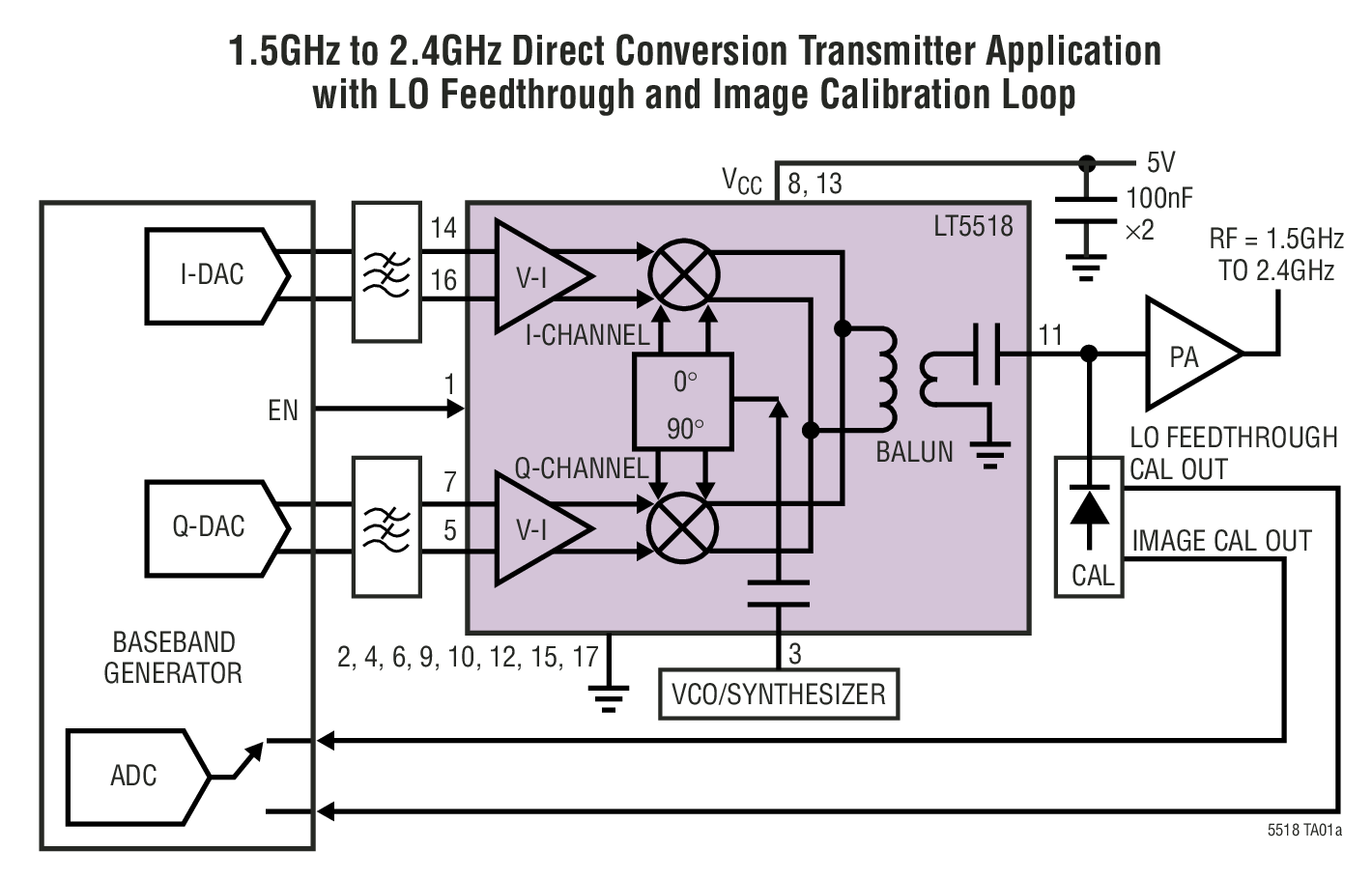

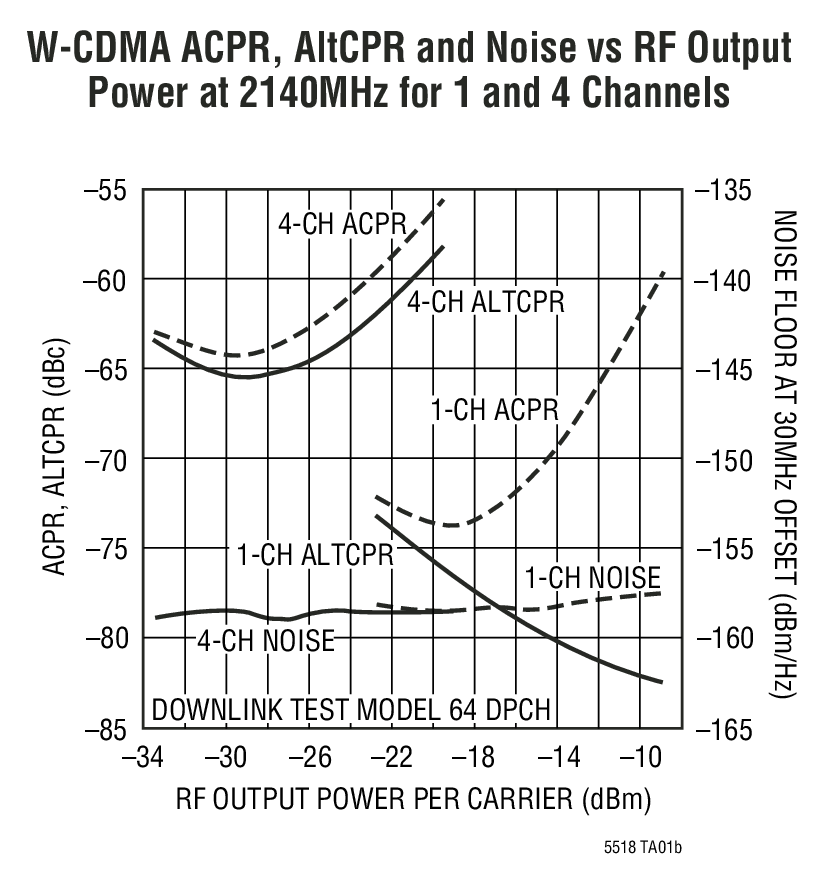

LT5518 - 典型应用图例：

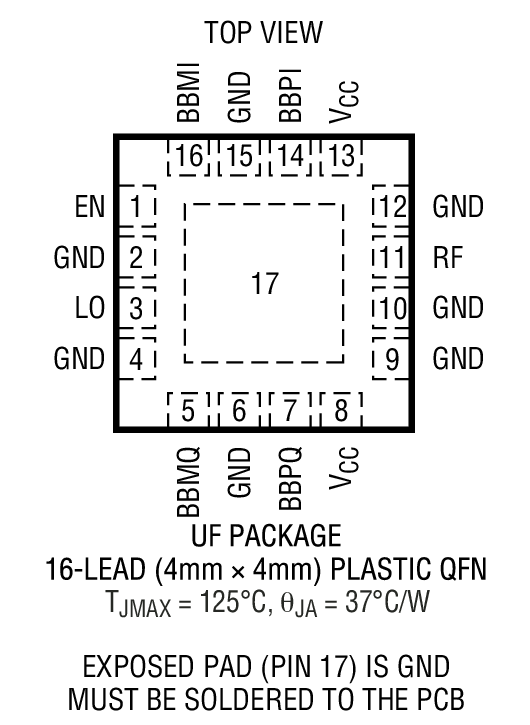

LT5518 - 封装图解：

LT5518 - LT5518是1.5GHz?2.4GHz High Linearity Direct Quadrature Modulator

LT5518是Linear公司的一款I/Q 调制器产品，LT5518是1.5GHz?2.4GHz High Linearity Direct Quadrature Modulator，本站介绍了LT5518的封装应用图解、特点和优点、功能等，并给出了与LT5518相关的凌力尔特元器件型号供参考。

LT5518 - 1.5GHz?2.4GHz High Linearity Direct Quadrature Modulator

LT5518 - 1.5GHz?2.4GHz High Linearity Direct Quadrature Modulator - Linear Technology（凌力尔特）

功能描述

The LT5518 is a direct I/Q modulator designed for high performance wireless applications, including wireless infrastructure. It allows direct modulation of an RF signal using differential baseband I and Q signals. It supports PHS, GSM, EDGE, TD-SCDMA, CDMA, CDMA2000, W-CDMA and other systems. It may also be configured as an image reject up-converting mixer, by applying 90° phase-shifted signals to the I and Q inputs. The high impedance I/Q baseband inputs consist of voltage-to-current converters that in turn drive double-balanced mixers. The outputs of these mixers are summed and applied to an on-chip RF transformer, which converts the differential mixer signals to a 50Ω single-ended output. The balanced I and Q baseband input ports are intended for DC coupling from a source with a common mode voltage level of about 2.1V. The LO path consists of an LO buffer with single-ended input, and precision quadrature generators that produce the LO drive for the mixers. The supply voltage range is 4.5V to 5.25V.

特点

High Input Impedance Version of the LT5528

Direct Conversion to 1.5GHz - 2.4GHz

High OIP3: 22.8dBm at 2GHz

Low Output Noise Floor at 20MHz Offset:No RF: -158.2dBm/HzPOUT = 4dBm: -152.5dBm/Hz

4-Ch W-CDMA ACPR: -64dBc at 2.14GHz

Integrated LO Buffer and LO Quadrature Phase Generator

50Ω AC-Coupled Single-Ended LO and RF Ports

Low Carrier Leakage: -49dBm at 2GHz

High Image Rejection: 40dB at 2GHz

16-Lead QFN 4mm × 4mm Package

应用
