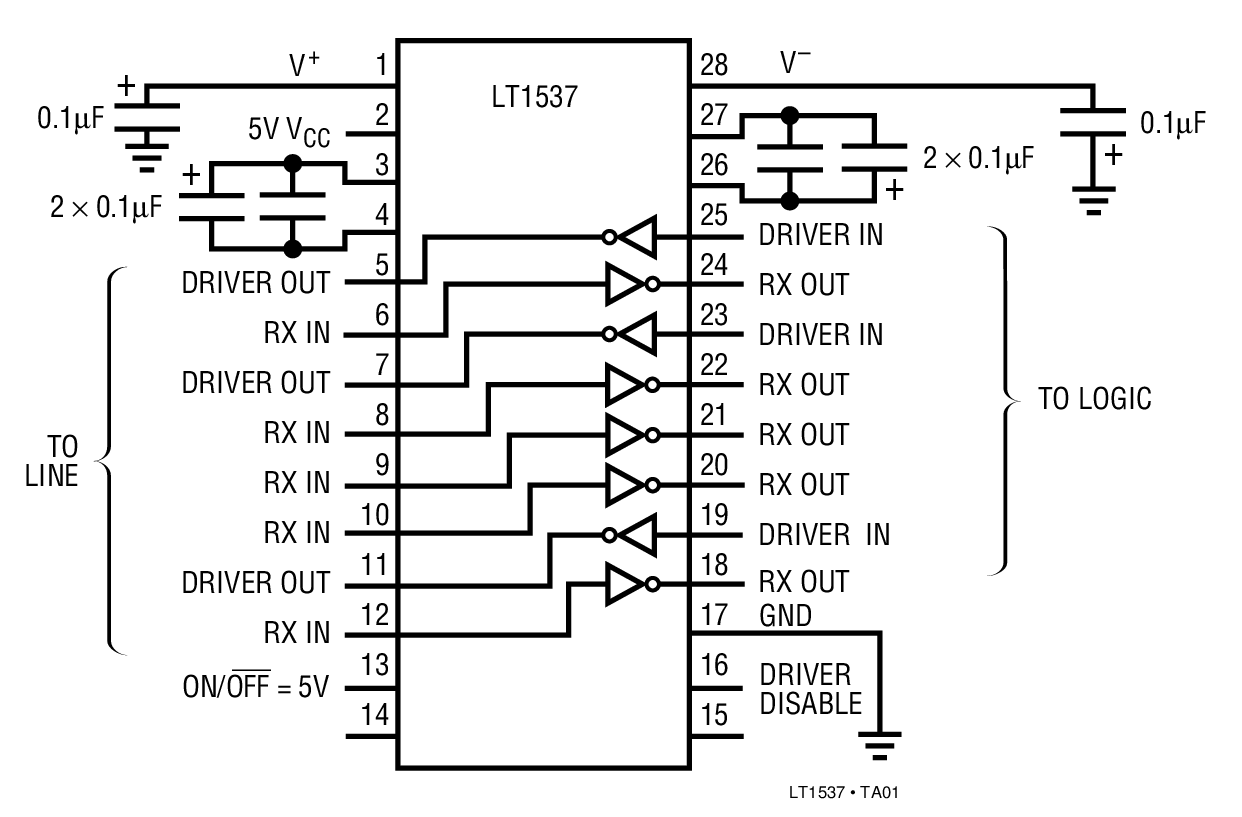

LT1537典型应用图例一
LT1537典型应用图例二
LT1537 - 封装图解：

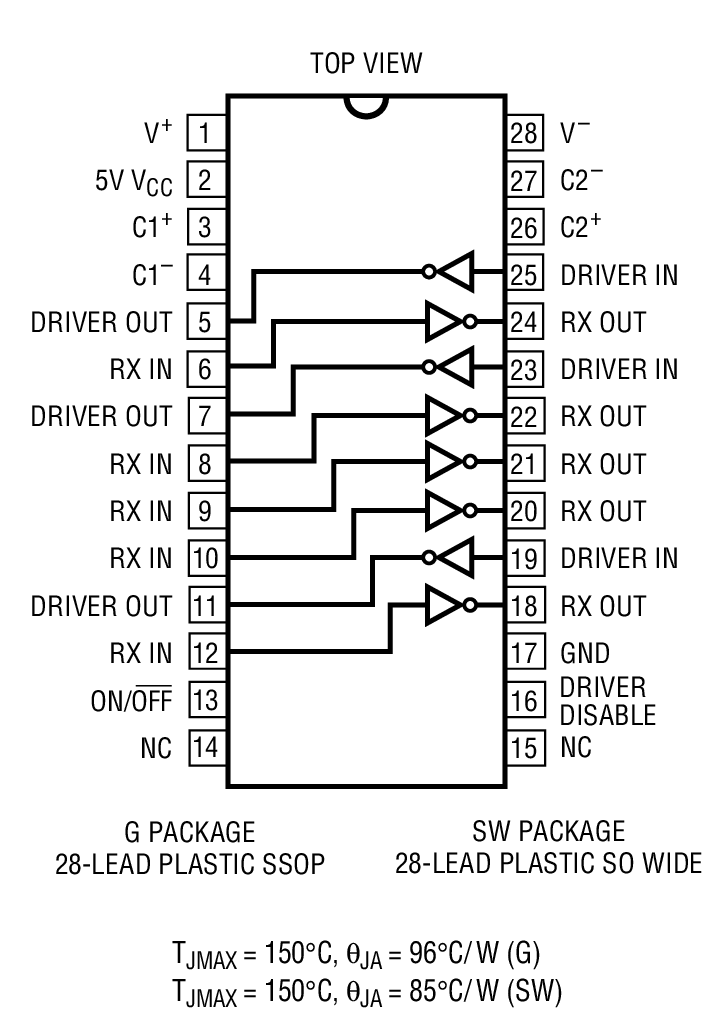

LT1537封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1537介绍

LT1537 - LT1537是Advanced Low Power 5V RS232 Transceiver with Small Capacitors

LT1537是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LT1537是LT1537是Advanced Low Power 5V RS232 Transceiver with Small Capacitors，本站介绍了LT1537的封装应用图解、特点和优点、功能等，并给出了与LT1537相关的LINEAR元器件型号供参考。

LT1537 - LT1537是Advanced Low Power 5V RS232 Transceiver with Small Capacitors - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LT1537 - Advanced Low Power 5V RS232 Transceiver with Small Capacitors

LT1537 - Advanced Low Power 5V RS232 Transceiver with Small Capacitors - Linear Technology（凌力尔特）

功能描述
The LT?1537 is a three-driver, five-receiver RS232 transceiver, pin compatible with the LT1137A, offering performance improvements and two shutdown modes. The LT1537μs charge pump is designed for extended compliance and can deliver over 35mA of load current. Supply current is typically 8mA, competitive with similar CMOS devices. An advanced driver output stage operates up to 250kbaud while driving heavy capacitive loads.The LT1537 is fully compliant with all RS232 specifications. Special bipolar construction techniques protect the drivers and receivers beyond the fault conditions stipulated for RS232. Driver outputs and receiver inputs can be shorted to ?25V without damaging the device or the power supply generator. In addition, the RS232 I/O pins are resilient to multiple ?5kV ESD strikes.The transceiver has two shutdown modes. One mode disables the drivers and the charge pump, the other shuts down all circuitry. While shut down, the drivers and receivers assume high impedance output states.
特点
  • Low Cost
  • Uses Small Capacitors: 0.1µF, 0.2µF
  • 1µA Supply Current in Shutdown
  • 120kBaud Operation for RL = 3k, CL = 2500pF
  • 250kBaud Operation for RL = 3k, CL = 1000pF
  • CMOS Comparable Low Power: 40mW
  • Operates from a Single 5V Supply
  • Easy PC Layout: Flow-through Architecture
  • Rugged Bipolar Design
  • Outputs Assume a High Impedance State When Off or Powered Down
  • Improved Protection: RS232 I/O Lines Can Be Forced to ±25V Without Damage
  • Output Overvoltage Does Not Force Current Back into Supplies
  • Absolutely No Latch-Up
  • Available in SO Package
    • 应用
  • Notebook Computers
  • Palmtop Computers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1537CG SSOP-28 C $4.00 $3.20
    LT1537CG#PBF SSOP-28 C $4.00 $3.20
    LT1537CG#TR SSOP-28 C $3.30
    LT1537CG#TRPBF SSOP-28 C $3.30
    LT1537CSW SW-28 C $3.50 $2.80
    LT1537CSW#PBF SW-28 C $3.50 $2.80
    LT1537CSW#TR SW-28 C $2.90
    LT1537CSW#TRPBF SW-28 C $2.90
