LINEAR产品 - LT1180A介绍

LT1180A - LT1180A是Low Power 5V RS232 Dual Driver/Receiver with 0.1μF Capacitors

LT1180A是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LT1180A是LT1180A是Low Power 5V RS232 Dual Driver/Receiver with 0.1μF Capacitors，本站介绍了LT1180A的封装应用图解、特点和优点、功能等，并给出了与LT1180A相关的LINEAR元器件型号供参考。

LT1180A - LT1180A是Low Power 5V RS232 Dual Driver/Receiver with 0.1μF Capacitors - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LT1180A - Low Power 5V RS232 Dual Driver/Receiver with 0.1μF Capacitors

LT1180A - Low Power 5V RS232 Dual Driver/Receiver with 0.1μF Capacitors - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download Complete Datasheet for Details

The LT1180A/LT1181A are dual RS232 driver/receiver pairs with integral charge pump to generate RS232 voltage levels from a single 5V supply. These circuits feature rugged bipolar design to provide operating fault tolerance and ESD protection unmatched by competing CMOS designs. Using only 0.1µF external capacitors, these circuits consume only 40mW of power, and can operate to 120k baud even while driving heavy capacitive loads. New ESD structures on the chip allow the LT1180A/LT1181A to survive multiple ±10kV strikes, eliminating the need for costly TransZorbs on the RS232 line pins. The LT1180A/LT1181A are fully compliant with EIA RS232 standards. Driver outputs are protected from overload, and can be shorted to ground or up to ±30V without damage. During shutdown or power-off conditions, driver and receiver outputs are in a high impedance state, allowing line sharing.

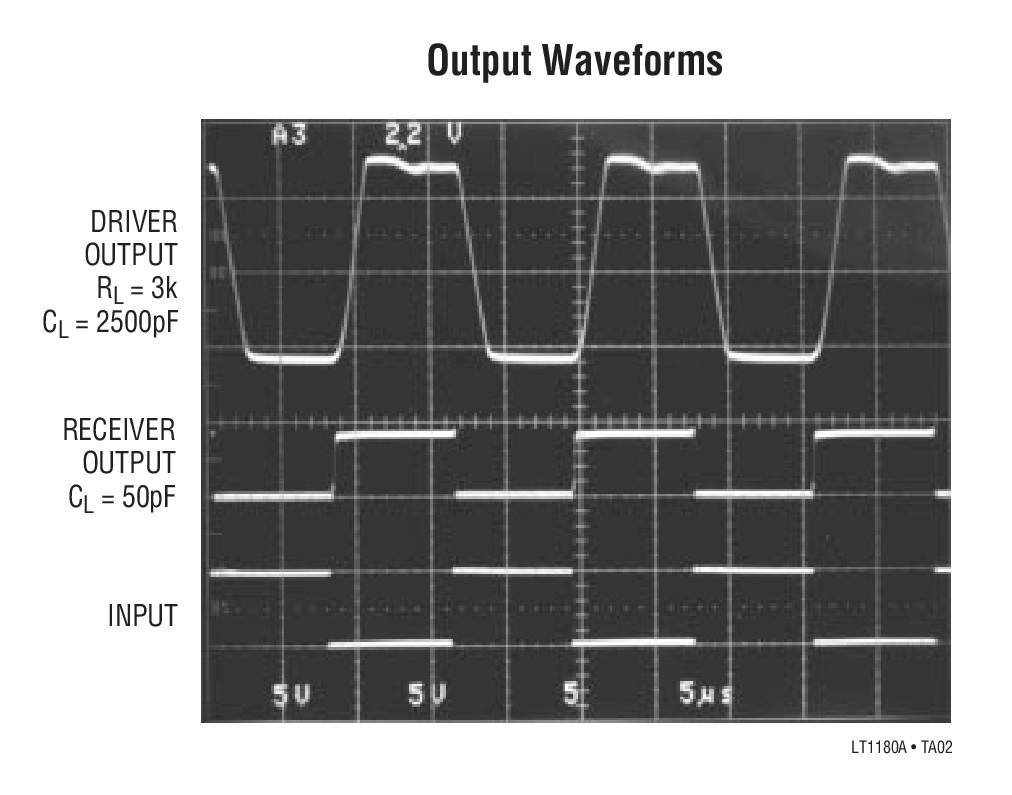

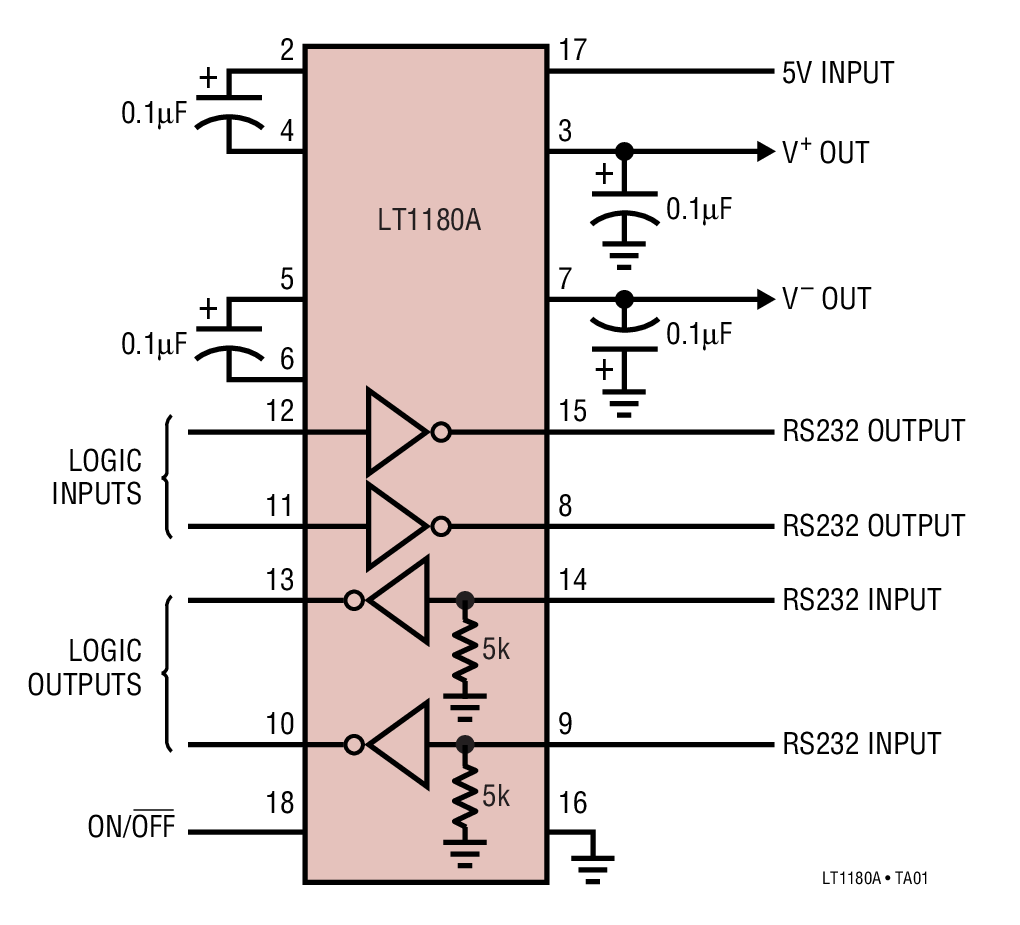

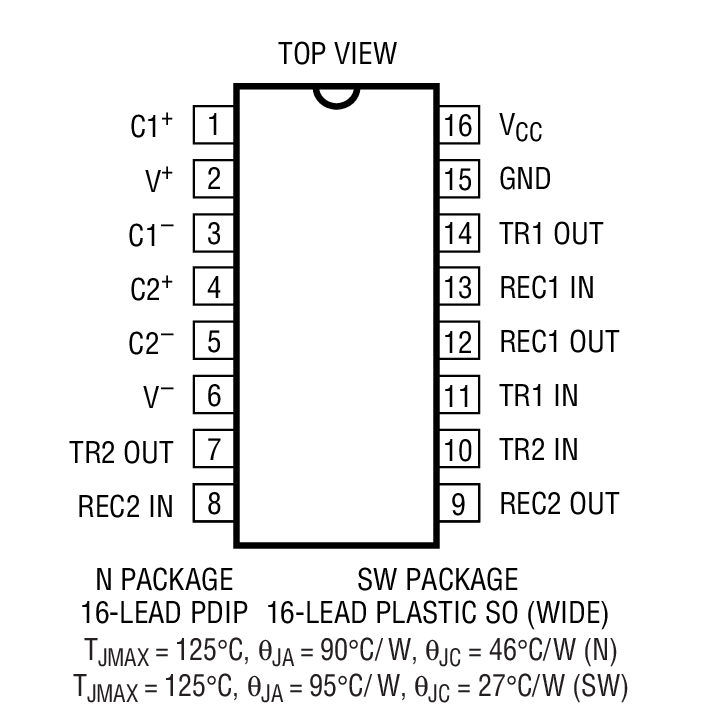

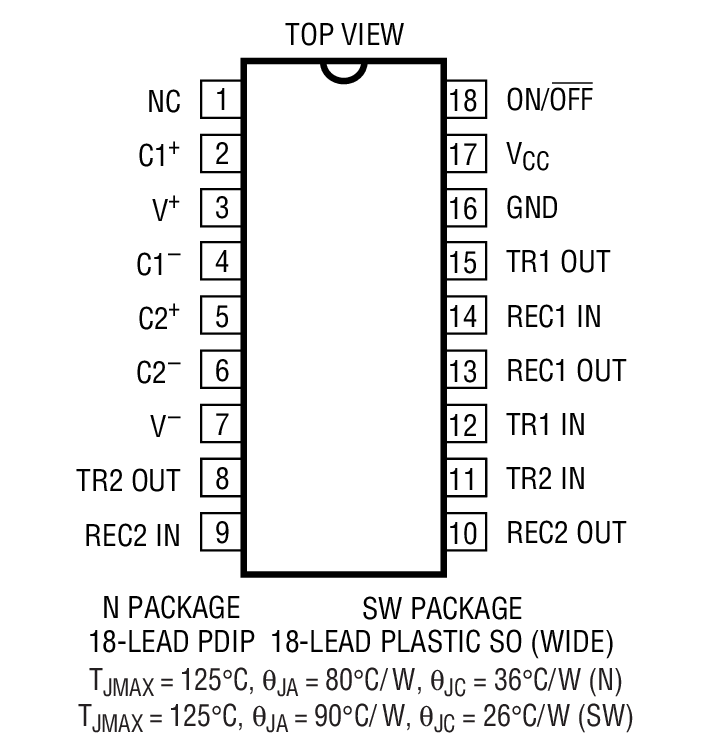

The LT1181A is available in 16-pin DIP and SO packages. The LT1180A is supplied in 18-pin DIP and SO packages for applications which require shutdown.

特点
  • ESD Protection over ±10kV
  • Uses Small Capacitors: 0.1µF
  • 120kBaud Operation for RL = 3k, CL = 2500pF
  • 250kBaud Operation for RL = 3k, CL = 1000pF
  • Outputs Withstand ±30V Without Damage
  • CMOS Comparable Low Power: 40mW
  • Operates from a Single 5V Supply
  • Rugged Bipolar Design
  • Outputs Assume a High Impedance State When Off or Powered Down
  • Meets All RS232 Specifications
  • Available With or Without Shutdown
  • Absolutely No Latch-up
  • Available in SO Package
    • 应用
  • Portable Computers
  • Battery-Powered Systems
  • Power Supply Generator
  • Terminals
  • Modems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1180ACN N-18 C $3.08 $2.40
    LT1180ACN#PBF N-18 C $3.08 $2.40
    LT1180ACSW SW-18 C $3.42 $2.65
    LT1180ACSW#PBF SW-18 C $3.42 $2.65
    LT1180ACSW#TR SW-18 C $2.75
    LT1180ACSW#TRPBF SW-18 C $2.75
    LT1180AIN N-18 I $4.00 $3.15
    LT1180AIN#PBF N-18 I $4.00 $3.15
    LT1180AISW SW-18 I $4.42 $3.40
    LT1180AISW#PBF SW-18 I $4.42 $3.40
    LT1180AISW#TR SW-18 I $3.50
    LT1180AISW#TRPBF SW-18 I $3.50
