RH129AH技术文档下载：

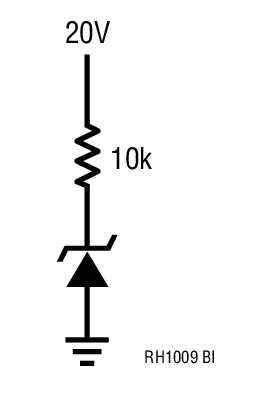

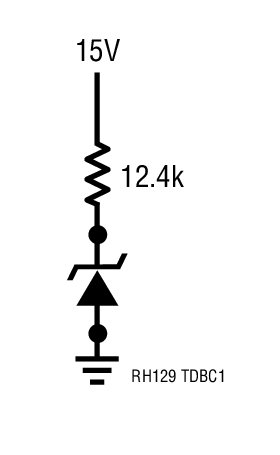

RH129AH - 典型应用图例：

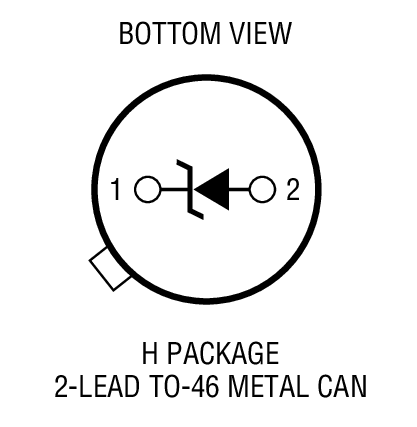

RH129AH - 封装图解：

RH129AH - RH129AH是6.9V Precision Reference

RH129AH是Linear公司的一款合乎航天使用要求的电压基准产品，RH129AH是6.9V Precision Reference，本站介绍了RH129AH的封装应用图解、特点和优点、功能等，并给出了与RH129AH相关的凌力尔特元器件型号供参考。

RH129AH - 6.9V Precision Reference

RH129 - 6.9V Precision Reference - Linear Technology（凌力尔特）

功能描述

The RH129 precision reference features excellent stability over a wide range of voltage, temperature and operating current conditions. The device achieves low dynamic impedance by incorporating a high gain shunt regulator around the Zener. The excellent noise performance of the device is achieved by using a buried Zener design which eliminates surface noise usually associated with ordinary Zeners.

The wafer lots are processed to LTC's in-house Class S flow to yield circuits usable in stringent military applications.

特点

ABSOLUTE MAXIMUM RATINGS

Reverse Breakdown Current.....30mA

Forward Current.....2mA

Operating Temperature Range.....?55°C to 125°C

Storage Temperature Range.....?65°C to 150°C

Lead Temperature (Soldering, 10 sec).....300°C

应用

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
