当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC3410-1.875
LTC3410-1.875技术文档下载：
LTC3410-1.875技术文档产品手册下载
LTC3410-1.875 - 典型应用图例：

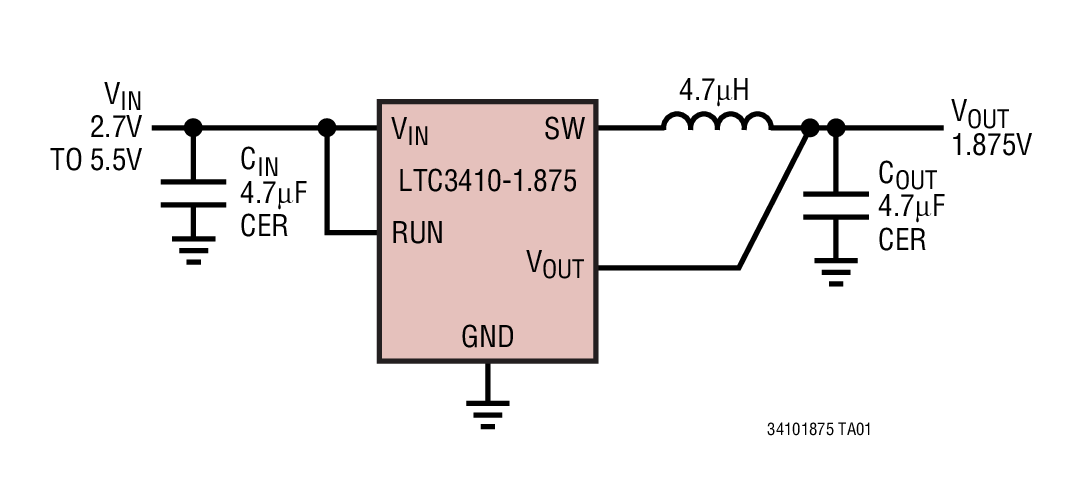

LTC3410-1.875典型应用图例一

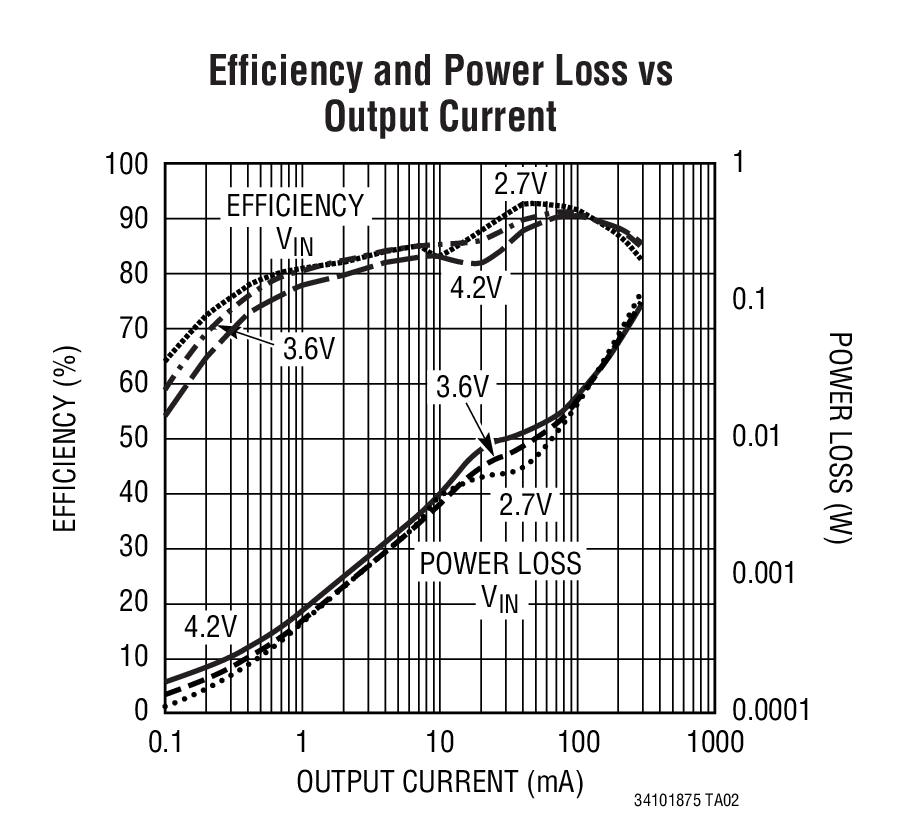

LTC3410-1.875典型应用图例二
LTC3410-1.875 - 封装图解：

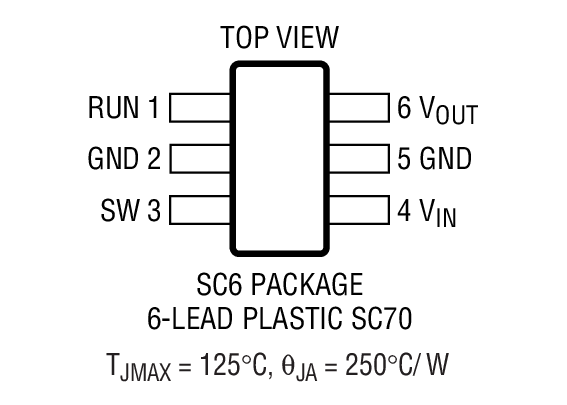

LTC3410-1.875封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC3410-1.875介绍

LTC3410-1.875 - LTC3410-1.875是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

LTC3410-1.875是LINEAR凌力尔特公司的一款微功率降压产品，LTC3410-1.875是LTC3410-1.875是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70，本站介绍了LTC3410-1.875的封装应用图解、特点和优点、功能等，并给出了与LTC3410-1.875相关的LINEAR元器件型号供参考。

LTC3410-1.875 - LTC3410-1.875是2.25MHz, 300mA Synchronous Step-Down Regulator in SC70 - 微功率降压 - 电源管理 - 凌力尔特

LTC3410-1.875 - 2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

LTC3410-1.875 - 2.25MHz, 300mA Synchronous Step-Down Regulator in SC70 - Linear Technology（凌力尔特）

功能描述

The LTC3410-1.875 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 26µA, dropping to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3410-1.875 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.

Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. The LTC3410-1.875 is specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. The LTC3410-1.875 is available in a tiny, low profile SC70 package.

Vout Burst Mode LTC3410 Adj. Down To 0.8V Yes LTC3410B Adj. Down To 0.8V No LTC3410-1.875 Fixed 1.875V Yes
特点
  • High Efficiency: Up to 93%
  • Very Low Quiescent Current: Only 26µA
  • Low Output Voltage Ripple
  • 300mA Output Current at VIN = 3V
  • 380mA Minimum Peak Switch Current
  • 2.5V to 5.5V Input Voltage Range
  • 2.25MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Stable with Ceramic Capacitors
  • Shutdown Mode Draws <1µA Supply Current
  • ±2% Output Voltage Accuracy
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Overtemperature Protected
  • Available in Low Profile SC70 Package
    • 应用
  • Cellular Telephones
  • Wireless and DSL Modems
  • Digital Cameras
  • MP3 Players
  • Portable Instruments
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC3410ESC6-1.875 SC-70 E $2.21
    LTC3410ESC6-1.875#PBF SC-70 E $2.21
    LTC3410ESC6-1.875#TR SC-70 E $2.21 $1.56
    LTC3410ESC6-1.875#TRM SC-70 E $2.21 $1.58
    LTC3410ESC6-1.875#TRMPBF SC-70 E $2.21 $1.58
    LTC3410ESC6-1.875#TRPBF SC-70 E $2.21 $1.56
