LTC1731-4.2是Single Cell Lithium-Ion Linear Battery Charger Controllers

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1731-4.2

LTC1731-4.2技术文档下载：

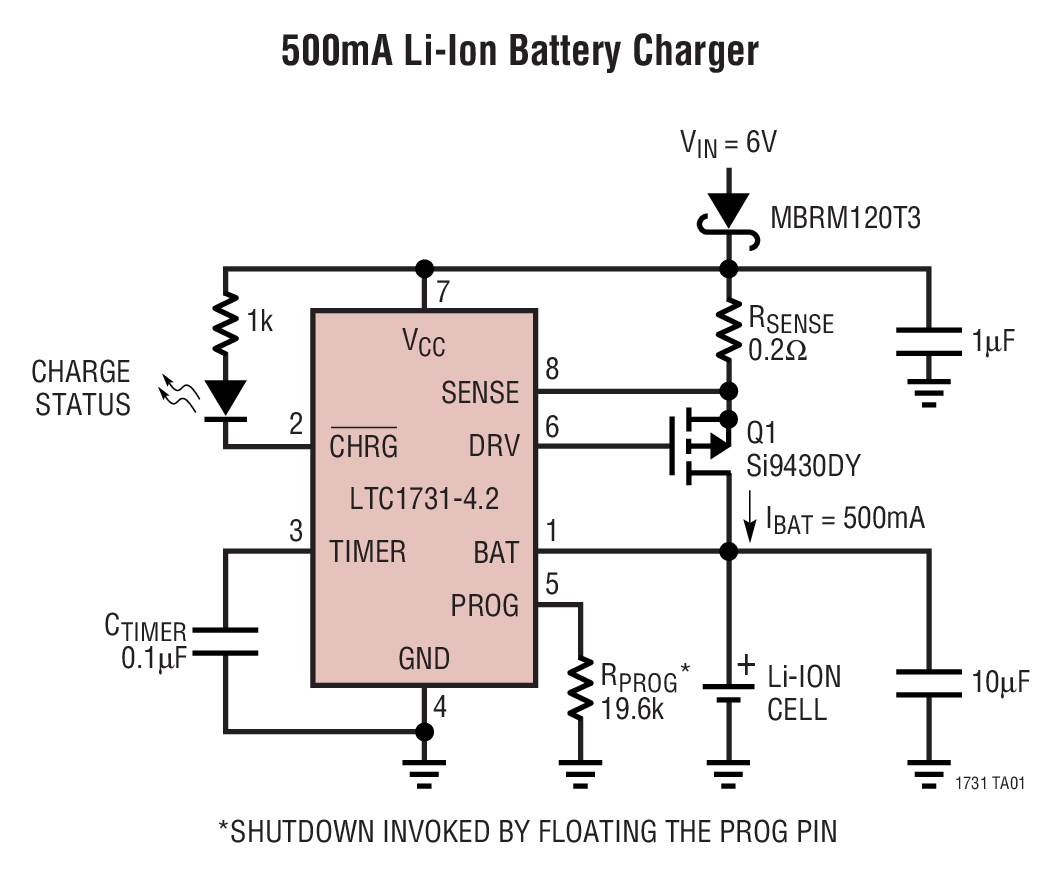

LTC1731-4.2 - 典型应用图例：

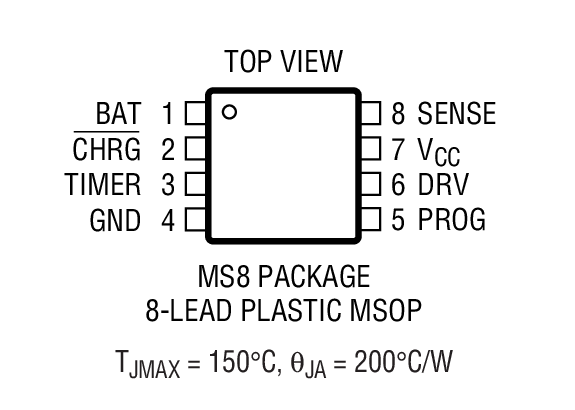

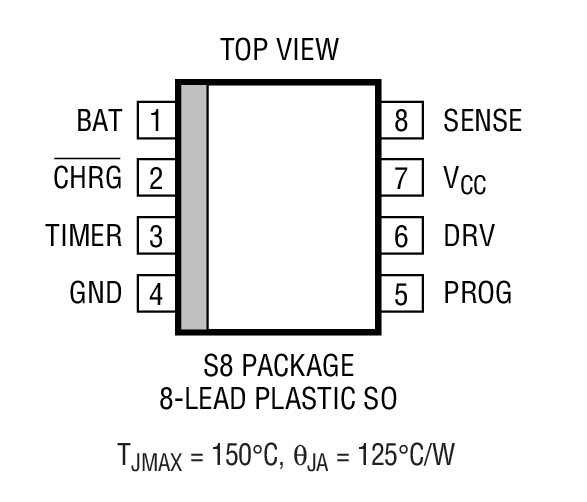

LTC1731-4.2 - 封装图解：

LTC1731-4.2 - LTC1731-4.2是Single Cell Lithium-Ion Linear Battery Charger Controllers

LTC1731-4.2是Linear公司的一款线性充电器产品，LTC1731-4.2是Single Cell Lithium-Ion Linear Battery Charger Controllers，本站介绍了LTC1731-4.2的封装应用图解、特点和优点、功能等，并给出了与LTC1731-4.2相关的凌力尔特元器件型号供参考。

LTC1731-4.2 - Single Cell Lithium-Ion Linear Battery Charger Controllers

LTC1731-4.1 - Single Cell Lithium-Ion Linear Battery Charger Controllers - Linear Technology（凌力尔特）

功能描述

The LTC?1731 is a complete constant-current/constant-voltagelinear charger controller for single cell lithium-ionbatteries. Nickel-cadmium (NiCd) and nickel-metal-hydride(NiMH) batteries can also be charged with constantcurrent using external termination. The external senseresistor sets the charge current with 5% accuracy. Aninternal resistor divider and precision reference set thefinal float potential with ±1% accuracy. The output floatvoltage is set internally to 4.1V (LTC1731-4.1) or 4.2V(LTC1731-4.2).

When the input supply is removed,the LTC1731 automaticallyenters a low current sleep mode, dropping the batterydrain current to typically 7μA. An internal comparatordetects the end-of-charge (C/10) condition while a programmabletimer, using an external capacitor, sets thetotal charge time. Fully discharged cells are automaticallytrickle charged at 10% of the programmed current untilcell voltage exceeds 2.457V.

The LTC1731 is available in the 8-pin MSOP and SOpackages.

特点

Complete Linear Charger Controller for 1-Cell Li-Ion Batteries

1% Voltage Accuracy

Programmable Charge Current

C/10 Charge Current Detection Output

Programmable Charge Termination Timer

Space Saving 8-Pin MSOP Package

Automatic Sleep Mode When Input Supply is Removed (Only 7µA Battery Drain)

Automatic Trickle Charging of Low Voltage Cells

Programmable for Constant-Current-Only Mode

应用

Cellular Phones

Handheld Computers

Charging Docks and Cradles

Programmable Current Source

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1731EMS8-4.1	MS-8	E	$2.20	$1.75
LTC1731EMS8-4.1#PBF	MS-8	E	$2.20	$1.75
LTC1731EMS8-4.1#TR	MS-8	E		$1.81
LTC1731EMS8-4.1#TRPBF	MS-8	E		$1.81
LTC1731EMS8-4.2	MS-8	E	$2.20	$1.75
LTC1731EMS8-4.2#PBF	MS-8	E	$2.20	$1.75
LTC1731EMS8-4.2#TR	MS-8	E		$1.81
LTC1731EMS8-4.2#TRPBF	MS-8	E		$1.81
LTC1731ES8-4.1	SO-8	E	$1.85	$1.55
LTC1731ES8-4.1#PBF	SO-8	E	$1.85	$1.55
LTC1731ES8-4.1#TR	SO-8	E		$1.61
LTC1731ES8-4.1#TRPBF	SO-8	E		$1.61
LTC1731ES8-4.2	SO-8	E	$1.85	$1.55
LTC1731ES8-4.2#PBF	SO-8	E	$1.85	$1.55
LTC1731ES8-4.2#TR	SO-8	E		$1.61
LTC1731ES8-4.2#TRPBF	SO-8	E		$1.61
