LTC1706-85 - LTC1706-85是VID Voltage Programmer for Intel VRM 8.5
LTC1706-85是Linear公司的一款VID 电压编程器产品，LTC1706-85是VID Voltage Programmer for Intel VRM 8.5，本站介绍了LTC1706-85的封装应用图解、特点和优点、功能等，并给出了与LTC1706-85相关的凌力尔特元器件型号供参考。
LTC1706-85 - VID Voltage Programmer for Intel VRM 8.5
LTC1706-85 - VID Voltage Programmer for Intel VRM 8.5 - Linear Technology（凌力尔特）
功能描述
The LTC1706-85 is a precision, digitally programmed resistive ladder which adjusts the output of any 0.8V-referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.05V and 1.825V is programmed in 25mV increments.
The LTC1706-85 is designed specifically to program an entire family of Linear Technology DC/DC converters in full compliance with the Intel Voltage Regulator Module(VRM) 8.5 specification.

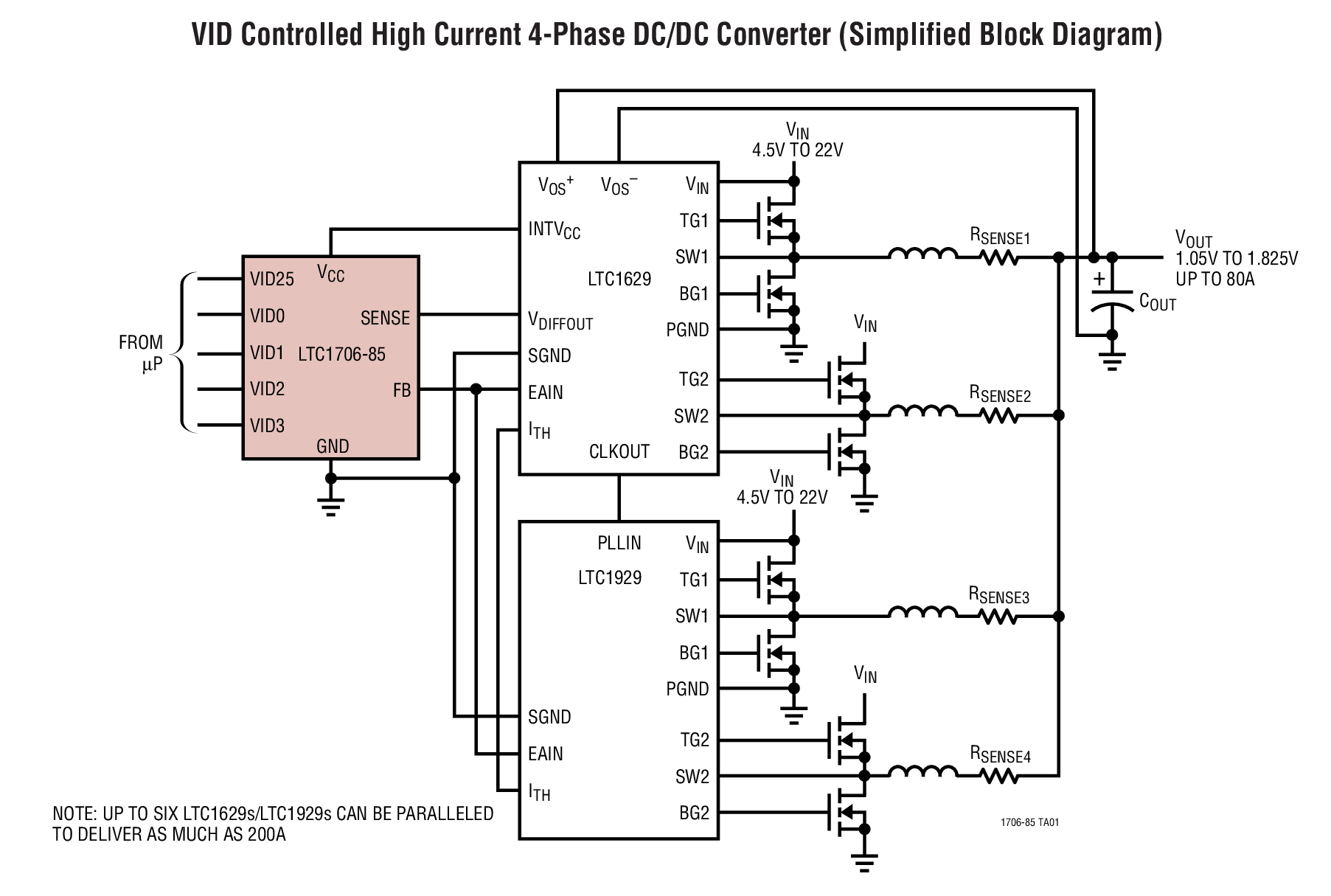

The LTC1706-85 programs the following Linear Technology DC/DC converter products: LTC1622, LTC1628, LTC1629, LTC1702, LTC1735, LTC1735-1, LTC1772, LTC1773, LTC1778, LTC1929, LTC3728 and LTC3729.
Consult factory for additional DC/DC converter products compatible with the LTC1706-85.
特点

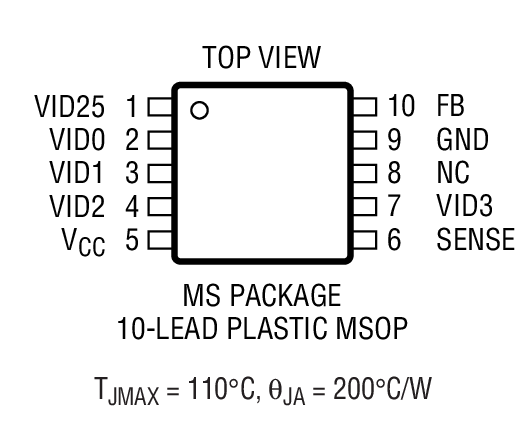

Fully Compliant with the Intel VRM 8.5 VID Specification Programs Regulator Output Voltage from 1.05V to 1.825V in 25mV Steps Programs an Entire Family of Linear Technology DC/DC Converters with 0.8V References ±0.25% Voltage Programming Accuracy Built-In 40k Pull-Up Resistors on Program Inputs Available in MSOP-10 Packaging应用
Server/Desktop Computers Multiprocessor Workstations and Servers Multiphase Processor Power Supply以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC1706EMS-85 | MS-10 | E | $2.35 | $2.05 |
| LTC1706EMS-85#PBF | MS-10 | E | $2.35 | $2.05 |
| LTC1706EMS-85#TR | MS-10 | E | | $2.11 |
| LTC1706EMS-85#TRPBF | MS-10 | E | | $2.11 |
