LTC1706-82 - VID Voltage Programmer for Intel VRM9.0/9.1

LTC1706-82 - VID Voltage Programmer for Intel VRM9.0/9.1 - Linear Technology（凌力尔特）

功能描述

The LTC1706-82 is a precision, digitally programmed, resistive ladder which adjusts the output of any 0.8V referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.10V and 1.85V is programmed in 25mV increments.

The LTC1706-82 is designed specifically to program an entire family of Linear Technology DC/DC converters in full compliance with the Intel VRM9.0/9.1 specifications.

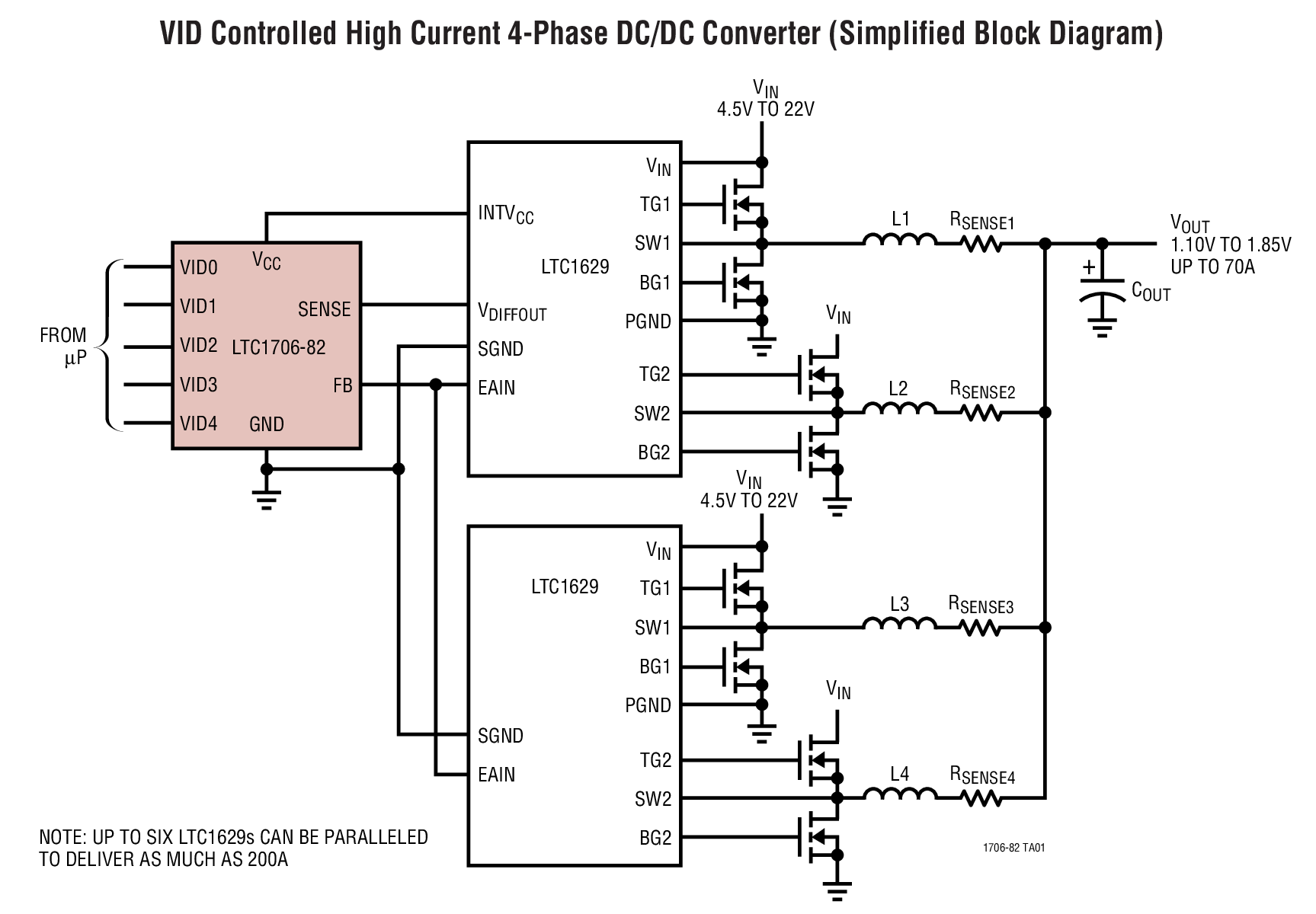

The LTC1706-82 programs the following Linear Technology DC/DC converters: LTC1628, LTC1629, LTC1702, LTC1735, LTC1735-1, LTC1929 and LTC3729.

For a compact VRM9.0/9.1 solution with up to 60A capability, see the LTC3732, a 3-phase synchronous controller with integrated 5-bit VID and MOSFET drivers.

特点

Fully Compliant with the Intel VRM9.0/9.1 VID Specification

Programs Regulator Output Voltage from 1.10V to 1.85V in 25mV Steps

Programs an Entire Family of Linear Technology DC/DC Converters

±0.25% Accurate Voltage Divider

Built-In 40k Pull-Up Resistors on Program Inputs

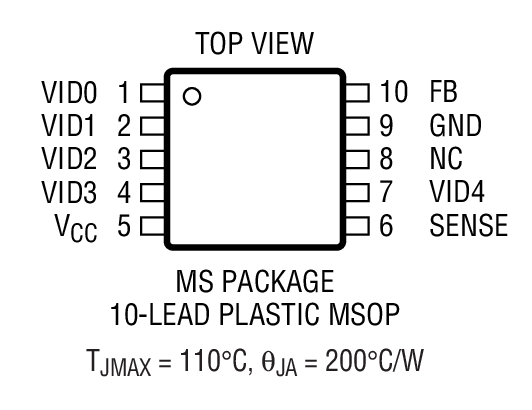

Available in MSOP-10 Packaging

应用

Intel Pentium® III Processor Power Supply

Multiprocessor Workstations and Servers

Multiphase Processor Power Supply

AMD Athlon™ Processor Power Supply
