LTC1650A是Low Glitch 16-Bit Voltage Output DAC

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1650A

LTC1650A技术文档下载：

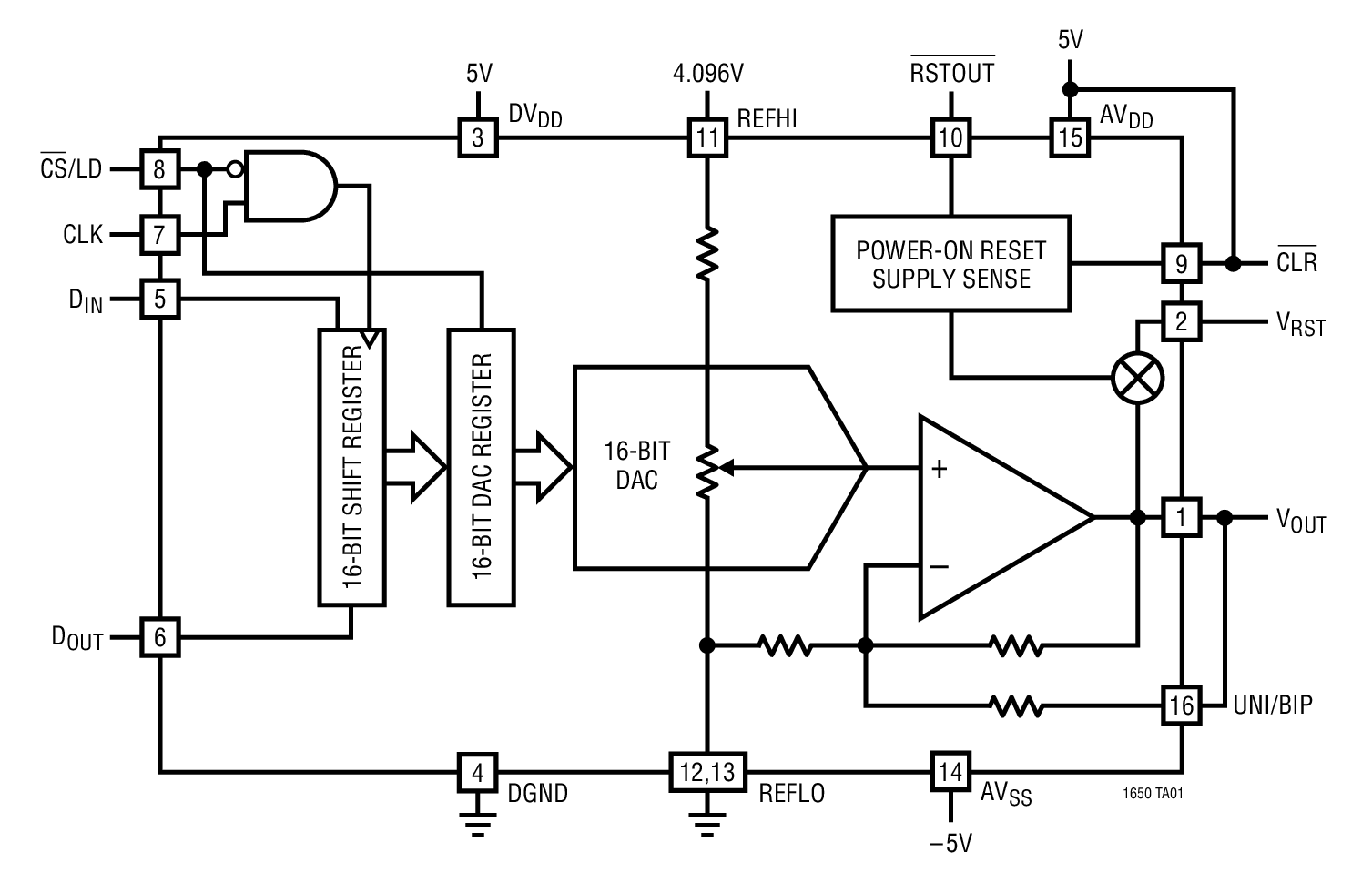

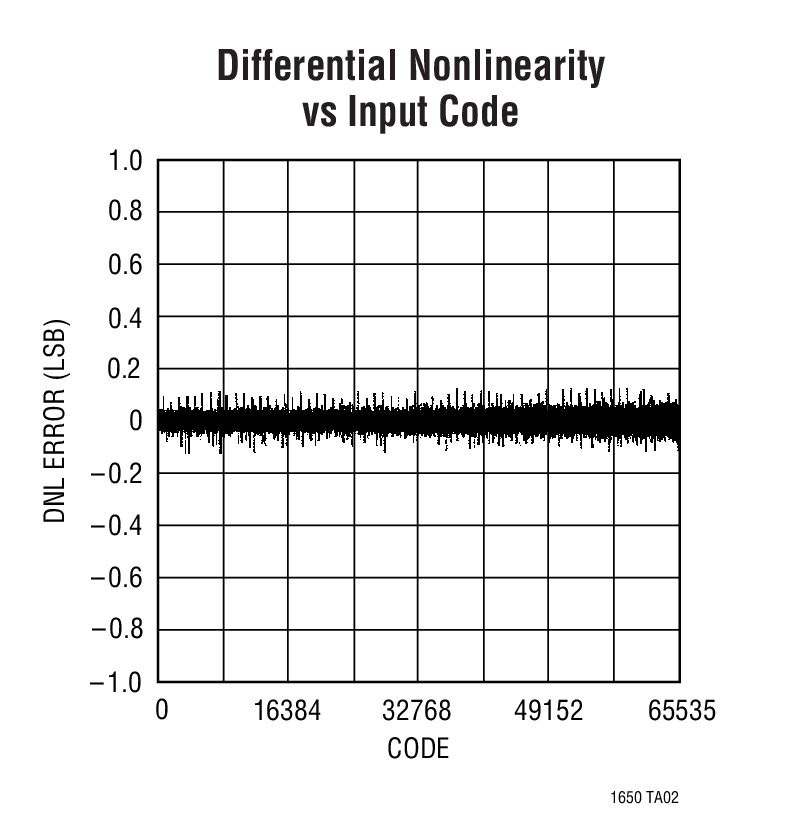

LTC1650A - 典型应用图例：

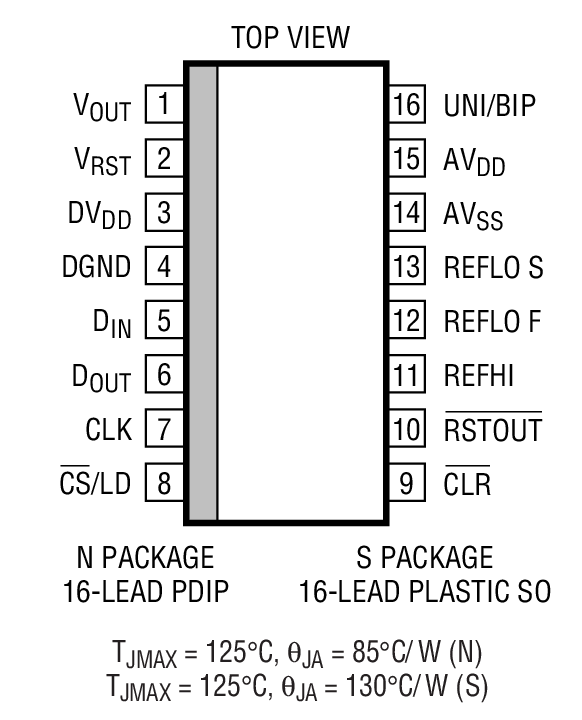

LTC1650A - 封装图解：

LTC1650A - LTC1650A是Low Glitch 16-Bit Voltage Output DAC

LTC1650A是Linear公司的一款电压输出 DAC产品，LTC1650A是Low Glitch 16-Bit Voltage Output DAC，本站介绍了LTC1650A的封装应用图解、特点和优点、功能等，并给出了与LTC1650A相关的凌力尔特元器件型号供参考。

LTC1650A - Low Glitch 16-Bit Voltage Output DAC

LTC1650 - Low Glitch 16-Bit Voltage Output DAC - Linear Technology（凌力尔特）

功能描述

The LTC1650 is a deglitched rail-to-rail voltage output 16-bit digital-to-analog converter (DAC) available in a 16-pin narrow SO package. It has 16-bit monotonicity over temperature and includes a rail-to-rail output buffer amplifier and an easy to use three-wire cascadable serial interface. The LTC1650 operates with dual ±5V supplies. With REFLO = 0V and REFHI = VREF, the output will swing from 0V to VREF in unipolar mode or ±VREF in bipolar mode.

The LTC1650 has excellent accuracy over its full operating temperature range along with very low power dissipation of 50mW with dual ±5V supplies. This, along with the small outline package, makes it the most flexible high resolution digital-to-analog converter available today.

The LTC1650 has a fast settling time of 4µs to 16 bits and a low midscale glitch of under 2nV-s. This makes the LTC1650 ideal for waveform generation or other applications where output dynamic performance is important.

特点

16-Bit Monotonic Over Temperature

Low Glitch Impulse: 2nV-s

Low Noise: 30nV/rtHz

Buffered Rail-to-Rail Voltage Output

Low Power: 50mW from ±5V Supplies

Unipolar or Bipolar Output (0V to VREF or ±VREF)

4-Quadrant Multiplying Capability

Asynchronous Clear to User-Defined Voltage

Power-On Reset

Three-Wire SPI and MICROWIRE™ Compatible Serial Interface

Schmitt Trigger On CLK Input Allows Direct Optocoupler Interface

16-Pin Narrow SO Package

应用

Industrial Process Control

Precision Industrial Equipment

Waveform Generation

Automatic Test Equipment

High Resolution Offset and Gain Adjustment
