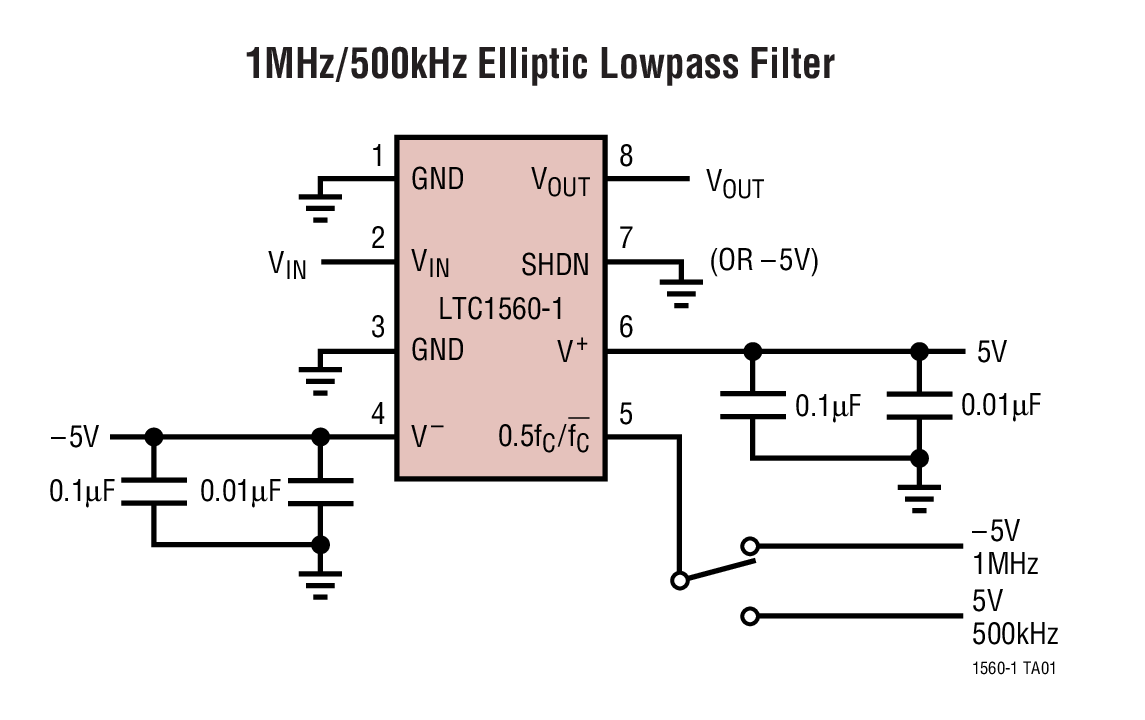

LTC1560-1典型应用图例一

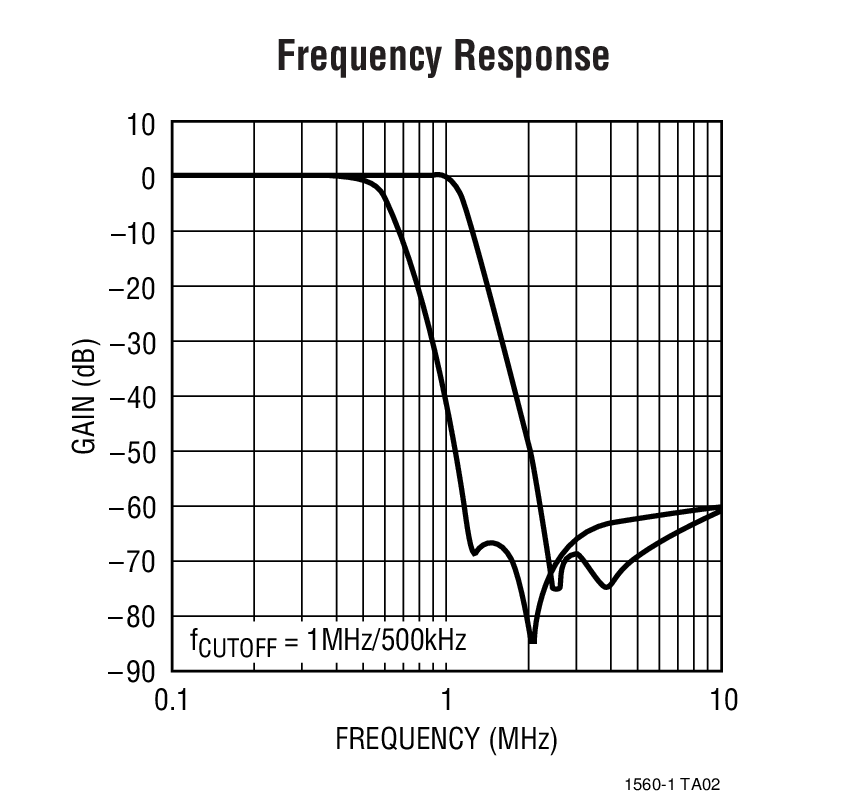

LTC1560-1典型应用图例二
LTC1560-1 - 封装图解：

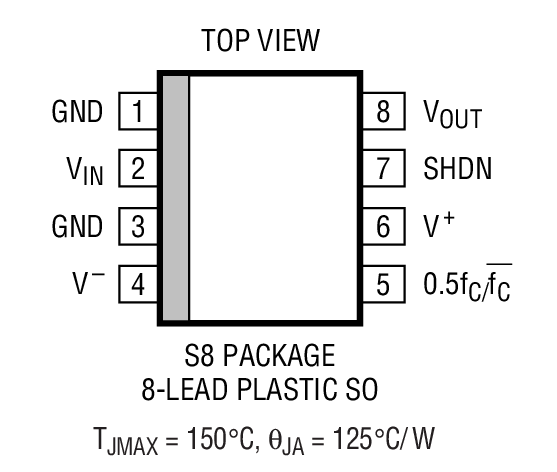

LTC1560-1封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1560-1介绍

LTC1560-1 - LTC1560-1是1MHz/500kHz Continuous Time Low Noise, Lowpass Elliptic Filter

LTC1560-1是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1560-1是LTC1560-1是1MHz/500kHz Continuous Time Low Noise, Lowpass Elliptic Filter，本站介绍了LTC1560-1的封装应用图解、特点和优点、功能等，并给出了与LTC1560-1相关的LINEAR元器件型号供参考。

LTC1560-1 - LTC1560-1是1MHz/500kHz Continuous Time Low Noise, Lowpass Elliptic Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1560-1 - 1MHz/500kHz Continuous Time Low Noise, Lowpass Elliptic Filter

LTC1560-1 - 1MHz/500kHz Continuous Time Low Noise, Lowpass Elliptic Filter - Linear Technology（凌力尔特）

功能描述

The LTC?1560-1 is a 5th order, continuous-time, lowpassfilter. The elliptic transfer function of the LTC1560-1 wascarefully chosen to reach a compromise between selectivity,for antialiasing applications, and transient response.The filter cutoff frequency, fCUTOFF, is pin selectable toeither 500kHz (Pin 5 to V+) or 1MHz (Pin 5 to V?). Whenprogrammed for 1MHz, the passband ripple is typically?0.2dB up to 0.55fCUTOFF and ?0.3dB to 0.9fCUTOFF. Thetransition band gain is ?24dB at 1.4fCUTOFF and ?51dB at2fCUTOFF. Stopband attenuation is 63dB at 2.43fCUTOFF andabove, remaining at least 60dB to 10MHz with properboard layout. When the LTC1560-1 is programmed forfCUTOFF = 500kHz, the filter response closely follows the1MHz case with the exception of passband flatness nearthe cutoff frequency; the gain at fCUTOFF is ?1.3dB.

The LTC1560-1, unlike other high frequency filters, isdesigned for low noise and low distortion. With a 1VRMSinput signal, the signal-to-noise ratio is 69dB and the THDis ?63dB. The maximum SNR of 75dB is obtained with a2.1VRMS input signal. This results in ?46dB THD.

The LTC1560-1 operates with ±5V supplies, has a powersaving mode and is available in an SO-8 surface mountpackage.

Other cutoff frequencies from 450kHz to 1.5MHz can beobtained. Demo board DC135A is available for theLTC1560-1. For more information please contact LTCMarketing.

特点
  • 5th Order, 1MHz Elliptic Filter in SO-8 Package
  • Pin Selectable 1MHz/500kHz Cutoff Frequency
  • Signal-to-Noise Ratio (SNR): 75dB
  • Signal-to-Noise Ratio with ?63dB THD: 69dB
  • Passband Ripple (fCUTOFF = 1MHz): ?0.3dB
  • Stopband Attenuation Better Than 60dB
  • No External Components Required
    • 应用
  • Antialiasing Filters
  • Smoothing or Reconstruction Filters
  • Communication Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1560-1CS8 SO-8 C $5.45 $4.65
    LTC1560-1CS8#PBF SO-8 C $5.45 $4.65
    LTC1560-1CS8#TR SO-8 C $4.71
    LTC1560-1CS8#TRPBF SO-8 C $4.71
    LTC1560-1IS8 SO-8 I $6.20 $5.25
    LTC1560-1IS8#PBF SO-8 I $6.20 $5.25
    LTC1560-1IS8#TR SO-8 I $5.31
    LTC1560-1IS8#TRPBF SO-8 I $5.31
