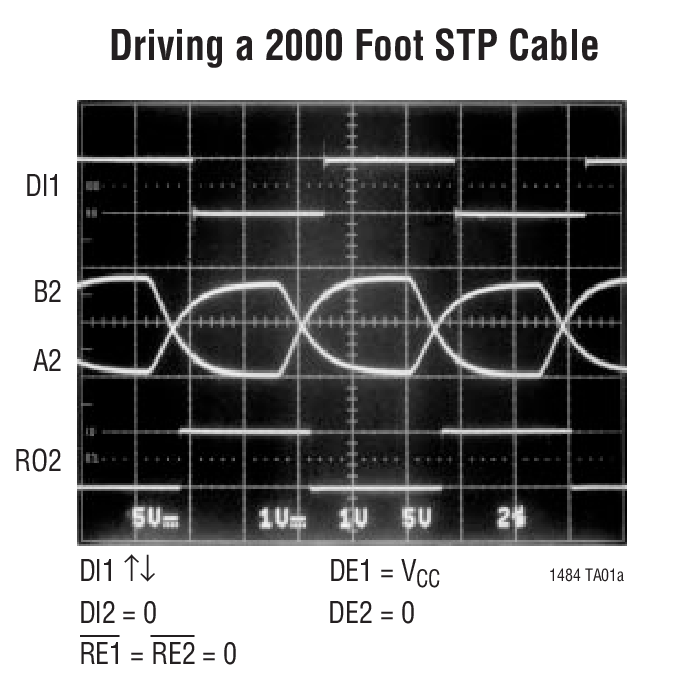

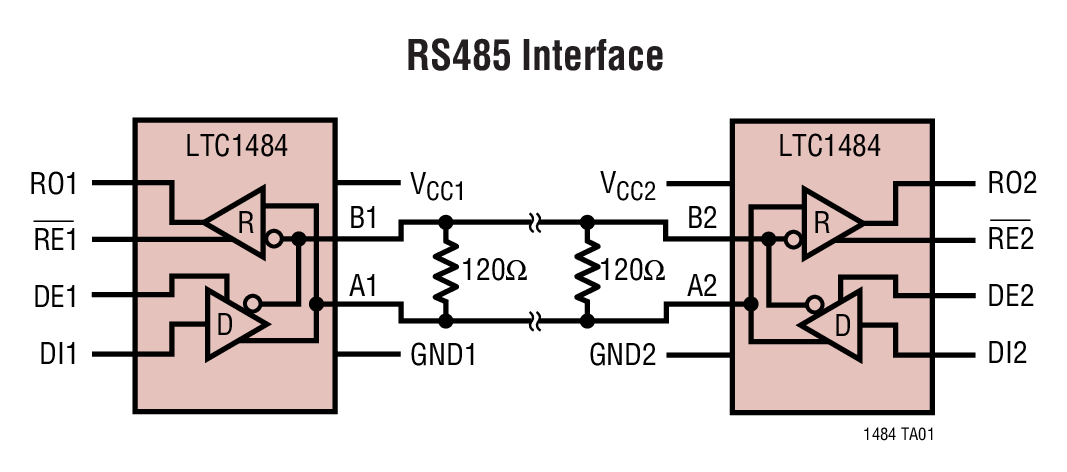

LTC1484 - 典型应用图例：

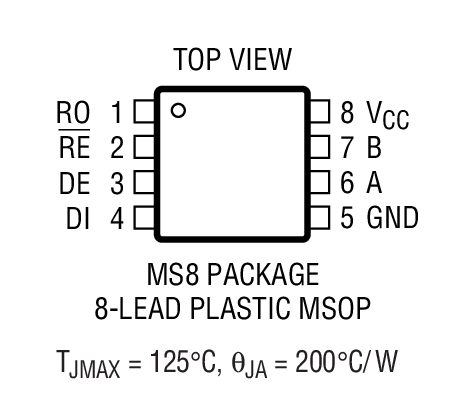

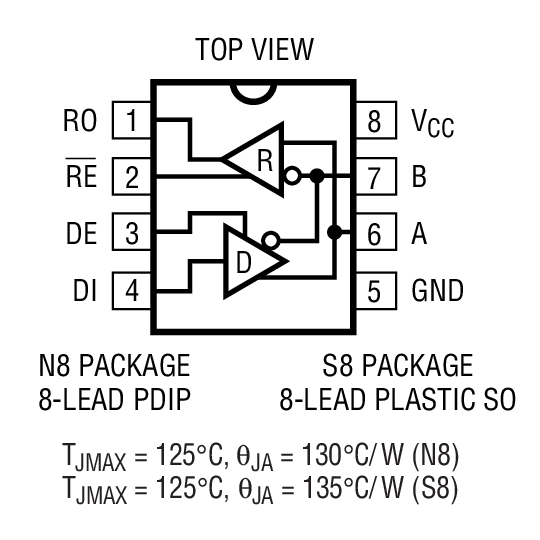

LTC1484 - 封装图解：

LTC1484 - LTC1484是Low Power RS485 Transceiver with Receiver Fail-Safe

LTC1484是Linear公司的一款RS485 / RS422 收发器产品，LTC1484是Low Power RS485 Transceiver with Receiver Fail-Safe，本站介绍了LTC1484的封装应用图解、特点和优点、功能等，并给出了与LTC1484相关的凌力尔特元器件型号供参考。

LTC1484 - Low Power RS485 Transceiver with Receiver Fail-Safe

LTC1484 - Low Power RS485 Transceiver with Receiver Fail-Safe - Linear Technology（凌力尔特）

功能描述

The LTC®1484 is a low power RS485 compatible transceiver. In receiver mode, it offers a fail-safe feature which guarantees a high receiver output state when the inputs are left open, shorted together or terminated with no signal present. No external components are required to ensure the high receiver output state.Both driver and receiver feature three-state outputs with separate receiver and driver control pins. The driver outputs maintain high impedance over the entire common mode range when three-stated. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit that forces the driver outputs into a high impedance state.Enhanced ESD protection allows the LTC1484 to withstand ±15kV (human body model), IEC-1000-4-2 level 4 (±8kV) contact and level 3 (±8kV) air discharge ESD without latchup or damage.The LTC1484 is fully specified over the commercial and industrial temperature ranges and is available in 8-lead MSOP, PDIP and SO packages.

特点

No Damage or Latchup to ±15kV ESD (Human Body Model), IEC-1000-4-2 Level 4 Contact (±8kV) and Level 3 (

Guaranteed High Receiver Output State for Floating, Shorted or Terminated Inputs with No Signal Present

Drives Low Cost Residential Telephone Wires

Low Power: ICC = 700µA Max with Driver Disabled

ICC = 900µA Max for Driver Enable with No Load

20µA Max Quiescent Current in Shutdown Mode

Single 5V Supply

?7V to 12V Common Mode Range Permits ±7V Ground Difference Between Devices on the Data Line

Power Up/Down Glitch-Free Driver Outputs

Up to 32 Transceivers on the Bus

Pin Compatible with the LTC485

Available in 8-Lead MSOP, PDIP and SO Packages

应用

Battery-Powered RS485/RS422 Applications

Low Power RS485/RS422 Transceiver

Level Translator

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1484CMS8	MS-8	C	$2.85	$2.00
LTC1484CMS8#PBF	MS-8	C	$2.85	$2.00
LTC1484CMS8#TR	MS-8	C		$2.06
LTC1484CMS8#TRPBF	MS-8	C		$2.06
LTC1484CN8	N-8	C	$2.25	$1.65
LTC1484CN8#PBF	N-8	C	$2.25	$1.65
LTC1484CS8	SO-8	C	$2.35	$1.75
LTC1484CS8#PBF	SO-8	C	$2.35	$1.75
LTC1484CS8#TR	SO-8	C		$1.81
LTC1484CS8#TRPBF	SO-8	C		$1.81
LTC1484IN8	N-8	I	$2.90	$2.15
LTC1484IN8#PBF	N-8	I	$2.90	$2.15
LTC1484IS8	SO-8	I	$3.10	$2.25
LTC1484IS8#PBF	SO-8	I	$3.10	$2.25
LTC1484IS8#TR	SO-8	I		$2.31
LTC1484IS8#TRPBF	SO-8	I		$2.31
