LTC1338 - LTC1338是5V Low Power RS232 5-Driver/3-Receiver Transceiver

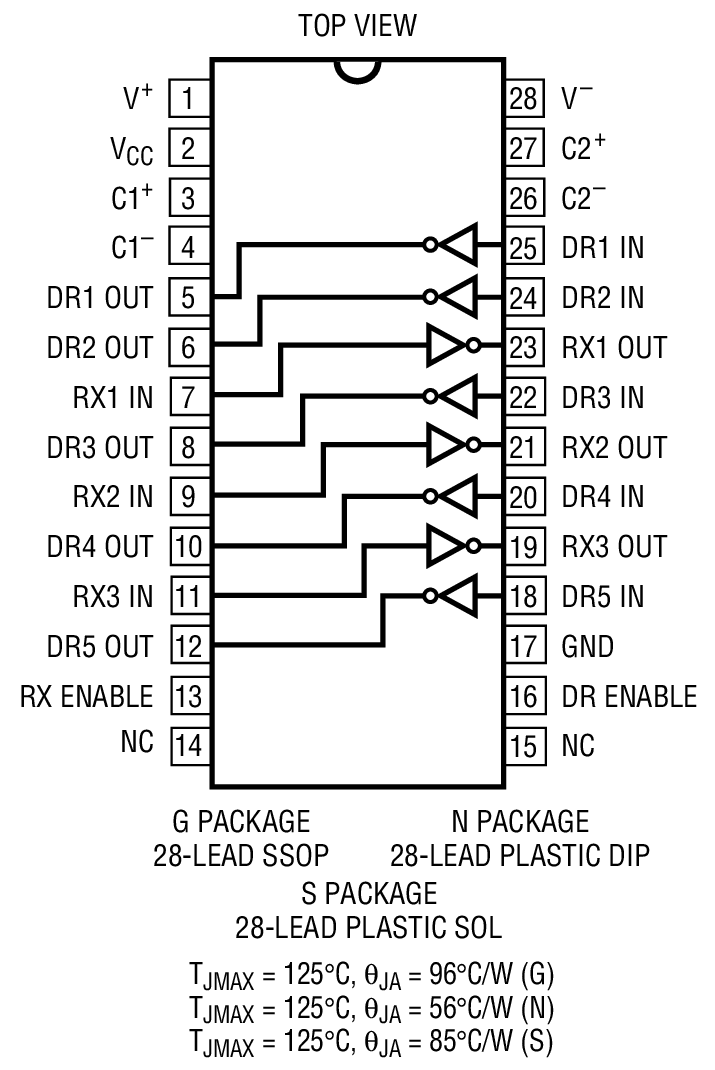

LTC1338是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LTC1338是LTC1338是5V Low Power RS232 5-Driver/3-Receiver Transceiver，本站介绍了LTC1338的封装应用图解、特点和优点、功能等，并给出了与LTC1338相关的LINEAR元器件型号供参考。

LTC1338 - LTC1338是5V Low Power RS232 5-Driver/3-Receiver Transceiver - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LTC1338 - 5V Low Power RS232 5-Driver/3-Receiver Transceiver

LTC1338 - 5V Low Power RS232 5-Driver/3-Receiver Transceiver - Linear Technology（凌力尔特）

功能描述

The LTC1338 is a 5-driver/3-receiver RS232 transceiver with very low supply current. In the no load condition, the supply current is only 500µA. The charge pump only requires four 0.1µF capacitors.

In SHUTDOWN mode, the supply current is further reduced to 0.2µA. In RECEIVER ALIVE mode, all three receivers are kept alive and the supply current is 50µA. All RS232 outputs assume a high impedance state in SHUTDOWN and with the power off.

The LTC1338 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver can operate up to 120k baud with a 2500pF, 3kohms load. Both driver outputs and receiver inputs can be forced to ?25V without damage, and can survive multiple ±10kV ESD strikes.

特点

Low Supply Current: 500µA

0.2µA Supply Current in SHUTDOWN

50µA Supply Current in RECEIVER ALIVE Mode

ESD Protection Over ±10kV

Operates from a Single 5V Supply

Uses Small Capacitors: 0.1µF

Operates to 120k Baud

Three-State Outputs Are High Impedance When Off

Output Overvoltage Does Not Force Current

RS232 I/O Lines Can Be Forced to ±25V Without Damage

Flowthrough Architecture

应用

Battery-Powered Modems

Battery-Powered DCE

Notebook Computers

Palmtop Computers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1338CG	SSOP-28	C	$6.75	$5.45
LTC1338CG#PBF	SSOP-28	C	$6.75	$5.45
LTC1338CG#TR	SSOP-28	C		$5.55
LTC1338CG#TRPBF	SSOP-28	C		$5.55
LTC1338CNW	NW-28	C	$6.25	$5.05
LTC1338CNW#PBF	NW-28	C	$6.25	$5.05
LTC1338CSW	SW-28	C	$6.25	$5.05
LTC1338CSW#PBF	SW-28	C	$6.25	$5.05
LTC1338CSW#TR	SW-28	C		$5.15
LTC1338CSW#TRPBF	SW-28	C		$5.15
LTC1338IG	SSOP-28	I	$7.45	$5.85
LTC1338IG#PBF	SSOP-28	I	$7.45	$5.85
LTC1338IG#TR	SSOP-28	I		$5.95
LTC1338IG#TRPBF	SSOP-28	I		$5.95
LTC1338INW	NW-28	I	$6.95	$5.60
LTC1338INW#PBF	NW-28	I	$6.95	$5.60
LTC1338ISW	SW-28	I	$6.95	$5.60
LTC1338ISW#PBF	SW-28	I	$6.95	$5.60
LTC1338ISW#TR	SW-28	I		$5.70
LTC1338ISW#TRPBF	SW-28	I		$5.70
