LTC1283是3V Single Chip 10-Bit Data Acquisition System

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1283

LTC1283技术文档下载：

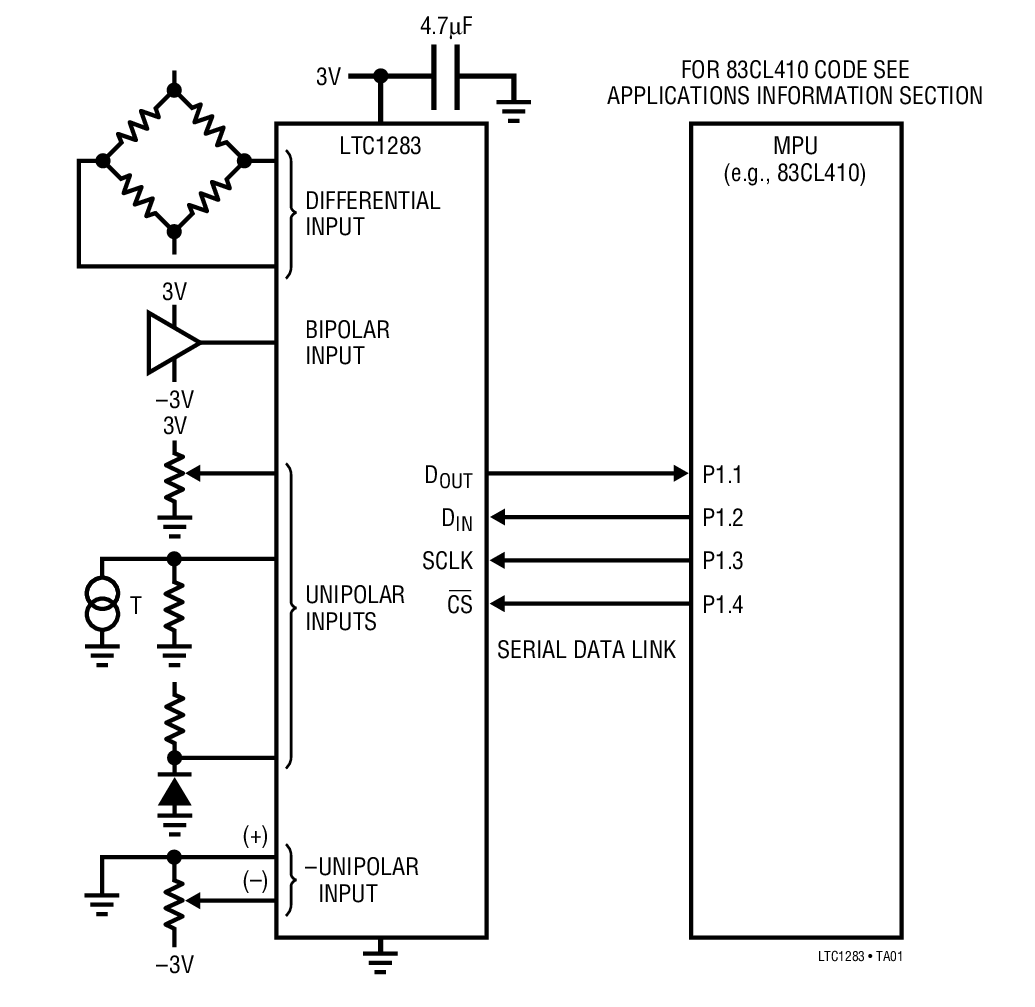

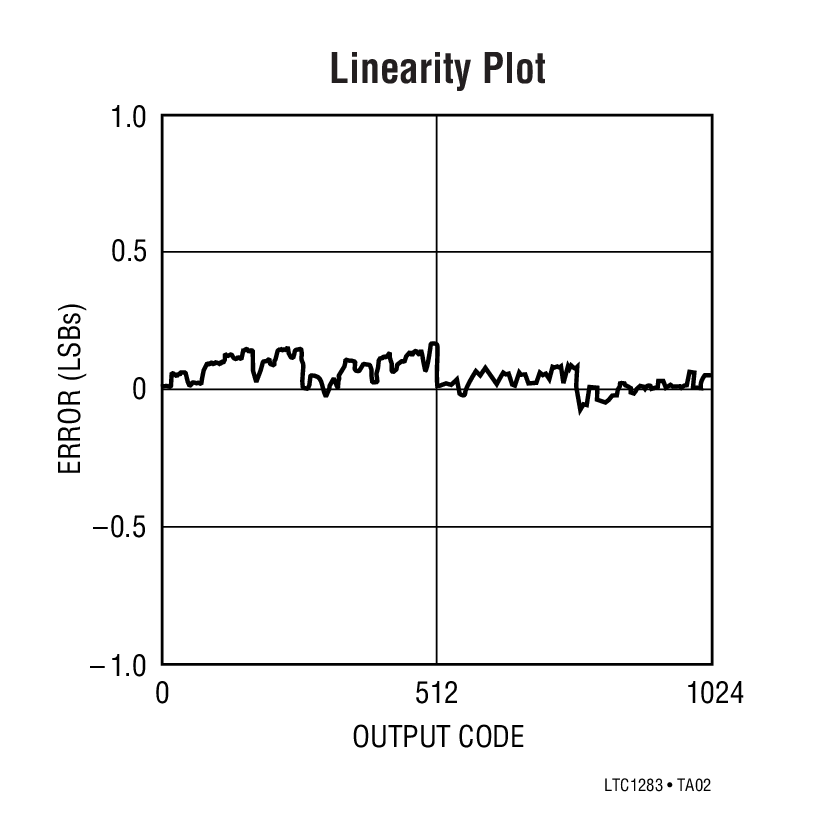

LTC1283 - 典型应用图例：

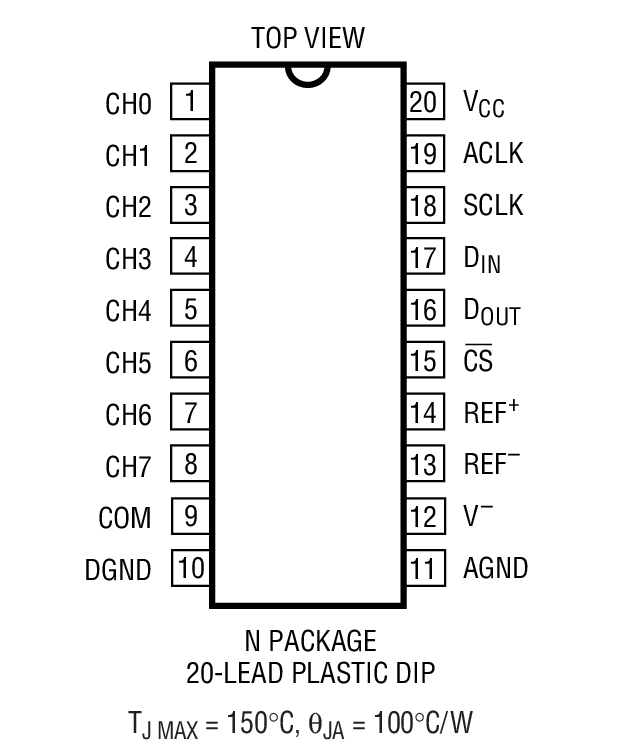

LTC1283 - 封装图解：

LTC1283 - LTC1283是3V Single Chip 10-Bit Data Acquisition System

LTC1283是Linear公司的一款通用型 SAR ADC产品，LTC1283是3V Single Chip 10-Bit Data Acquisition System，本站介绍了LTC1283的封装应用图解、特点和优点、功能等，并给出了与LTC1283相关的凌力尔特元器件型号供参考。

LTC1283 - 3V Single Chip 10-Bit Data Acquisition System

LTC1283 - 3V Single Chip 10-Bit Data Acquisition System - Linear Technology（凌力尔特）

功能描述

The 8-channel input multiplexer can be configured for either single-ended or differential inputs (or combinations thereof). An on-chip sample-and-hold is included for all single-ended input channels. The serial I/O is designed to be compatible with industry-standard full-duplex serial interfaces. It allows either MSB-or LSB-first data and automatically provides 2's comple-ment output coding in the bipolar mode. The output data word can be programmed for a length of 8-, 10-, 12-, or 16-bit. This allows easy interface to shift registers and a variety of processors. Both the LTC1283A and LTC1283 are specified with offset and linearity errors less than ±0.5LSB. The LTC1283A has a gain error limit of ±1LSB. The 1283 is specified with a gain error limit of ±2LSB for applications where gain is adjustable or less critcial.

特点

Single Supply 3.3V or ±3.3V Operation

Software Programmable Features: Unipolar/Bipolar Conversions 4 Differential/8 Single-Ended Inputs MSB- or LSB-First

Built-In Sample-and-Hold

Direct 4-Wire Interface to Most MPU Serial Ports and all MPU Parallel Ports

15kHz Maximum Throughput Rate

应用

Minimum Guaranteed Supply Voltage: 3V

Resolution: 10 Bits

Offset Error: ±0.5LSB Max

Linearity Error: ±0.5LSB Max

Gain Error (LTC1283A): ±1LSB Max
