LTC1279是12-Bit, 600ksps Sampling A/D Converter with Shutdown

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1279

LTC1279技术文档下载：

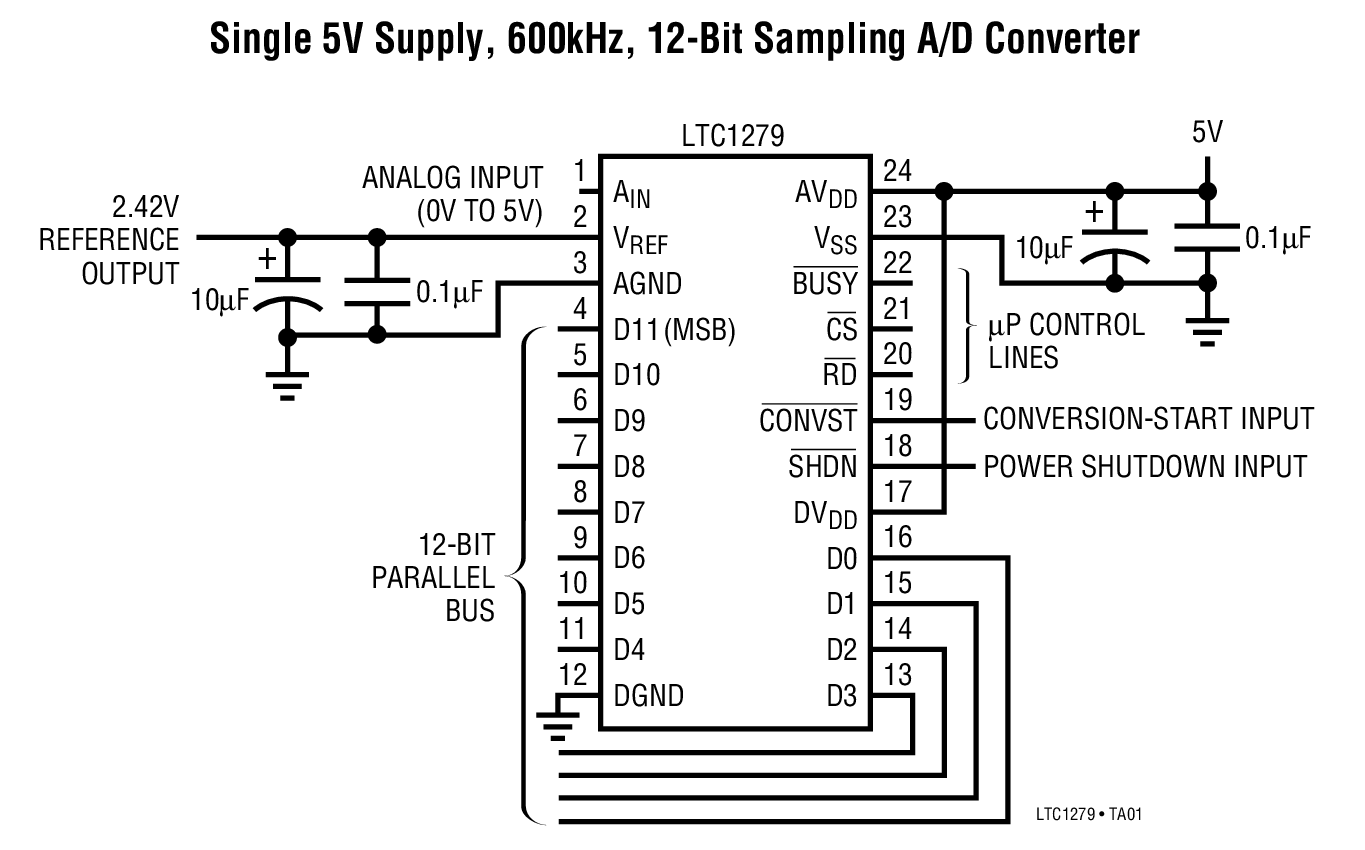

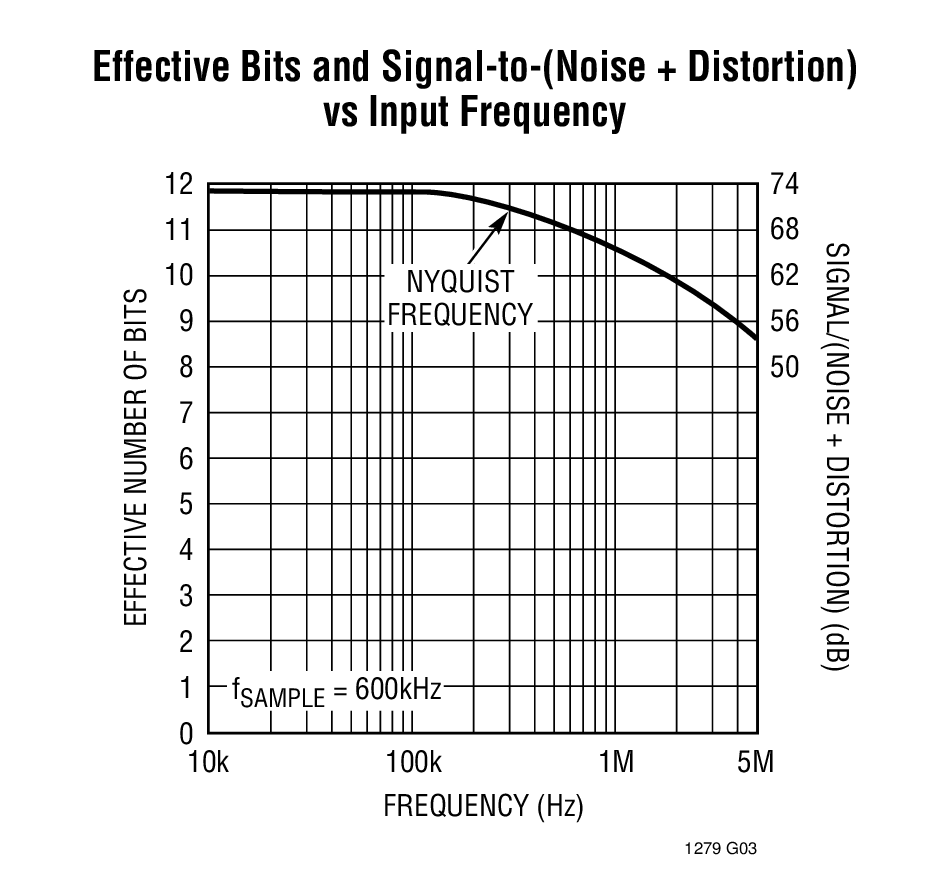

LTC1279 - 典型应用图例：

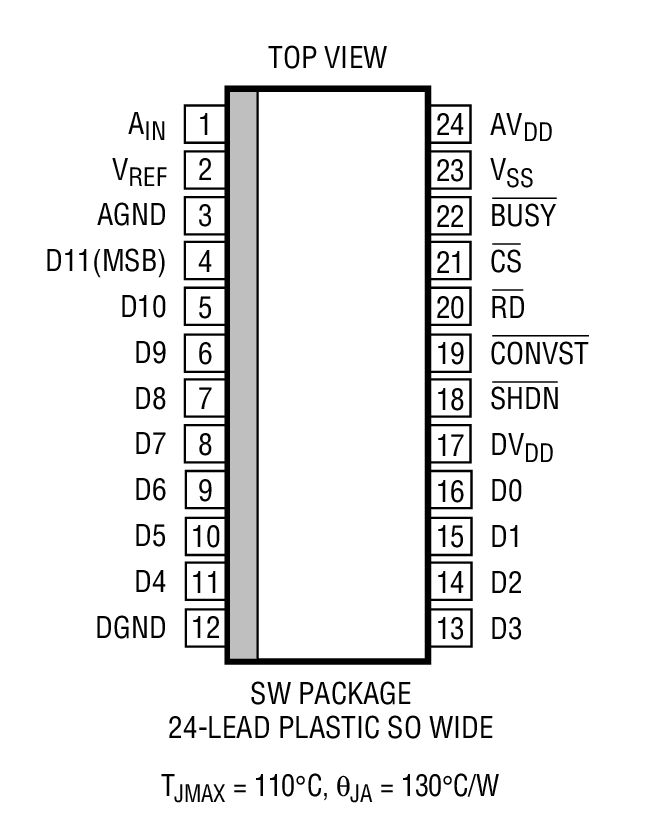

LTC1279 - 封装图解：

LTC1279 - LTC1279是12-Bit, 600ksps Sampling A/D Converter with Shutdown

LTC1279是Linear公司的一款通用型 SAR ADC产品，LTC1279是12-Bit, 600ksps Sampling A/D Converter with Shutdown，本站介绍了LTC1279的封装应用图解、特点和优点、功能等，并给出了与LTC1279相关的凌力尔特元器件型号供参考。

LTC1279 - 12-Bit, 600ksps Sampling A/D Converter with Shutdown

LTC1279 - 12-Bit, 600ksps Sampling A/D Converter with Shutdown - Linear Technology（凌力尔特）

功能描述

The LTC?1279 is a 1.4μs, 600ksps, sampling 12-bit A/D converter which draws only 60mW from a single 5V or ±5V supplies. This easy-to-use device comes complete witha 160ns sample-and-hold, a precision reference and an internally trimmed clock. Unipolar and bipolar conversion modes add to the flexibility of the ADC. The low power dissipation is reduced even more, drawing only 8.5mW in power shutdown mode. Instant wake-up from power shutdown allows the converter to be powered down even during brief inactive periods.The LTC1279 converts 0V to 5V unipolar inputs from a single 5V supply and ±2.5V bipolar inputs from ±5V supplies. Maximum DC specs include ±1LSB INL and ±1LSB DNL. Outstanding guaranteed AC performance includes 70dB S/(N D) and 78dB THD at the input frequency of 100kHz over temperature.The internal clock is trimmed for 1.4μs conversion time. The clock automatically synchronizes to each sample command,eliminating problems with asynchronous clock noisefound in competitive devices. A separate conversion start input and a data-ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

特点

Single Supply 5V or ±5V Operation

Sample Rate: 600ksps

70dB S/(N D) and 74dB THD at Nyquist

Power Dissipation: 60mW Typ

Power Shutdown with Instant Wake-Up

Internal Reference Can Be Overdriven Externally

Internal Synchronized Clock; No Clock Required

High Impedance Analog Input

Input Range: 0V to 5V or ±2.5V

New Flexible, Friendly Parallel Interface Eases Connections to DSPs and FIFOs

24-Pin SO Wide Package

应用

High Speed Data Acquisition

Digital Signal Processing

Multiplexed Data Acquisition Systems

Audio and Telecom Processing

Spectrum Analysis

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1279CG	SSOP-24	C	$16.45	$13.30
LTC1279CG#PBF	SSOP-24	C	$16.45	$13.30
LTC1279CG#TR	SSOP-24	C		$13.40
LTC1279CG#TRPBF	SSOP-24	C		$13.40
LTC1279CSW	SW-24	C	$16.20	$13.00
LTC1279CSW#PBF	SW-24	C	$16.20	$13.00
LTC1279CSW#TR	SW-24	C		$13.10
LTC1279CSW#TRPBF	SW-24	C		$13.10
LTC1279IG	SSOP-24	I	$18.90	$15.25
LTC1279IG#PBF	SSOP-24	I	$18.90	$15.25
LTC1279IG#TR	SSOP-24	I		$15.35
LTC1279IG#TRPBF	SSOP-24	I		$15.35
LTC1279ISW	SW-24	I	$18.00	$13.50
LTC1279ISW#PBF	SW-24	I	$18.00	$13.50
LTC1279ISW#TR	SW-24	I		$13.60
LTC1279ISW#TRPBF	SW-24	I		$13.60
