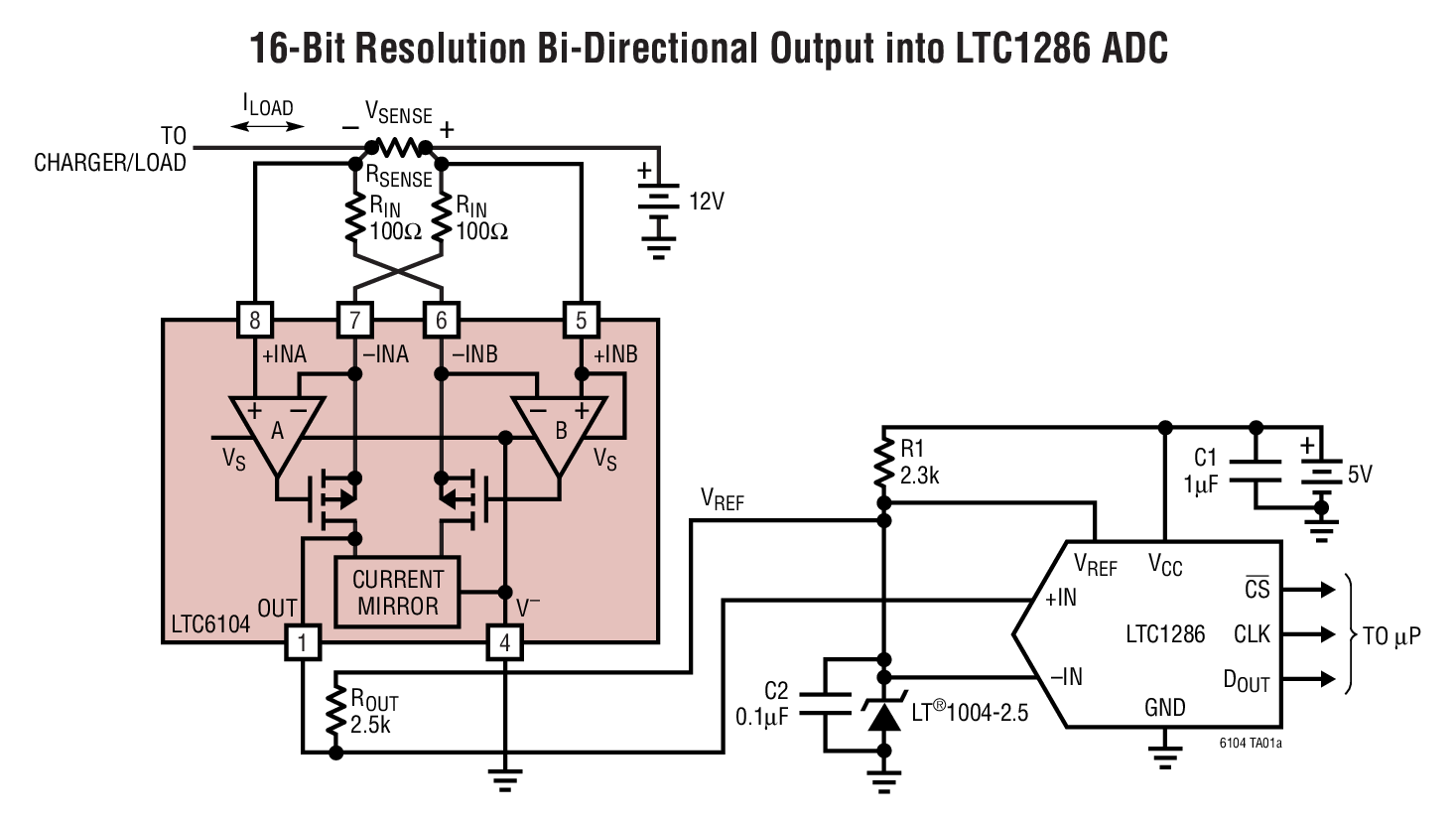

LTC6104典型应用图例一

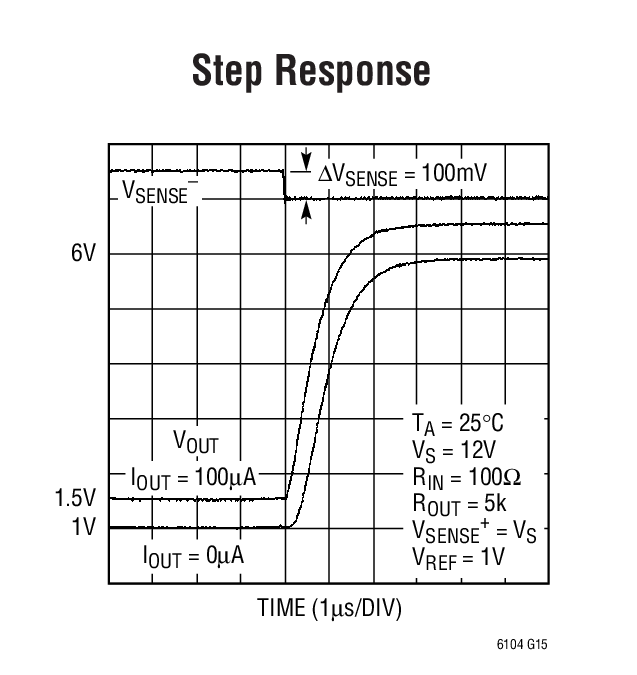

LTC6104典型应用图例二

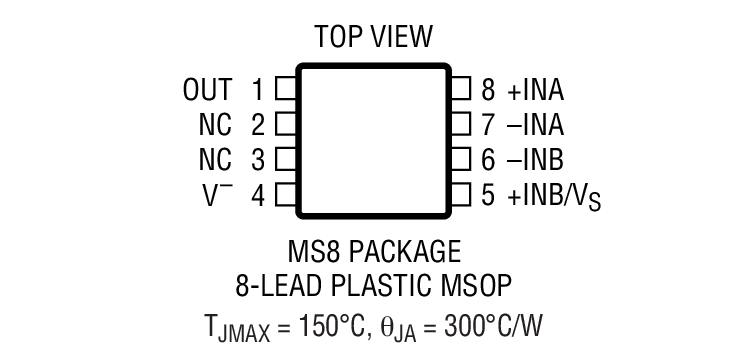

LTC6104 - 封装图解：
LTC6104封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC6104介绍

LTC6104 - LTC6104是High Voltage, High Side, Bi-Directional Current Sense Amplifier

LTC6104是LINEAR凌力尔特公司的一款电流检测放大器产品，LTC6104是LTC6104是High Voltage, High Side, Bi-Directional Current Sense Amplifier，本站介绍了LTC6104的封装应用图解、特点和优点、功能等，并给出了与LTC6104相关的LINEAR元器件型号供参考。

LTC6104 - LTC6104是High Voltage, High Side, Bi-Directional Current Sense Amplifier - 电流检测放大器 - 航天和严酷环境 - 凌力尔特

LTC6104 - High Voltage, High Side, Bi-Directional Current Sense Amplifier

LTC6104 - High Voltage, High Side, Bi-Directional Current Sense Amplifier - Linear Technology（凌力尔特）

功能描述
The LTC6104 is a versatile, high voltage, high side, bidirectional current sense amplifier. Design flexibility is provided by the excellent device characteristics: ±450µV maximum offset and only 520µA of current consumption (typical at 12V). The LTC6104 operates on supplies from 4V to 60V.

The LTC6104 monitors bi-directional current via the voltage across an external sense resistor (shunt resistor). This sense voltage is then translated into a ground referenced signal. Gain is set with three external resistors and can be separately configured for both directions. Low DC offset allows the use of a small shunt resistor and large gain-setting resistors. As a result, power loss in the shunt is minimal.

The wide operating supply range and high accuracy make the LTC6104 ideal for a wide variety of automotive, industrial and power management applications. A maximum input sense voltage of 500mV allows a wide range of currents to be monitored. The fast response makes the LTC6104 the perfect choice for load current warnings and shutoff protection control. With very low supply current, the LTC6104 is suitable for power sensitive applications.

The LTC6104 is available in an 8-lead MSOP package.

特点
  • Wide Supply Range: 4V to 60V with 70V Absolute Maximum
  • Low Offset Voltage: ±450µV Maximum
  • Fast Response: 1µs Response Time
  • Gain Configurable with External Resistors; Each Direction is Gain Configurable
  • Low Input Bias Current: 170nA Maximum
  • PSRR: 110dB Minimum
  • Output Current: ±1mA Maximum
  • Low Supply Current: 520µA, VS = 12V
  • Specified for –40°C to 125°C Temperature Range
  • Available in an 8-Lead MSOP Package
    • 应用
  • Current Shunt Measurement
  • Battery Monitoring
  • Remote Sensing
  • Power Management
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC6104CMS8#PBF MS-8 C $1.97 $1.38
    LTC6104CMS8#TRPBF MS-8 C $1.44
    LTC6104HMS8#PBF MS-8 H $2.56 $1.79
    LTC6104HMS8#TRPBF MS-8 H $1.85
    LTC6104IMS8#PBF MS-8 I $2.27 $1.59
    LTC6104IMS8#TRPBF MS-8 I $1.65
