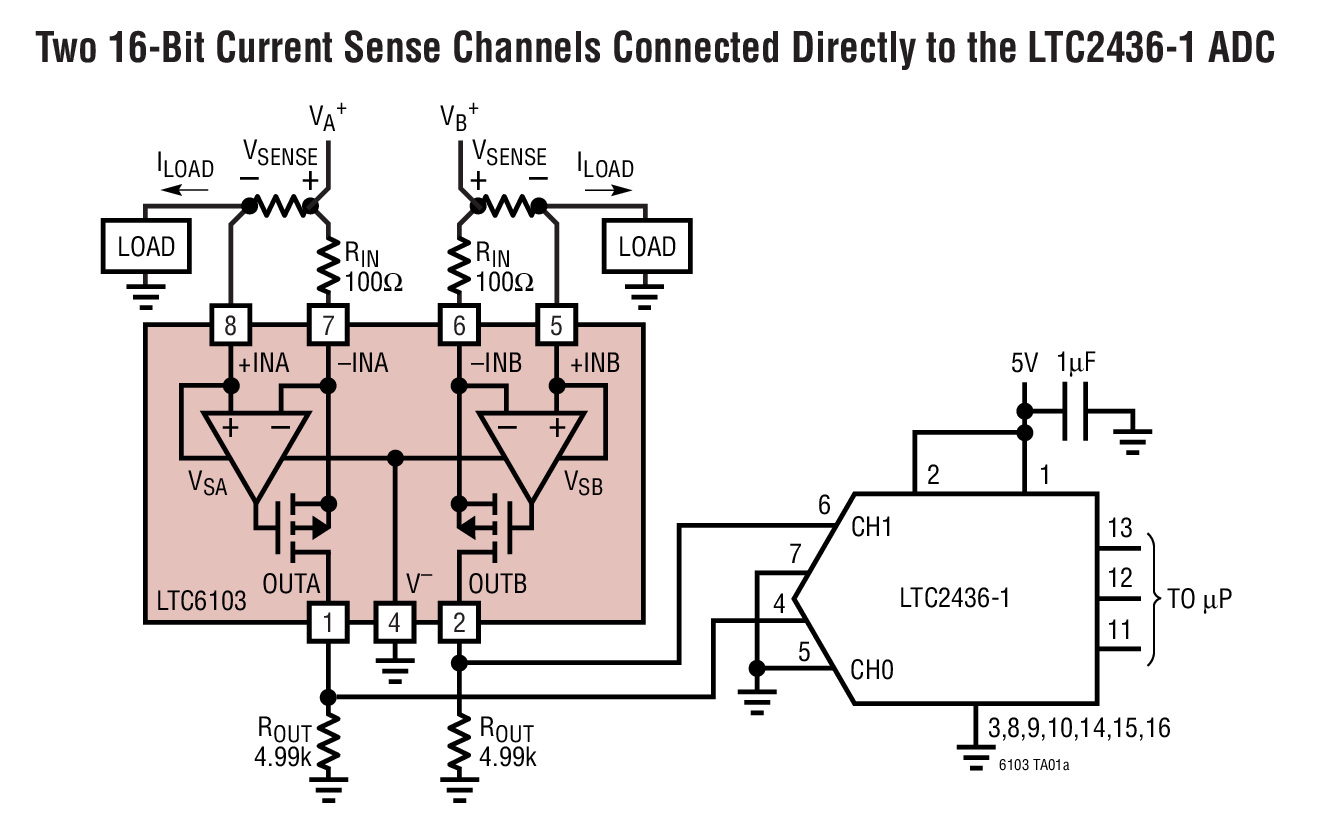

LTC6103典型应用图例一

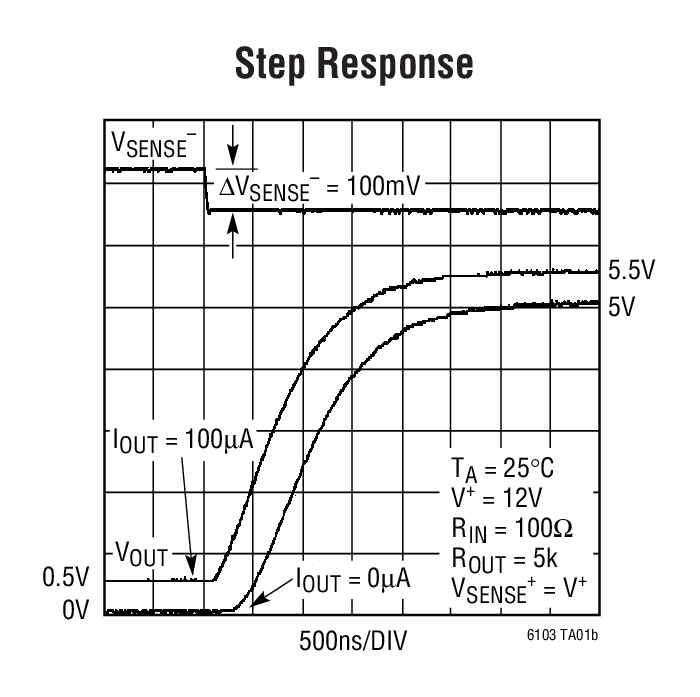

LTC6103典型应用图例二
LTC6103 - 封装图解：

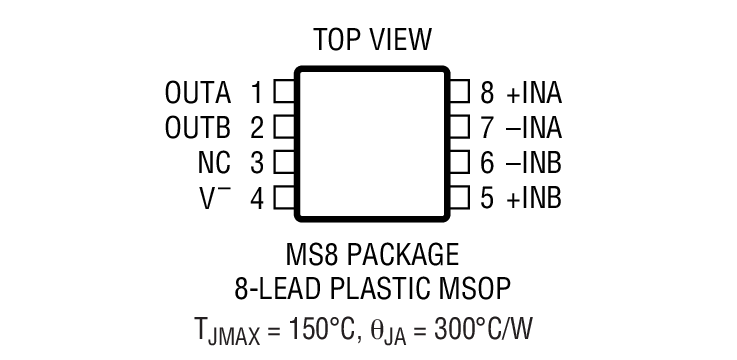

LTC6103封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC6103介绍

LTC6103 - LTC6103是Dual High Voltage, High Side Current Sense Amplifier

LTC6103是LINEAR凌力尔特公司的一款电流检测放大器产品，LTC6103是LTC6103是Dual High Voltage, High Side Current Sense Amplifier，本站介绍了LTC6103的封装应用图解、特点和优点、功能等，并给出了与LTC6103相关的LINEAR元器件型号供参考。

LTC6103 - LTC6103是Dual High Voltage, High Side Current Sense Amplifier - 电流检测放大器 - 航天和严酷环境 - 凌力尔特

LTC6103 - Dual High Voltage, High Side Current Sense Amplifier

LTC6103 - Dual High Voltage, High Side Current Sense Amplifier - Linear Technology（凌力尔特）

功能描述

The LTC6103 is a versatile, high voltage, high side, dual current sense amplifier. The two internal amplifiers are independent except that they share the same V– terminal. Design flexibility is provided by the excellent device characteristics: 450µV maximum offset, and only 275µA of current consumption (typical at 12V) for each amplifier. The LTC6103 operates on supplies from 4V to 60V.

The LTC6103 monitors current via the voltage across an external sense resistor (shunt resistor). Internal circuitry converts input voltage to output current, allowing for a small sense signal on a high common mode voltage to be translated into a ground referenced signal. Low DC offset allows the use of a small shunt resistor and large gain-setting resistors. As a result, power loss in the shunt is minimal.

The wide operating supply range and high accuracy make the LTC6103 ideal for an extensive variety of applications from automotive to industrial and power management. The fast response makes the LTC6103 the perfect choice for load current warnings and shutoff protection control. With very low supply current, the LTC6103 is suitable for power sensitive applications. The LTC6103 is available in an 8-lead MSOP package.

特点
  • Two Independent Current Sense Amplifiers
  • Wide Supply Range: 4V to 60V, 70V Absolute Maximum
  • Low Offset Voltage: 450µV Maximum
  • Fast Response: 1µs Response Time
  • Gain Configurable with External Resistors
  • Low Input Bias Current: 170nA Maximum
  • PSRR: 110dB Minimum (6V to 60V)
  • Output Current: 1mA Maximum
  • Low Supply Current: 275µA per Amplifier, VS = 12V
  • Specified for –40°C to 125°C Temperature Range
  • Available in an 8-lead MSOP Package
    • 应用
  • Current Shunt Measurement
  • Battery Monitoring
  • Remote Sensing
  • Power Management
  • High Voltage Level Translator
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC6103CMS8#PBF MS-8 C $2.38 $1.66
    LTC6103CMS8#TRPBF MS-8 C $1.72
    LTC6103HMS8#PBF MS-8 H $3.09 $2.16
    LTC6103HMS8#TRPBF MS-8 H $3.15 $2.22
    LTC6103IMS8#PBF MS-8 I $2.73 $1.91
    LTC6103IMS8#TRPBF MS-8 I $1.97
