LTC3552-1 - Standalone Linear Li-Ion Battery Charger and Dual Synchronous Buck Converter

LTC3552-1 - Standalone Linear Li-Ion Battery Charger and Dual Synchronous Buck Converter - Linear Technology（凌力尔特）

功能描述

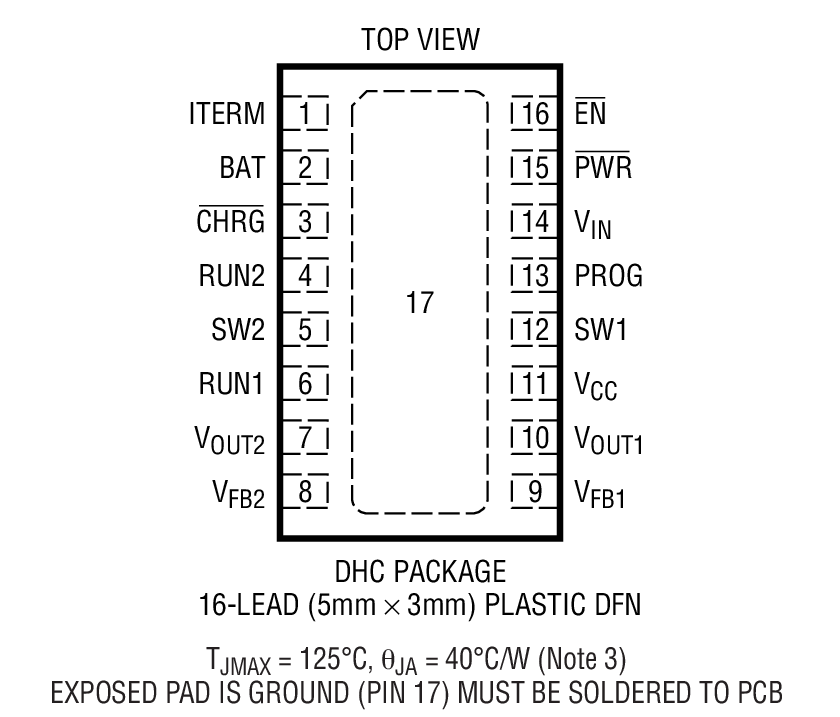

The LTC3552-1 is a complete constant-current/constantvoltage linear charger and dual fi xed output DC/DC converter for single cell lithium-ion batteries. Its DFN package and low external component count make the LTC3552-1 ideally suited for portable applications. Furthermore, the LTC3552-1 is designed to work within USB power specifi cations.

No external sense resistor or external blocking diode are required due to the internal MOSFET architecture. The charge voltage is fixed at 4.2V and the charge current is programmed with a resistor. The charge cycle terminates when the charge current drops below the programmed termination threshold after the final float voltage is reached. When the input supply (wall adapter or USB supply) is removed, the LTC3552-1 enters a low current state dropping the battery drain current to less than 2μA. Thermal regulation maximizes charge rate without risk of overheating.

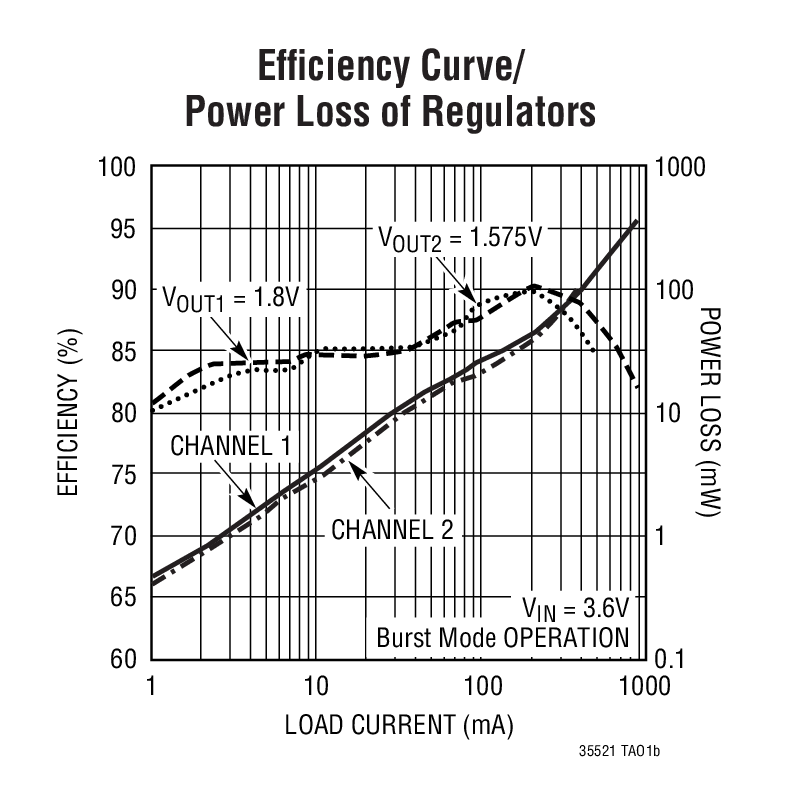

The synchronous step-down switching regulators generate fi xed output voltages of 1.8V and 1.575V. The switching frequency is set at 2.25MHz, allowing the use of small surface mount inductors and capacitors.

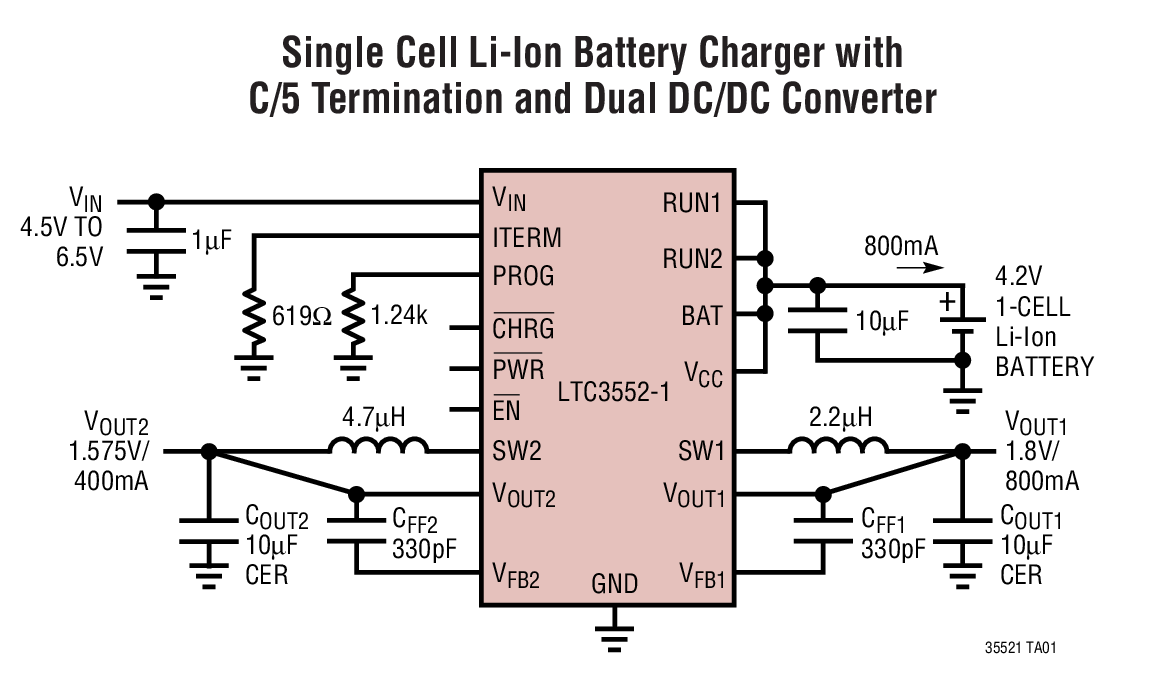

VoutLTC3552Adjustable (0.6V to 5V)LTC3552-11.8V & 1.575V

特点

Programmable Charge Current Up to 950mA

Complete Linear Charger and Dual DC/DC Regulator

Dual Fixed Outputs:1.8V at 800mA1.575V at 400mA

No MOSFET, Sense Resistor or Blocking Diode Required

Thermal Regulation Maximizes Charge Rate Without Risk of Overheating*

Charges Directly from a USB Port

Programmable Charge Current Termination

Preset 4.2V Charge Voltage with ±1% Accuracy

Charge Current Monitor Output for Gas Gauging

Automatic Recharge
