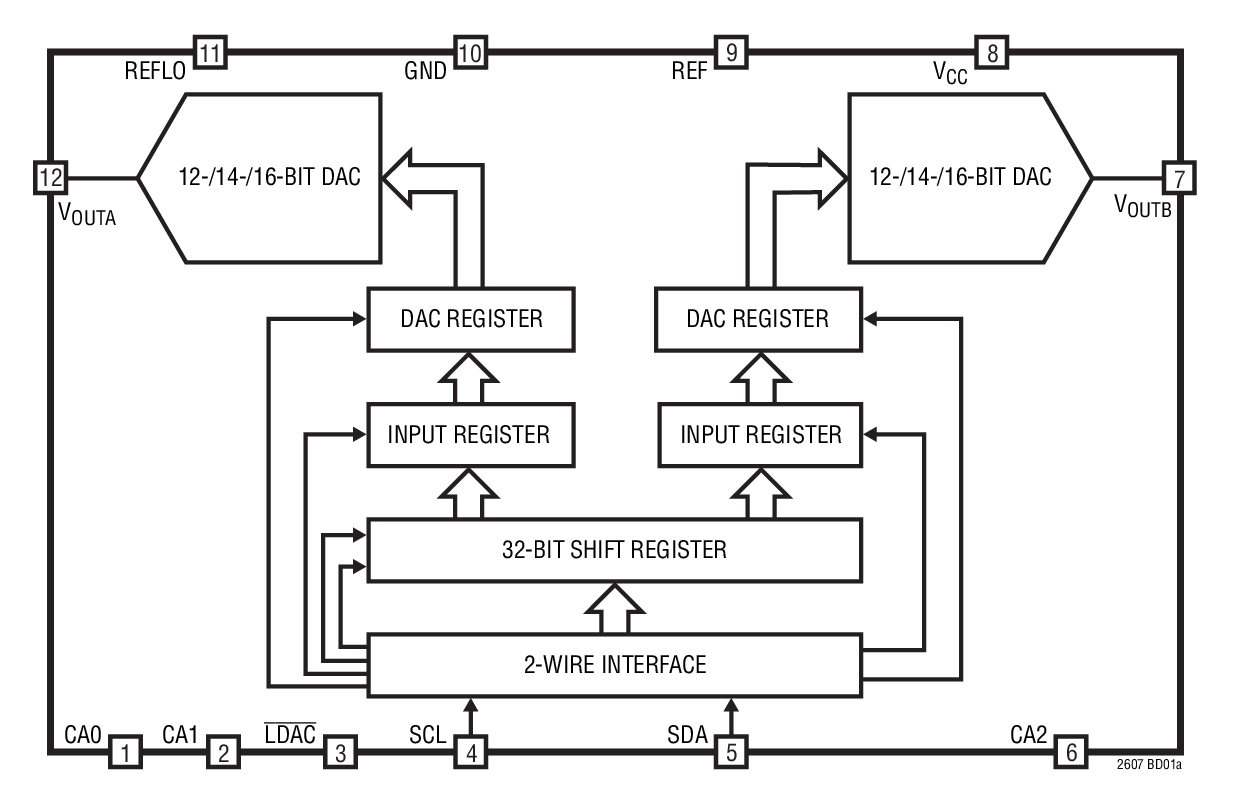

LTC2627典型应用图例一

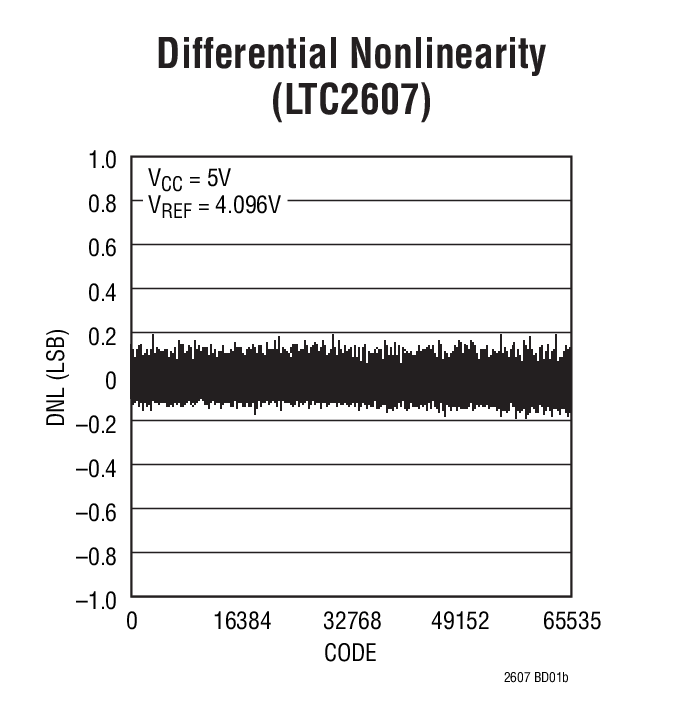

LTC2627典型应用图例二
LTC2627 - 封装图解：

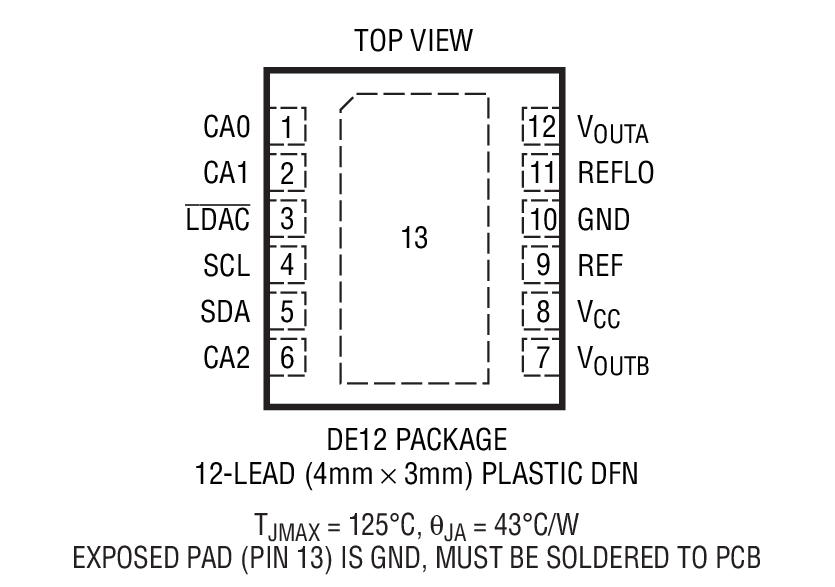

LTC2627封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC2627介绍

LTC2627 - LTC2627是12-Bit Dual Rail-to-Rail with I2C Interface

LTC2627是LINEAR凌力尔特公司的一款电压输出 DAC产品，LTC2627是LTC2627是12-Bit Dual Rail-to-Rail with I2C Interface，本站介绍了LTC2627的封装应用图解、特点和优点、功能等，并给出了与LTC2627相关的LINEAR元器件型号供参考。

LTC2627 - LTC2627是12-Bit Dual Rail-to-Rail with I2C Interface - 电压输出 DAC - 数据转换 - 凌力尔特

LTC2627 - 12-Bit Dual Rail-to-Rail with I2C Interface

LTC2627 - 12-Bit Dual Rail-to-Rail with I2C Interface - Linear Technology（凌力尔特）

功能描述
The LTC2607/LTC2617/LTC2627 are dual 16-, 14- and 12-bit, 2.7V to 5.5V rail-to-rail voltage output DACs in a 12-lead DFN package. They have built-in high performance output buffers and are guaranteed monotonic.

These parts establish new board-density benchmarks for 16- and 14-bit DACs and advance performance standards for output drive and load regulation in single-supply, voltage-output DACs.

The parts use a 2-wire, I2C compatible serial interface. The LTC2607/LTC2617/LTC2627 operate in both the standard mode (clock rate of 100kHz) and the fast mode (clock rate of 400kHz). An asynchronous DAC update pin (LDAC) is also included.

The LTC2607/LTC2617/LTC2627 incorporate a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale; and after power-up, they stay at zero scale until a valid write and update take place. The power-on reset circuit resets the LTC2607-1/LTC2617-1/LTC2627-1 to midscale. The voltage outputs stay at midscale until a valid write and update takes place.

特点
  • Smallest Pin-Compatible Dual DACs: LTC2607: 16 Bits LTC2617: 14 Bits LTC2627: 12 Bits
  • Guaranteed Monotonic Over Temperature
  • 27 Selectable Addresses
  • 400kHz I2CTM Interface
  • Wide 2.7V to 5.5V Supply Range
  • Low Power Operation: 260µA per DAC at 3V
  • Power Down to 1µA, Max
  • High Rail-to-Rail Output Drive (±15mA, Min)
  • Ultralow Crosstalk (30µV)
  • Double-Buffered Data Latches
  • Asynchronous DAC Update Pin
  • LTC2607/LTC2617/LTC2627: Power-On Reset to Zero Scale
  • LTC2607-1/LTC2617-1/LTC2627-1: Power-On Reset to Midscale
  • Tiny (3mm × 4mm) 12-Lead DFN Package
    • 应用
  • Mobile Communications
  • Process Control and Industrial Automation
  • Instrumentation
  • Automatic Test Equipment
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC2627CDE 4x3 DFN-12 C $4.39 $3.08
    LTC2627CDE-1 4x3 DFN-12 C $4.39 $3.08
    LTC2627CDE-1#PBF 4x3 DFN-12 C $4.39 $3.08
    LTC2627CDE-1#TR 4x3 DFN-12 C $3.14
    LTC2627CDE-1#TRPBF 4x3 DFN-12 C $3.14
    LTC2627CDE#PBF 4x3 DFN-12 C $4.39 $3.08
    LTC2627CDE#TR 4x3 DFN-12 C $3.14
    LTC2627CDE#TRPBF 4x3 DFN-12 C $3.14
    LTC2627IDE 4x3 DFN-12 I $5.29 $3.70
    LTC2627IDE-1 4x3 DFN-12 I $5.29 $3.70
    LTC2627IDE-1#PBF 4x3 DFN-12 I $5.29 $3.70
    LTC2627IDE-1#TR 4x3 DFN-12 I $3.76
    LTC2627IDE-1#TRPBF 4x3 DFN-12 I $3.76
    LTC2627IDE#PBF 4x3 DFN-12 I $5.29 $3.70
    LTC2627IDE#TR 4x3 DFN-12 I $3.76
    LTC2627IDE#TRPBF 4x3 DFN-12 I $3.76
