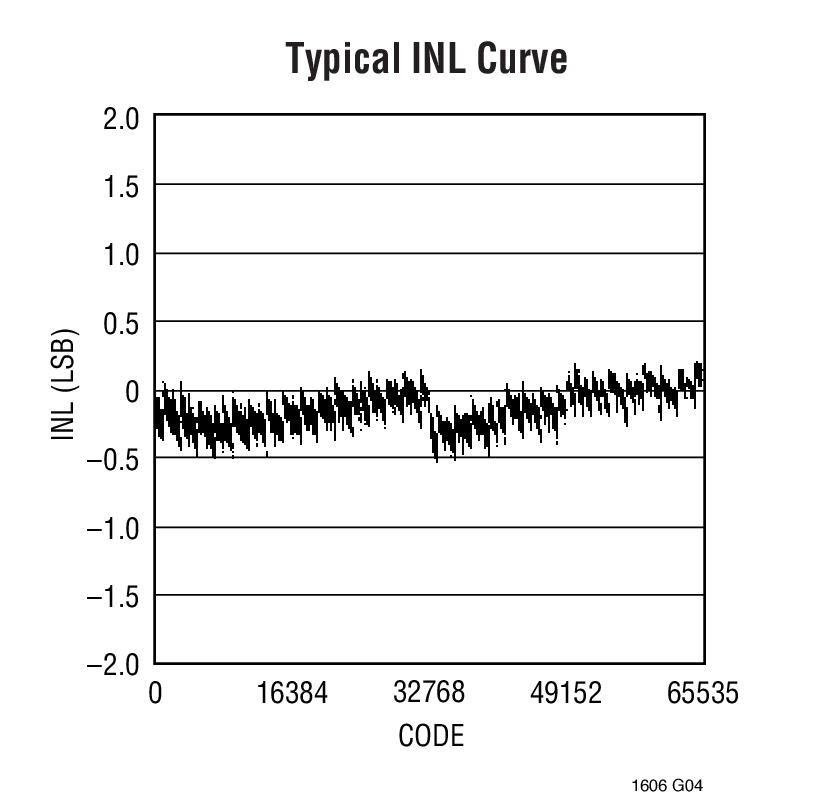

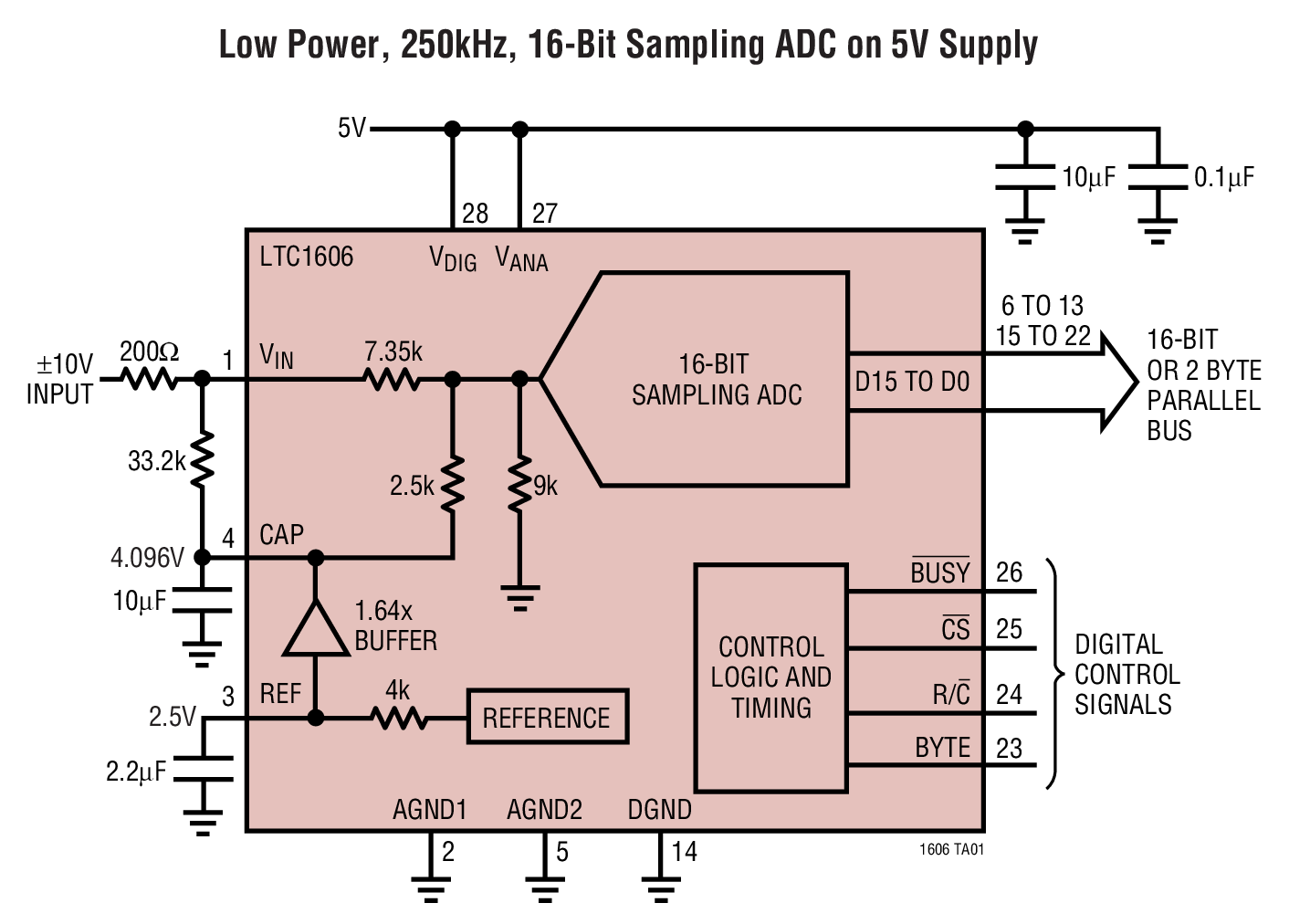

LTC1606 - 典型应用图例：

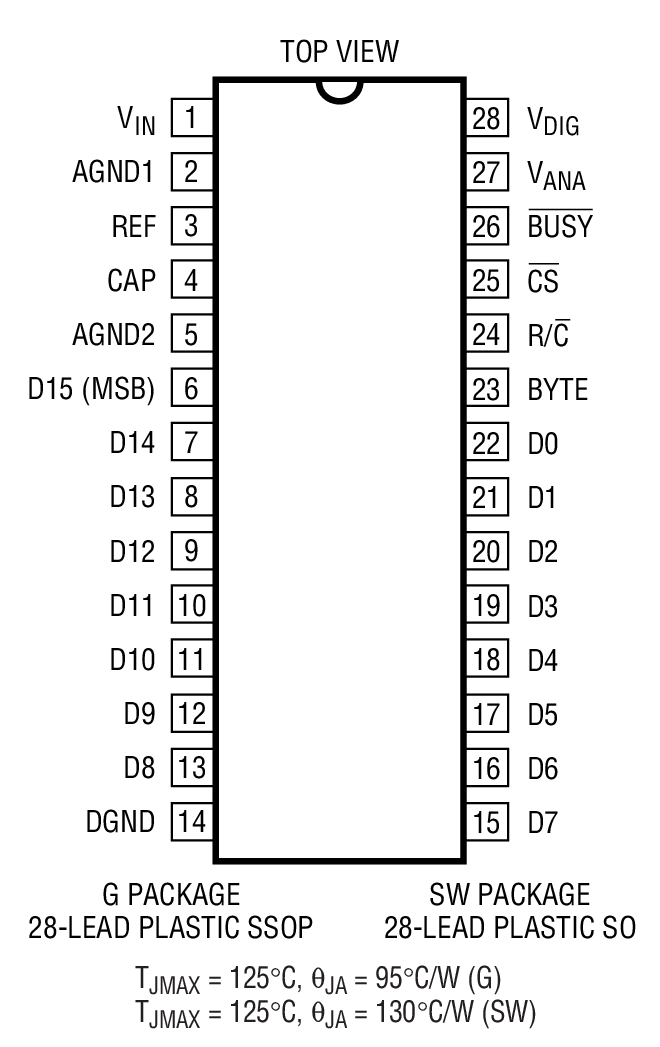

LTC1606 - 封装图解：

LINEAR凌力尔特芯片：

LTC1606 - LTC1606是16-Bit, 250ksps,Single Supply ADC

LTC1606是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1606是LTC1606是16-Bit, 250ksps,Single Supply ADC，本站介绍了LTC1606的封装应用图解、特点和优点、功能等，并给出了与LTC1606相关的LINEAR元器件型号供参考。

LTC1606 - LTC1606是16-Bit, 250ksps,Single Supply ADC - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1606 - 16-Bit, 250ksps,Single Supply ADC

LTC1606 - 16-Bit, 250ksps,Single Supply ADC - Linear Technology（凌力尔特）

功能描述

The LTC1606 is a 250ksps, sampling 16-bit A/D converter that draws only 75mW (typical) from a single 5V supply. This easy-to-use device includes sample-and-hold, precision reference, switched capacitor successive approximation A/D and trimmed internal clock.

The LTC1606's input range is an industry standard ±10V. Maximum DC specs include ±2.0LSB INL and 16 bits no missing codes over temperature. An external reference can be used if greater accuracy over temperature is needed.

The 90dB signal-to-noise ratio offers an improvement of 3dB over competing devices, and the RMS transition noise is reduced (0.65LSB vs 1LSB) relative to competitive parts.

The ADC has a microprocessor compatible, 16-bit or two byte parallel output port. A convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

特点

Sample Rate: 250ksps

Single 5V Supply

Bipolar Input Range: ±10V

Signal-to-Noise Ratio: 90dB Typ

Power Dissipation: 75mW Typ

Guaranteed No Missing Codes

Integral Nonlinearity: ±2.0LSB Max

Operates with Internal or External Reference

Internal Synchronized Clock

28-Pin SSOP and SO Packages

100ksps Version (LTC1605)

Improved 2nd Source to AD976A and ADS7805

Available in 28-Lead Plastic SSOP and SO Packages

应用

Industrial Process Control

Multiplexed Data Acquisition Systems

High Speed Data Acquisition for PCs

Digital Signal Processing

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1606ACG	SSOP-28	C	$30.10	$25.50
LTC1606ACG#PBF	SSOP-28	C	$30.10	$25.50
LTC1606ACG#TR	SSOP-28	C		$25.60
LTC1606ACG#TRPBF	SSOP-28	C		$25.60
LTC1606ACSW	SW-28	C	$30.10	$25.50
LTC1606ACSW#PBF	SW-28	C	$30.10	$25.50
LTC1606ACSW#TR	SW-28	C		$25.60
LTC1606ACSW#TRPBF	SW-28	C		$25.60
LTC1606AIG	SSOP-28	I	$31.80	$26.95
LTC1606AIG#PBF	SSOP-28	I	$31.80	$26.95
LTC1606AIG#TR	SSOP-28	I		$27.05
LTC1606AIG#TRPBF	SSOP-28	I		$27.05
LTC1606AISW	SW-28	I	$31.80	$26.95
LTC1606AISW#PBF	SW-28	I	$31.80	$26.95
LTC1606AISW#TR	SW-28	I		$27.05
LTC1606AISW#TRPBF	SW-28	I		$27.05
LTC1606CG	SSOP-28	C	$23.00	$19.50
LTC1606CG#PBF	SSOP-28	C	$23.00	$19.50
LTC1606CG#TR	SSOP-28	C		$19.60
LTC1606CG#TRPBF	SSOP-28	C		$19.60
LTC1606CSW	SW-28	C	$23.00	$19.50
LTC1606CSW#PBF	SW-28	C	$23.00	$19.50
LTC1606CSW#TR	SW-28	C		$19.60
LTC1606CSW#TRPBF	SW-28	C		$19.60
LTC1606IG	SSOP-28	I	$24.30	$20.60
LTC1606IG#PBF	SSOP-28	I	$24.30	$20.60
LTC1606IG#TR	SSOP-28	I		$20.70
LTC1606IG#TRPBF	SSOP-28	I		$20.70
LTC1606ISW	SW-28	I	$24.30	$20.60
LTC1606ISW#PBF	SW-28	I	$24.30	$20.60
LTC1606ISW#TR	SW-28	I		$20.70
LTC1606ISW#TRPBF	SW-28	I		$20.70
