LTC1453技术文档下载：

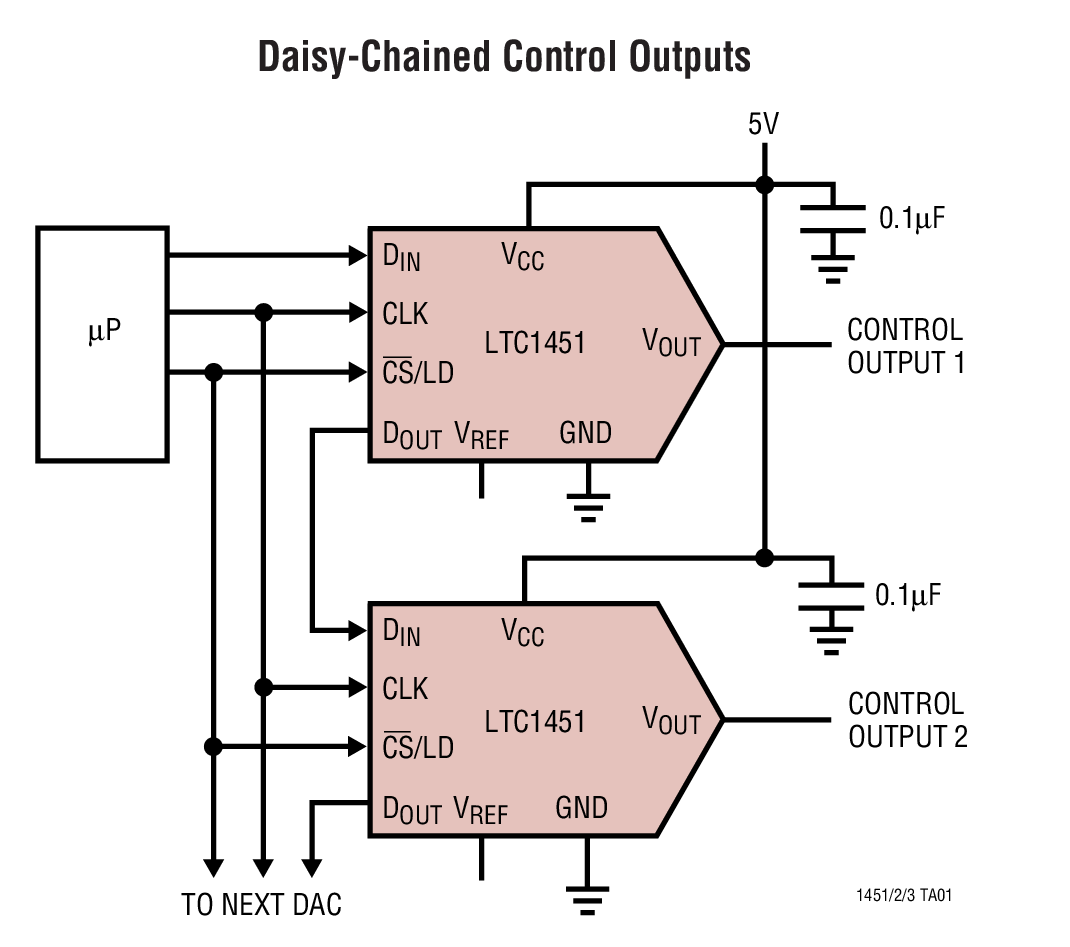

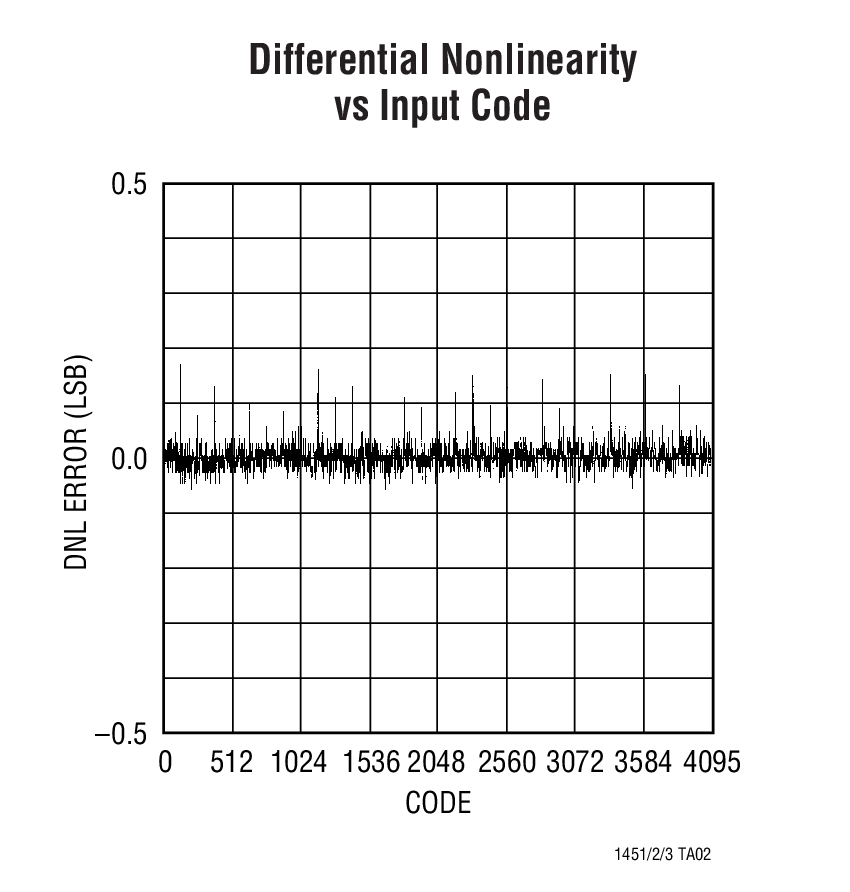

LTC1453 - 典型应用图例：

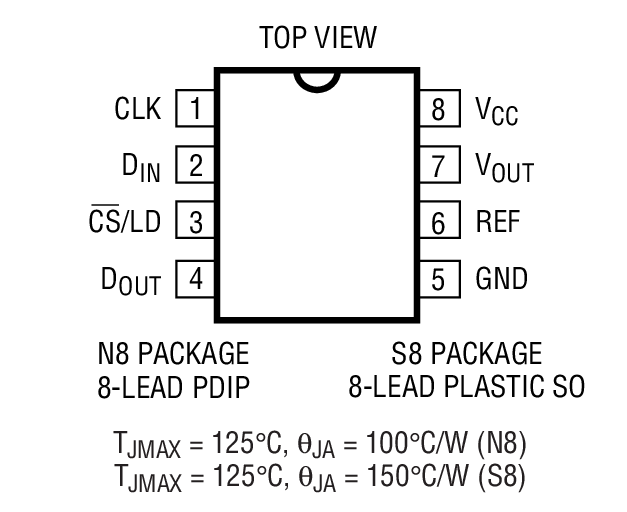

LTC1453 - 封装图解：
LTC1453 - LTC1453是12-Bit Rail-to-Rail Micropower DACs in SO-8
LTC1453是Linear公司的一款电压输出 DAC产品，LTC1453是12-Bit Rail-to-Rail Micropower DACs in SO-8，本站介绍了LTC1453的封装应用图解、特点和优点、功能等，并给出了与LTC1453相关的凌力尔特元器件型号供参考。
LTC1453 - 12-Bit Rail-to-Rail Micropower DACs in SO-8
LTC1453 - 12-Bit Rail-to-Rail Micropower DACs in SO-8 - Linear Technology（凌力尔特）
功能描述
The LTC?1451/LTC1452/LTC1453 are complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converters (DACs) in an SO-8 package. They include an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface.The LTC1451 has an onboard reference of 2.048V and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply.The LTC1452 is a multiplying DAC with a full-scale output of twice the reference input voltage. It operates from a single supply of 2.7V to 5.5V.The LTC1453 has an onboard 1.22V reference and a full-scale output of 2.5V. It operates from a single supply of 2.7V to 5.5V.The low power supply current makes the LTC1451 family ideal for battery-powered applications. The space saving 8-pin SO package and operation with no external components provide the smallest 12-bit DAC system available. 特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1453CN8 | N-8 | C | $5.60 | $4.60 |
| LTC1453CN8#PBF | N-8 | C | $5.60 | $4.60 |
| LTC1453CS8 | SO-8 | C | $5.60 | $4.85 |
| LTC1453CS8#PBF | SO-8 | C | $5.60 | $4.85 |
| LTC1453CS8#TR | SO-8 | C | $4.91 | |
| LTC1453CS8#TRPBF | SO-8 | C | $4.91 | |
| LTC1453IN8 | N-8 | I | $6.05 | $5.00 |
| LTC1453IN8#PBF | N-8 | I | $6.05 | $5.00 |
| LTC1453IS8 | SO-8 | I | $6.40 | $5.25 |
| LTC1453IS8#PBF | SO-8 | I | $6.40 | $5.25 |
| LTC1453IS8#TR | SO-8 | I | $5.31 | |
| LTC1453IS8#TRPBF | SO-8 | I | $5.31 |
