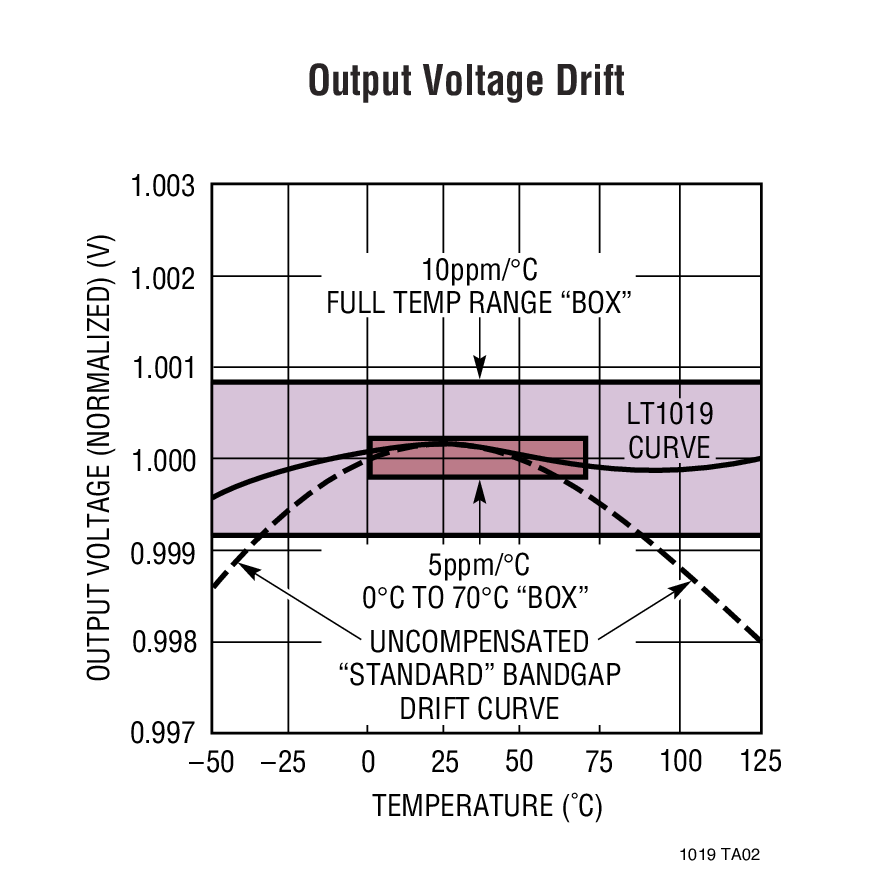

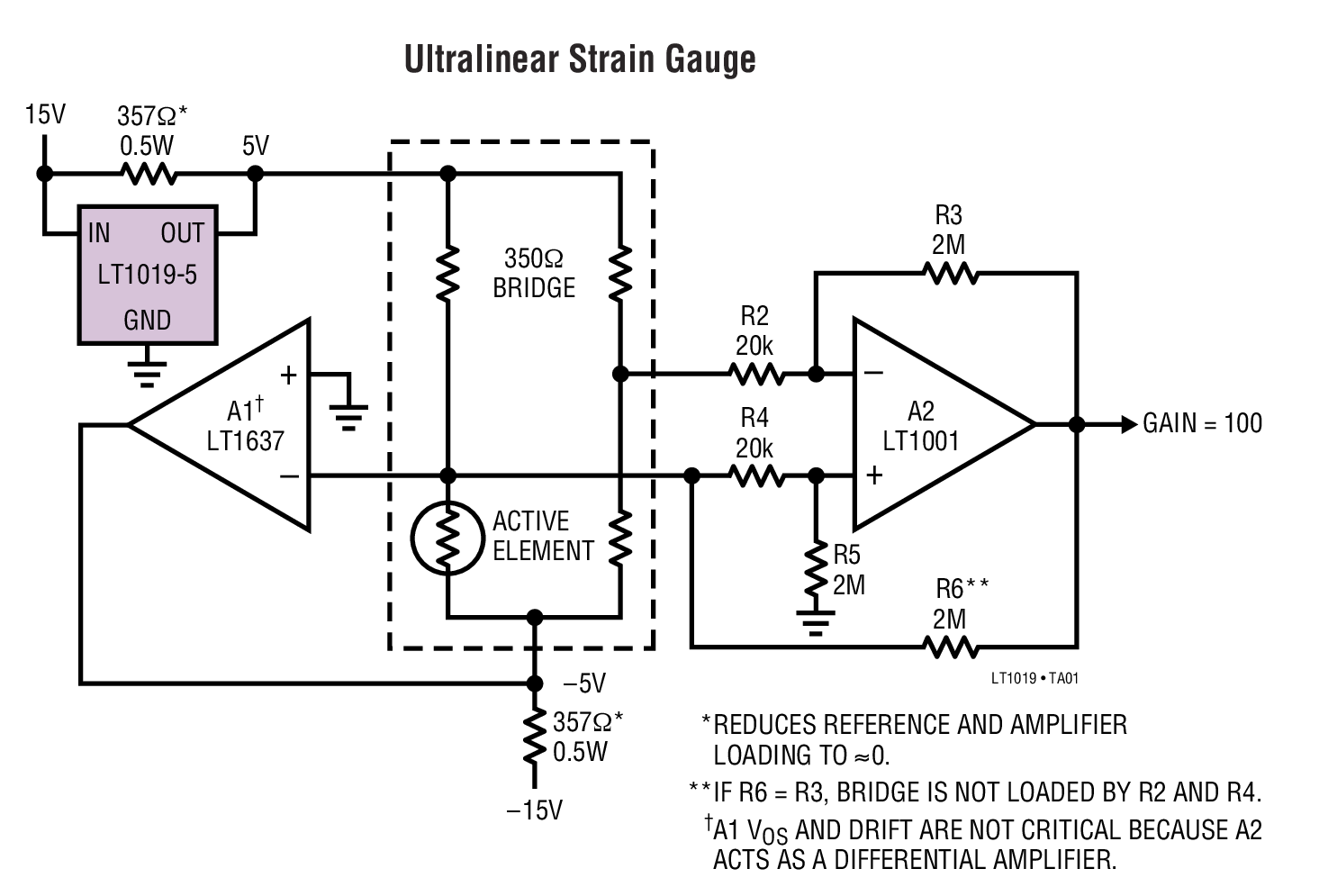

LT1019ACN8-4.5典型应用图例
LT1019ACN8-4.5典型应用图例一
LT1019ACN8-4.5典型应用图例二

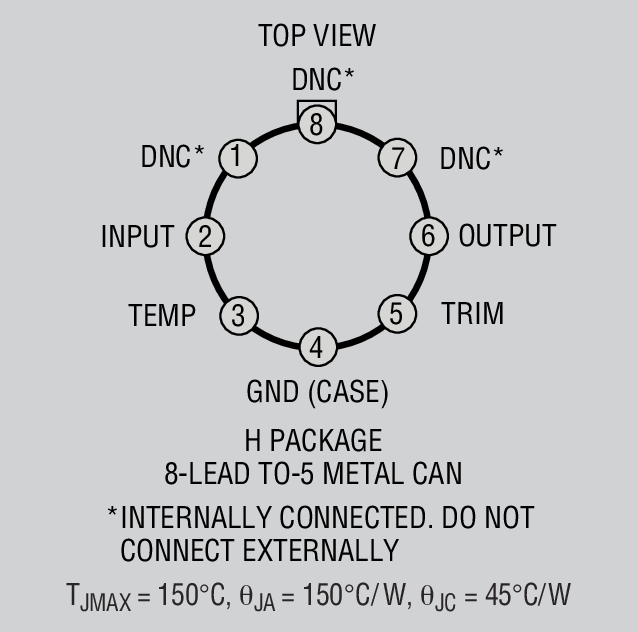

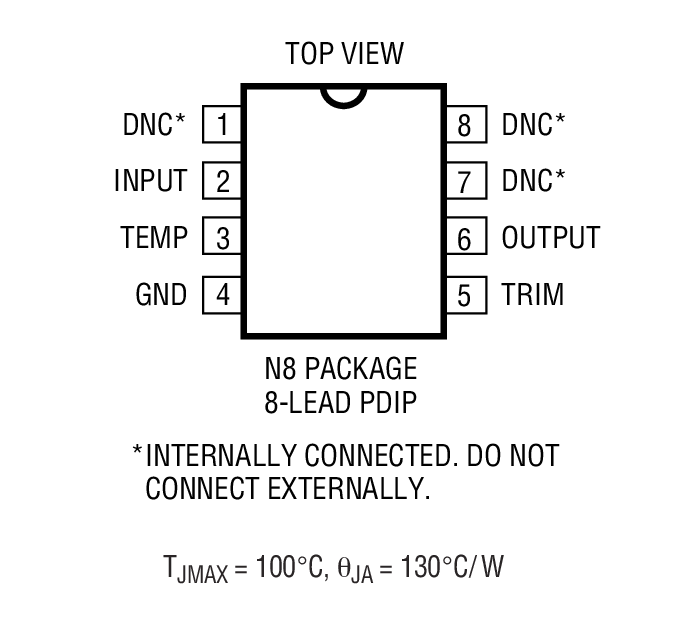

LT1019ACN8-4.5封装图解
LT1019ACN8-4.5封装图解一
LT1019ACN8-4.5封装图解二
LT1019ACN8-45LT1019ACN8-4.5
LT1019ACN8-4.5是Precision Reference

LT1019ACN8-4.5 - Precision Reference

LT1019 - Precision Reference - Linear Technology(凌力尔特)

功能描述

The LT1019 is a third generation bandgap voltage reference utilizing thin film technology and a greatly improved curvature correction technique. Wafer level trimming of both reference and output voltage combines to produce very low TC and tight initial output voltage tolerance.

The LT1019 can both sink and source up to 10mA and can be used in either the series or shunt mode, allowing the reference to operate with positive or negative output voltages without external components. Minimum input/ output voltage is less than 1V in the series mode, providing improved tolerance of low line conditions and excellent line regulation.

The LT1019 is available in four voltages: 2.5V, 4.5V, 5V and 10V. It is a direct replacement for most bandgap references presently available including AD580, AD581, REF-01, REF-02, MC1400, MC1404 and LM168.

特点
  • Tight Initial Output Voltage: <0.05%
  • Ultralow Drift: 3ppm/oC Typical
  • Series or Shunt Operation
  • Curvature Corrected
  • Ultrahigh Line Rejection: ≈0.5ppm/V
  • Low Output Impedance: ≈0.02 Ohm
  • Plug-In Replacement for Present References
  • Available at 2.5V, 4.5V, 5V, and 10V
  • 100% Noise Tested
  • Temperature Output
  • Industrial Temperature Range in SO-8
  • Available in 8-Lead N8 and S8 Packages
  • 应用
  • Negative Shunt References
  • A/D and D/A Converters
  • Precision Regulators
  • Constant Current Sources
  • V/F Converters
  • Bridge Excitation
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1019ACN8-10 N-8 C $7.50 $6.25
    LT1019ACN8-10#PBF N-8 C $7.50 $6.25
    LT1019ACN8-2.5 N-8 C $7.50 $6.25
    LT1019ACN8-2.5#PBF N-8 C $7.50 $6.25
    LT1019ACN8-4.5 N-8 C $7.50 $6.25
    LT1019ACN8-4.5#PBF N-8 C $7.50 $6.25
    LT1019ACN8-5 N-8 C $7.50 $6.25
    LT1019ACN8-5#PBF N-8 C $7.50 $6.25
    LT1019ACS8-2.5 SO-8 C $7.50 $5.40
    LT1019ACS8-2.5#PBF SO-8 C $7.50 $5.40
    LT1019ACS8-2.5#TR SO-8 C $5.46
    LT1019ACS8-2.5#TRPBF SO-8 C $5.46
    LT1019ACS8-5 SO-8 C $7.50 $5.40
    LT1019ACS8-5#PBF SO-8 C $7.50 $5.40
    LT1019ACS8-5#TR SO-8 C $5.46
    LT1019ACS8-5#TRPBF SO-8 C $5.46
    LT1019AIS8-2.5 SO-8 I $6.60 $5.65
    LT1019AIS8-2.5#PBF SO-8 I $6.60 $5.65
    LT1019AIS8-2.5#TR SO-8 I $5.71
    LT1019AIS8-2.5#TRPBF SO-8 I $5.71
    LT1019AIS8-5 SO-8 I $6.60 $5.65
    LT1019AIS8-5#PBF SO-8 I $6.60 $5.65
    LT1019AIS8-5#TR SO-8 I $5.71
    LT1019AIS8-5#TRPBF SO-8 I $5.71
    LT1019CN8-10 N-8 C $4.58 $3.70
    LT1019CN8-10#PBF N-8 C $4.58 $3.70
    LT1019CN8-2.5 N-8 C $4.58 $3.70
    LT1019CN8-2.5#PBF N-8 C $4.58 $3.70
    LT1019CN8-4.5 N-8 C $4.58 $3.70
    LT1019CN8-4.5#PBF N-8 C $4.58 $3.70
    LT1019CN8-5 N-8 C $4.58 $3.70
    LT1019CN8-5#PBF N-8 C $4.58 $3.70
    LT1019CS8-10 SO-8 C $5.58 $4.65
    LT1019CS8-10#PBF SO-8 C $5.58 $4.65
    LT1019CS8-10#TR SO-8 C $4.71
    LT1019CS8-10#TRPBF SO-8 C $4.71
    LT1019CS8-2.5 SO-8 C $5.58 $4.65
    LT1019CS8-2.5#PBF SO-8 C $5.58 $4.65
    LT1019CS8-2.5#TR SO-8 C $4.71
    LT1019CS8-2.5#TRPBF SO-8 C $4.71
    LT1019CS8-4.5 SO-8 C $5.58 $4.65
    LT1019CS8-4.5#PBF SO-8 C $5.58 $4.65
    LT1019CS8-4.5#TR SO-8 C $4.71
    LT1019CS8-4.5#TRPBF SO-8 C $4.71
    LT1019CS8-5 SO-8 C $5.58 $4.65
    LT1019CS8-5#PBF SO-8 C $5.58 $4.65
    LT1019CS8-5#TR SO-8 C $4.71
    LT1019CS8-5#TRPBF SO-8 C $4.71
    LT1019IN8-10 N-8 I $5.75 $4.75
    LT1019IN8-10#PBF N-8 I $5.75 $4.75
    LT1019IN8-2.5 N-8 I $5.75 $4.75
    LT1019IN8-2.5#PBF N-8 I $5.75 $4.75
    LT1019IN8-4.5 N-8 I $5.75 $4.75
    LT1019IN8-4.5#PBF N-8 I $5.75 $4.75
    LT1019IN8-5 N-8 I $5.75 $4.75
    LT1019IN8-5#PBF N-8 I $5.75 $4.75
    LT1019IS8-2.5 SO-8 I $6.34 $4.85
    LT1019IS8-2.5#PBF SO-8 I $6.34 $4.85
    LT1019IS8-2.5#TR SO-8 I $4.91
    LT1019IS8-2.5#TRPBF SO-8 I $4.91
    LT1019IS8-5 SO-8 I $6.34 $4.85
    LT1019IS8-5#PBF SO-8 I $6.34 $4.85
    LT1019IS8-5#TR SO-8 I $4.91
    LT1019IS8-5#TRPBF SO-8 I $4.91
