LTC1754-3.3 - Micropower, Regulated 3.3V/5V Charge Pump with Shutdown in SOT-23

LTC1754-3.3 - Micropower, Regulated 3.3V/5V Charge Pump with Shutdown in SOT-23 - Linear Technology（凌力尔特）

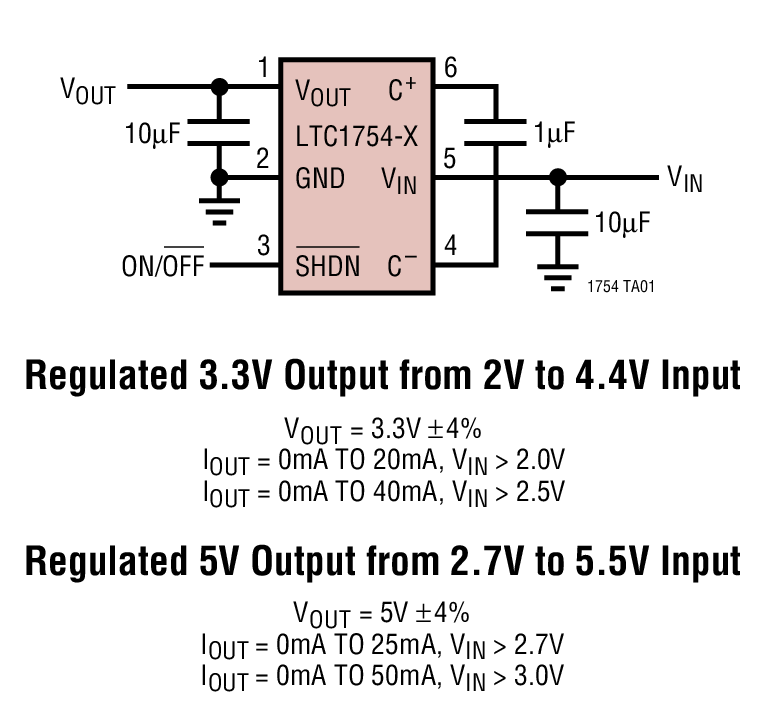

The LTC1754 is a micropower charge pump DC/DC converter that produces a regulated output. The input voltage range is 2V to 4.4V for 3.3V output and 2.7V to 5.5V for 5V output. Extremely low operating current and a low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the LTC1754 ideally suited for small, battery-powered applications. The total component area of the application circuit shown below is only 0.052 inch². The LTC1754 operates as a Burst Mode™ switched capacitor voltage doubler to produce a regulated output. It has thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. The LTC1754 is available in a 6-pin SOT-23 package.

Ultralow Power: IIN = 13µA

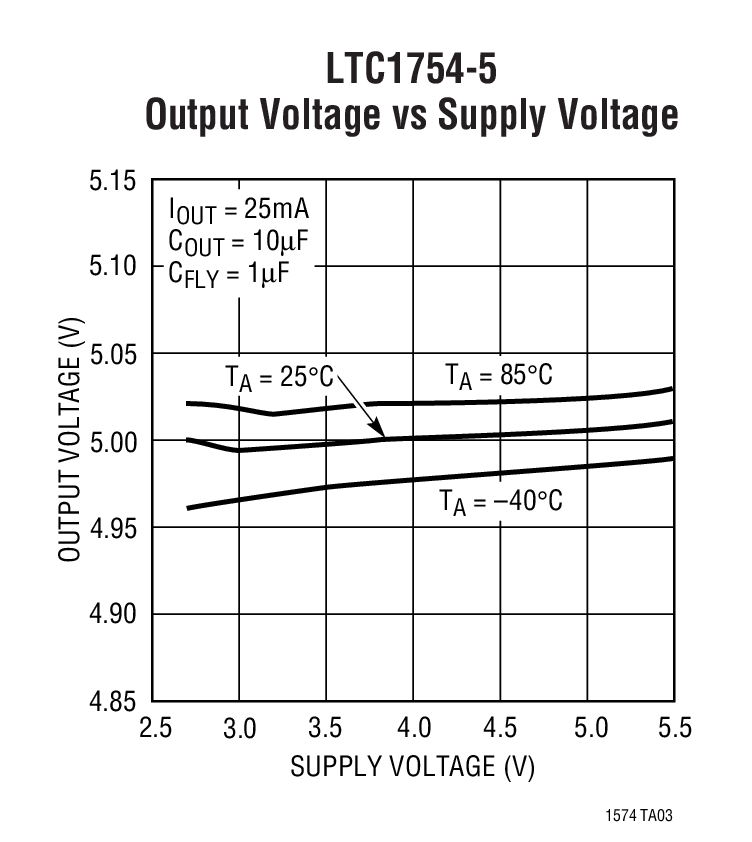

Regulated Output Voltage: 3.3V ±4%, 5V ±4%

5V Output Current: 50mA (VIN >/= 3.0V)

3.3V Output Current: 40mA (VIN >/=2.5V)

No Inductors Needed

Very Low Shutdown Current: <1µA

Shutdown Disconnects Load from VIN

Internal Oscillator: 600kHz

Short-Circuit and Overtemperature Protected

Ultrasmall Application Circuit: (0.052 Inch²)

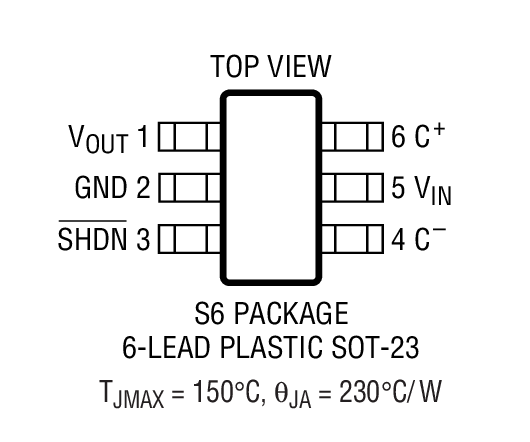

6-Pin SOT-23 Package

SIM Interface Supplies for GSM Cellular Telephones

White LED Power Supplies

Li-Ion Battery Backup Supplies

Handheld Computers

Smart Card Readers

PCMCIA Local 5V Supplies

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1754ES6-3.3	SOT-23	E	$1.76
LTC1754ES6-3.3#PBF	SOT-23	E	$1.76
LTC1754ES6-3.3#TR	SOT-23	E	$1.76	$1.50
LTC1754ES6-3.3#TRM	SOT-23	E	$1.76	$1.52
LTC1754ES6-3.3#TRMPBF	SOT-23	E	$1.76	$1.52
LTC1754ES6-3.3#TRPBF	SOT-23	E	$1.76	$1.50
LTC1754ES6-5	SOT-23	E	$1.76
LTC1754ES6-5#PBF	SOT-23	E	$1.76
LTC1754ES6-5#TR	SOT-23	E	$1.76	$1.50
LTC1754ES6-5#TRM	SOT-23	E	$1.76	$1.52
LTC1754ES6-5#TRMPBF	SOT-23	E	$1.76	$1.52
LTC1754ES6-5#TRPBF	SOT-23	E	$1.76	$1.50
