LTC1706-81 - LTC1706-81是5-Bit Desktop VID Voltage Programmer

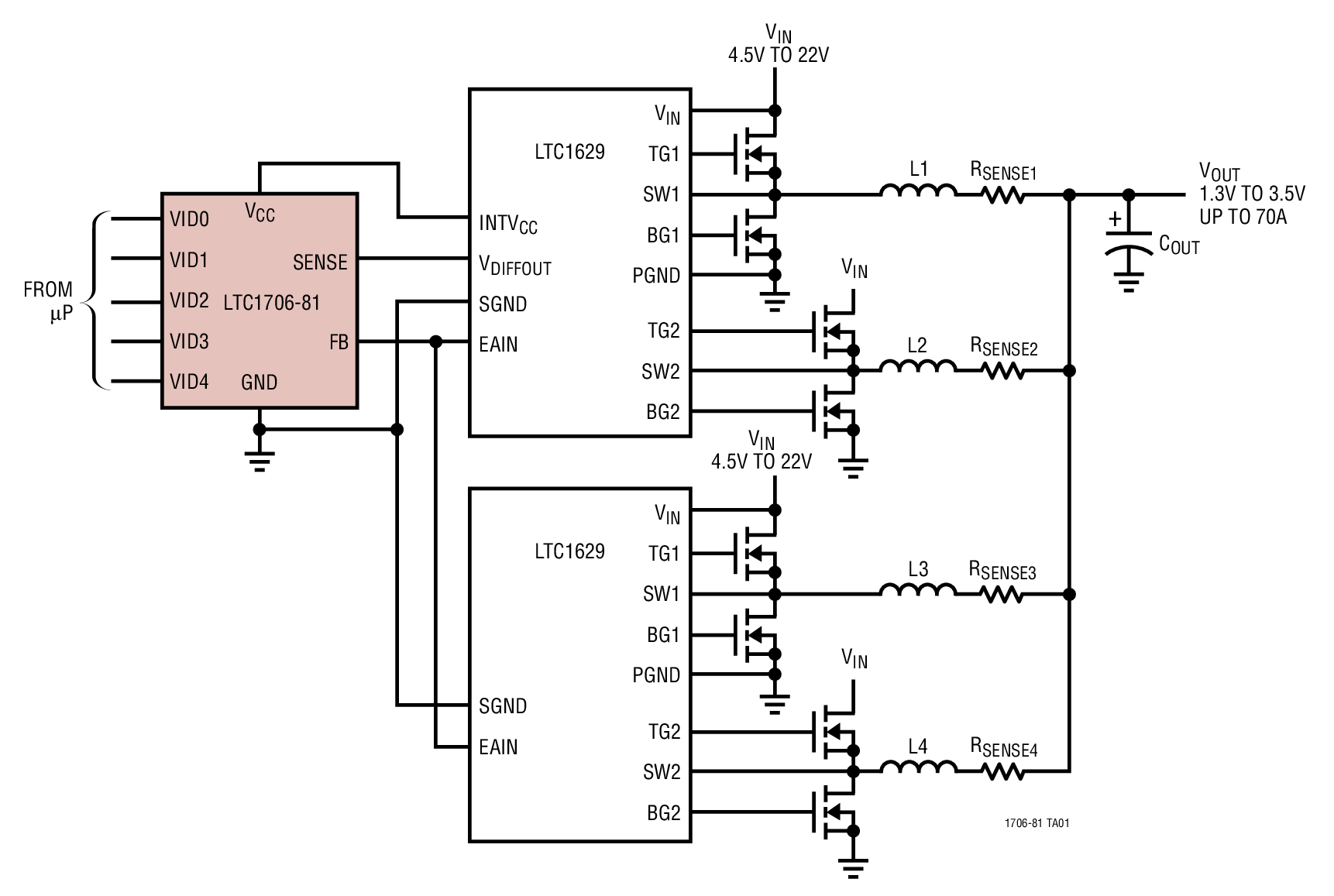

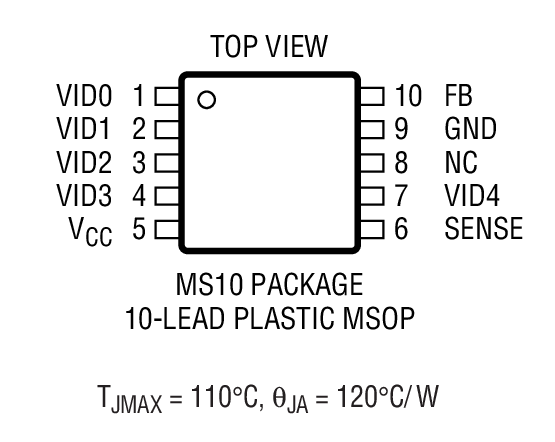

LTC1706-81是Linear公司的一款VID 电压编程器产品，LTC1706-81是5-Bit Desktop VID Voltage Programmer，本站介绍了LTC1706-81的封装应用图解、特点和优点、功能等，并给出了与LTC1706-81相关的凌力尔特元器件型号供参考。
LTC1706-81 - 5-Bit Desktop VID Voltage Programmer
LTC1706-81 - 5-Bit Desktop VID Voltage Programmer - Linear Technology（凌力尔特）
功能描述
The LTC1706-81 is a precision, digitally programmed, resistive ladder which adjusts the output of any 0.8V referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.3V and 3.5V is programmed in 50mV and 100mV increments.
The LTC1706-81 is designed specifically to program an entire family of Linear Technology DC/DC converters in full compliance with the Intel Desktop (VRM 8.4) VID specification.
The LTC1706-81 programs the following Linear Technology DC/DC converter products: LTC1622, LTC1628, LTC1629, LTC1702, LTC1735, LTC1735-1, LTC1772 and LTC1929. (Consult factory for future compatible DC/DC converter products.)
特点
Programs Regulator Output Voltage Range from 1.3V to 2.05V in 50mV Steps and from 2.1V to 3.5V in 100mV Steps (VRM 8.4) Programs a Wide Range of Linear Technology DC/DC Converters with a 0.8V Reference Fully Compliant with the Intel Pentium Processor Desktop VID Specification ±0.25% Accurate Output Voltage Built-In 40k Pull-Up Resistors on VID Inputs Available in MSOP-10 Package应用
Intel PentiumII and III Processor Power Supply AMD Athlon™ Processor Power Supply Workstations and Servers Large Memory Array Supply以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC1706EMS-81 | MS-10 | E | $2.35 | $2.05 |
| LTC1706EMS-81#PBF | MS-10 | E | $2.35 | $2.05 |
| LTC1706EMS-81#TR | MS-10 | E | | $2.11 |
| LTC1706EMS-81#TRPBF | MS-10 | E | | $2.11 |
