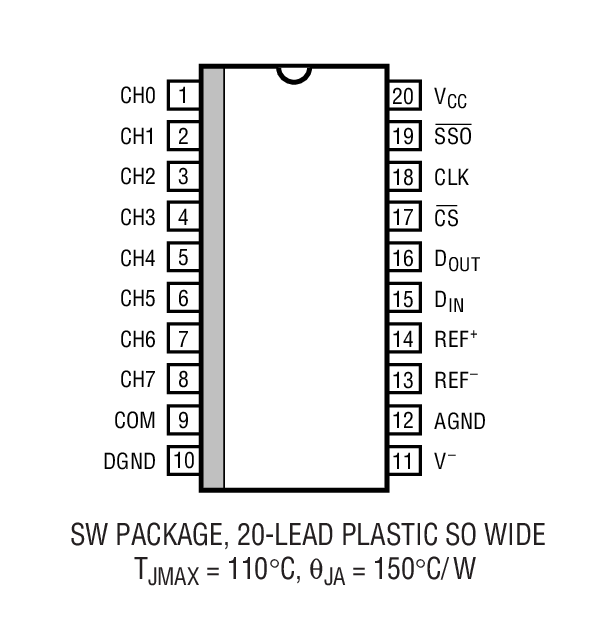

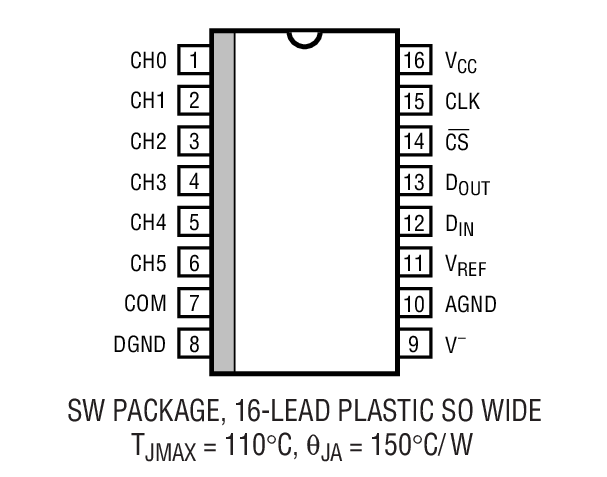

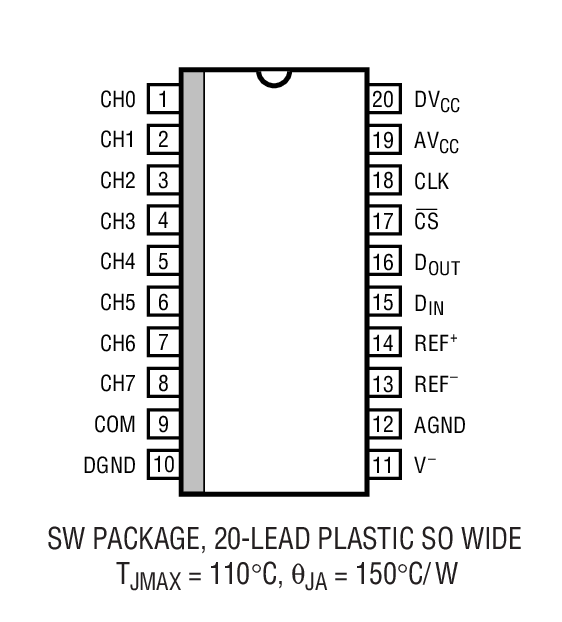

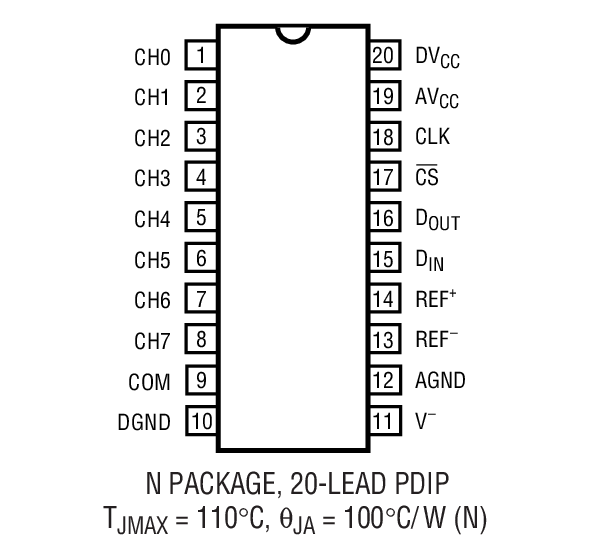

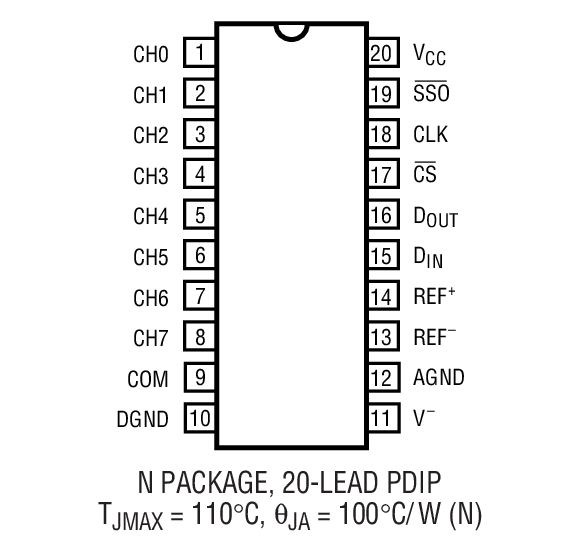

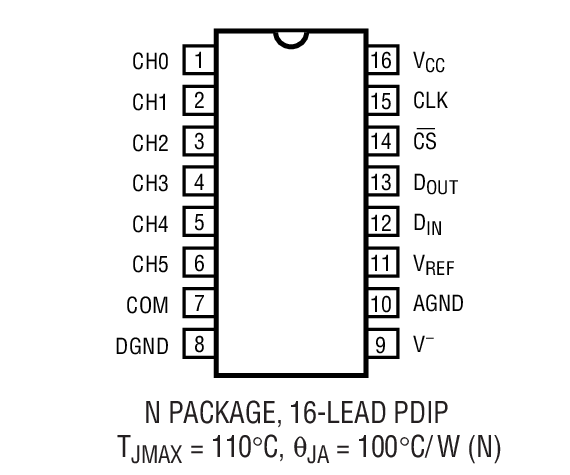

LTC1294 - 封装图解：

LINEAR凌力尔特芯片：

LTC1294 - LTC1294是Single Chip 12-Bit Data Acquisition System

LTC1294是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1294是LTC1294是Single Chip 12-Bit Data Acquisition System，本站介绍了LTC1294的封装应用图解、特点和优点、功能等，并给出了与LTC1294相关的LINEAR元器件型号供参考。

LTC1294 - LTC1294是Single Chip 12-Bit Data Acquisition System - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1294 - Single Chip 12-Bit Data Acquisition System

LTC1294 - Single Chip 12-Bit Data Acquisition System - Linear Technology（凌力尔特）

功能描述

The input multiplexer can be configured for either single ended or differential inputs (or combinations thereof). An on-chip sample and hold is included for all single ended input channels. When the LTC1293/4/6 is idle it can be powered down in applications where low power consumption is desired. The LTC1296 includes a System Shutdown Output pin which can be used to power down external circuitry, such as signal conditioning circuitry prior to the input mux.

The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing up to eight channels of data to be transmitted over as few as three wires.

特点

Software Programmable Features:Unipolar/Bipolar ConversionDifferential/Single Ended InputsMSB-First or MSB/LSB Data

Built-In Sample and Hold

Single Supply 5V or ±5V Operation

Direct 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel Ports

46.5kHz Maximum Throughput Rate

System Shutdown Output (LTC1296)

应用

LTC1290 - Single Chip 12-Bit Data Acquisition System

LTC1296 - Single Chip 12-Bit Data Acquisition System

LTC1289 - 3 Volt Single Chip 12-Bit Data Acquisition System

LTC1867 - 16 位、8 通道 200ksps ADC

LTC2309 - 具 I2C 接口的 8 通道、12 位 SAR 型 ADC

LTC1859 - 具停机功能的 8 通道、16 位、100ksps SoftSpan A/D 转换器

LTC1857 - 具停机功能的 8 通道、12 位、 100ksps SoftSpan A/D 转换器

LTC1863 - 12 位、8 通道 200ksps ADC

LTC1094 - 1, 2, 6 and 8 Channel, 10-Bit Serial I/O Data Acquisition Systems

LT5400 - 四个匹配的电阻器

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1294BCN	N-20	C	$25.00	$19.75
LTC1294BCN#PBF	N-20	C	$25.00	$19.75
LTC1294BCSW	SW-20	C	$30.00	$23.70
LTC1294BCSW#PBF	SW-20	C	$30.00	$23.70
LTC1294BCSW#TR	SW-20	C		$23.80
LTC1294BCSW#TRPBF	SW-20	C		$23.80
LTC1294CCN	N-20	C	$18.75	$14.80
LTC1294CCN#PBF	N-20	C	$18.75	$14.80
LTC1294CCSW	SW-20	C	$24.00	$18.95
LTC1294CCSW#PBF	SW-20	C	$24.00	$18.95
LTC1294CCSW#TR	SW-20	C		$19.05
LTC1294CCSW#TRPBF	SW-20	C		$19.05
LTC1294DCN	N-20	C	$12.10	$9.40
LTC1294DCN#PBF	N-20	C	$12.10	$9.40
LTC1294DCSW	SW-20	C	$14.50	$11.15
LTC1294DCSW#PBF	SW-20	C	$14.50	$11.15
LTC1294DCSW#TR	SW-20	C		$11.25
LTC1294DCSW#TRPBF	SW-20	C		$11.25
