当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1728-5

LTC1728-5技术文档下载：

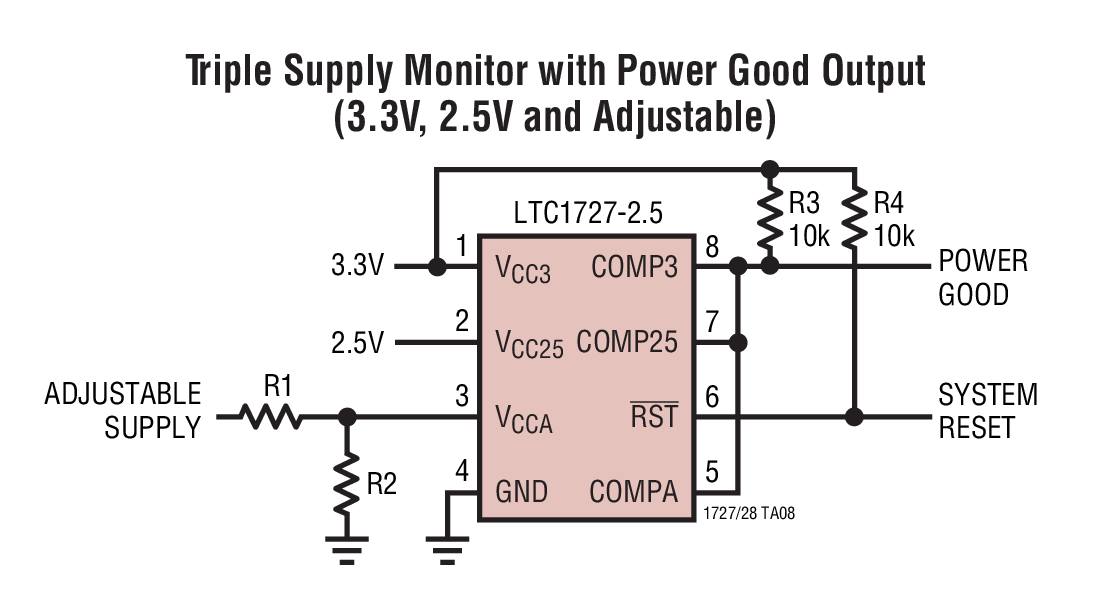

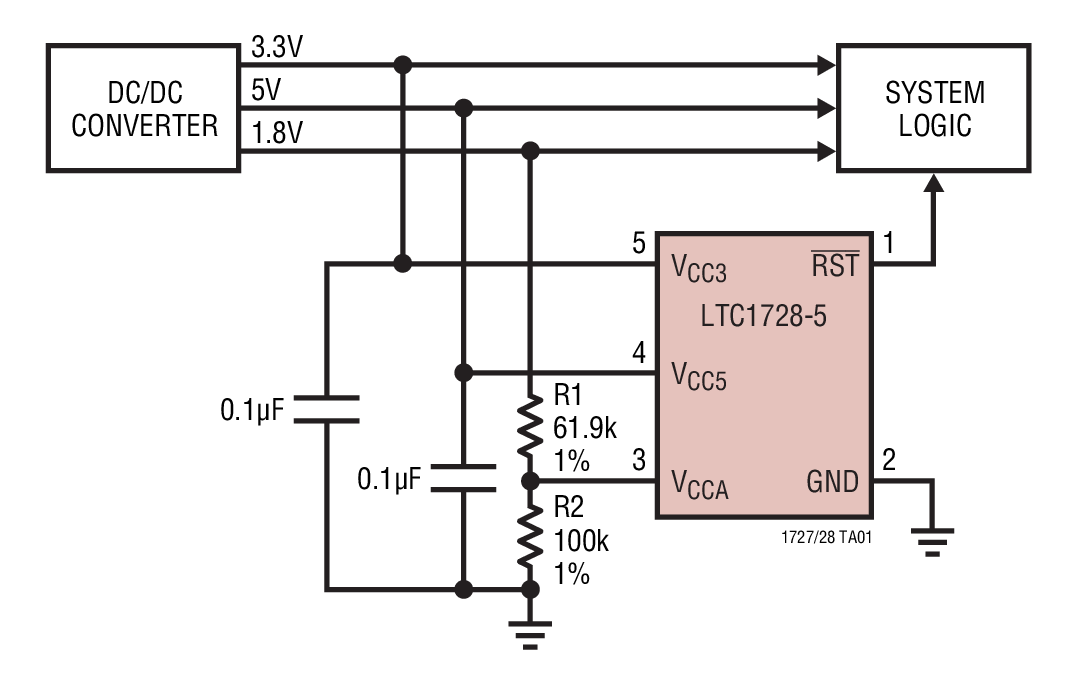

LTC1728-5 - 典型应用图例：

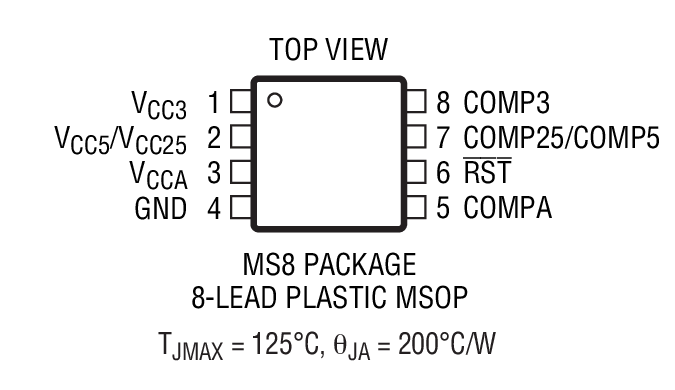

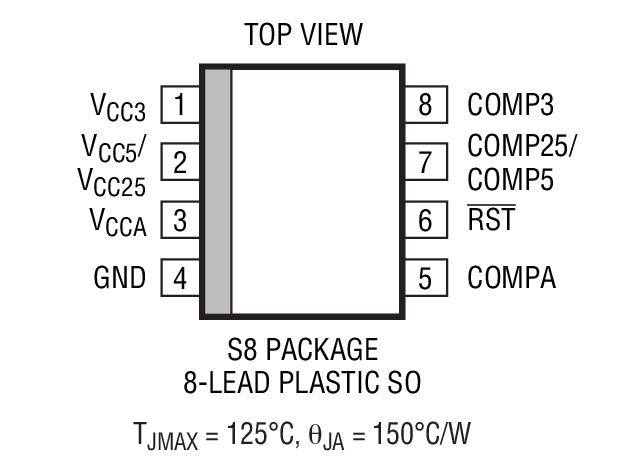

LTC1728-5 - 封装图解：

LTC1728-5LTC1728-5

LINEAR凌力尔特芯片：

LTC1728-5 - LTC1728-5是Micropower Precision Triple Supply Monitors in 8-Lead MSOP and 5-Lead SOT-23 Packages

LTC1728-5是LINEAR凌力尔特公司的一款三电源监视器产品，LTC1728-5是LTC1728-5是Micropower Precision Triple Supply Monitors in 8-Lead MSOP and 5-Lead SOT-23 Packages，本站介绍了LTC1728-5的封装应用图解、特点和优点、功能等，并给出了与LTC1728-5相关的LINEAR元器件型号供参考。

LTC1728-5 - LTC1728-5是Micropower Precision Triple Supply Monitors in 8-Lead MSOP and 5-Lead SOT-23 Packages - 三电源监视器 - 航天和严酷环境 - 凌力尔特

LTC1728-5 - Micropower Precision Triple Supply Monitors in 8-Lead MSOP and 5-Lead SOT-23 Packages

LTC1728-1.8 - Micropower Precision Triple Supply Monitors in 8-Lead MSOP and 5-Lead SOT-23 Packages - Linear Technology（凌力尔特）

功能描述

The LTC?1727 is a triple supply monitor intended for systems with multiple supply voltages. Each supply monitor has its own open-drain output for individual supply monitoring. A common open-drain reset output remains low until all three supplies have been in compliance for 200ms. Tight 1.5% accuracy specifications and glitch immunity ensure reliable reset operation without false triggering.

The LTC1728 is functionally identical to the LTC1727 without the individual monitor outputs.

The RST output is guaranteed to be in the correct state for VCC5/VCC25/VCC18 or VCC3 down to 1V. The LTC1727/LTC1728 may also be configured to monitor any one or two VCC inputs instead of three, depending on system requirements.

Very low (10μA typical) supply current makes the LTC1727/LTC1728 ideal for power conscious systems.

The LTC1727 is available in an 8-lead MSOP or SO package and the LTC1728 is available in a 5-lead SOT-23 package.

特点

Monitors Three Inputs SimultaneouslyLTC1727-5: 5V, 3.3V and ADJLTC1727-2.5: 2.5V, 3.3V and ADJLTC1728-5: 5V,

±1.5% Threshold Accuracy Over Temperature

Very Low Supply Current: 10µA Typ

200ms Reset Time Delay

Active Low RESET Output

Power Supply Glitch Immunity

Guaranteed RESET for VCC3 >/= 1V or VCC5/VCC25/VCC18 >/= 1V

LTC1727 Includes Monitor Output for Each Supply

LTC1727: 8-Lead MSOP and SO Packages

LTC1728: 5-Lead SOT-23 Package

应用

Desktop Computers

Notebook Computers

Intelligent Instruments

Portable Battery-Powered Equipment

Network Servers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1728ES5-1.8	SOT-23	E	$1.66
LTC1728ES5-1.8#PBF	SOT-23	E	$1.66
LTC1728ES5-1.8#TR	SOT-23	E	$1.66	$1.40
LTC1728ES5-1.8#TRM	SOT-23	E	$1.66	$1.45
LTC1728ES5-1.8#TRMPBF	SOT-23	E	$1.66	$1.45
LTC1728ES5-1.8#TRPBF	SOT-23	E	$1.66	$1.40
LTC1728ES5-2.5	SOT-23	E	$1.66
LTC1728ES5-2.5#PBF	SOT-23	E	$1.66
LTC1728ES5-2.5#TR	SOT-23	E	$1.66	$1.40
LTC1728ES5-2.5#TRM	SOT-23	E	$1.66	$1.45
LTC1728ES5-2.5#TRMPBF	SOT-23	E	$1.66	$1.45
LTC1728ES5-2.5#TRPBF	SOT-23	E	$1.66	$1.40
LTC1728ES5-3.3	SOT-23	E	$1.66
LTC1728ES5-3.3#PBF	SOT-23	E	$1.66
LTC1728ES5-3.3#TR	SOT-23	E	$1.66	$1.40
LTC1728ES5-3.3#TRM	SOT-23	E	$1.66	$1.45
LTC1728ES5-3.3#TRMPBF	SOT-23	E	$1.66	$1.45
LTC1728ES5-3.3#TRPBF	SOT-23	E	$1.66	$1.40
LTC1728ES5-5	SOT-23	E	$1.66
LTC1728ES5-5#PBF	SOT-23	E	$1.66
LTC1728ES5-5#TR	SOT-23	E	$1.66	$1.40
LTC1728ES5-5#TRM	SOT-23	E	$1.66	$1.45
LTC1728ES5-5#TRMPBF	SOT-23	E	$1.66	$1.45
LTC1728ES5-5#TRPBF	SOT-23	E	$1.66	$1.40
LTC1728HS5-5#PBF	SOT-23	H	$2.42
LTC1728HS5-5#TRMPBF	SOT-23	H	$2.42	$1.75
LTC1728HS5-5#TRPBF	SOT-23	H	$2.48	$1.70
