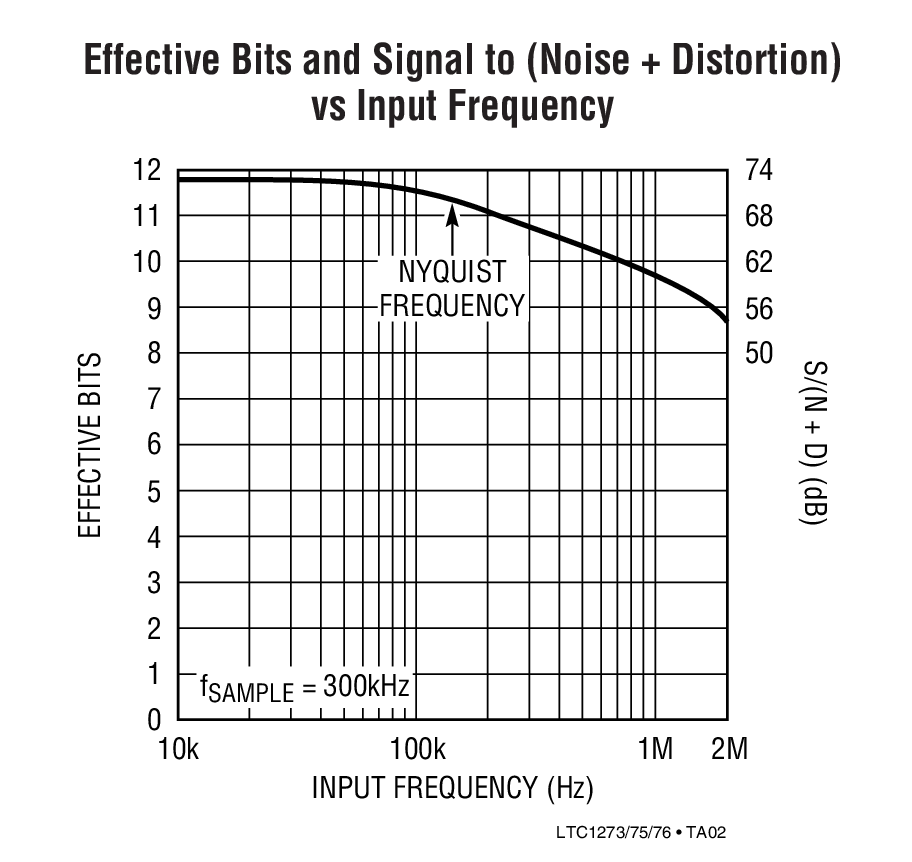

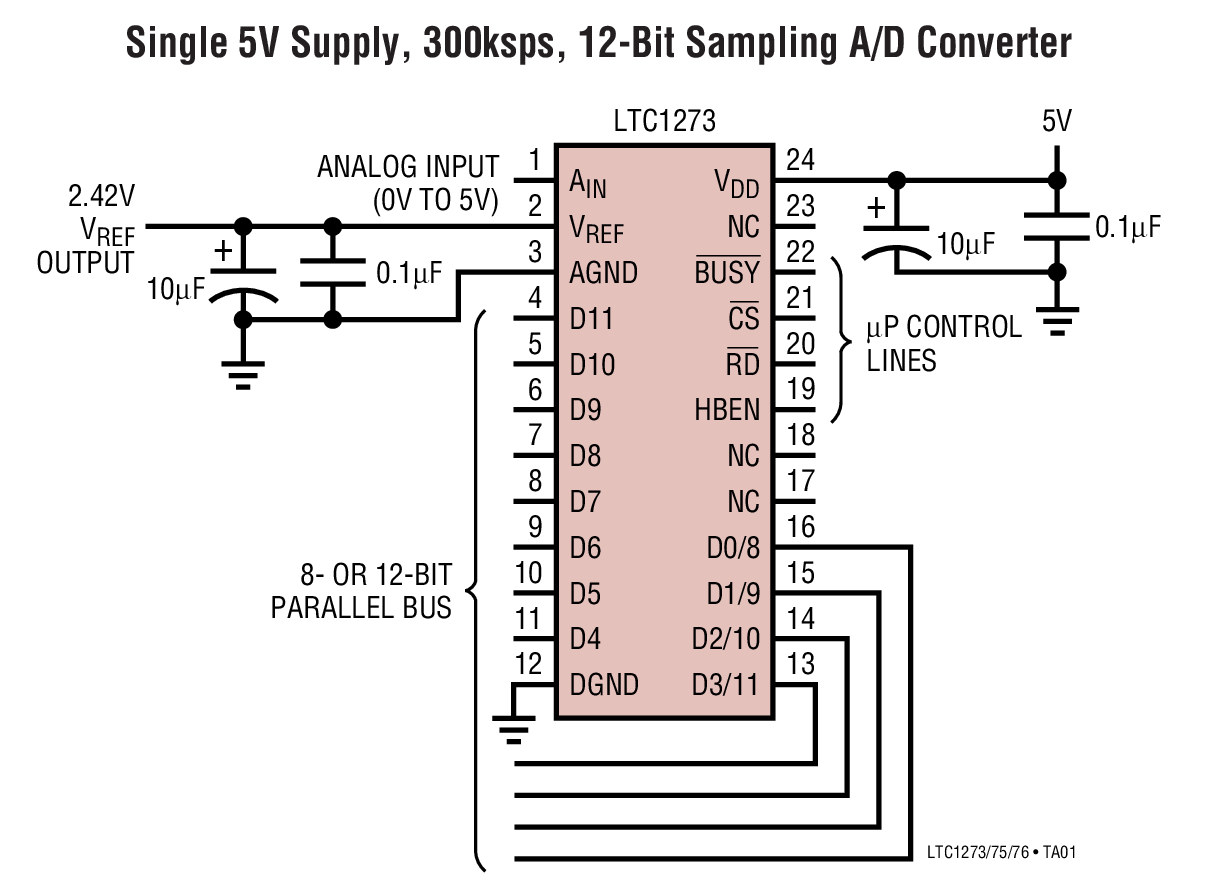

LTC1276典型应用图例一
LTC1276典型应用图例二
LTC1276 - 封装图解：

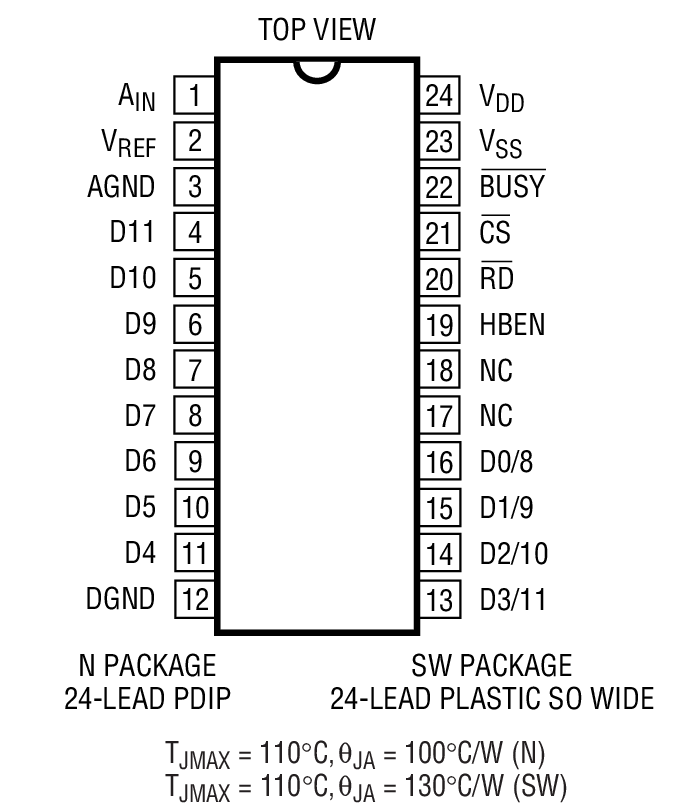

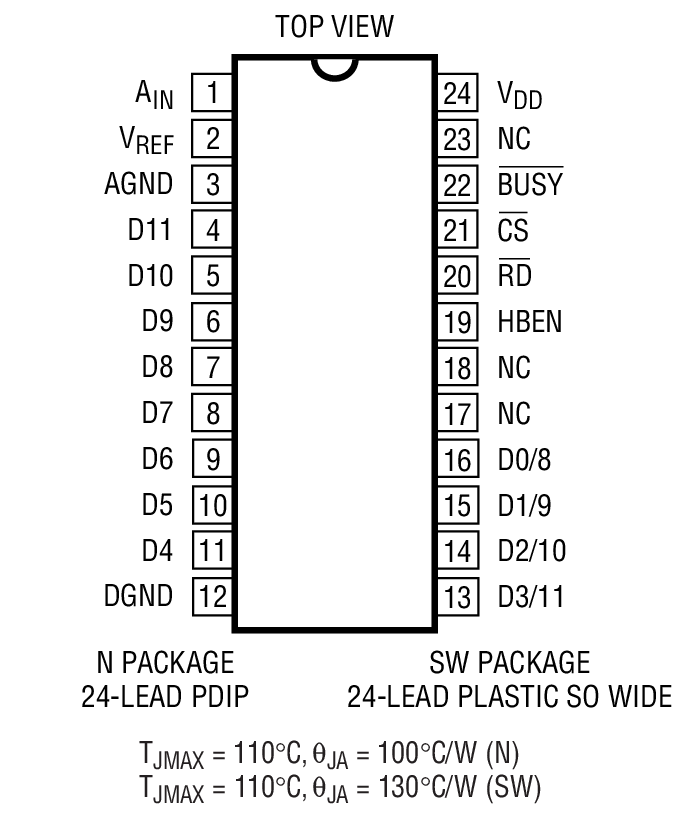

LTC1276封装图解一
LTC1276封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1276介绍

LTC1276 - LTC1276是12-Bit, 300ksps Sampling A/D Converters with Reference

LTC1276是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1276是LTC1276是12-Bit, 300ksps Sampling A/D Converters with Reference，本站介绍了LTC1276的封装应用图解、特点和优点、功能等，并给出了与LTC1276相关的LINEAR元器件型号供参考。

LTC1276 - LTC1276是12-Bit, 300ksps Sampling A/D Converters with Reference - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1276 - 12-Bit, 300ksps Sampling A/D Converters with Reference

LTC1276 - 12-Bit, 300ksps Sampling A/D Converters with Reference - Linear Technology（凌力尔特）

功能描述

The LTC1273/LTC1275/LTC1276 are 300ksps, sampling 12-bit A/D converters that draw only 75mW from single 5V or ±5V supplies. These easy-to-use devices come complete with 600ns sample-and-holds, precision references and internally trimmed clocks. Unipolar and larcon version modes provide flexibility for various cations. They are built with LTBiCMOS (TM) switched capacitor technology.

These devices have 25ppm/°C (max) internal references. The LTC1273 converts 0V to 5V unipolar inputs from a single 5V supply. The LTC1275/LTC1276 convert ±2.5V and ±5V respectively from ±5V supplies. Maximum DC specifications include ±1/2LSB INL, ±3/4LSB DNL and 25ppm/°C full scale drift over temperature. Outstanding AC performance includes 70dB S/(N + D) and 77dB THD at the Nyquist input frequency of 150kHz.

The internal clock is trimmed for 2.7μs maximum conversion time. The clock automatically synchronizes to each sample command eliminating problems with asynchronous clock noise found in competitive devices. A high speed parallel interface eases connections to FIFOs, DSPs and microprocessors.

?

特点
  • Single Supply 5V or ±5V Operation
  • 300ksps Sample Rate
  • 75mW (Typ) Power Dissipation
  • On-Chip 25ppm/°C Reference
  • Internal Synchronized Clock; No Clock Required
  • High Impedance Analog Input
  • 70dB S/(N + D) and 77dB THD at Nyquist
  • ±1/2LSB INL and ±3/4LSB DNL Max (A Grade)
  • ESD Protected On All Pins
  • 24-Pin Narrow DIP and SW Packages
  • Variety of Input Ranges:0V to 5V (LTC1273)±2.5V (LTC1275)±5V (LTC1276)
    • 应用
  • High Speed Data Acquisition
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • Audio and Telecom Processing
  • Spectrum Analysis
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1276ACN N-24 C $21.80 $17.25
    LTC1276ACN#PBF N-24 C $21.80 $17.25
    LTC1276ACSW SW-24 C $22.65 $17.90
    LTC1276ACSW#PBF SW-24 C $22.65 $17.90
    LTC1276ACSW#TR SW-24 C $18.00
    LTC1276ACSW#TRPBF SW-24 C $18.00
    LTC1276BCN N-24 C $14.65 $11.60
    LTC1276BCN#PBF N-24 C $14.65 $11.60
    LTC1276BCSW SW-24 C $16.15 $12.75
    LTC1276BCSW#PBF SW-24 C $16.15 $12.75
    LTC1276BCSW#TR SW-24 C $12.85
    LTC1276BCSW#TRPBF SW-24 C $12.85
