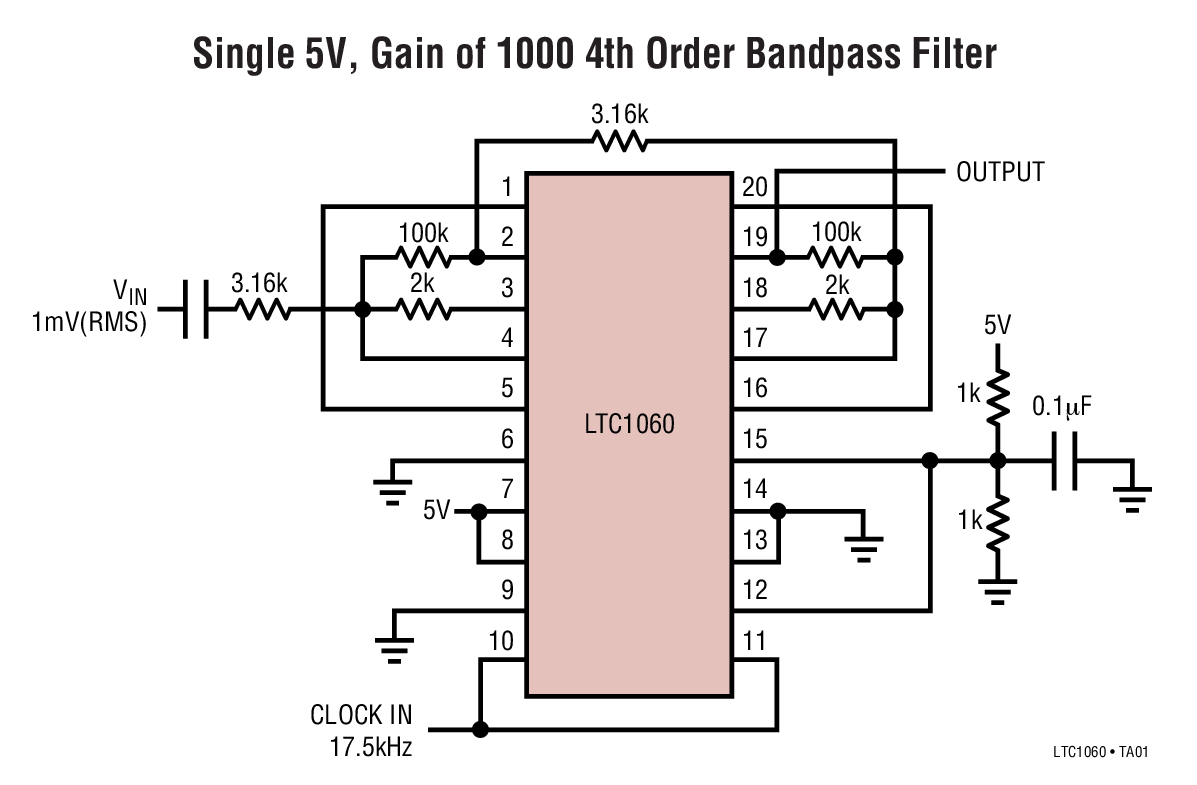

LTC1060典型应用图例一

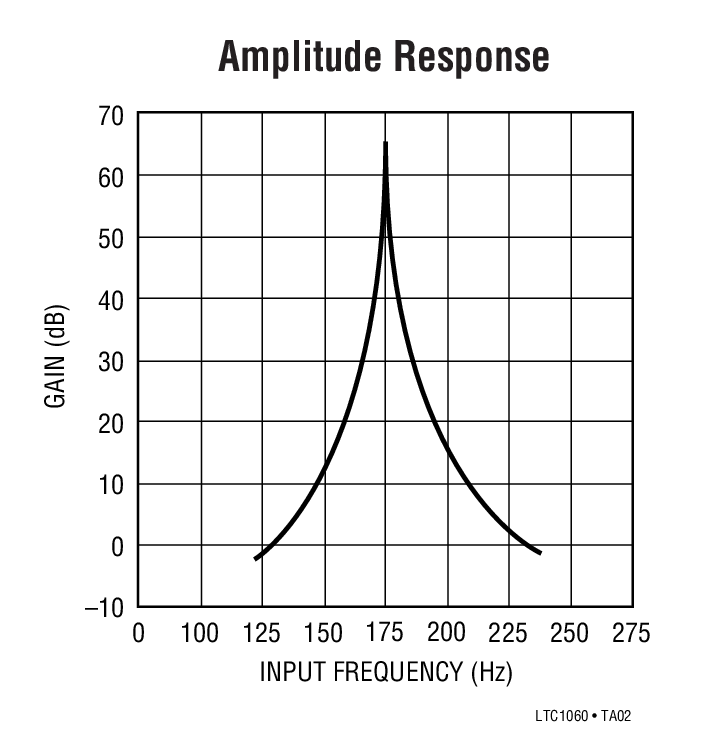

LTC1060典型应用图例二
LTC1060 - 封装图解：

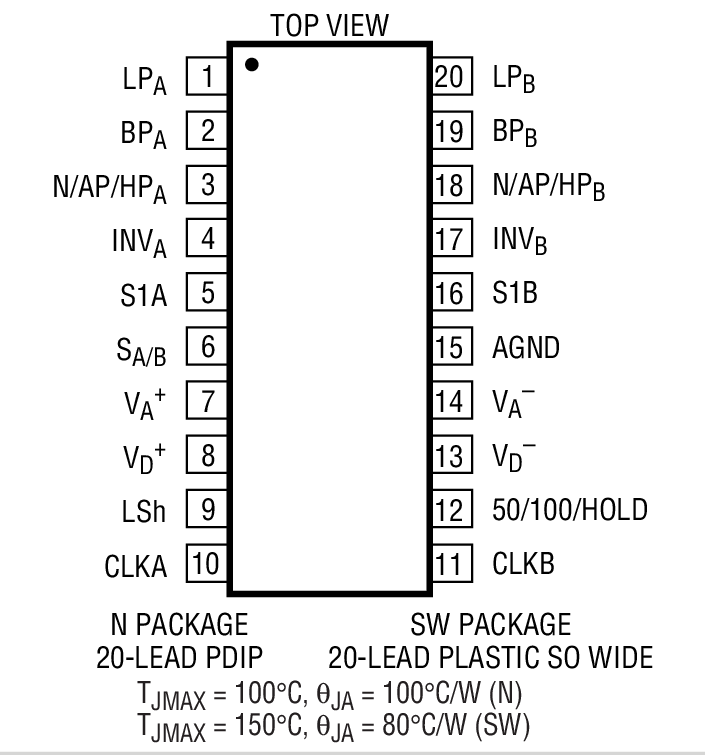

LTC1060封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1060介绍

LTC1060 - LTC1060是Universal Dual Filter Building Block

LTC1060是LINEAR凌力尔特公司的一款滤波器单元式部件产品，LTC1060是LTC1060是Universal Dual Filter Building Block，本站介绍了LTC1060的封装应用图解、特点和优点、功能等，并给出了与LTC1060相关的LINEAR元器件型号供参考。

LTC1060 - LTC1060是Universal Dual Filter Building Block - 滤波器单元式部件 - 信号调理 - 凌力尔特

LTC1060 - Universal Dual Filter Building Block

LTC1060 - Universal Dual Filter Building Block - Linear Technology（凌力尔特）

功能描述

The LTC?1060 consists of two high performance, switched capacitor filters. Each filter, together with 2 to 5 resistors, can produce various 2nd order filter functions such as lowpass, bandpass, highpass notch and allpass. The center frequency of these functions can be tuned by an external clock or by an external clock and resistor ratio. Up to 4th order full biquadratic functions can be achieved by cascading the two filter blocks. Any of the classical filter configurations (like Butterworth, Chebyshev, Bessel, Cauer)can be formed.

The LTC1060 operates with either a single or dual supply from ?2.37V to ?8V. When used with low supply (i.e. single 5V supply), the filter typically consumes 12mW and can operate with center frequencies up to 10kHz. With ±5V supply, the frequency range extends to 30kHz and very high Q values can also be obtained.

The LTC1060 is manufactured by using Linear Technology’s enhanced LTCMOS silicon gate process.Because of this, low offsets, high dynamic range, high center frequency Q product and excellent temperaturestability are obtained.

The LTC1060 is pinout compatible with MF10.

特点
  • Guaranteed Filter Specification for ?2.37V and ±5V Supply
  • Operates up to 30kHz
  • Low Power and 88dB Dynamic Range at ±2.5V Supply
  • Center Frequency Q Product up to 1.6MHz
  • Guaranteed Offset Voltages
  • Guaranteed Clock to Center Frequency Accuracy over Temperature0.3% for LTC1060A0.8% for LTC1060
  • Guaranteed Q Accuracy Over Temperature
  • Low Temperature Coefficient of Q and Center Frequency
  • Low Crosstalk, 70dB
  • Clock Inputs TTL and CMOS Compatible
    • 应用
  • Single 5V Supply Medium Frequency Filters
  • Very High Q and High Dynamic Range Bandpass, Notch Filters
  • Tracking Filters
  • Telecom Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1060ACN N-20 C $9.20 $7.65
    LTC1060ACN#PBF N-20 C $9.20 $7.65
    LTC1060CN N-20 C $4.60 $3.70
    LTC1060CN#PBF N-20 C $4.60 $3.70
    LTC1060CSW SW-20 C $5.00 $4.05
    LTC1060CSW#PBF SW-20 C $5.00 $4.05
    LTC1060CSW#TR SW-20 C $4.15
    LTC1060CSW#TRPBF SW-20 C $4.15
