当前位置:Linear公司 > > 凌力尔特芯片 >> LTC4410
LTC4410技术文档下载:
LTC4410技术文档产品手册下载
LTC4410 - 典型应用图例:

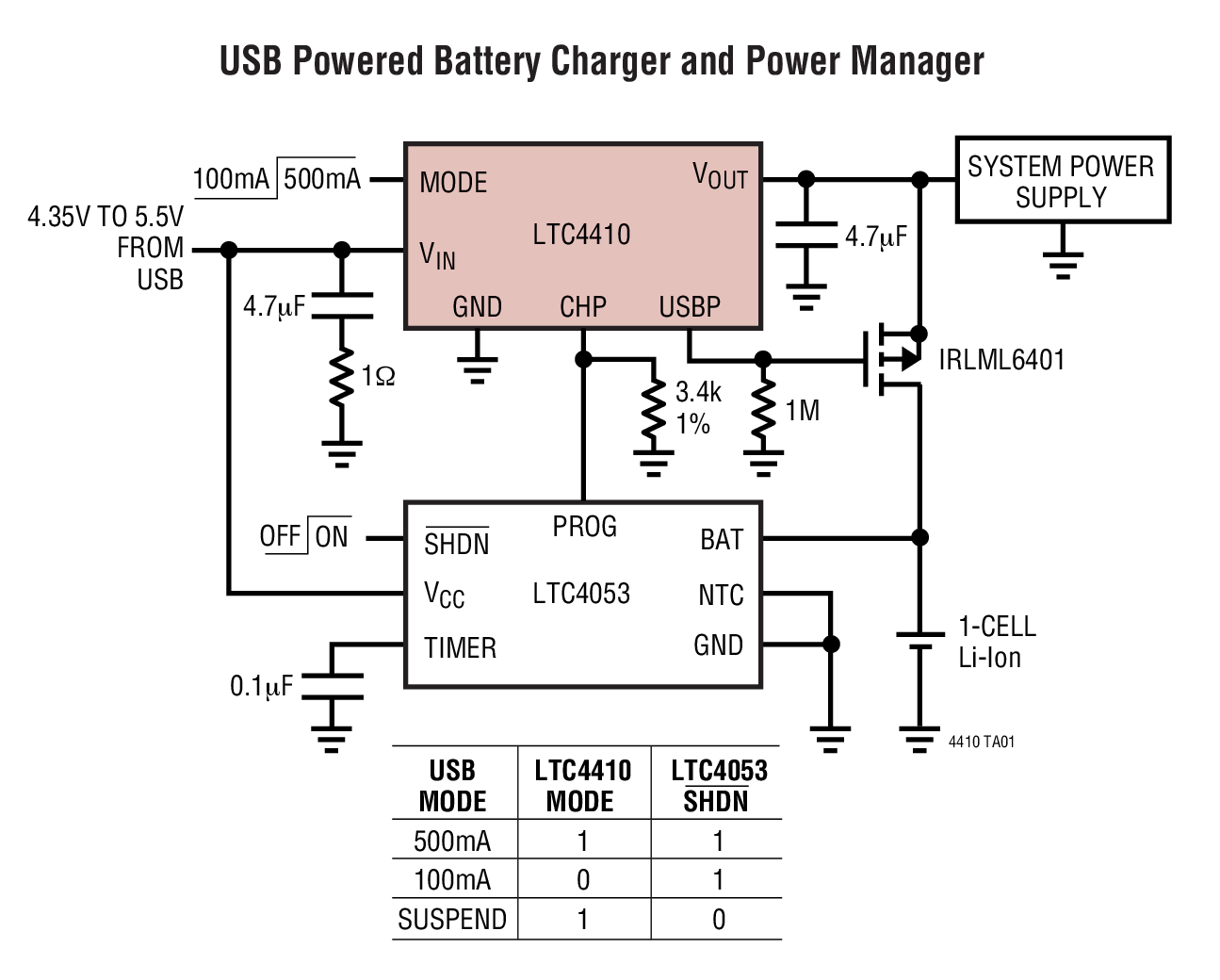

LTC4410典型应用图例一

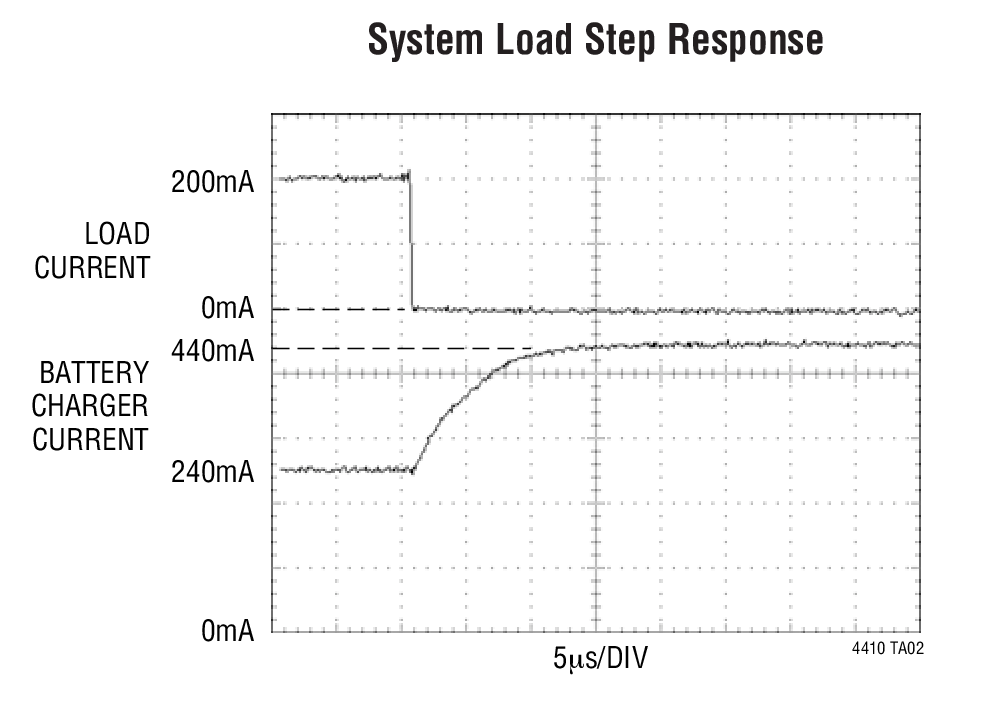

LTC4410典型应用图例二
LTC4410 - 封装图解:

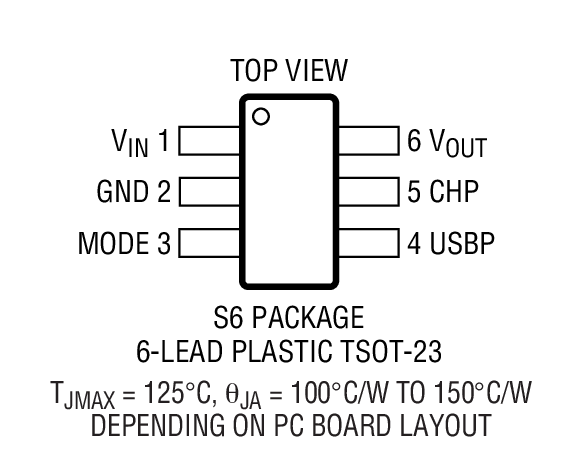

LTC4410封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC4410介绍
LTC4410 - LTC4410是USB Power Manager in ThinSOT

LTC4410是Linear公司的一款PowerPath 控制器和理想二极管产品,LTC4410是USB Power Manager in ThinSOT,本站介绍了LTC4410的封装应用图解、特点和优点、功能等,并给出了与LTC4410相关的凌力尔特元器件型号供参考。

LTC4410 - USB Power Manager in ThinSOT

LTC4410 - USB Power Manager in ThinSOT - Linear Technology(凌力尔特)

功能描述

The LTC4410 enables simultaneous battery charging and operation of portable USB 1.0 and 2.0 compliant devices while they are connected to a USB port. As the USB peripheral load increases, the LTC4410 proportionally reduces the battery charge current to keep the total current less than 500mA or 100mA, depending on the state of the MODE pin.

The LTC4410 includes a USB present output that drives an external P-channel MOSFET to disconnect the battery from the USB peripheral when the USB power is valid. This allows device operation when connected to the USB port, even when the battery is deeply discharged.

Other features include reverse current blocking, thermal shutdown and low quiescent current (80µA in 500mA MODE) that is compliant with USB Suspend Mode.

The LTC4410 is available in the low profile (1mm) SOT-23 (ThinSOT™) package.

特点
  • Manages Total Power Between a USB Peripheral and Battery Charger
  • Minimal Voltage Drop (100mV at 500mA)
  • Ultralow Battery Drain: 1µA
  • Reverse Current Blocking Diode not Required
  • Undervoltage Lockout
  • Very Few External Components
  • Compatible with Several LTC Linear Battery Chargers
  • Overtemperature Protected
  • Dual Battery Charge Priority Management
  • Low Profile (1mm) SOT-23 Package
  • 应用
  • Cellular Phones
  • PDAs
  • Digital Cameras
  • MP3 Players
  • Battery Backup Systems
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC4410ES6 SOT-23 E $1.90
    LTC4410ES6#PBF SOT-23 E $1.90
    LTC4410ES6#TR SOT-23 E $1.90 $1.26
    LTC4410ES6#TRM SOT-23 E $1.90 $1.28
    LTC4410ES6#TRMPBF SOT-23 E $1.90 $1.28
    LTC4410ES6#TRPBF SOT-23 E $1.90 $1.26
