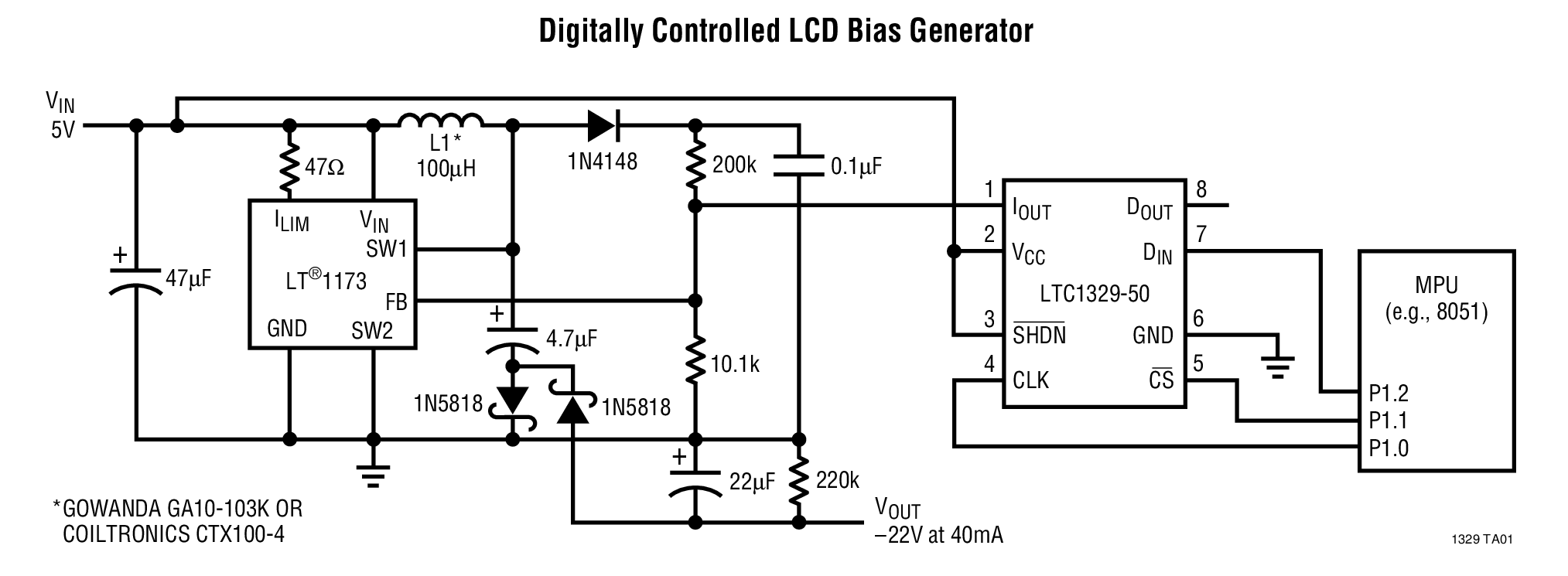

LTC1329A-50 - 典型应用图例:
LTC1329A-50典型应用图例一

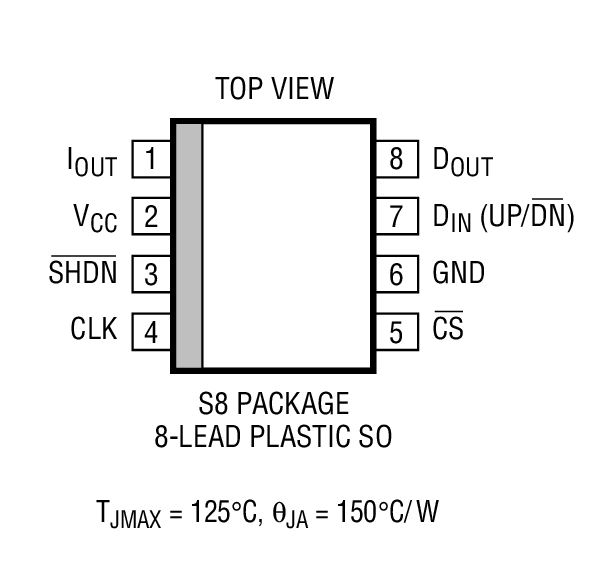

LTC1329A-50 - 封装图解:
LTC1329A-50封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1329A-50介绍
LTC1329A-50 - LTC1329A-50是Micropower 8-Bit Current Output D/A Converter

LTC1329A-50是Linear公司的一款特别功能 DAC产品,LTC1329A-50是Micropower 8-Bit Current Output D/A Converter,本站介绍了LTC1329A-50的封装应用图解、特点和优点、功能等,并给出了与LTC1329A-50相关的凌力尔特元器件型号供参考。

LTC1329A-50 - Micropower 8-Bit Current Output D/A Converter

LTC1329-10 - Micropower 8-Bit Current Output D/A Converter - Linear Technology(凌力尔特)

功能描述
The LTC1329-10/LTC1329-50 are micropower 8-bit current output D/A converters (DACs) with an output range of 0µA to 10µA and 0µA to 50µA for the -10 and -50 versions respectively. In 3.3V or 5V systems, the DAC current output can be biased from –17V to 2V or –17V to 2.5V respectively. The supply current is only 0.2µA in Shutdown. The LTC1329 can communicate with external circuitry by using one of three interface modes: standard SPI mode and two pulse modes. Upon power-up, the internal counter resets to 80H, the DAC output assumes mid-range and the chip is configured to SPI or pulse mode depending on the signal level at CS. In SPI mode, the system MPU can serially transfer 8-bit data to and from the LTC1329. In pulse mode, the upper six bits of the DAC output can be programmed for increment-only (1-wire interface) or increment/decrement (2-wire interface) operation depending on the signal level at DIN. In increment-only operation, when counter increases beyond full scale, the counter rolls over and sets the DAC to zero. In this way, a single pulse applied to CLK increases the upper six bits of the counter by one step and 63 pulses decrease them by one step. In increment/decrement, the counter stops incrementing at full scale and decrementing at zero and will not roll over. LTC1329 is available in 8-pin PDIP and SO packages.

特点
  • Precision 10µA ± 2.5% or 50µA ± 2.5% Full Scale DAC Output Current
  • Wide Output Voltage DC Compliance: –17V to 2.5V
  • Wide Supply Range: 2.5V ­ VCC ­ 6.5V
  • Supply Current in Shutdown: 0.2µA
  • Low Supply Current: 55µA for -10 Version, 65µA for -50 Version
  • Available in 8-Pin SO and PDIP
  • Triple ModeTM Interface Modes
  • Can Read Back the 8-Bit DAC Value in SPI Mode
  • DAC Powers Up at Mid-Range
  • 应用
  • LCD Contrast Control
  • Backlight Brightness Control
  • Power Supply Voltage Adjustment
  • Battery Charger Current/Voltage Adjustment
  • GaAs FET Bias Adjustment
  • Trimmer Pot Elimination
  • Low Power and Battery-Operated Systems
  • Handheld or Portable Instruments
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1329ACS8-50 SO-8 C $6.35 $5.10
    LTC1329ACS8-50#PBF SO-8 C $6.35 $5.10
    LTC1329ACS8-50#TR SO-8 C $5.16
    LTC1329ACS8-50#TRPBF SO-8 C $5.16
    LTC1329CS8-10 SO-8 C $3.15 $2.55
    LTC1329CS8-10#PBF SO-8 C $3.15 $2.55
    LTC1329CS8-10#TR SO-8 C $2.61
    LTC1329CS8-10#TRPBF SO-8 C $2.61
    LTC1329CS8-50 SO-8 C $3.15 $2.55
    LTC1329CS8-50#PBF SO-8 C $3.15 $2.55
    LTC1329CS8-50#TR SO-8 C $2.61
    LTC1329CS8-50#TRPBF SO-8 C $2.61
    LTC1329IS8-50 SO-8 I $3.65 $3.05
    LTC1329IS8-50#PBF SO-8 I $3.65 $3.05
    LTC1329IS8-50#TR SO-8 I $3.11
    LTC1329IS8-50#TRPBF SO-8 I $3.11
