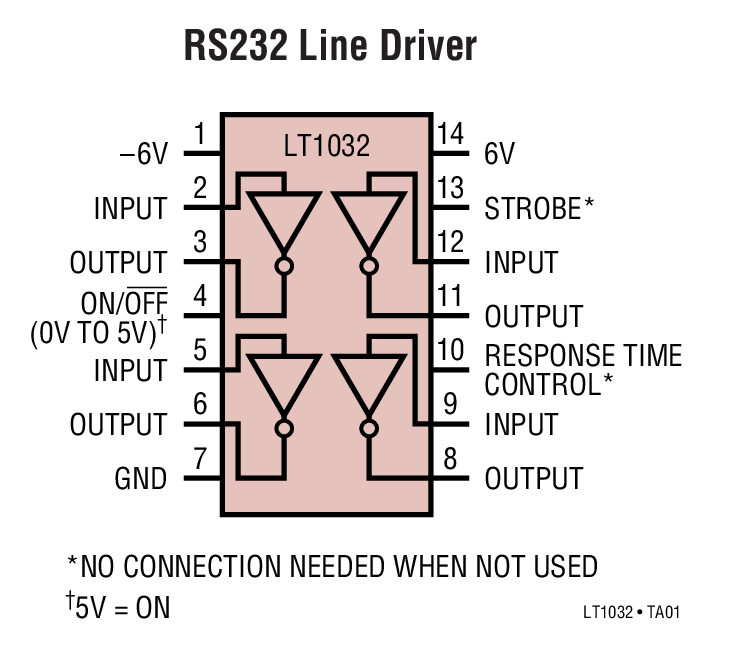

LT1032典型应用图例一

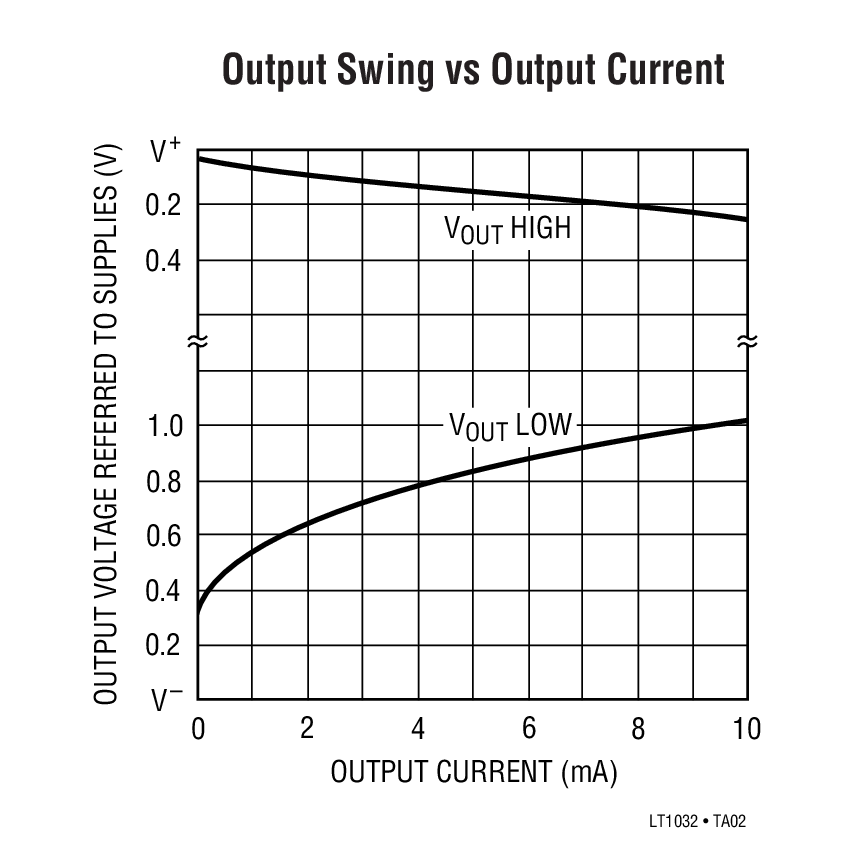

LT1032典型应用图例二
LT1032 - 封装图解:
LT1032封装图解一

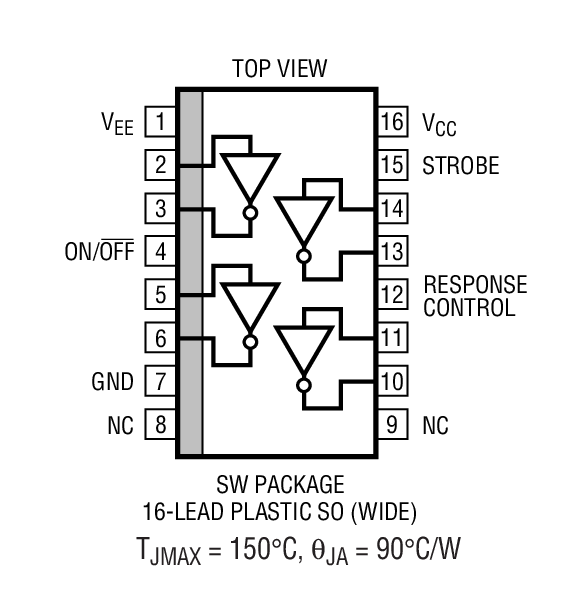

LT1032封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1032介绍
LT1032 - LT1032是Quad Low Power Line Driver

LT1032是Linear公司的一款RS232 / RS562 收发器产品,LT1032是Quad Low Power Line Driver,本站介绍了LT1032的封装应用图解、特点和优点、功能等,并给出了与LT1032相关的凌力尔特元器件型号供参考。

LT1032 - Quad Low Power Line Driver

LT1032 - Quad Low Power Line Driver - Linear Technology(凌力尔特)

功能描述

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Linear Technology Are Now Obsolete

The LT1032 is a RS232 and RS423 line driver that operates over a ±5V to ±15V range on low supply current and can be shut down to zero supply current. Outputs are fully protected from externally applied voltages of ±30V by both current and thermal limiting. Since the output swings to within 200mV of the positive supply and 600mV of the negative supply, power supply needs are minimized.

Also included is a strobe pin to force all outputs low independent of input or shutdown conditions. Further, slew rate can be adjusted with a resistor connected to the supply.

A major advantage of the LT1032 is the high impedance output state when off or powered down.

For applications requiring dual or triple RS232 driver/ receiver devices, see the LT1180A (dual), LT1039A (triple) or the LT1130A data sheets.

特点
  • Low Operating Voltage: ±5V to ±15V
  • 500µA Supply Current
  • Zero Supply Current when Shut Down
  • Outputs Can Be Driven ±30V
  • Thermal Limiting
  • Output “Open” when Off (Three-State)
  • 10mA Output Drive
  • Pinout Similar to 1488
  • 应用
  • RS232
  • Power Supply Inverter
  • Micropower Interface
  • Level Translator
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1032CN N-14 C $3.00 $2.45
    LT1032CN#PBF N-14 C $3.00 $2.45
    LT1032CSW SW-16 C $3.08 $2.50
    LT1032CSW#PBF SW-16 C $3.08 $2.50
    LT1032CSW#TR SW-16 C $2.56
    LT1032CSW#TRPBF SW-16 C $2.56
    LT1032IN N-14 I $4.58 $3.75
    LT1032IN#PBF N-14 I $4.58 $3.75
    LT1032ISW SW-16 I $3.65 $2.95
    LT1032ISW#PBF SW-16 I $3.65 $2.95
    LT1032ISW#TR SW-16 I $3.01
    LT1032ISW#TRPBF SW-16 I $3.01
